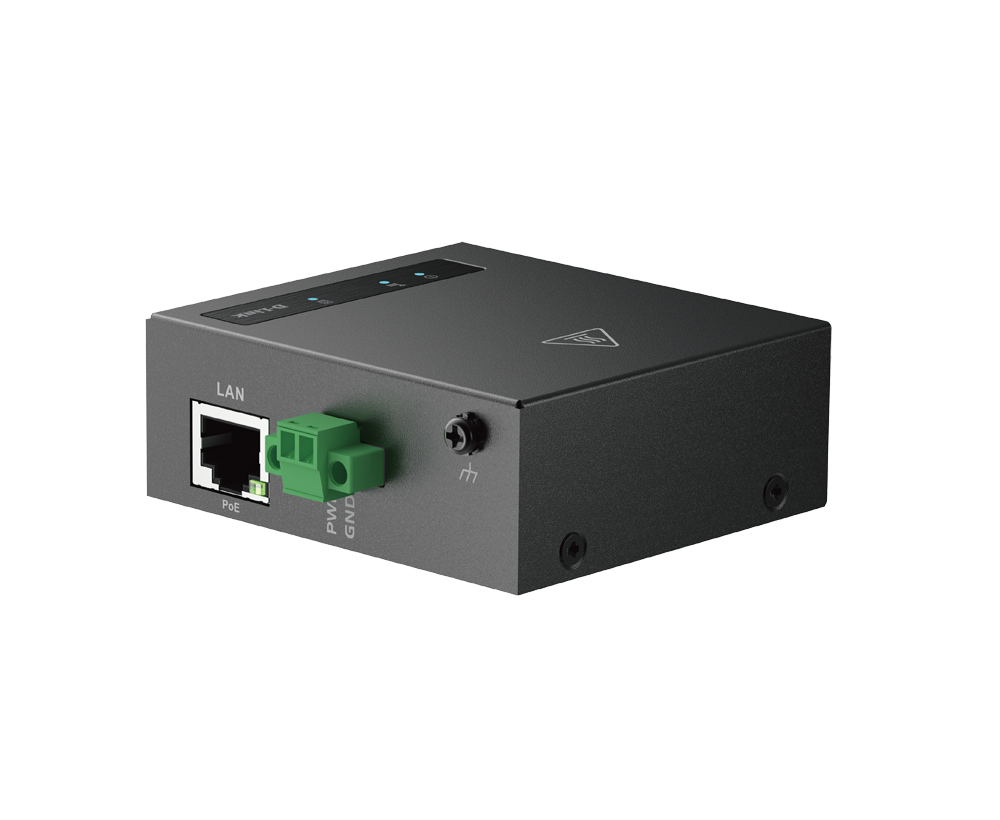

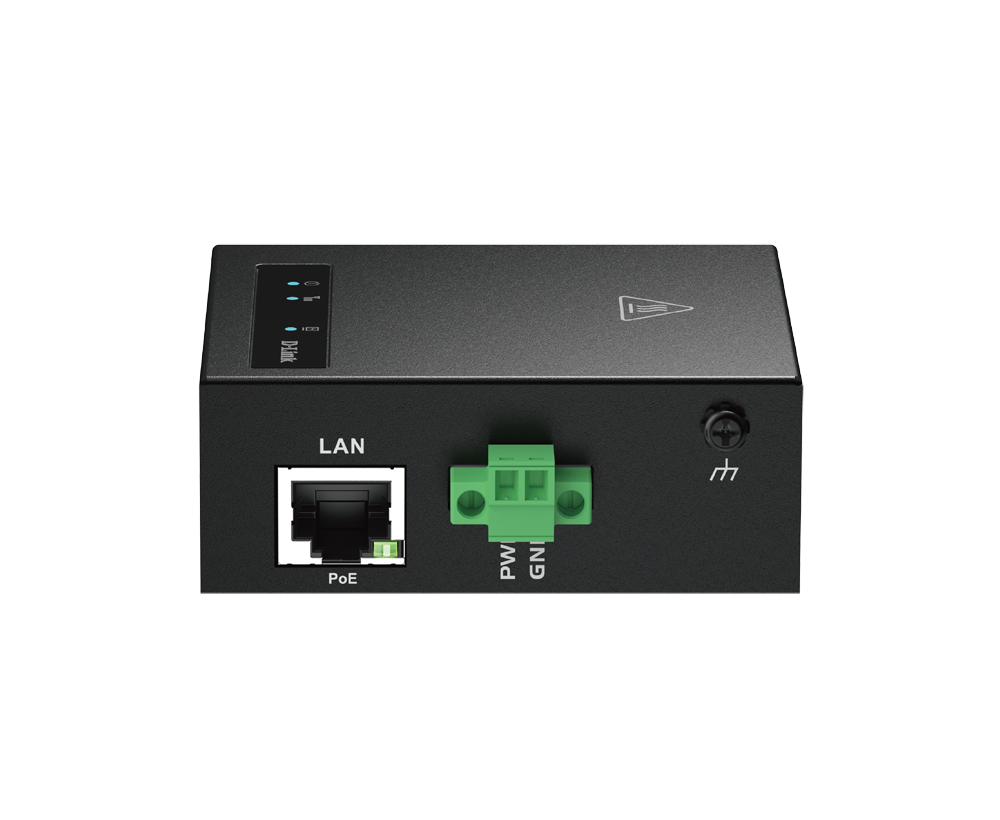

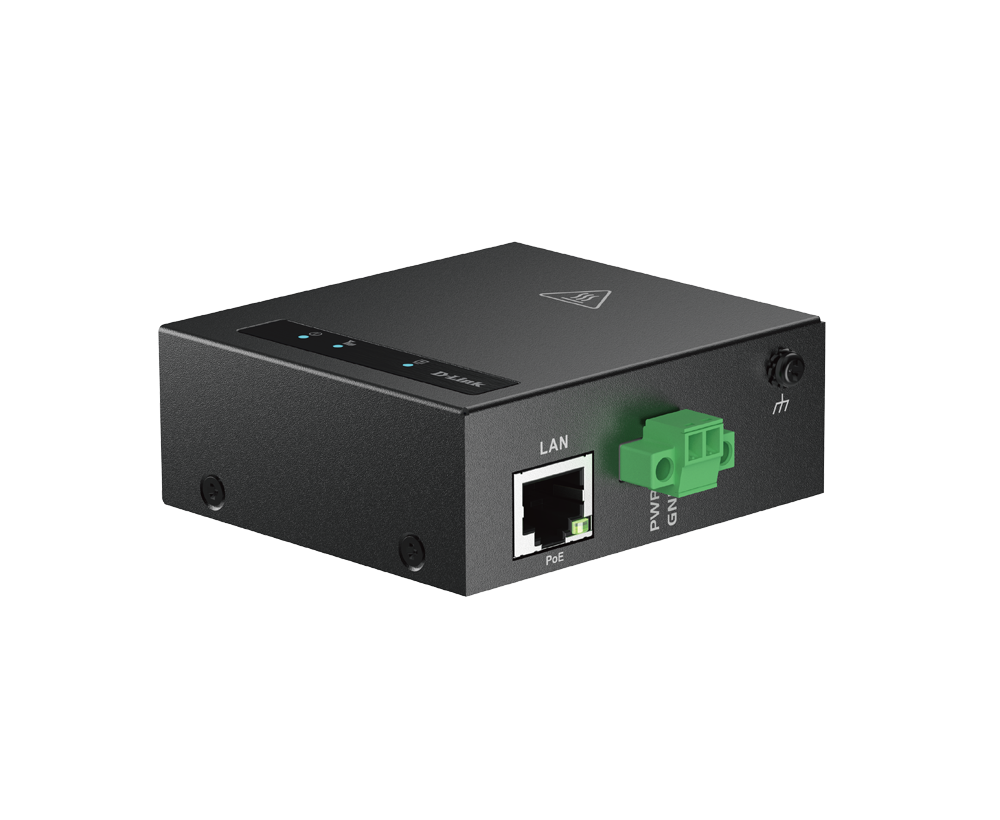

4G M2M PoE Modem
DWM-311-TP
- Estado del producto (Revision AX_v1.11): Activo
- Transfer speeds of up to 150 Mbps1 for fast internet access and data transfer
- 1 x 10/100 Fast Ethernet PoE LAN port for PoE-enabled connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- DIN-rail mounting allows for optimal device placement
Lista de puntos de venta
Plug & Play
Simplifica la configuración, mejora la seguridad y garantiza un rendimiento fiable para aplicaciones críticas.
PoE Connectivity (PSE)
Fast Ethernet PoE LAN port to deliver both data and power to a PD device for M2M various application.
Gestión de eventos
Facilite la gestión remota a través de SMS, minimizando la exposición del personal a entornos peligrosos.
Protección y fiabilidad de nivel industrial
La carcasa de acero galvanizado resistente a la corrosión y el diseño robusto garantizan un funcionamiento fiable en entornos críticos.
Anti hackers:
Proteja la transmisión de datos confidenciales a través de túneles VPN seguros para evitar el acceso no autorizado a la red.
Gestión centralizada
Gestione dispositivos cómodamente desde cualquier lugar a través de la plataforma de gestión D-ECS.

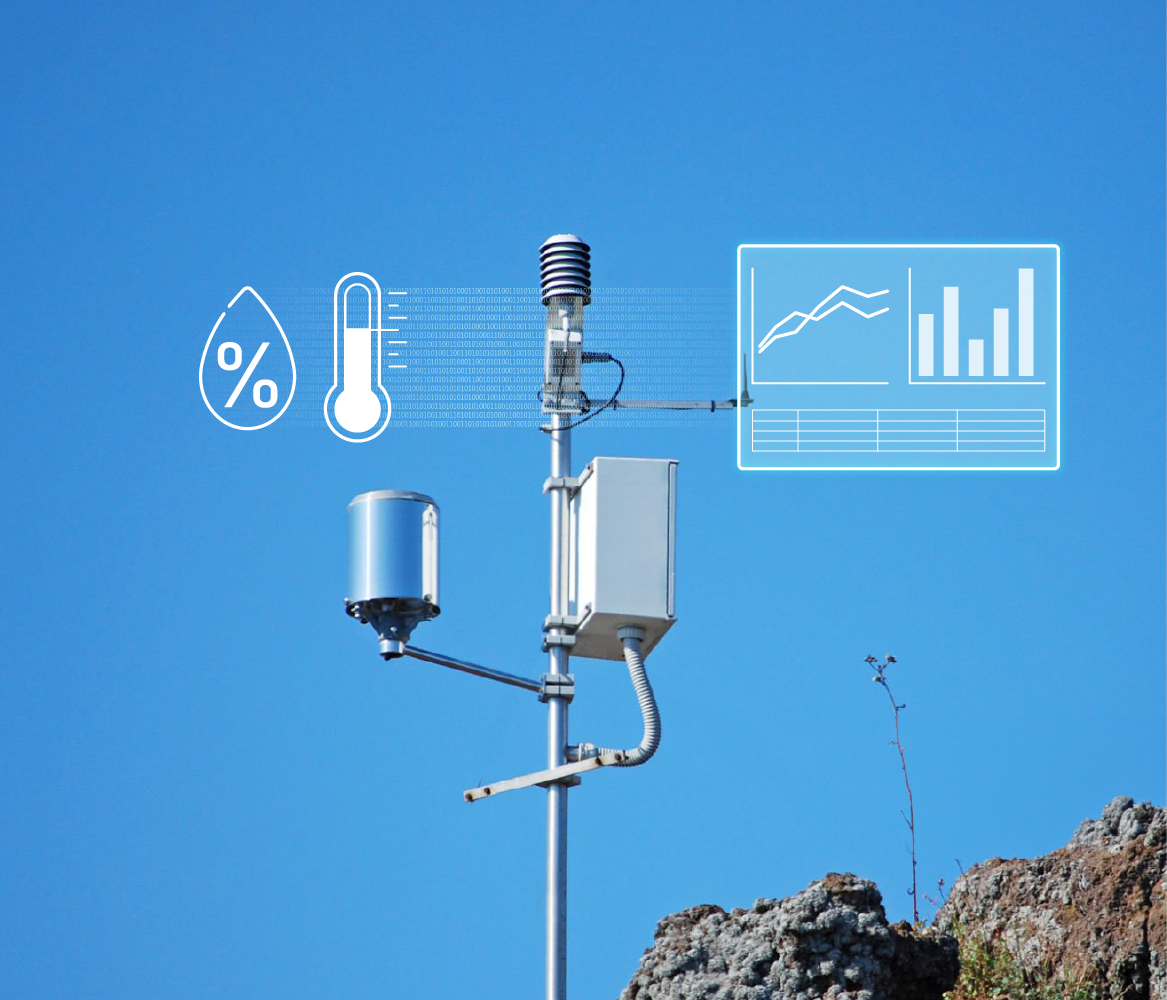

Empower Weather Monitoring with 4G
The DWM-311-TP 4G PoE modem harnesses the power of 4G to deliver seamless data transfer, ensuring dependable connectivity. Featuring dual SIM slots with failover capabilities, it provides uninterrupted service even if one network is down. Ideal for environmental sensing in a wide range of application fields, this plug-and-play modem simplifies installation for quick deployment. The DWM-311-TP offers reliable connectivity for real-time monitoring of temperature, humidity, and meteorological data.

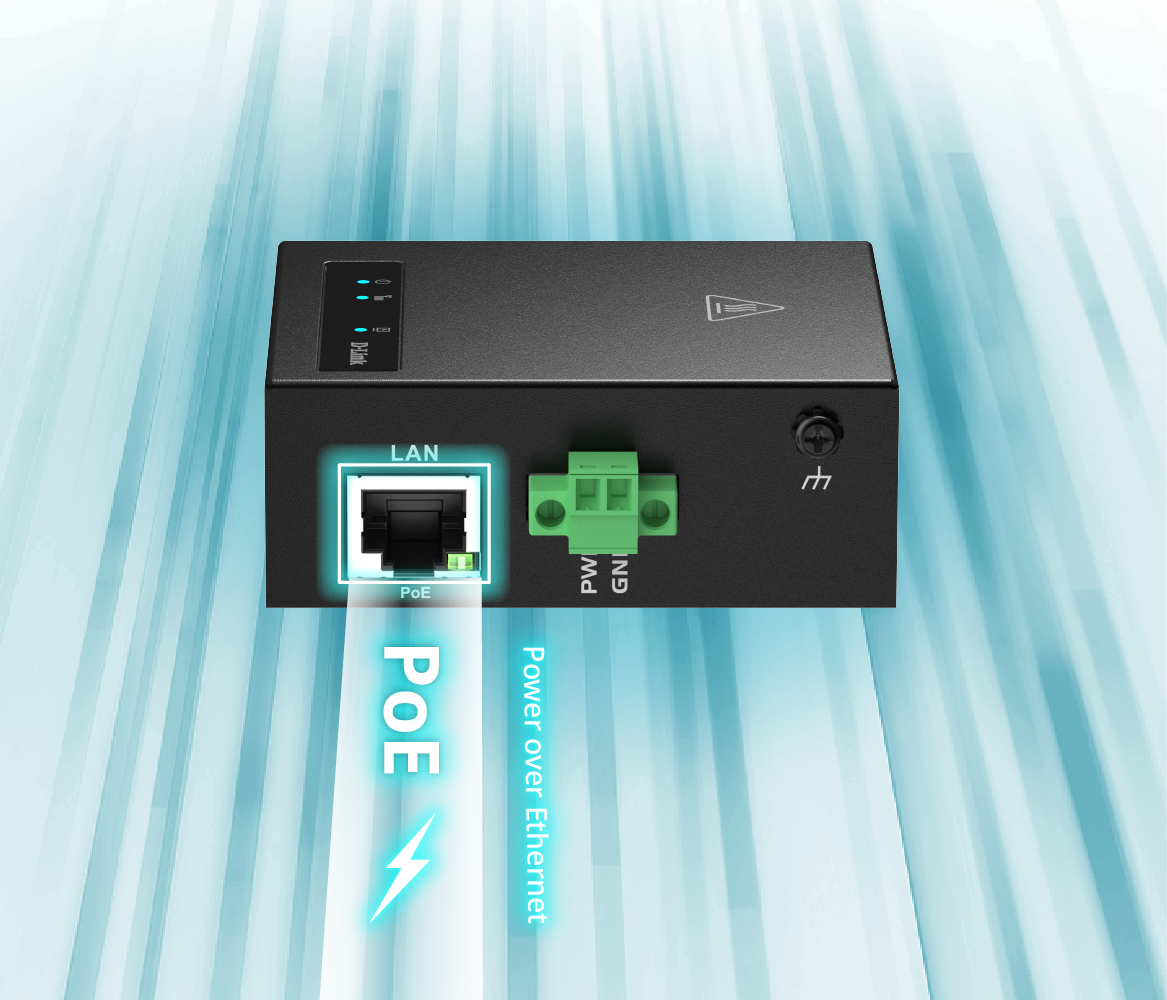

Empower Your M2M Network with PoE+
The DWM PoE Modem Series, featuring 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through a single Ethernet cable. As a true PSE (Power Sourcing Equipment) solution, it streamlines M2M communication for IoT applications, reducing the need for separate electrical infrastructure and lowering installation costs. Ideal for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers flexible device placement without extra wiring. Its PD-Alive feature minimizes downtime, ensuring continuous operation, while PoE scheduling optimizes power use and cuts energy costs.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-311-TP is ready for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting options allow the DWM-311-TP to be mounted virtually anywhere to optimize signal quality.
The DWM-311-TP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.

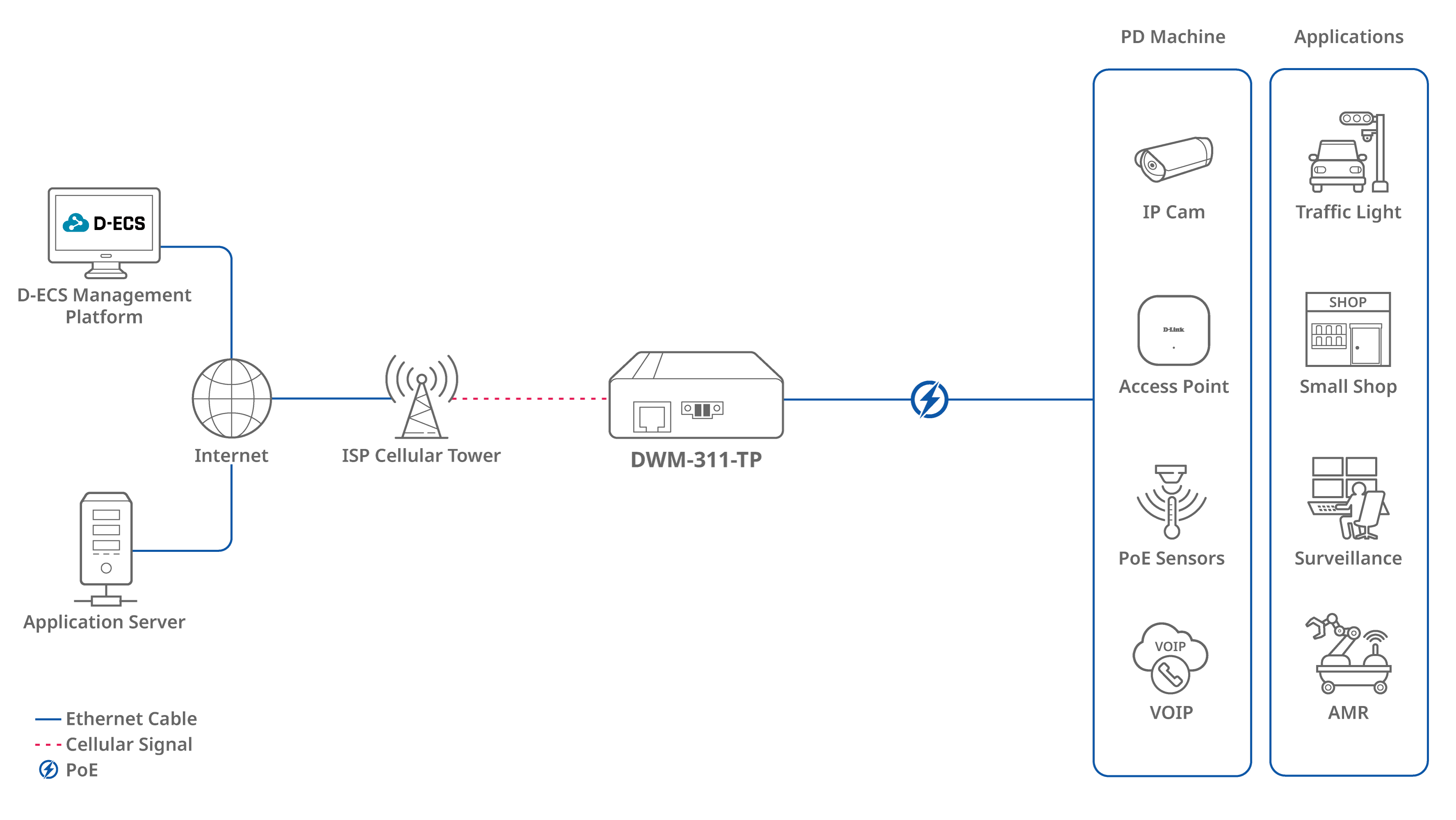

Seamless 4G PoE Connectivity for Efficient Operations
The DWM-311-TP 4G M2M PoE Modem delivers reliable 4G LTE and Ethernet connectivity for PoE devices, ensuring plug-and-play access. Its Fast Ethernet port with 802.3af/at PoE simplifies powering IP cameras, access points, PoE sensors, and VoIP systems. The auto-reboot feature guarantees uninterrupted operation by restarting unresponsive devices. Ideal for traffic systems, small shop, surveillance setups, and Autonomous Mobile Robots (AMR), the DWM-311-TP offers secure, scalable connectivity with easy web-based configuration.
Versatile Applications
Surveillance
Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.
Access Point
Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.
IoT Sensor
Power and connect IoT sensors in remote locations, enabling real-time data monitoring and transfer over secure 4G/5G networks.
Smart Pole
Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.
Otros usuarios también vieron
Specs
|
Cellular
|
4G LTE SIM x 1 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
1 x LAN |
|
Ethernet Speed
|
10/100 Mbps Port |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
Bridge DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
1 x FE (802.3at PSE) |
|
Power Input
|
DC 48V-57V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
VPN
|
OpenVPN |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
