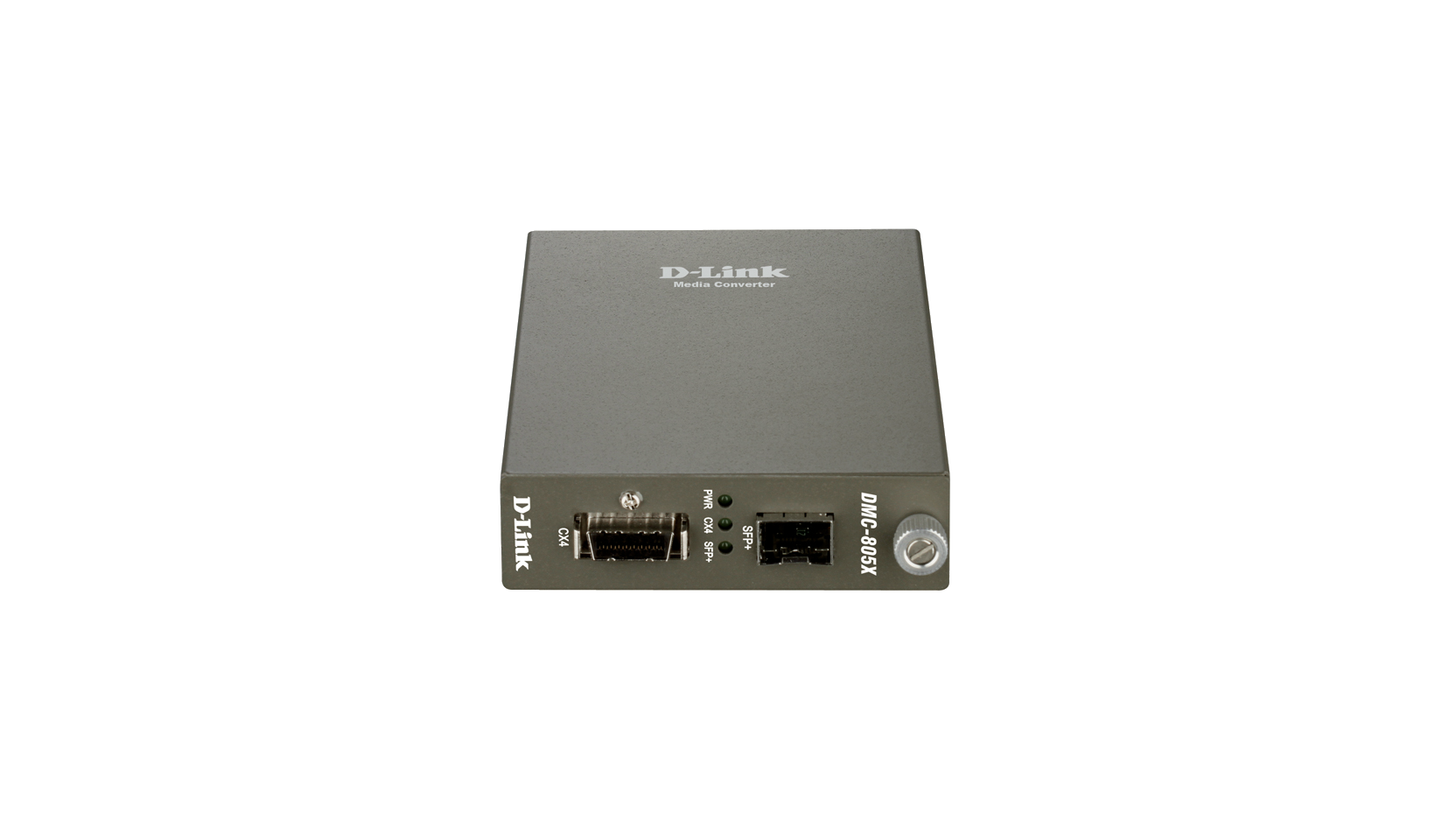

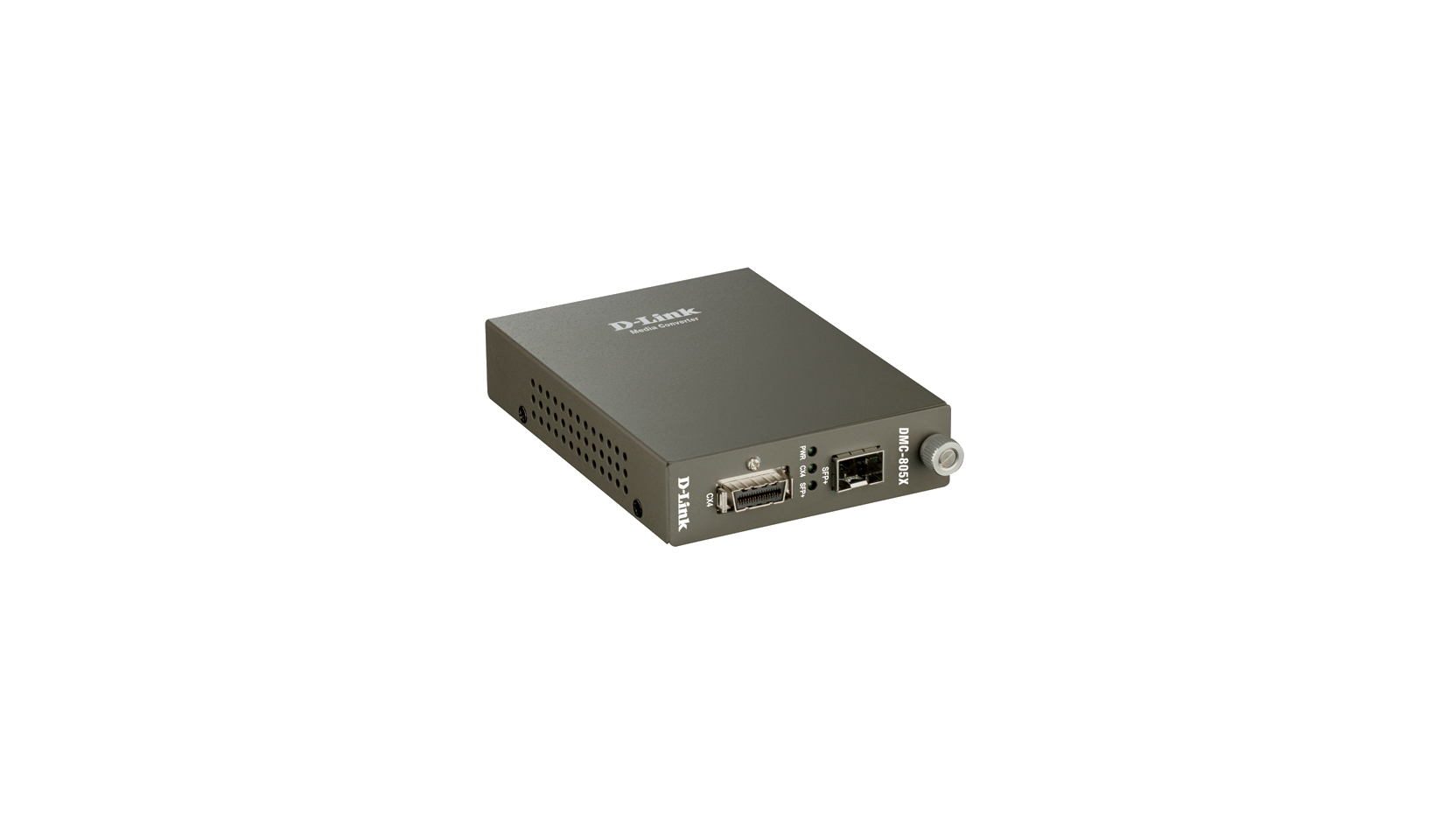

The DMC-805X 10G CX4 to 10G SFP+ Media Converter converts 10G CX4 signals to 10G SFP+ fibre signals. The DMC-805X comes with an SFP+ slot for user-selectable fibre transceivers and extends the network connection to various lengths depending on SFP+ transceiver capability. The DMC-805X is a high-performance 10G media converter which provides flexible distance extension for servers equipped with CX4 NICs or older 10G switches with 10G CX4 ports. The DMC-805X can be used as a standalone converter or installed in a standard rack-mount chassis (DMC-1000). A management option is available for the DMC-805X installed in a chassis (DMC-1000).
Specs
Media Converter Features
- One-channel media conversion between 10 Gbps SFP+ and 10 Gbps CX4
- Supports various fibre distances using different 802.3ae/aq-compliant SFP+ transceivers
- Supports link pass through
- Sliding switch for configuring fixed half/full duplex modes
- Sliding switch for setting to Forced mode or Auto-negotiation
- Sliding switch for setting the speed
- Sliding switch for setting the LLCF, LLR function
- Store-and-forward mechanism
- Back-pressure & IEEE 802.3x compliant flow control
- Full wire-speed forwarding rate
- Front panel status LEDs
- Can be used as a standalone device or installed in a rack-mount chassis (DMC-1000)
- Manageable through user-friendly Web
- Graphical User Interface (GUI)
Physical & Environmental
LEDs
- Power, Link/Act/Speed
AC Input
- 3.4 watts
Maximum Power Consumption
- Power On (Standby) DC input: 1.63 watts
- AC input: 2.26 watts
Dimensions
- 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 inches)
Weight
- 0.29 kg (0.64 pounds)
Operating Temperature
- 0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature
- -10 to 70 ˚C (14 to 158 ˚F)
Operating Humidity
- 10% to 90% non-condensing
EMI
- CE Class A, LVD
Support
Versión | Descripción | Fecha | |
---|---|---|---|
CE doc 3.00 Revision A1 | CE document | 18/05/2016 | Descargar |
