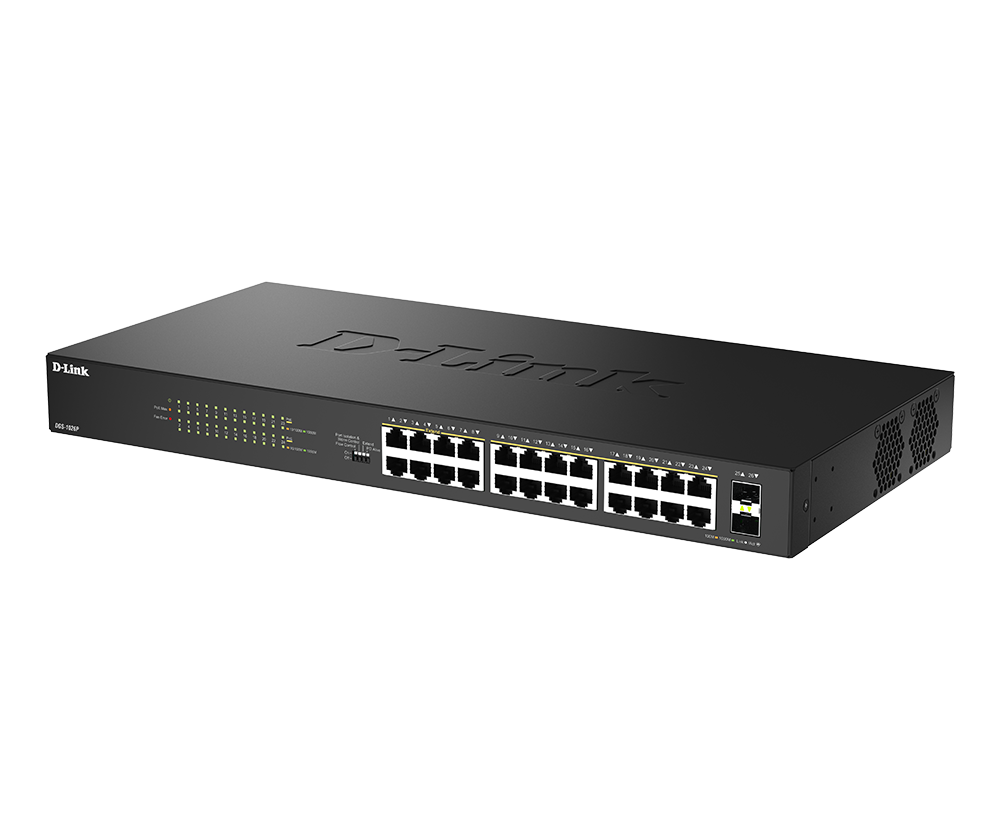

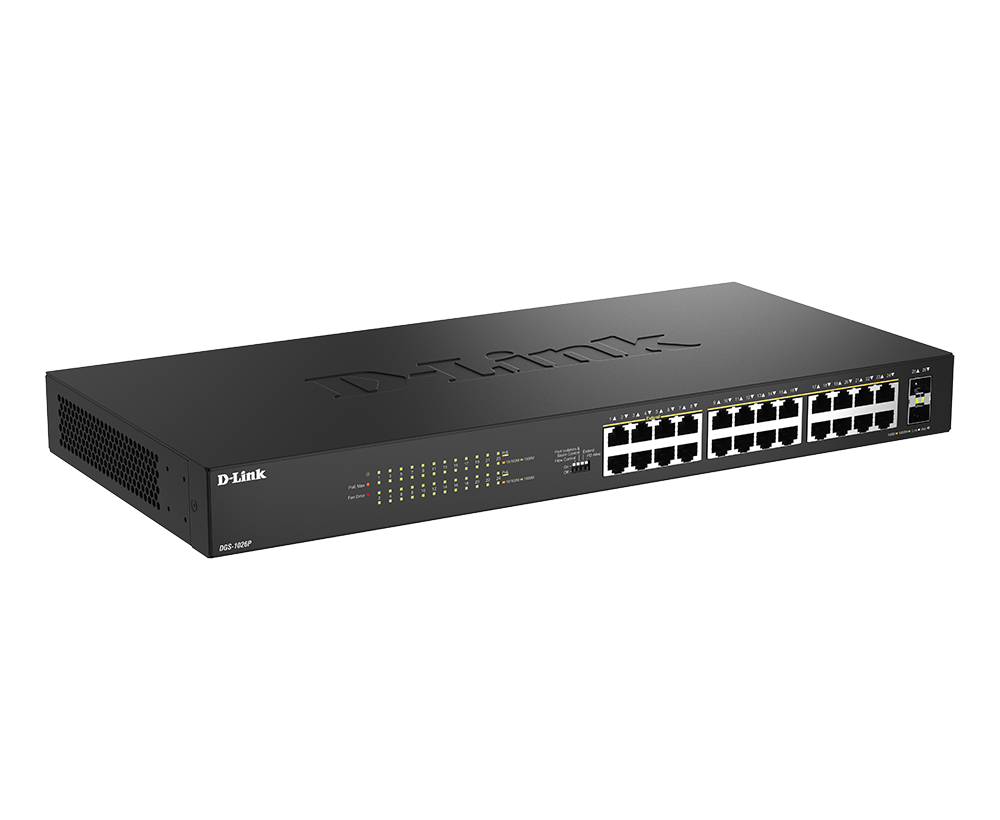

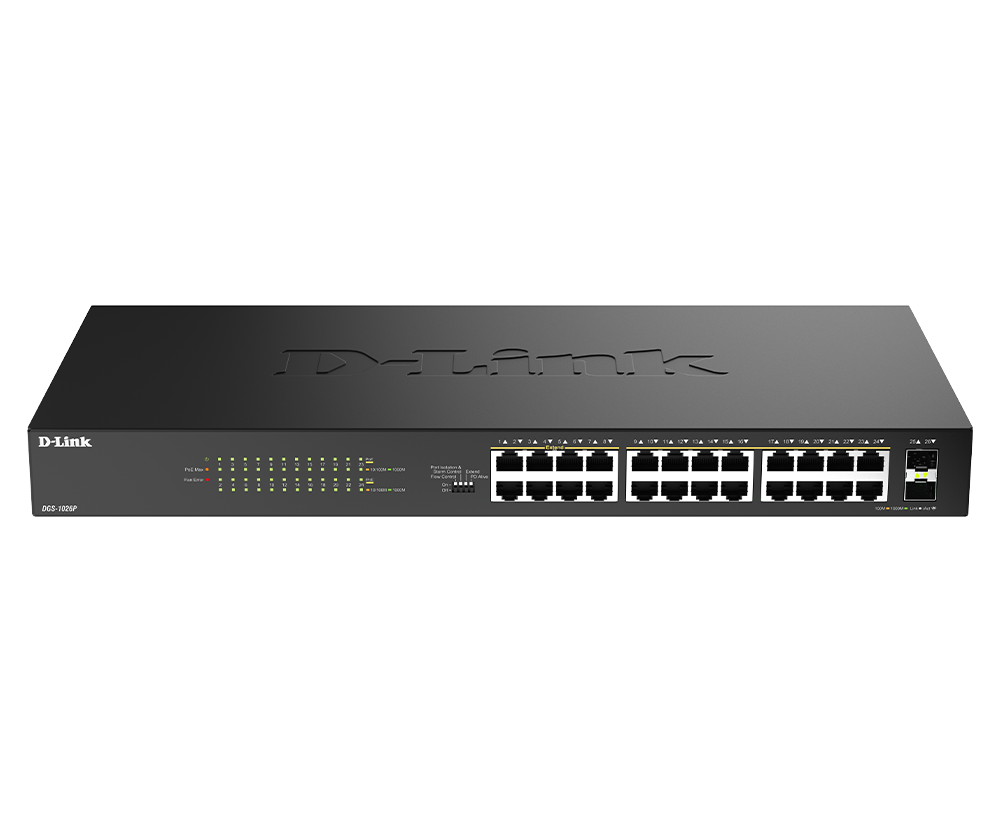

26-Port Gigabit Unmanaged PoE Switch
DGS-1026P
- Product Status (B1 v1.00): Live
- 24 GE PoE ports enable faster data rates
- 2 1G SFP ports transmit data beyond 100 m
- IEEE 802.3af/at (up to 30 W/port, 240 W budget)
- Convenient DIP switch for onsite configuration
- IEEE 802.3x flow control prevents packet loss
- Port isolation/storm control enhance security
- Extend mode extends PoE/data up to 250 m
- PD-alive reboots unresponsive powered devices
- Real-time PoE usage and status monitoring
- QoS prioritizes important network services
Where to buy
User Benefits
Plug and Play
Easy installation with no configuration required
IEEE 802.3af/at PoE
Up to 30 W/port and 240 W total power budget
Optimized Performance
QoS prioritizes traffic, enhancing user experience
DIP Switch Capability
DIP switch enables fast and easy onsite configuration
SFP Ports
SFP uplink ports extend transmission beyond 100 m
Smart Fan Design
5-speed fan auto-adjusts to device temperature

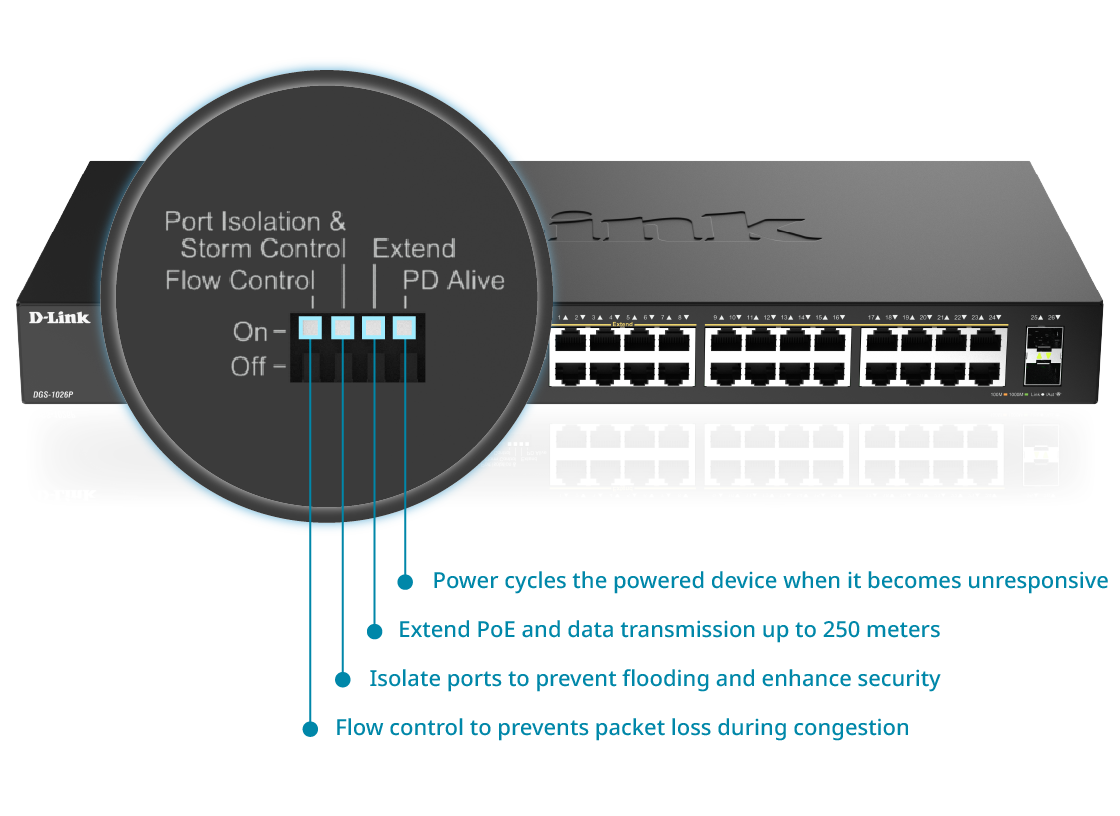

Advanced DIP Switch Convenience
The DGS-1026P allows the toggling of advanced features at the flick of a DIP switch to adapt to network changes and application requirements. Make immediate onsite adjustments to flow control, port isolation and storm control, PD-alive, and extend mode settings without having to access complicated web UI settings, eliminating the need for costly technicians and messy configurations.

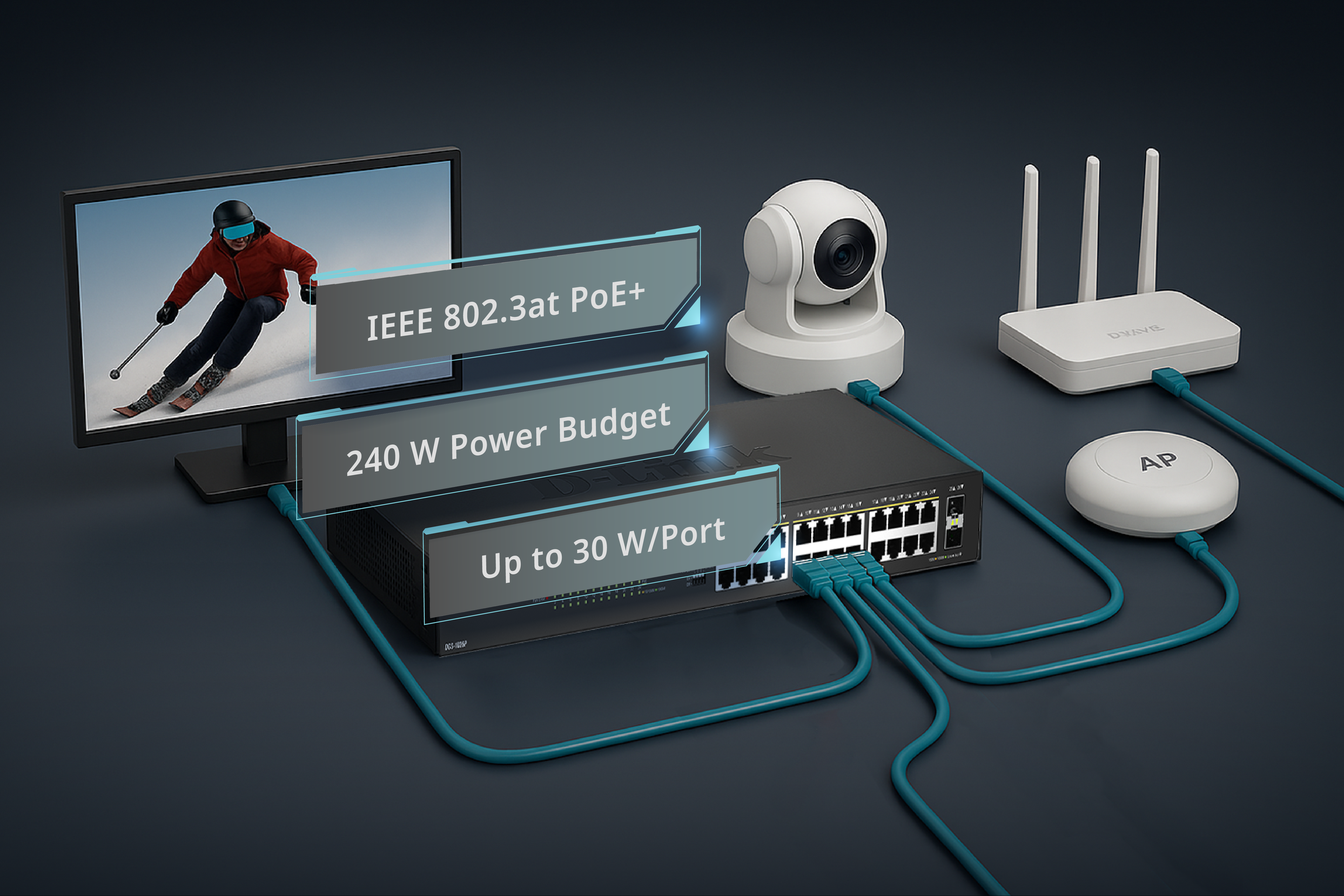

Faster Setups and Lower Costs
The plug-and-play DGS-1026P with Gigabit PoE+ (IEEE 802.3at) ports delivers up to 30 W per port with a 240 W total power budget, connecting PoE-enabled devices without additional power supplies. Ideal for access points, cameras, displays, and much more. The DGS-1026P simplifies installation, reduces cabling costs, and features a 5-speed smart fan to enhance energy efficiency.

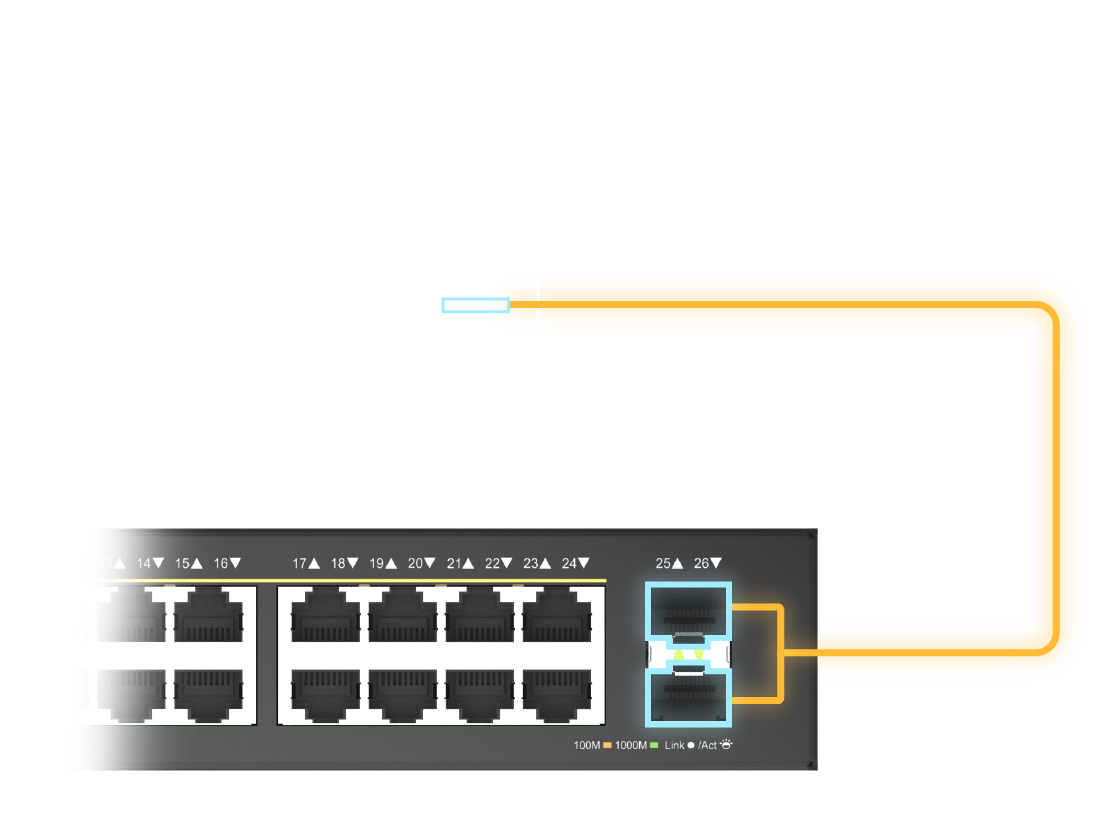

Extend Uplink Beyond 100 m via SFP Ports
The DGS-1026P features 2 SFP uplink ports capable of extending Gigabit transmission beyond the 100-meter copper Ethernet limitation to aggregation/core layers, offering both network flexibility and scalability to meet various needs of network application requirements.

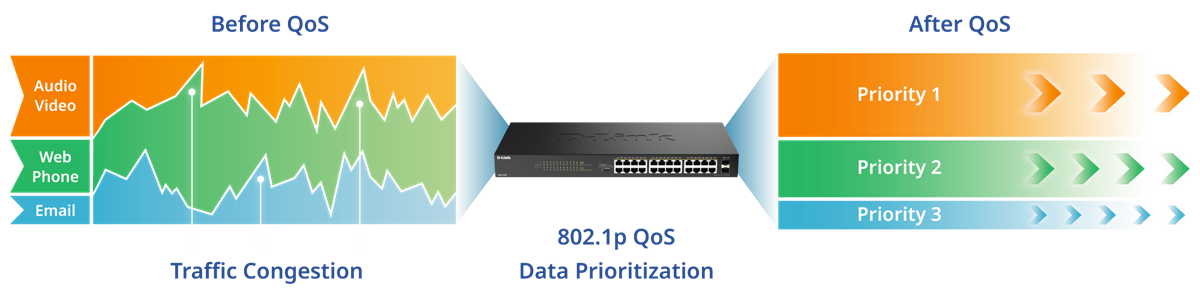

Prioritize Traffic for Optimized Performance
With the DGS-1026P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.
Related Products
Specification
|
Number of Gigabit ports
|
24 |
|---|---|
|
Number of SFP ports
|
2 |
|
Switching Capacity
|
52 Gbps |
|
Maximum Forwarding Rate
|
38.69 Mpps |
|
PoE Standards
|
802.3af/at |
|
PoE Power Budget
|
240 W |
|
PoE capable ports
|
Ports 1 to 24 (up to 30 W/port) |
|
FAN
|
5-speed smart fan |
|
D-Link Green
|
Supported
|
|
802.3az EEE
|
Supported
|
|
802.1p QoS
|
Supported
|
