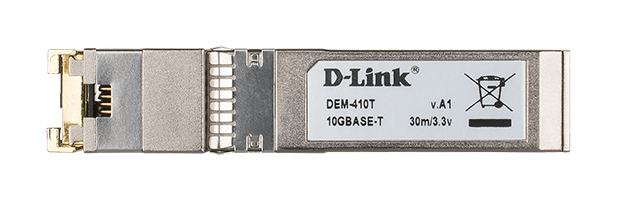

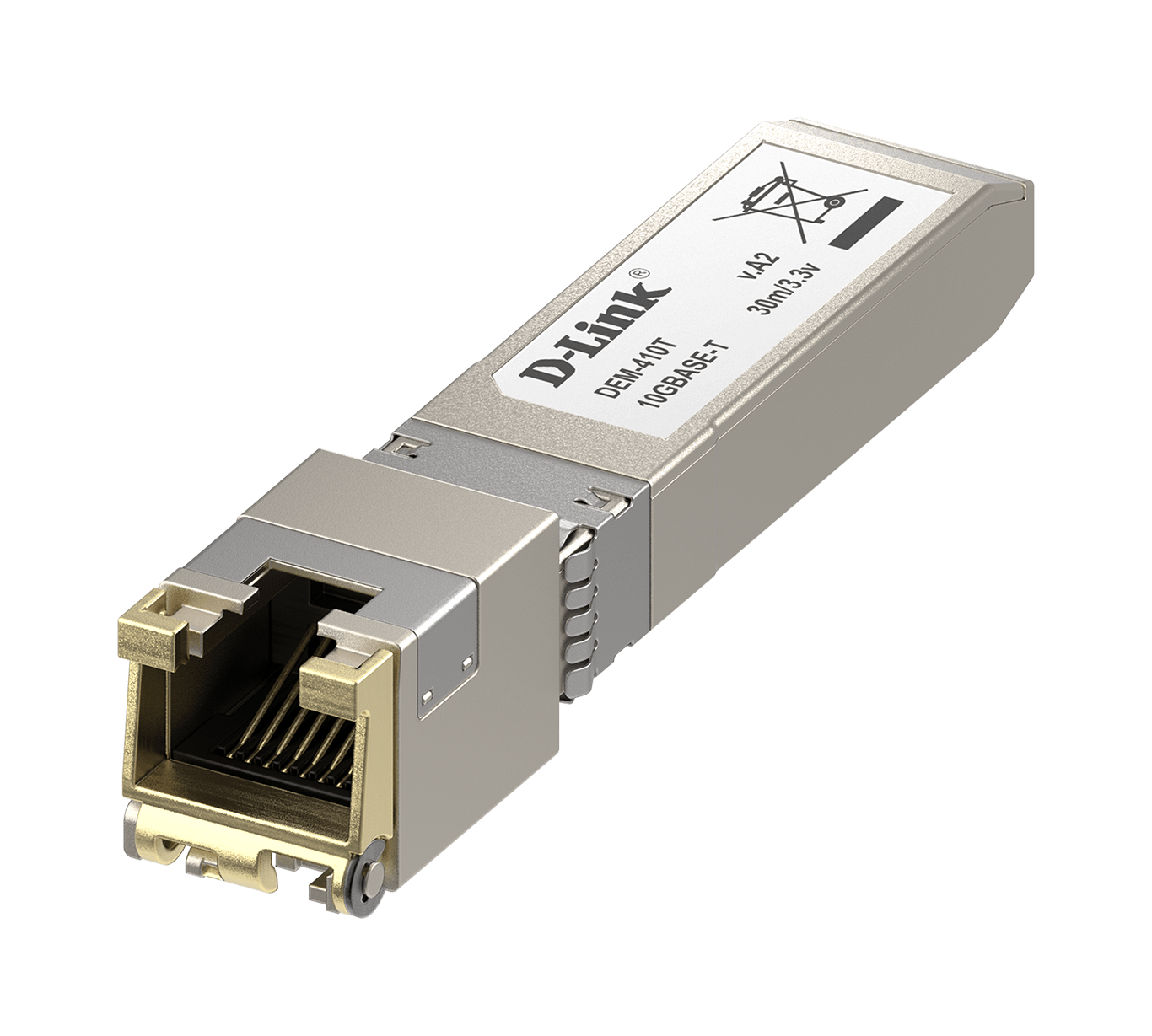

SFP+ 10GBASE-T Copper Transceiver

DEM-410T

  • Product Status: Live
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity.

Download the datasheet.

Where to buy

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.

It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.

Related Products

Top of Rack 10 Gigabit Stackable Managed Switches
DXS-3400-24TC, DXS-3400-24SC
Find out more
24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
DXS-3600-32S/SI, DXS-3600-32S-SE-LIC, DXS-3600-EM-4XT, DXS-3600-EM-Stack, DXS-3600-FAN-FB, DXS-PWR300AC
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Find out more
Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Find out more

Features

  • Hot Pluggable
  • MSA Compliant: SFF-8431, SFF-8432
  • RoHS Compliant

Specification

Compliant Standard

  • IEEE 802.3an 10GBase-T IEEE
  • 802.3ab 1000BASE-T

Transceiver Type

  • RJ45

Max. Transmit Distance

  • 10GBASE-T up to 30m with Cat 6a
  • 1000BASE-T up to 100m with Cat 5e

Speed

  • 10Gbps

Operating Power (V)

  • 3.3V

Max Input Current (mA)

  • 780mA

MTBF (hours)

  • 217,186 hours

Operation Temperature (°C)

  • 0~65℃

Storage Temperature (°C)

  • -40~85℃

Operating Humidity (%)

  • 5%~95%

Storage Humidity (%)

  • 5%~95%

Dimension ( W x D x H mm)

  • 13.7mm x 68mm x 8.5mm

Weight (g)

  • 20g

Emission (EMI)

  • FCC Class B, CE Class B VCCI, Class B

Safety

  • LVD
