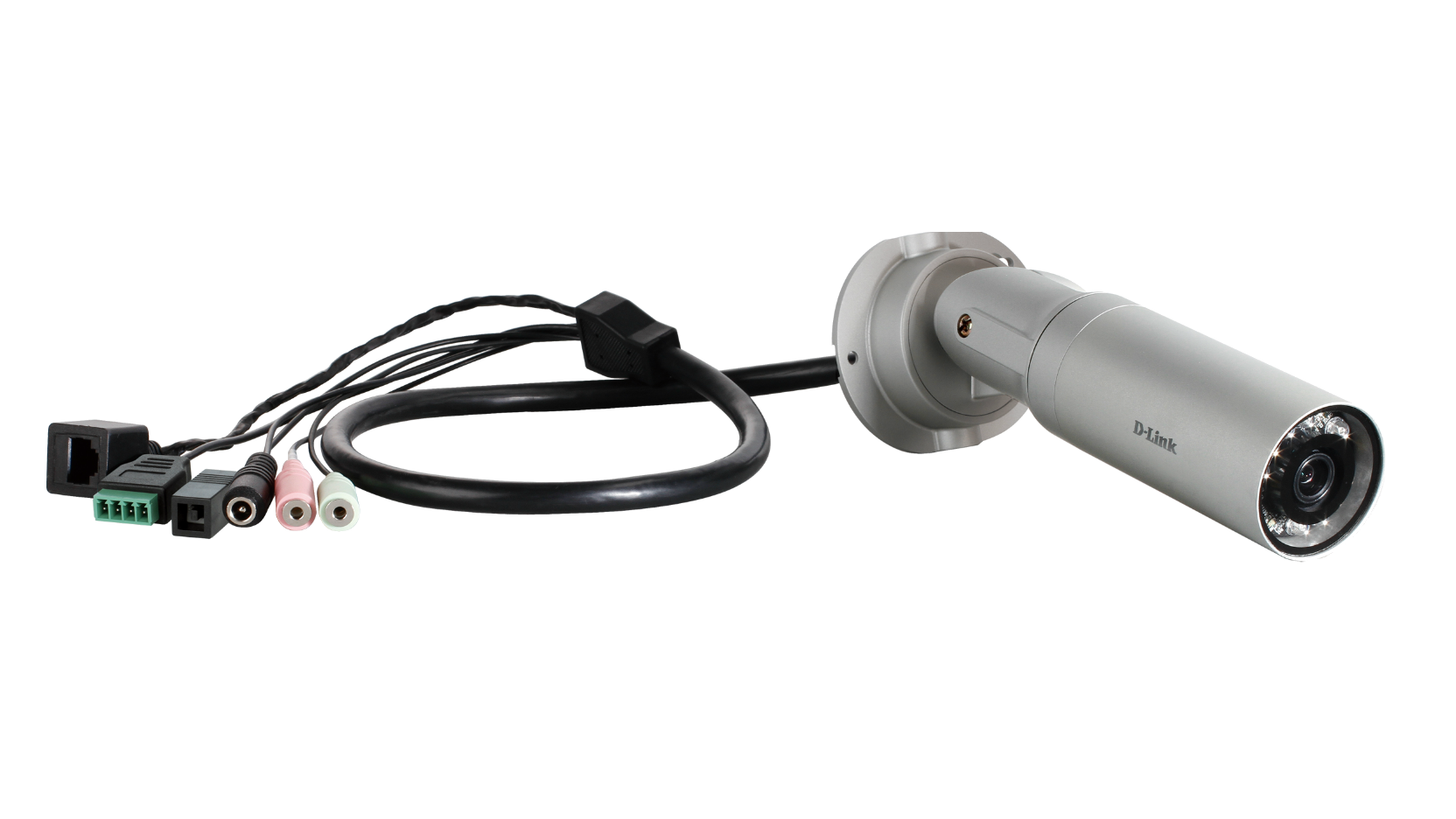

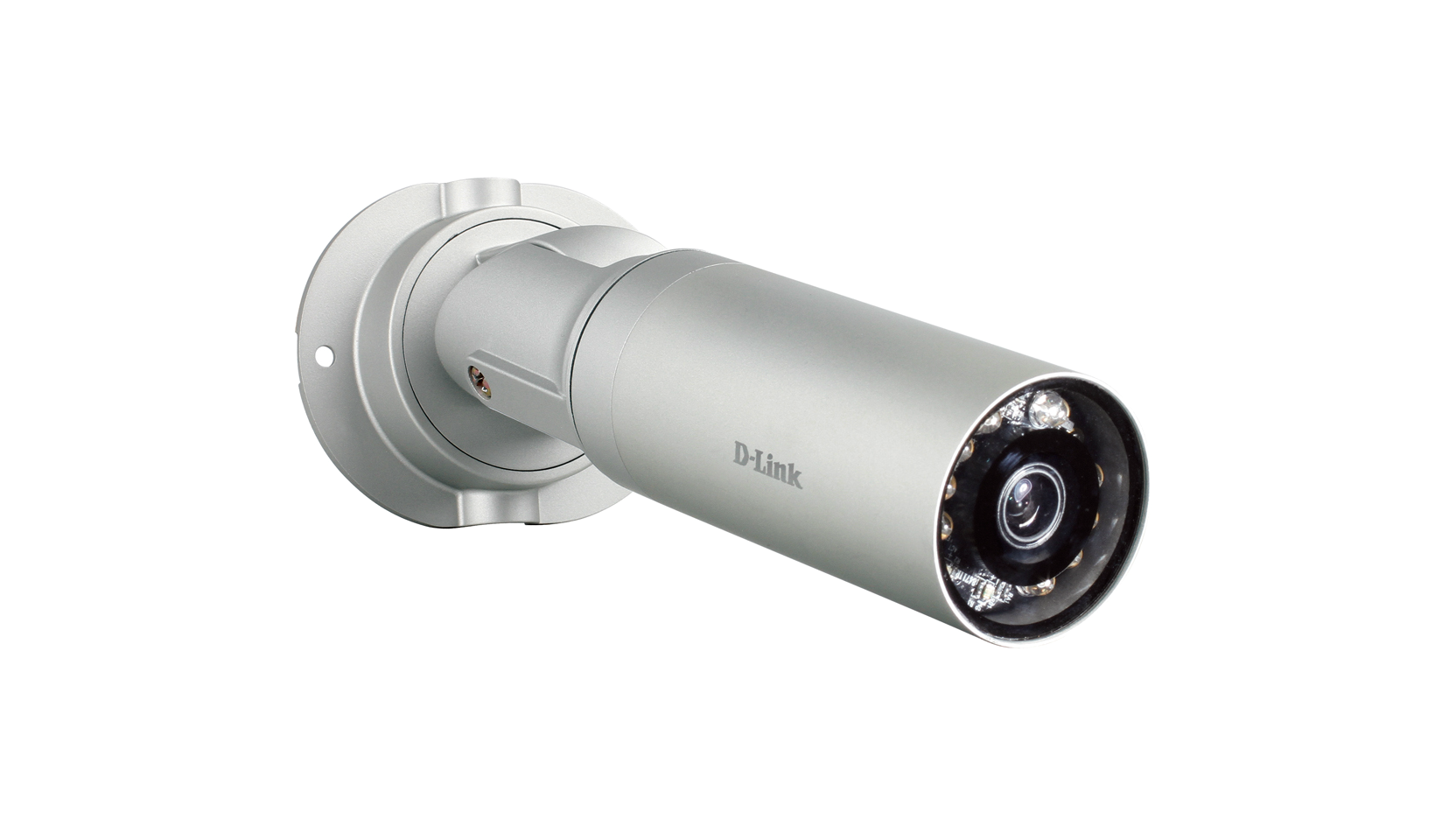

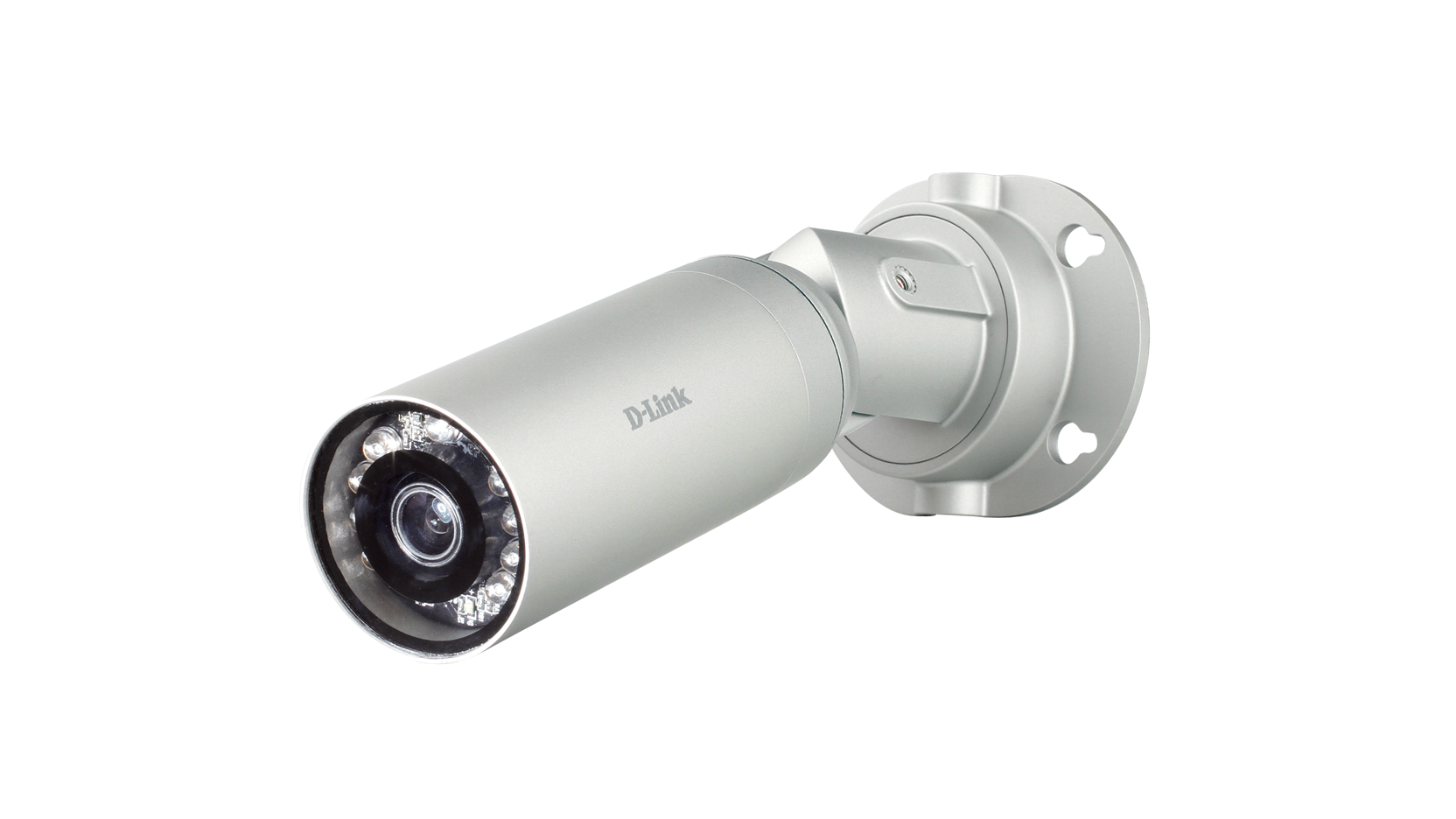

Outdoor HD PoE Day/Night Fixed Mini Bullet Cloud Camera

DCS-7010L

  • Product Status: Phased Out
The DCS-7010L Outdoor HD PoE Day/Night Fixed Mini Bullet Cloud Camera with IR LED is a mydlink™-enabled IP Surveillance outdoor camera that lets you monitor an area 24 hours a day. A durable, rugged housing and a powerful IR LED illuminator make it ideal for all-day outdoor surveillance.

Download the datasheet.

List Retailers

The DCS-7010L Outdoor HD PoE Day/Night Fixed Mini Bullet Cloud Camera with IR LED is a Cloud-enabled IP Surveillance outdoor camera that lets you monitor an area 24 hours a day. A durable, rugged housing and a powerful IR LED illuminator make it ideal for all-day outdoor surveillance.

24/7 HD Surveillance

The DCS-7010L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD. This gives you sharp, high-resolution snapshots and videos with rich detail. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.

An infrared cut removable (ICR) filter is also built into the DCS-7010L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with a powerful IR LED illuminator with a 10 meter range, this camera can monitor an area even in complete darkness.

Built for the Outdoors

Specially built for outdoor use, the DCS-7010L has a solid metal IP-66 weatherproof housing that protects it from dirt and rain. A Power over Ethernet (PoE) port allows you to connect the camera to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet. A wire-in bracket protects cables from damage and provides a clean installation.

Anywhere Access with mydlink™

The Outdoor HD PoE Day/Night Fixed Mini Bullet Cloud Camera with IR LED is mydlink™-enabled, which means that you can access and configure your camera remotely, no matter where you are. Using the free mydlink™ mobile app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without the need of a computer. A step-by-step guide has your camera up and running in a matter of minutes. Through the mydlink™ mobile app, you can set up a free mydlink™ account allowing you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location. See your camera’s live view through the mydlink™ website, or download the mydlink™ mobile app and view your camera directly on your iOS or Android mobile device. You can even talk back through the app with 2-way audio support. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink™ makes it all possible.

Zero Configuration

If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-7010L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your mydlink‑enabled Cloud Router with an Ethernet cable - the camera will automatically be added to your account. mydlink does the hard work for you, allowing users to set up and use their mydlink-enabled cameras immediately.

Built for Versatility

The DCS-7010L comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. Built-in motion detection allows it to automatically record video and send you a notification when motion is detected. Audio in and out connectors can be connected to a microphone and speaker, allowing for 2-way communication and making the DCS-7010L ideal for use in entryways.

Open Network Video Interface Forum (ONVIF) Profile S compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-7010L is ONVIF Profile S compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.

A Complete, Expandable Surveillance Solution

The DCS-7010L is a self-sufficient surveillance solution, capable of recording snapshots and video to a MicroSD card without requiring a PC or network storage device.

If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

Technical Specifications

Camera Hardware Profile
  • 1/4” Megapixel progressive CMOS sensor
  • 10 meter IR illumination distance
  • Minimum illumination: 0 lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Audio in and out jacks
  • 10x digital zoom
  • Focal length: 4.3 mm
  • Aperture: F2.0

Angle of view
  • (H) 47°
  • (V) 37°
  • (D) 60°

Camera Housing
  • IP-66 compliant weatherproof housing
  • Cable in Bracket

Image Features
    Congurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Congurable motion detection windows
  • Congurable privacy mask zones
  • Congurable shutter speed, brightness, saturation, contrast, and sharpness

Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images

Video Resolution
  • 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording
  • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording

Audio Support
  • G.726
  • G.711

External Device Interfaces
  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE
  • MicroSD/SDHC card slot
  • DI/DO port

FAQ

  • Hur tar jag bort kameran från mitt mydlink-konto? Read Answer
  • Vad kan jag göra om jag har problem med Java-installationen på Mac OS? Read Answer
  • Vad ska jag göra om jag INTE kan ställa in enhetens lösenord? Read Answer
  • Vad ska jag göra om jag glömmer enhetslösenordet för min mydlink-aktiverade produkt? Read Answer
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to record to the SD card on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
This product was phased out on: 2017-06-15
Version Date Type File Size
DCS-7010L datasheet - PDF 1.17mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Storage Product Guide - PDF 2.63mb Download
Version Description Date Type File Size
User Manual User Manual 2012-08-23 PDF 9.18mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 1.38mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
1.08.06 Firmware 2017-06-30 Download
1.07.00 Firmware 2015-10-19 Download
Firmware 1.03.07

Firmware

2014-08-20 Download
Firmware 1.02.00

Firmware

2014-07-02 Download
Firmware 1.01.10

Firmware

2013-07-03 Download
Version Description Date
Setup Wizard You can find the latest version of the Setup Wizard on the Mydlink Download page. Click Download to go there now.
Make sure to select the correct model and version.
2016-01-13 Download
Device Pack 1.5.4

Device Pack

2014-02-18 Download
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

2014-02-18 Download
Version Description Date
DEU_IP_Surveillance_Cheat_Sheet - 2014-06-06 Download
Declaration of conformity Declaration of conformity 2012-09-14 Download
