Requirements:

– Console cable
– PuTTy

Step 1 – Download PuTTy software from the following link:

http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

Download the putty.exe

Step 2 – Connect the serial port of the DSR with your PC

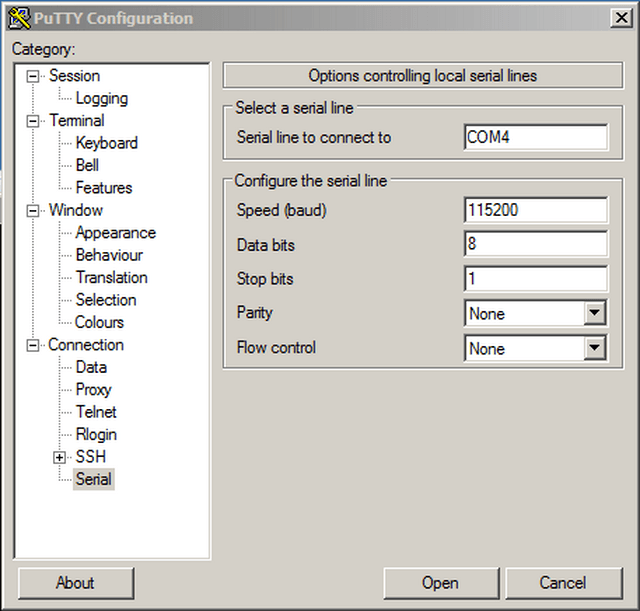

Step 3 – Open PuTTy and setup a COM port (this will be present in device manager)



Step 4 – Click on “Open”

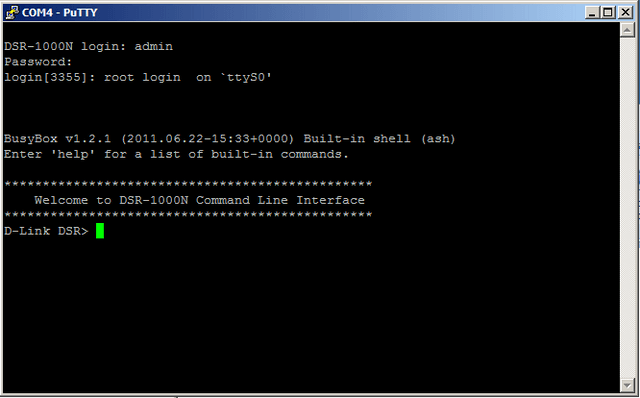

Step 5 – Hit enter key and you should be presented with the Login screen



DSR-1000N login:  admin
Password: admin

Step 6 – Enter the following commands to configure the DSR with a Static IP Address

D-Link DSR> net lan ipv4 configure
net-config[lan-ipv4]> static address 192.168.1.168
net-config[lan-ipv4]> static subnet_mask 255.255.255.0
net-config[lan-ipv4]> dhcp mode None (This will turn off DHCP)
net-config[lan-ipv4]> save
net-config[lan-ipv4]> exit
D-Link DSR>

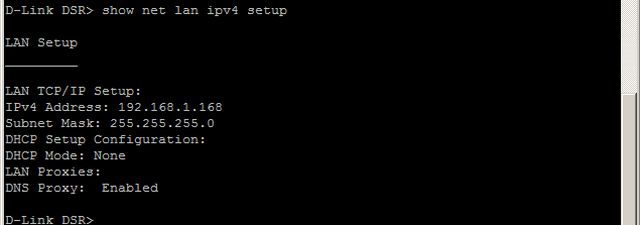

Step 7 – To confirm the DSR has been configured with the above settings enter the following commands

D-Link DSR> show net lan ipv4 setup
