How do I backup video data from my DNR-312L?

Pre-requisites:

- A USB pendrive / hard drive
- Or an FTP server
- Or a file-server (such as a NAS)

Step 1 – Log in to the DNR-312L and click on the “Backup” icon.
DNR_312L_How_do_I_set_up_motion_detection_in_my_cameras2

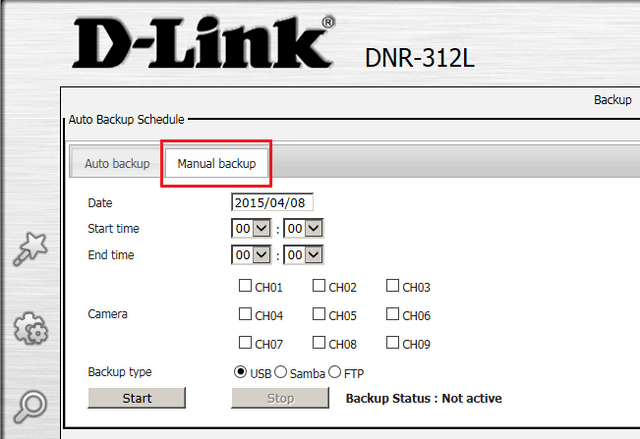

Step 2 – To create a one-off backup, click the “Manual backup” tab.
D-Link

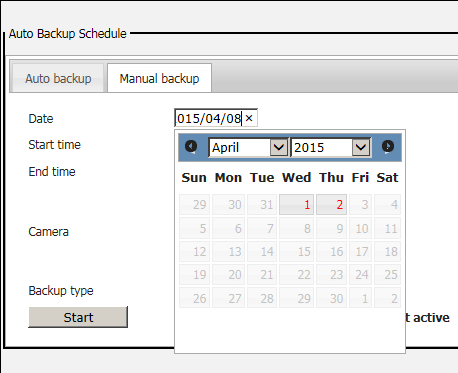

Step 3 – Click in the date box to open the calendar and select the date you wish to backup. Dates with video data are shown in red.
D-Link

Step 4 – Select the start and end times for the backup.
D-Link

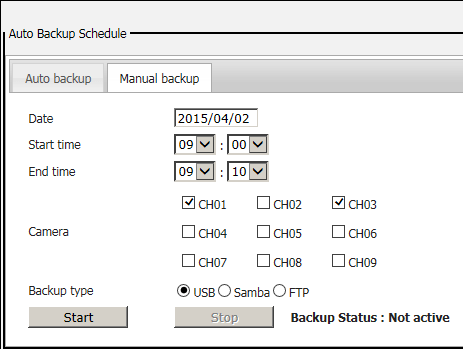

Step 5 – Select the camera(s) you wish to backup
D-Link

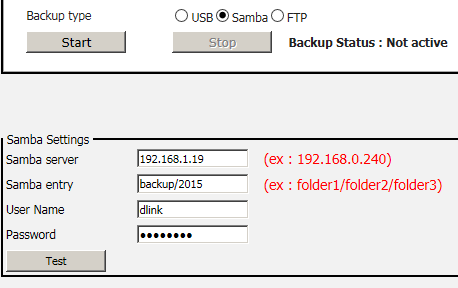

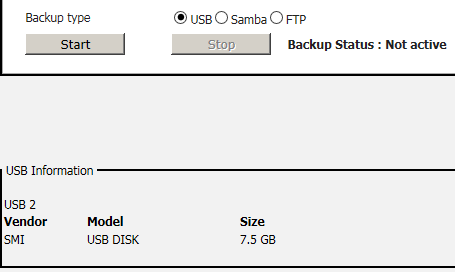

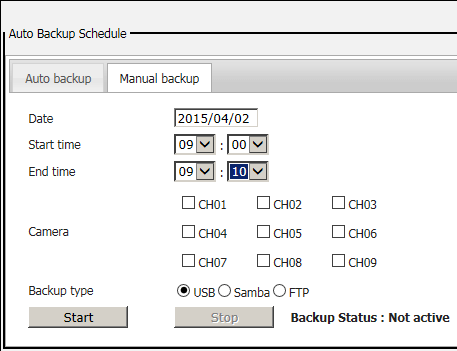

Step 6 – Select the backup type you want to create, and where necessary (Samba and FTP) fill in the details
D-Link
D-Link

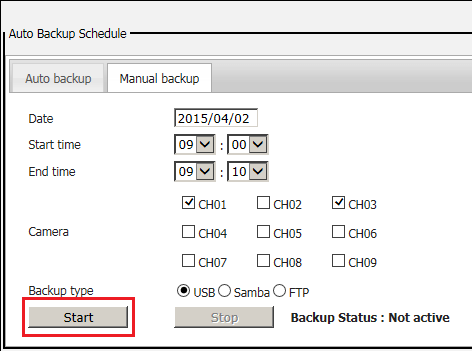

Step 7 – Once you have selected the backup type and filled any required data, click “Start”
D-Link

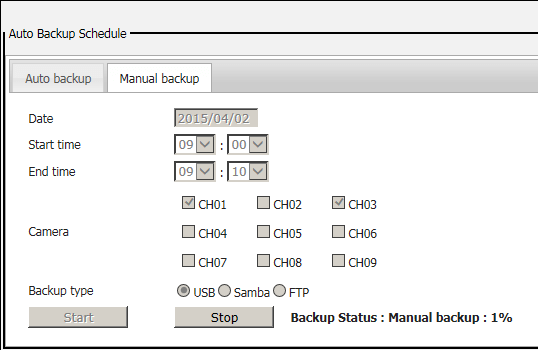

Step 8 – The DNR will then back up the video, and show the status. Whilst the backup is taking place, you should not navigate to any other page.
D-Link

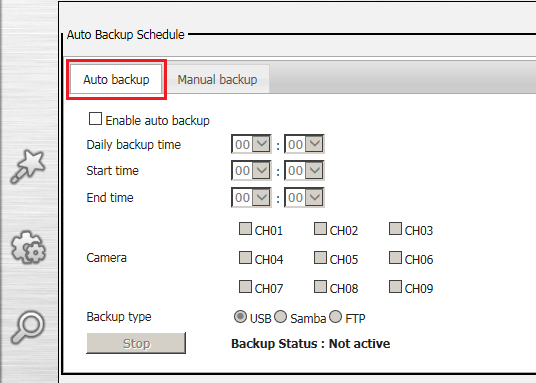

Step 9 – To setup an automatic backup every day at a specific time, click the “Auto backup” tab.
D-Link

Step 10 – Click the “Enable auto backup” tickbox, set the time at which you want the automatic backup to take place, and the time period and which camera(s) you want to backup. (Please note that that “End time” must be before the “Daily backup time”.)
D-Link

Step 11 – Select the backup type, USB or Samba or FTP; fill in any required details, and then click “Save”.
