Top of Rack 10 Gigabit Stackable Managed Switches

DXS-3400 Series

  • Product Status (Revision A): Live

D-Link’s DXS-3400 Series Top-of-Rack 10 Gigabit Stackable Managed Switches consists of new compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The DXS-3400 Series switches includes 20 x 10GBASE-T or 20 x 10G SFP+ ports and 4 10GBASE-T/SFP+ combo ports, making them suitable for data centre, core, and distribution applications.

Alle Verkooppunten

switch image



D-Link’s DXS-3400 Series Top-of-Rack 10 Gigabit Stackable Managed Switches  consists of new compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The 1U height and high port density make the DXS-3400 Series suitable for enterprise and campus environments where space is at a premium. The DXS-3400 Series switches includes 20 x 10GBASE-T or 20 x 10G SFP+ ports and 4 10GBASE-T/SFP+ combo ports, making them suitable for data centre, core, and distribution applications.







reverse image

High Availability and Flexibility

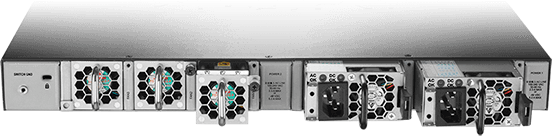

The DXS-3400 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies1 can be replaced without affecting switch operation. Physical and virtual switch stacking allow the switches to be managed from a single IP address and provide redundancy for connected devices. Multi-Chassis Link Aggregation Group (MLAG) can be used to increase bandwidth to switches in the network, prevent port blocking and unnecessary re-convergence delays, and provide a reliable fail-over solution in the event that a switch or a cable connection fails.







monitor and screen

Feature Rich Software

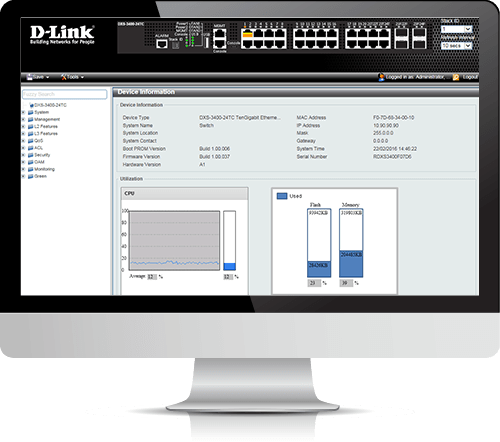

The DXS-3400 Series switches include feature rich software which satisfies the needs of Small Medium Businesses, Small Medium Enterprise, and campus users. It supports a wide range of Layer 2 and 3 functions such as VLANs, inter-VLAN routing, multicasting, Quality of Service (QoS), Virtual Router Redundancy Protocol (VRRP), Routing Information Protocol (RIP) v1/2, Next Generation RIP (RIPng), Policy-Based Routing (PBR), and security features. The DXS-3400 Series also includes an easy-to-use web interface and an industry standard CLI for improved management.





data centre bridging

Lossless Ethernet

Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data centre environments. The DXS-3400 Series switches support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, and IEEE 802.1Qau. IEEE 802.1Qbb (Priority-based Flow Control) provides flow control on specific priority to ensure there is no data loss during network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection) manages the allocation of bandwidth amongst different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion management for data flows within network domains to avoid congestion.





energy efficient

Energy Efficient

The DXS-3400 Series switches feature front-to-back airflow which facilitates the building of energy-efficient data centres. The switches also feature in-built smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilising different fan speeds for different temperatures. At lower temperatures, the fans will run more slowly, reducing the switch’s power consumption and noise.

Gerelateerde Producten

10G Multi-Gigabit Smart Managed Switches
DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC, DXS-1210-16TC
Meer lezen
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Meer lezen
Dual Port 10 Gigabit Ethernet PCIe Adapter
DXE-820T
Meer lezen
D-View 7 Network Management System
DV-700
Meer lezen
1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Meer lezen

Includes 1 PSU only. Optional PSU (DXS-PWR300AC) needed to support redundant and load sharing function.

Specs

Type
Managed
Number of ports
16 to 30 ports
Layer
Layer 2+
Layer 3
Stacking
Physical
Virtual
Main type of ports
10GBASE-T 10 Gigabit Ethernet
10GbE SFP+
Type of uplink ports
Combo 10GBASE-T/SFP+
Switching capacity
480 Gbps
Form Factor
Rackmountable
Housing
Metal
Physical stacking
Up to 4 devices
Up to 80 Gbps bidirectional bandwidth
Virtual stacking (up to 32 devices)
Supported
MAC address
48K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Advanced VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Voice VLAN
IPv4/IPv6 routing table
IPv4 - 4K
IPv6 - 1K
IPv4/IPv6 forwarding table
IPv4 - 32K
IPv6 - 16K
IP interfaces
256
IPv6 Ready
Supported
Static route for IPv4/IPv6
IPv4 - 256
IPv6 - 128
IPv6 tunneling
Supported
RIP v1/v2
Supported
RIPng
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
Three colour marker
1 Kbps minimum granularity
64 Kbps minimum granularity
8 Kbps minimum granularity
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
