Unified Wireless Dual-Band PoE Access Point

DWL-8500AP

  • Product Status (Revision A): End of Life

Managed Wireless Switch Access Point with PoE

The DWL-8500AP Unified Wireless Dual-Band PoE Access Point is a thin 802.11a/g wireless Access Point designed for use in conjunction with DWS-3024/DWS-3024L/DWS-4026 Wireless Switch in business-class enterprise environments.
Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennae for optimal wireless coverage.

Centralised Wireless Intelligence

The Access Point is entirely controlled from the wireless switch, ie configuration data is not kept at AP level, adding a layer of protection in case of theft or vandalism. Connection to the switch can be direct or indirect.Profiles including SSID, IP address, VLAN, security are only configured once and then applied to the managed APs.

If an AP needs swapping, the replacement AP automatically inherits the same configuration, making the process seamless.

PoE support for Easy Deployment

For installations in areas where power outlets are not readily available, the access point integrates 802.3af Power over Ethernet (PoE). The wireless switch will provide power as far as 100m away via standard Ethernet cabling.

Up to 108Mbps Wireless Speed

The DWL-8500AP delivers extremely reliable wireless performance with wireless throughput rates of up to 54Mbps in either frequency band. It has the added capability of reaching maximum wireless signal rates of up to 108Mbps (Turbo mode) powered by D-Link 108G technology*.

*802.11g only. Maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

Advanced Wireless Security & Quality of Service (QoS)

The DWL-8500AP supports 64/128/152-bit WEP data encryption, WPA/WPA2 security and multiple SSIDs. MAC address filtering, SSID Broadcast Disable can be configured from the switch to set up security and limit outsiders' access to the internal network. The DWL-8500AP supports 802.1Q VLAN Tagging and WMM (Wi-Fi Multimedia) for important wireless transmissions such as VoIP and streaming media applications, delivering critical user-based services, such as prioritized delivery of voice traffic.

Rogue AP detection

The DWL-8500AP can be configured to periodically leave its operational channel and scan other channels within both frequency ranges, allowing the wireless switch to monitor the environment and detect rogue APs.

If a rogue is detected, the closest DWL-8500AP can launch RF counter measures by spoofing 802.11 control messages. This prevents clients from communicating, associating and authenticating with a rogue AP.

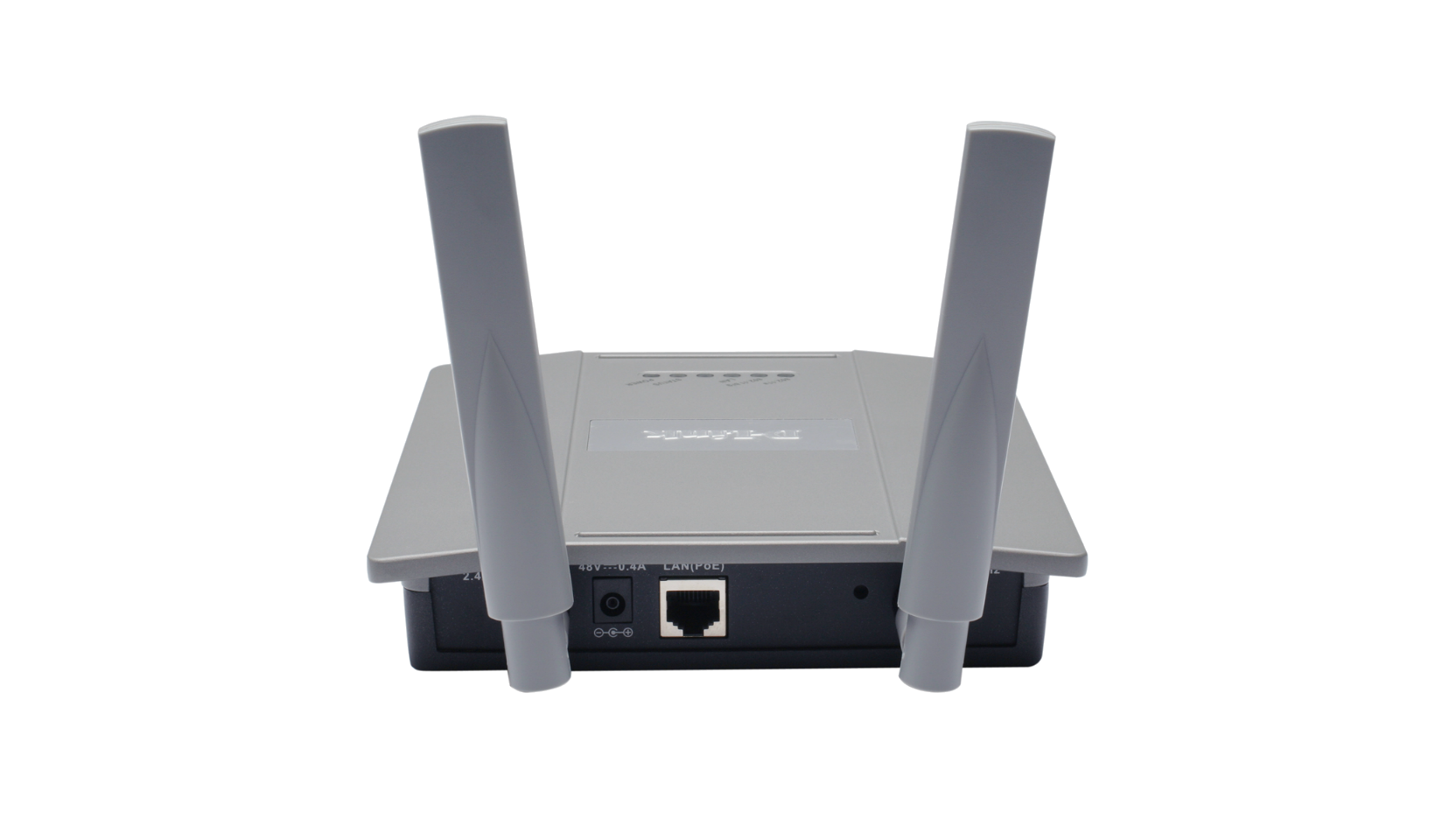

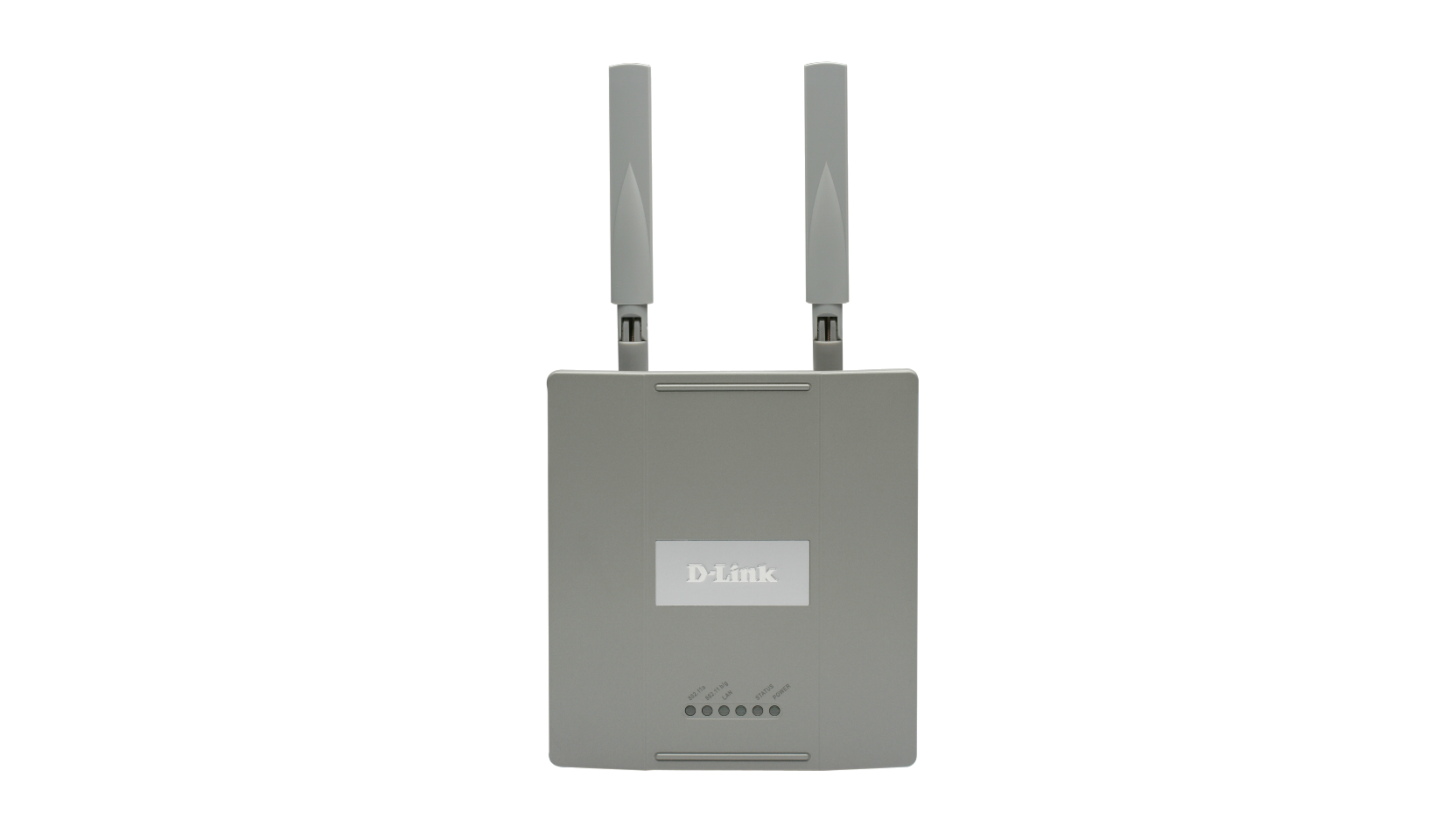

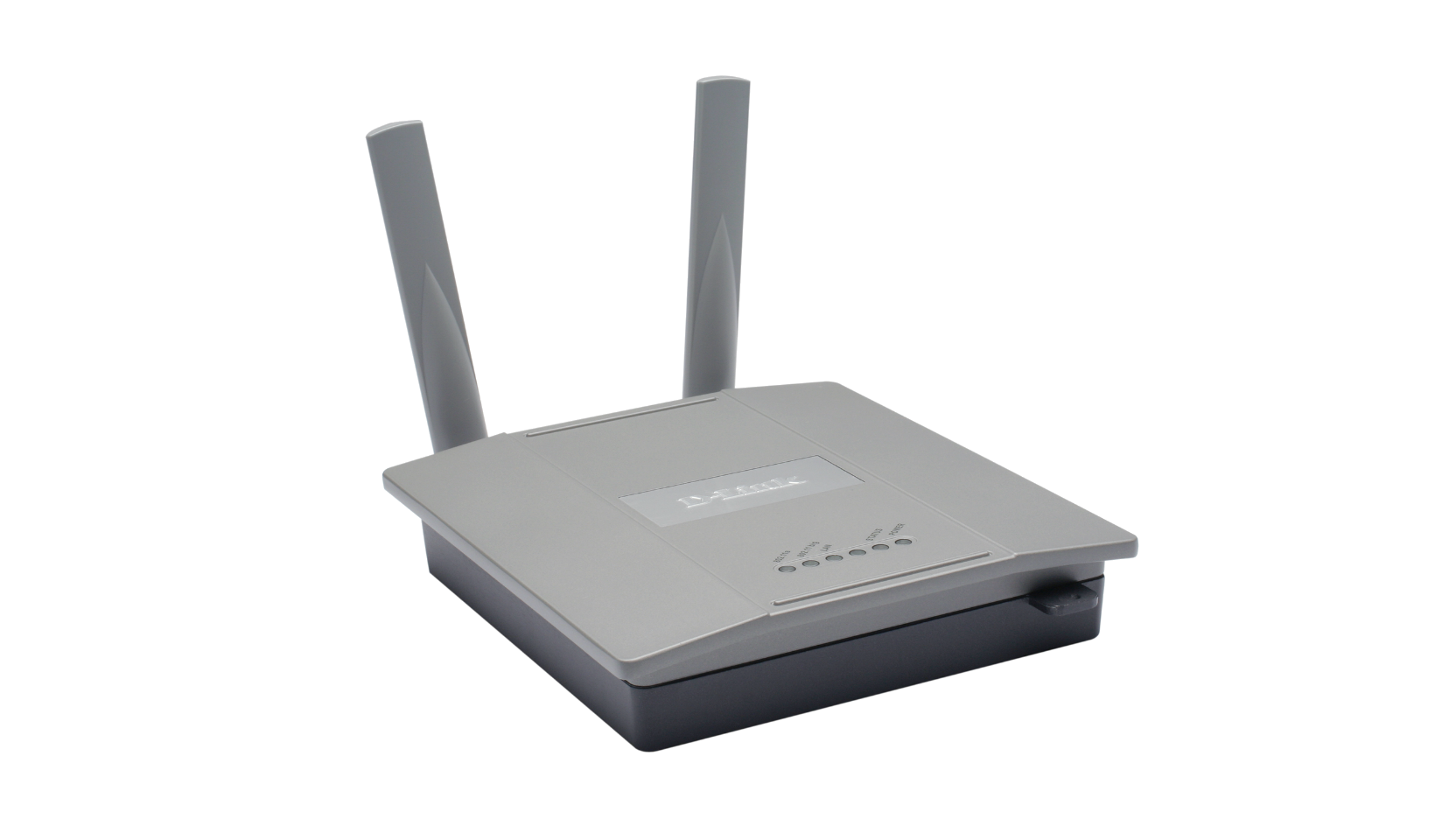

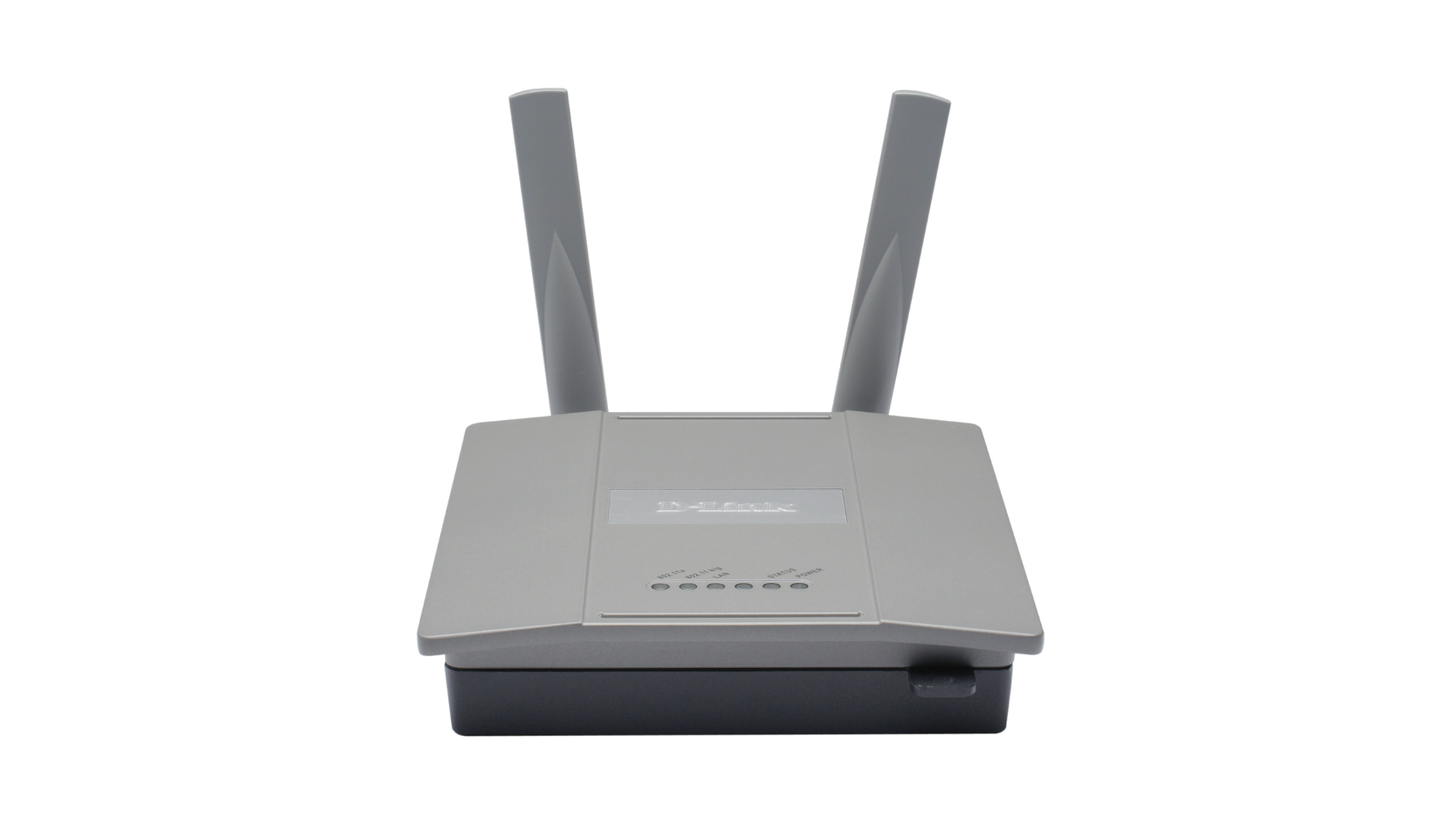

Actual product appearance may differ from the image displayed on this page
Type
Hardware-managed AP
Wireless standard
Wireless G
Frequency band mode
Dual-band simultaneous
Antenna type
2 detachable omni-directional antennas
Antenna gain
2.5 dBi for 2.4 GHz
5.5 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Fast Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Geavanceerde Eigenschappen
MIMO
Maximum number of SSIDs
8 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWS-3024/DWS-3024L
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported
This product was phased out on: 25/01/2015
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 24/01/2020
