For Business-Class Environments

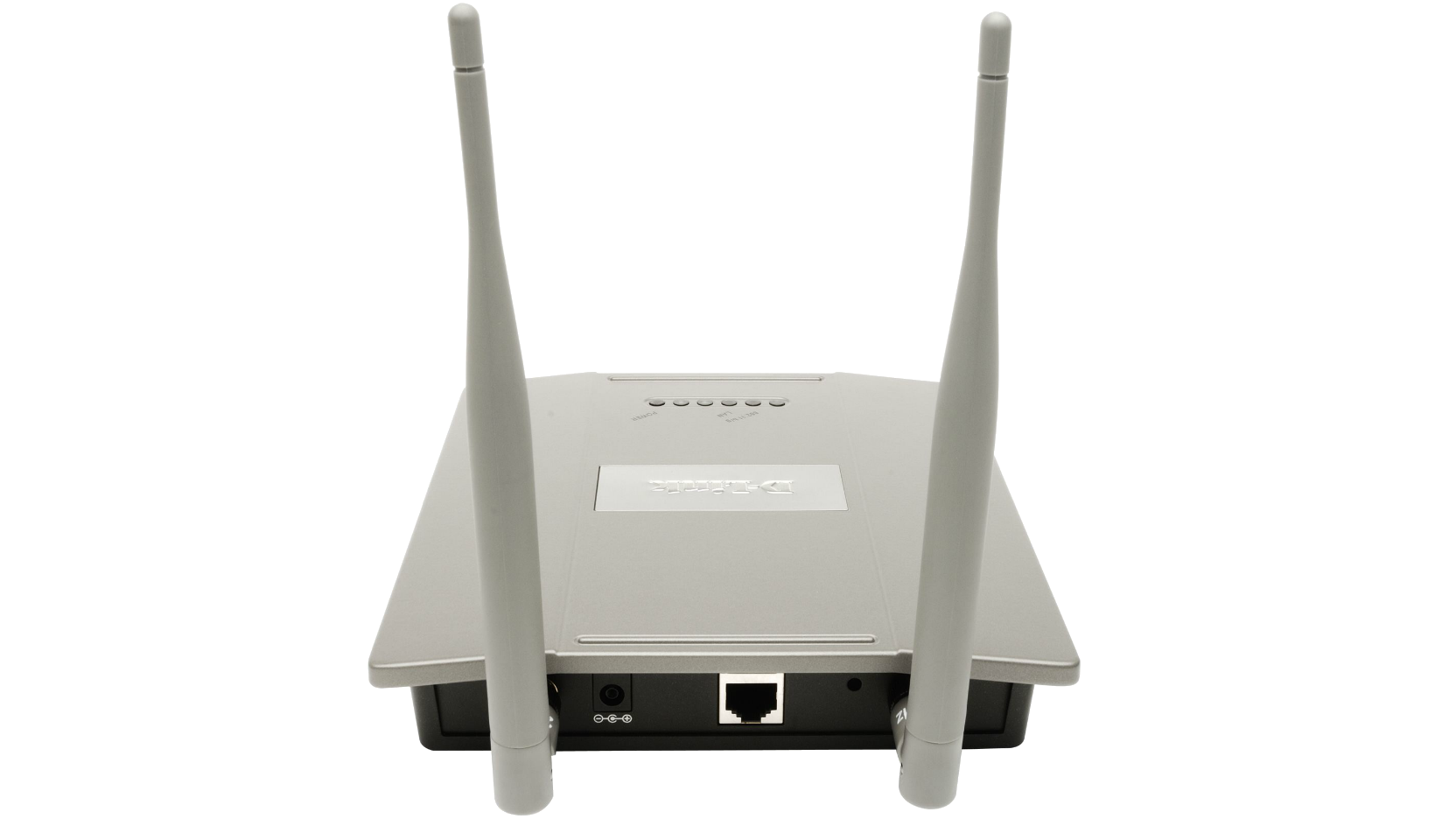

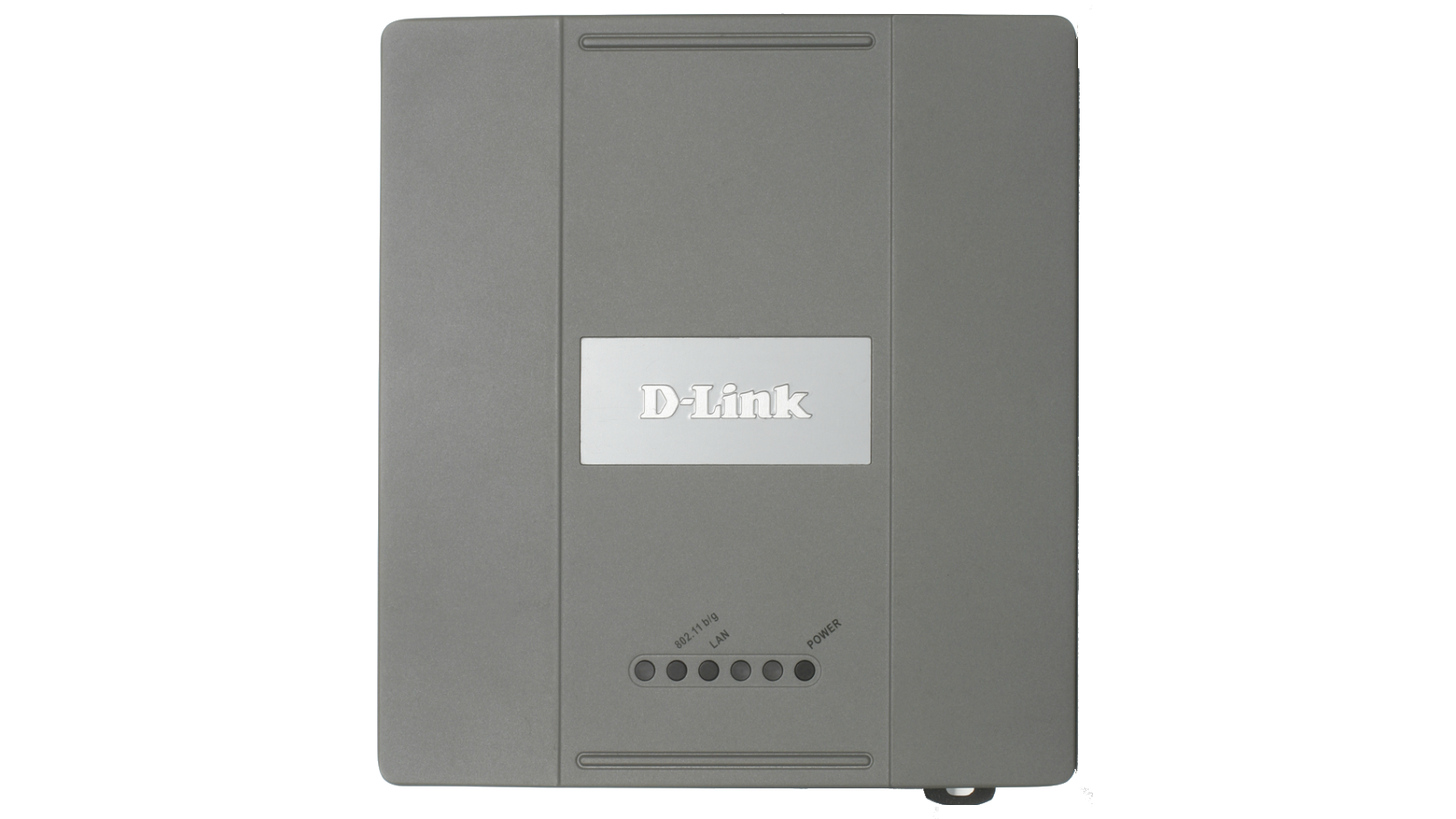

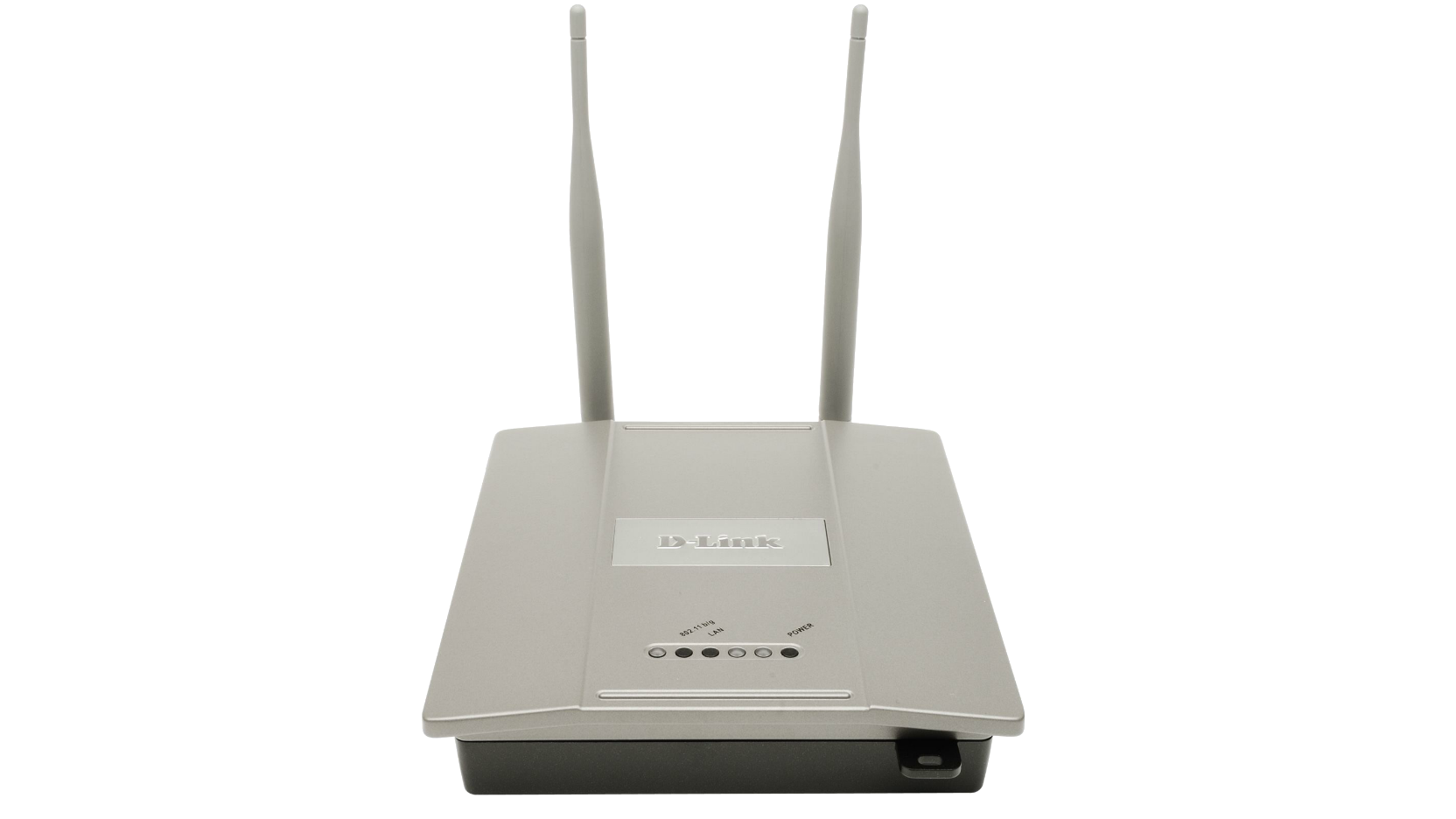

The DWL-3200AP Wireless PoE Access Point is a powerful and reliable wireless access point for business-class enterprise environments. Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennas for optimal wireless coverage.
PoE Support
Enclosed in a plenum metal chassis, the DWL-3200AP adheres to strict fire codes and ensures complete safety. For advanced installations, this high- speed access point has an integrated 802.3af Power over Ethernet (PoE) support to allow installation in areas where power outlets are not readily available.
Up to 108Mbps Wireless Speed
The DWL-3200AP delivers extremely reliable wireless performance with standard 802.11g wireless throughput rates of up to 54Mbps. It has the added capability of reaching maximum wireless signal rates of up to 108Mbps (Turbo mode) powered by D-Link 108G technology. At the same time, the DWL- 3200AP remains fully compatible with the IEEE 802.11b and 802.11g standards.
Advanced Wireless Security
Since wireless security remains a strong concern among businesses, the DWL-3200AP provides the latest wireless security technologies by supporting both WPA Enterprise and 802.1x to ensure complete network protection. In addition, the DWL-3200AP currently comes 802.11i-ready to fully support industrial grade wireless security.
Advanced Network Management
Network administrators can manage all the DWL-3200AP's settings via its web-based configuration utility or with Telnet. For advanced network management, the administrators can use D-Link's AP Manager or D-View SNMP management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, network administrators can also verify and conduct regular maintenance checks without wasting resources by sending personnel out to physically verify proper operation.
WDS (Wireless Distribution System) Support
To maximize total return on investment, the DWL-3200AP can be configured to operate as an access point (AP mode), a point-to-point bridge or a point-to-multipoint bridge (WDS mode). In the WDS mode, the DWL-3200AP communicates only with wireless bridges, without allowing for wireless clients or stations to access them.
Actual product appearance may differ from the image displayed on this page
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless G |
Frequency band mode
|
Single-band |
Antenna type
|
2 detachable omni-directional antennas |
Antenna gain
|
5 dBi for 2.4 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Fast Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Metal |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Maximum number of SSIDs
|
8 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
Support
Versie | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|
Datasheet (English) | - | 0.89mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | - | 3.56mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Quick Installation Guide (English) | - | 0.83mb | Download |
Versie | Beschrijving | Datum | Type | |
---|---|---|---|---|
Firmware 2.56 rc550 | Firmware | 4-4-2012 | - | Download |
Versie | Beschrijving | Datum | |
---|---|---|---|
APManagerfor firmware v2.55-rc515 2.55-r31 | AP Manager for firmware v2.55-rc515 |
9-12-2011 | Download |
MIB File for AP Manager 2.55 rc515 | MIB File for AP Manager II for Firmware 2.55 |
9-6-2010 | Download |
D-View Module for Firmware 2.55 2.55 r19 | D-View Module for Firmware 2.55 | 7-6-2010 | Download |
D-View MIB file for firmware 2.55 rc515 | D-View MIB file for firmware 2.55 | 7-6-2010 | Download |
