PowerLine AV2 1000 HD Gigabit Passthrough Kit


  • Product Status: Live

Met de DHP-P601AV PowerLine AV2 1000 HD Gigabit Passthrough Kit van D-Link creëert u eenvoudig een supersnel HomePlug-netwerk met snelheden tot 1000 Mbps1. De set bevat twee DHP-600AV PowerLine AV2 1000 Gigabit Adapters die u gewoon in een beschikbaar stopcontact steekt. Vervolgens drukt u op de Simple Connect-knop om een veilige verbinding te maken.

Alle Verkooppunten

PowerLine AV2 1000 Gigabit Passthrough Kit

D-Link’s DHP-P601AV PowerLine AV2 1000 Gigabit Starter kit makes it easy to create a high-speed network at speeds of up to 1000Mbps1

The Kit comes with two DHP-P600AV PowerLine AV2 1000 HD Gigabit Passthrough Adapters – simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection and then plug the other adapter into the room you want to extend your connection to.

Noise Filtering Passthrough Socket

These PowerLine adapters also feature an extra passthrough power socket to ensure that your electrical outlet remains available for use by another electrical device while the PowerLine adapter is plugged into the socket. The Passthrough socket features noise filtering which helps prevent signal noise from an electrical device plugged into the socket from affecting your PowerLine connection.

Plug and Play

Key Features

U creëert snel en eenvoudig een PowerLine-netwerk dankzij plug-and-play

Speeds up to 1000 Mbps1 using HomePlug AV2 technology make it ideal for downloading HD media

Gigabit Ethernetpoort voor snelle verbinding met bedrade apparaten

Advanced HomePlug AV2 Technology

The D-Link PowerLine AV2 1000 HD Gigabit Passthrough Kit (DHP-P601AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilising your home’s existing electrical wiring as a reliable high-speed network, the DHP-P601AV makes it easy to connect computers, gaming consoles and media players to your network without additional cables. The DHP-P601AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.

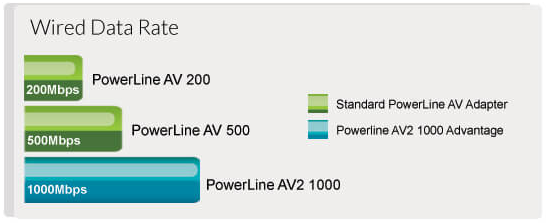

AV1000 Technology Comparison Chart

How does it work?

PowerLine gives you the flexibility to create the network you need in the space you have, by using your electric wiring to connect computers and other devices. It’s a simple solution to what can be a sticky networking situation.

Plug into power sockets
Connect your wired device
Enjoy your high speed HomePlug network

Hassle-free plug and play installation

Plugs directly into a power socket with no additional cables required.

This adapter implements 128-bit AES data encryption at the push of a button to protect your network from any intruders.

Power saving mode

Automatically places the adapter in sleep mode if no data transmission or reception occurs over a certain period of time, reducing power usage by more than 85%.

1Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional D-Link PowerLine AV series products are required to add new devices to the network. A minimum of two D-Link PowerLine AV series products are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.

Gerelateerde Producten

Hybrid Whole Home Mesh Wi-Fi System
Meer lezen
PowerLine AV2 1000 Gigabit Starter Kit
Meer lezen
PowerLine AV1000 WiFi AC Starter Kit
Meer lezen
PowerLine AV2 2000 HD Gigabit Starter Kit
Meer lezen
8-Port Gigabit Unmanaged Desktop Switch
Meer lezen

Technical Specifications


Technische specificaties



  • Stekker (landafhankelijk)


  • RJ-45 Gigabit ethernet LAN-poort



  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 1901
  • HomePlug AV2


  • 128-bit AES gegevensversleuteling


  • Voeding
  • Ethernet
  • PowerLine

PowerLine modulatieschema

  • OFDM symboolmodulatie

PowerLine frequentieband

  • 2 MHz tot 86 MHz


  • Ethernet: 10/100/1000 Mbps (automatische onderhandeling)
  • PowerLine: Tot 1000 Mbps (PHY-snelheid)

Fysieke kenmerken


  • 113,49 x 58,48 x 37,8 mm (4,47 x 2,30 x 1,49 inch) per adapter


  • 195 gram (0,42 lbs) per adapter


  • Ingang: 100 tot 240 V AC, 50/60 Hz

Opgenomen vermogen

  • 3,7 W maximum (per adapter)


  • Gebruik: 0 tot 40 °C (32 tot 104 °F)
  • Opslag: -20 tot 65 °C (-4 tot 149 °F)


  • Gebruik: 10% tot 90% niet-condenserend
  • Opslag: 5% tot 95% niet-condenserend


  • CE
  • CE/LVD

Downloads can vary across product revisions. Please select the correct hardware revision.
