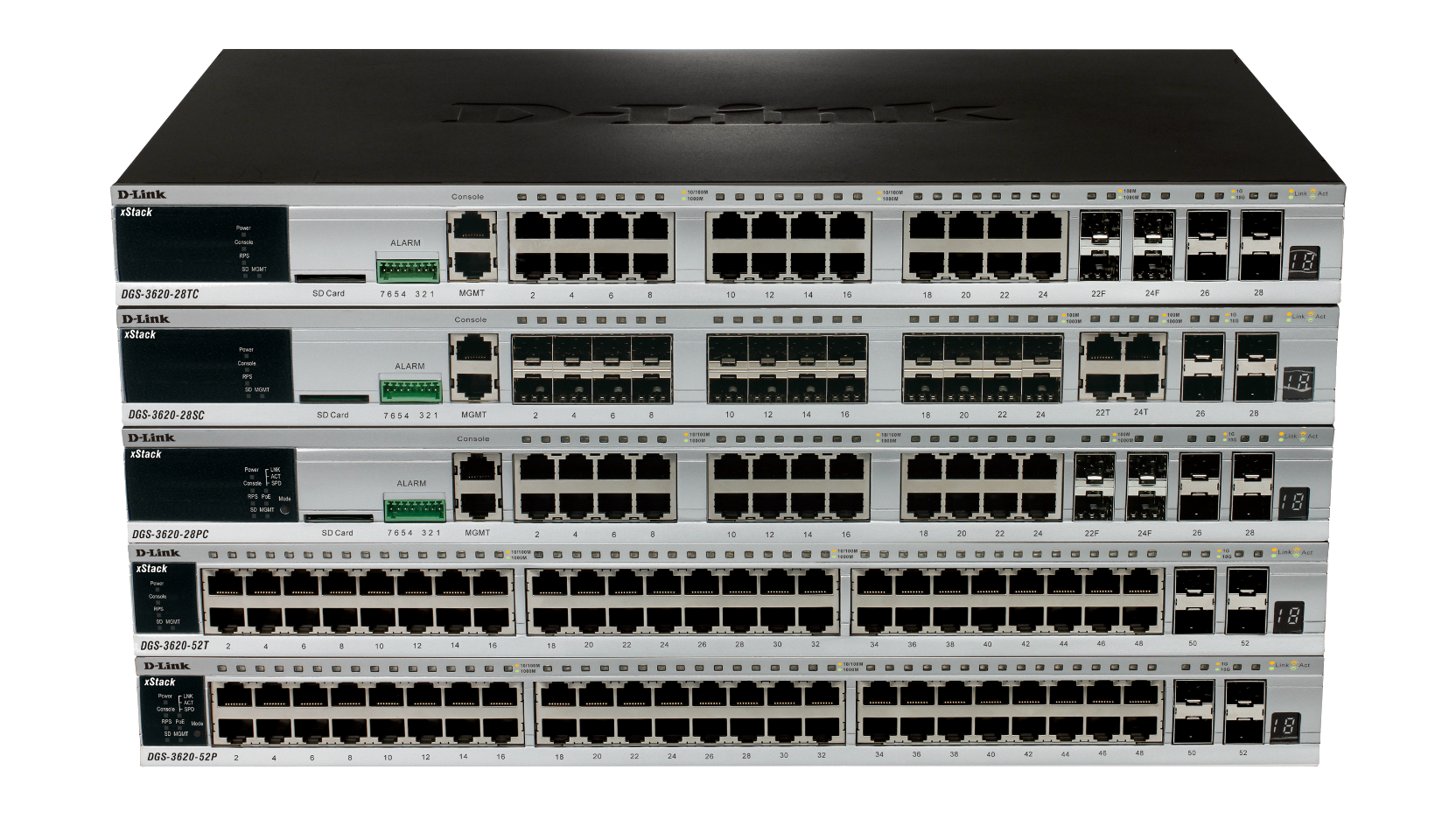

The DGS-3620 Series xStack Gigabit L3 Stackable Managed Switches consists of:

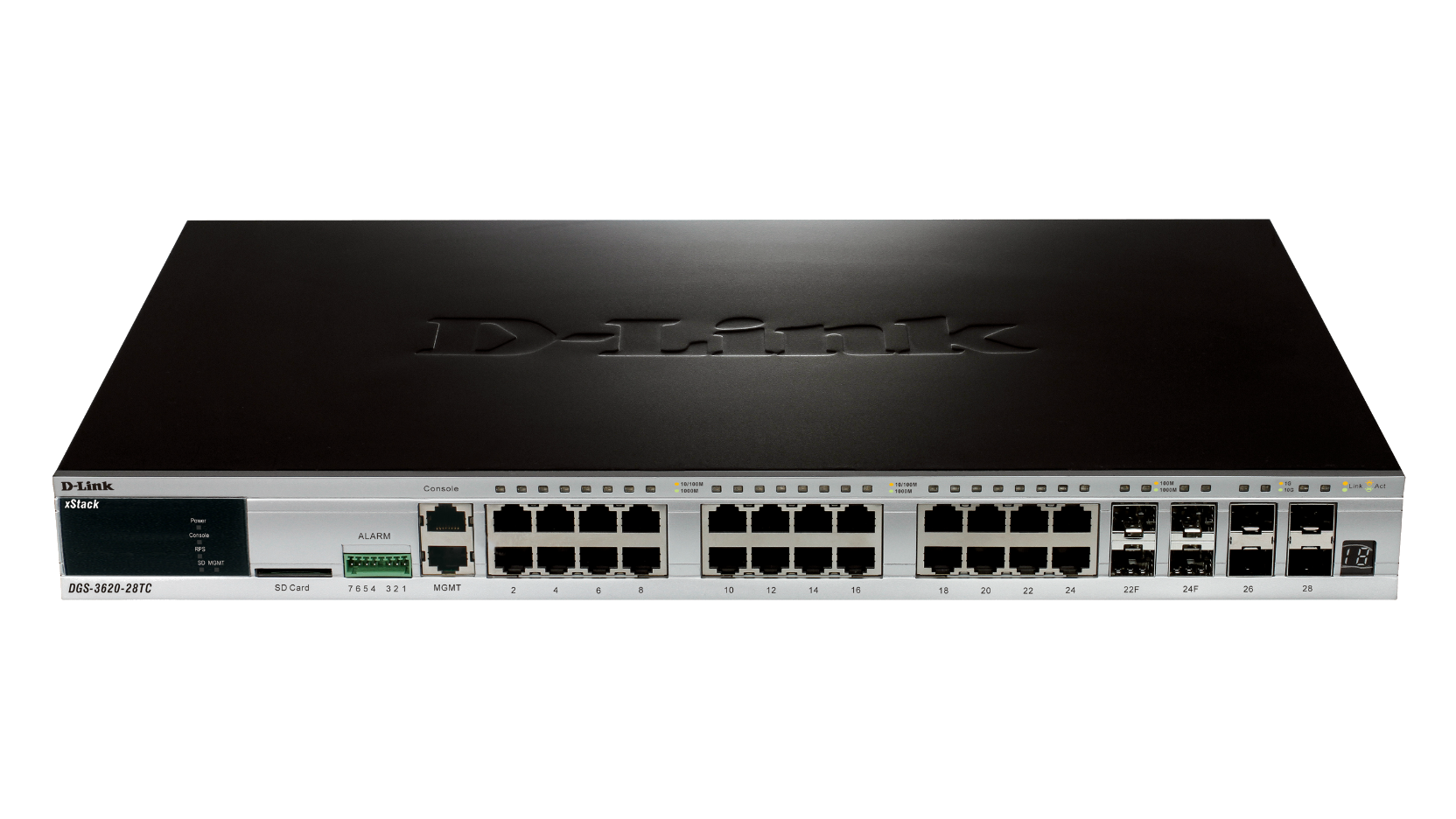

- DGS-3620-28TC/SI and EI: 28-Port Gigabit L3 Stackable Managed Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x SFP+ 10 Gbps ports (Standard and Enhanced Image)

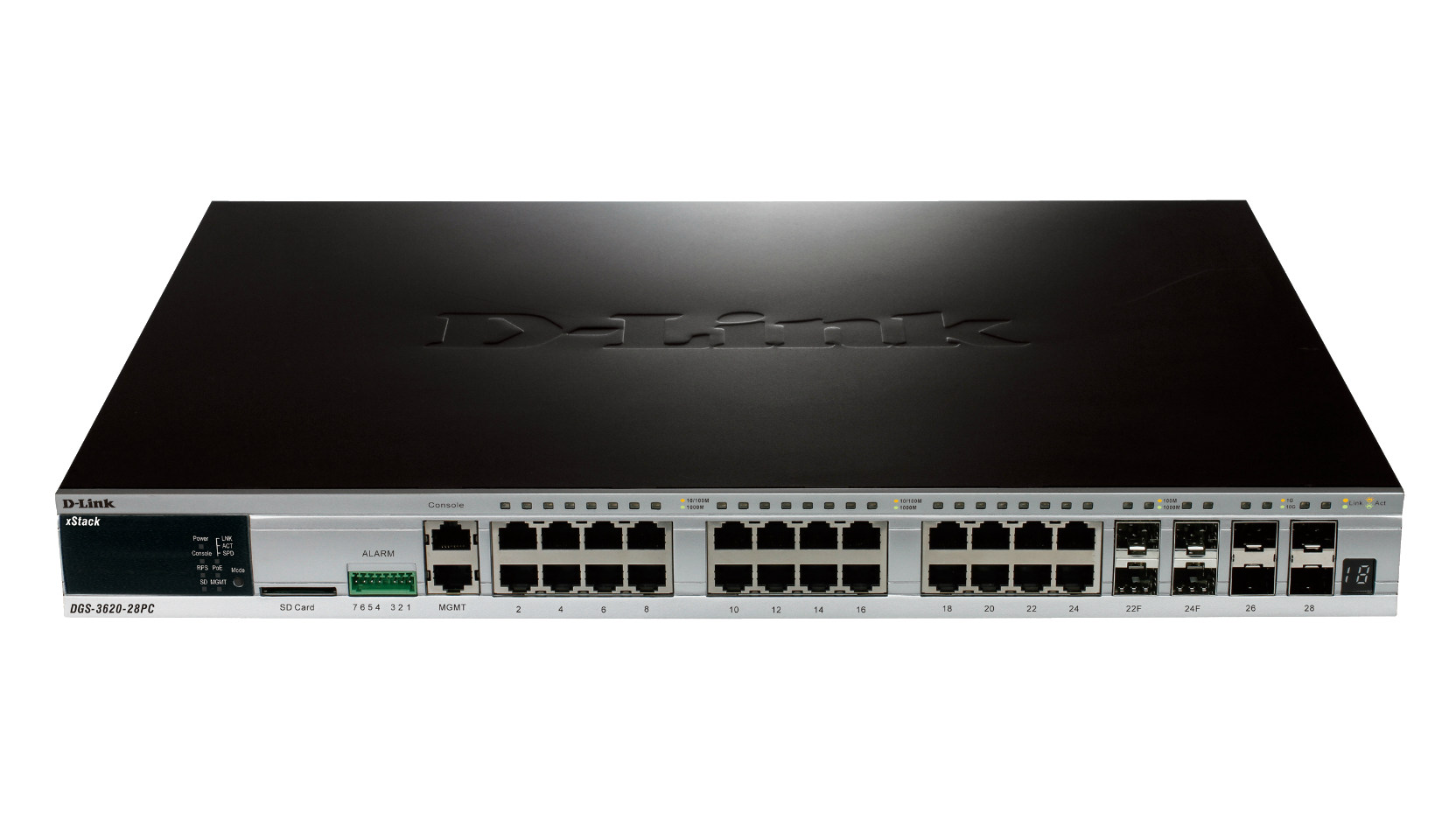

- DGS-3620-28PC/SI and EI: 28-Port Gigabit L3 Stackable Managed PoE Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x SFP+ 10 Gbps ports (Standard and Enhanced Image)

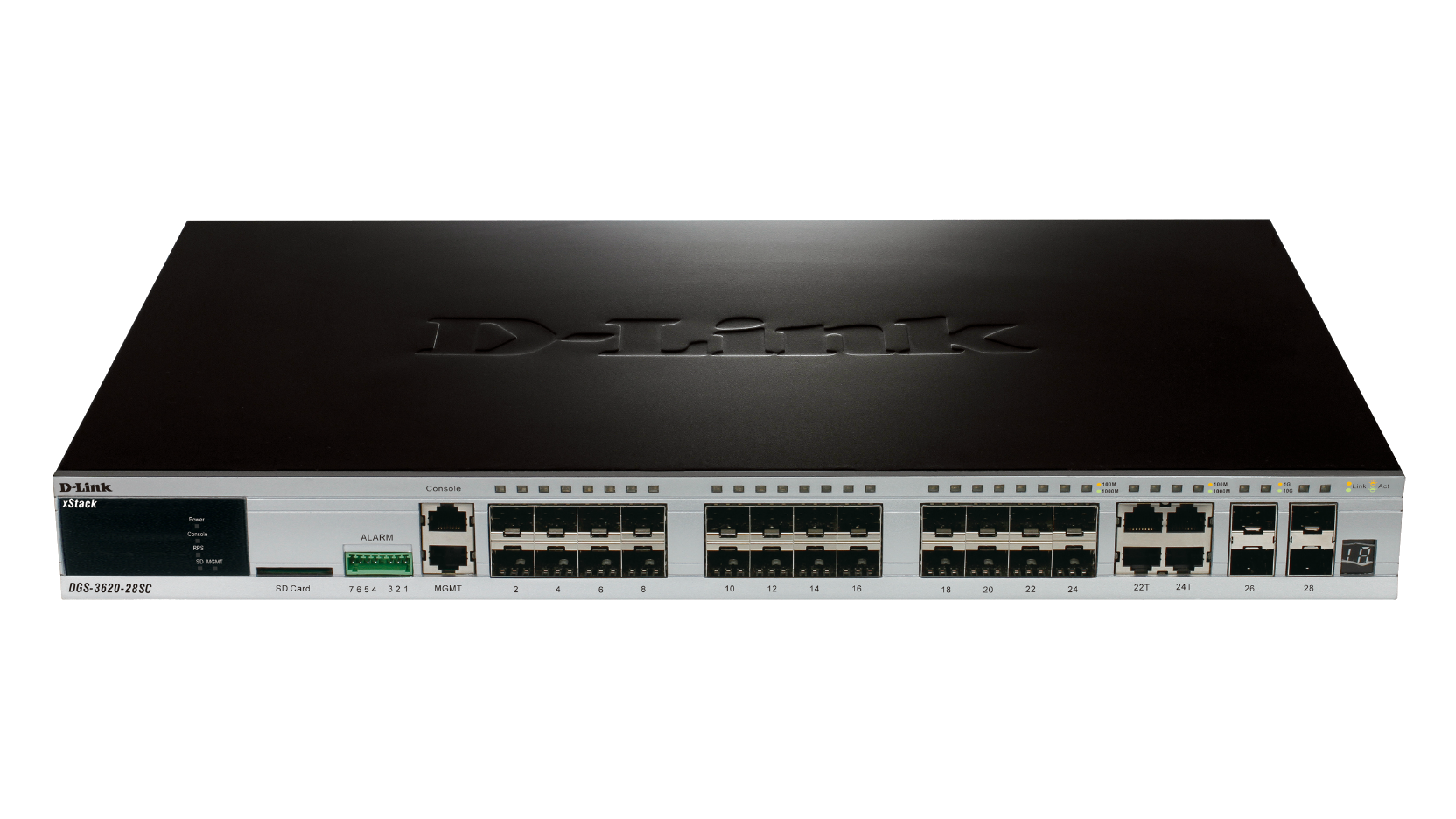

- DGS-3620-28SC/SI and EI: 28-Port SFP L3 Stackable Managed Switch including 4 x Combo 1000BASE-T/SFP ports and 4 x SFP+ 10 Gbps ports (Standard and Enhanced Image)

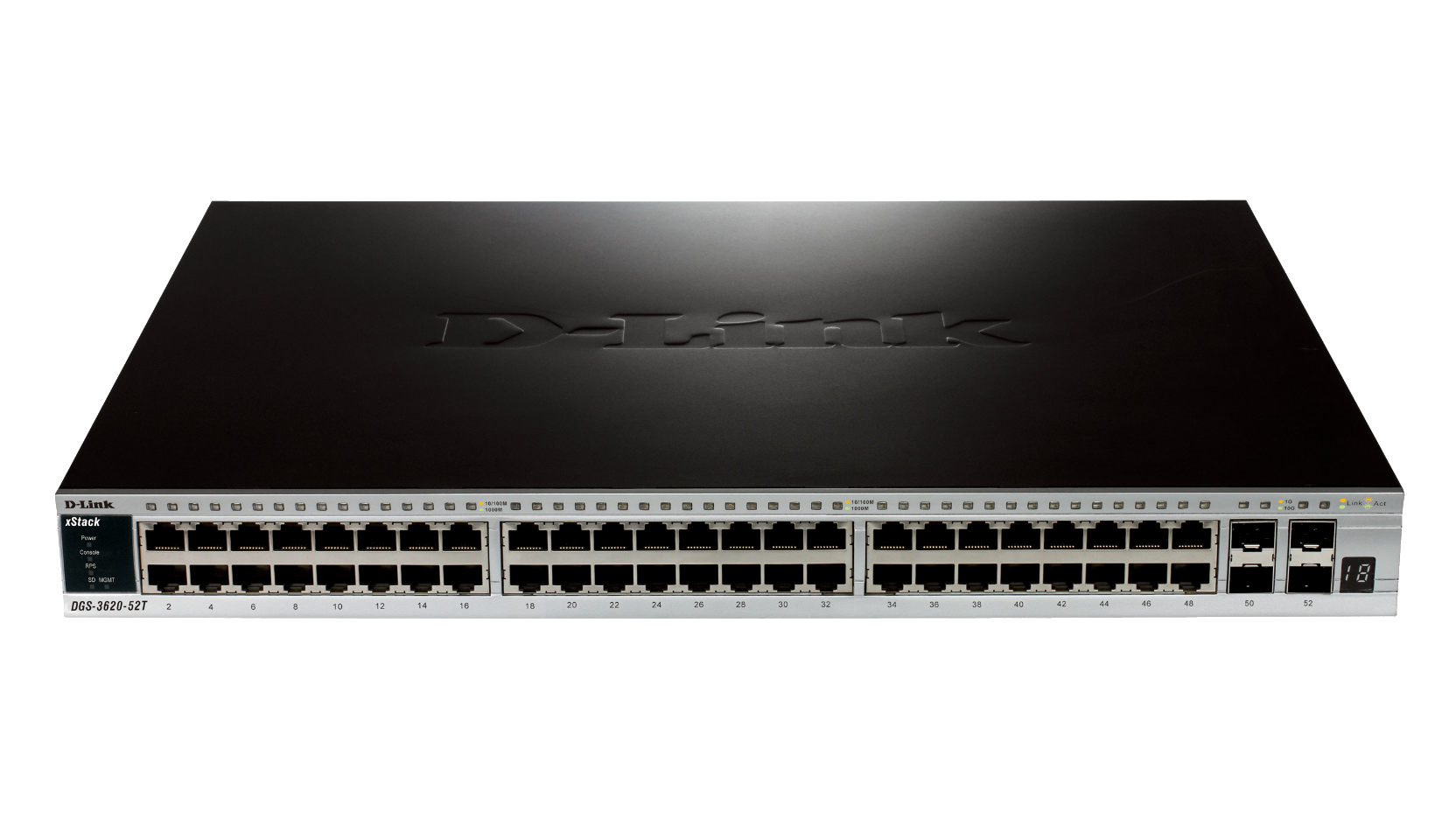

- DGS-3620-52T/SI: 52-Port Gigabit L3 Stackable Managed Switch including 4 x SFP+ 10 Gbps ports (Standard Image)
- DGS-3620-52P/SI: 52-Port Gigabit L3 Stackable Managed PoE Switch including 4 x SFP+ 10 Gbps ports (Standard Image)
Below optional upgrade licence available to upgrade from Standard Image (SI) to Enhanced Image (EI):
- DGS-3620-28TC-SE-LIC: DGS-3620-28TC Standard to Enhanced Image Upgrade License
- DGS-3620-28PC-SE-LIC: DGS-3620-28PC Standard to Enhanced Image Upgrade License
- DGS-3620-28SC-SE-LIC: DGS-3620-28SC Standard to Enhanced Image Upgrade License
- DGS-3620-52T-SE-LIC: DGS-3620-52T Standard to Enhanced Image Upgrade License
- DGS-3620-52P-SE-LIC: DGS-3620-52P Standard to Enhanced Image Upgrade License
The DGS-3620 Series xStack L3 Managed Stackable Gigabit Switches deliver great performance, flexibility, security, multi-layer QoS, and accessibility, along with redundant power solutions for SMBs and enterprises. With high Gigabit port densities, Gigabit SFP, and 10-Gigabit SFP+ support, and advanced software solutions, these switches can act as either departmental access layer devices or core switches to form a multilevel network structured with backbone and centralized high-speed servers. Service providers can take advantage of the high SFP density switches to structure the cores of Fiber to the Building (FTTB) networks that are extended to the subscribers’ sites.
Standard and Enhanced Images
The DGS-3620 Series is embedded with two different software images, the Standard Image (SI), and the Enhanced Image (EI). The Standard Image provides fundamental features for campuses and enterprises such as switching, routing, multicasting, advanced Quality of Service (QoS), and robust security features. The Enhanced Image supports OAM, BGP, IPv6 dynamic routing, and tunneling which are all suitable for the service provider network.
Unparalleled Flexibility
Easily deployed and simple to manage, the DGS-3620 Series can be stacked with any switch that supports D-Link’s Single IP Management to form a multi-level network structured with backbone and centralized high-speed servers. The virtual stack can include units located anywhere on the same network domain, and uses optional 10-Gigabit uplinks to move intra-stack traffic at 20 Gbps full duplex speeds. The stack can also eliminate single point of failures, cable distance barriers, limitations of physical stacking, and the need for stack cabling.
Redundant Ring Stacking
Alternatively, depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 12 units or 576 Gigabit ports can be configured for a stack using direct attach cables providing high bandwidth on the already cost-efficient DGS-3620 Series.
Security, Performance & Availability
The DGS-3620 Series provides a complete set of security features including L2/L3/L4 multi-layer Access Control Lists and 802.1X user authentication via TACACS+ and RADIUS servers. D-Link ZoneDefense technology is built-in, allowing businesses to integrate the switch stack with D-Link NetDefend firewalls to implement a complete and proactive security infrastructure.
The DGS-3620 Series offers extensive VLAN support including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of L2/L3/L4 QoS/CoS solutions help ensure that critical network services such as VoIP, ERP, Intranet, and video conferencing are served with proper priority. The DGS-3620 Series provides D-Link’s Safeguard Engine to increase the switch’s reliability, serviceability, and availability to prevent malicious flooding traffic caused by worms or virus infections. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, flow-based bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.
IPv6 Technology
The DGS-3620 Series also features comprehensive IPv6 support, including IPv6 Tunnel, ICMPv6, DHCPv6, RIPng, OSPFv3, IPv4/IPv6 dual stack and more. With 10-Gigabit connectivity and IPv6 support, the DGS-3620 Series enables you to future-proof your network for cost efficiency and longevity while meeting the requirements that future IPv6-capable network devices require.
D-Link Green Technology
D-Link is striving to take the lead in developing innovative and power-saving technology that does not sacrifice operational performance or functionality. The DGS-3620 Series implements D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner. The Smart Fan feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and eco-friendly operation of the switch.
Gerelateerde Producten
Specs
Number of ports
|
16 to 30 ports 48 to 54 ports |
---|---|
Layer
|
Layer 3 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
10GbE SFP+ Combo 1000BASE-T/SFP |
Switching capacity
|
128 Gbps 176 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet |
D-Link Green
|
Supported
|
Form Factor
|
Rackmountable |
Physical stacking
|
Up to 12 devices Up to 40 Gbps bidirectional bandwidth |
Virtual stacking (up to 32 devices)
|
Supported
|
MAC address
|
32K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN Super VLAN Voice VLAN |
IPv4/IPv6 routing table
|
IPv4 - 12K IPv6 - 6K |
IPv4/IPv6 forwarding table
|
IPv4 - 8K IPv6 - 4K |
IP interfaces
|
256 |
IPv6 Ready
|
Supported
|
Static route for IPv4/IPv6
|
IPv4 - 256 IPv6 - 128 |
IPv6 tunneling
|
Supported
|
Multicasting
|
Supported
|
PIM-SM
|
Supported
|
DVMRP v3
|
Supported
|
RIP v1/v2
|
Supported
|
RIPng
|
Supported
|
OSPF
|
Supported
|
BGP
|
Supported
|
OSPFv3
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
8 Kbps minimum granularity |
Three colour marker
|
1 Kbps minimum granularity |
Time-based QoS
|
Supported
|
ACL type
|
Egress Ingress VLAN-based |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
802.3ah
|
Supported
|
802.1ag
|
Supported
|
ITU-T Y.1731
|
Supported
|
