25G Micro Data Center Switch
DQS-5000-56ZS
- Product Status (Revision IN): Live
- 48 x 25G SFP28 ports and 8 x 100G QSFP28 ports for high-density networking
- 2 Tbps of switching capacity
- 2 PSUs (1+1) redundant & hot-swappable
- 5 fans (n+1) redundant and hot-swappable
- Front-to-back cooling
Where to buy
Performance

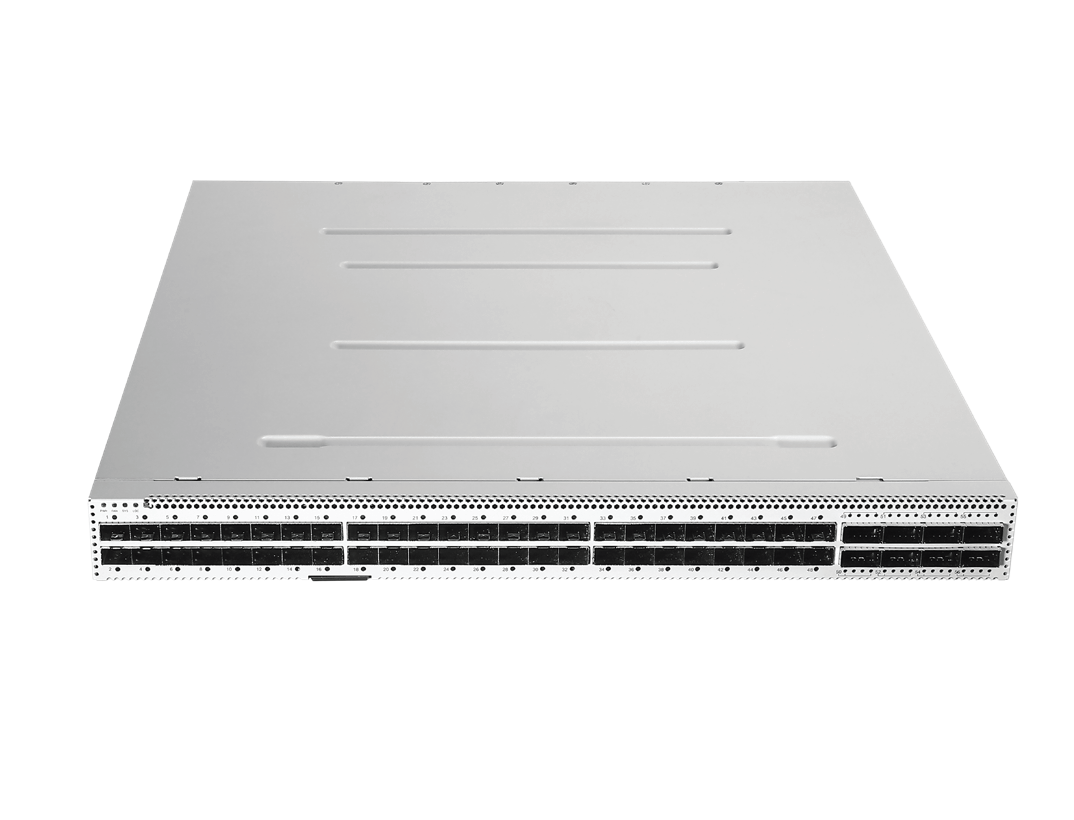

The DQS-5000-56ZS is a high-performance 25G/100G switch platform designed specifically for micro data center environments. With 48 x 25G SFP28 ports and 8 x 100G QSFP28 ports, it delivers powerful Layer 2 and Layer 3 capabilities in a compact 1RU form factor.
Specification
| Size | 19-inch, 1U rack-mount size19-inch, 1U rack-mount size |
|---|---|
| Interfaces | 48 x 10G/25G SFP28 ports, 8 x 40G/100G QSFP28 ports |
| Console Port | 1 x RJ-45 console port for CLI management |
| Management Port | 1 x 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management |
| USB Port | 1 x USB Type A |
| Dimensions (W x D x H) | 440 x 470 x 44 mm |
| Memory | 8 GB DDR4 SO-DIMM w/ECC |
| CPU | Intel x86 CPU, 4-Cores |
