45W Adapter with Dual port output. (Type C + Type A)

DPA-F4511

  • Product Status (DPA_F4511_IN): Live
Charge with Trust
GanTech
  • PDQC compatible Fast Charging Adapter
  • It has Short-circuit, Over voltage, Over current, Over temperature protection
  • Used to charge Mobiles, Bluetooth devices

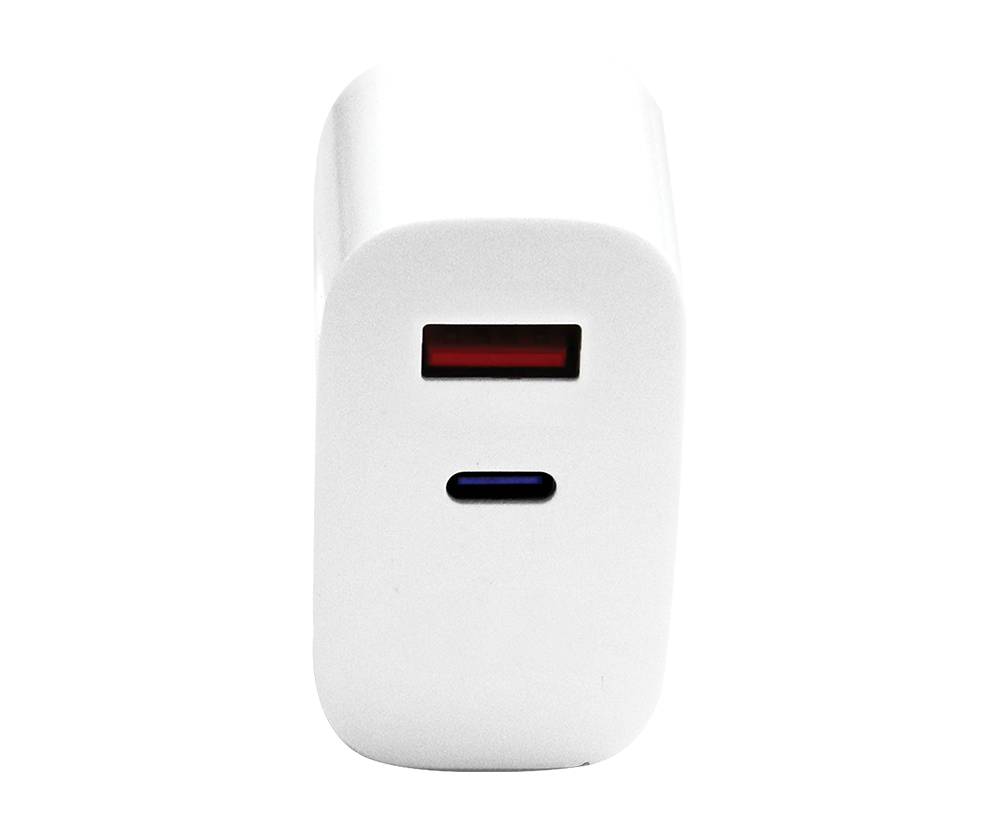

  • It has 1* USB-C Port and 1* USB-A port
  • Up to 45W output Power
  • 1 Year warranty

Download the datasheet.

Where to buy

Performance & Fast charging

DPA-F4511 is a Power Delivery and Quick Charge Fast charging adapter. This device has one USB C port and one USB-A port for charging. This adapter can provide up to 45W used for charging mobile devices. Fast charging is compatible with PD and QC compatible devices.

This is an extremely useful adapter with very compact size & easy to carry.

Model No DPA-F4511
Connector Type Type C + Type A
Input Voltage 100-240V (AC) 50-60Hz
Type C Output DC5V/3A, 9V/3A,12V/2.5A, 15V/3A, 20V/2.25A
Type A Output DC5V/3A, 9V/2A,12V/1.5A
Protection Over current protection, Short circuit protection, Over temperature protection, Output over voltage protection
Ambient Condition 80%
Supported Charging Protocols USB-A Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.8V DCP-1.5A QC2.0-9V-12V-20V Samsung-AFC-9V Huawei-FCP-9V-12V-24.0W USB-C Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.6V DCP-1.5A QC2.0-9V-12V-20V QC4+ Samsung-AFC-9V Huawei -FCP-9V-12V-24.0W PD3.0 PPS 45W
Max. Wattage 45Watts (Max)
Operating Temperature 0 to 40°C
Weight 73 grams
Compliance of Standards BIS
Dimension 46 X 44 X 28 mm
