33W Adapter with Dual port output. (Type C + Type A)


  • Product Status (Revision IN): Live
Charge with Trust
  • PDQC compatible Fast Charging Adapter
  • It has Short-circuit, Over voltage, Over current, Over temperature protection
  • Used to charge Mobiles, Bluetooth devices
  • It has 1* USB-C Port and 1* USB-A port
  • Up to 33W output Power

Download the datasheet.

Where to buy

Performance & Fast charging

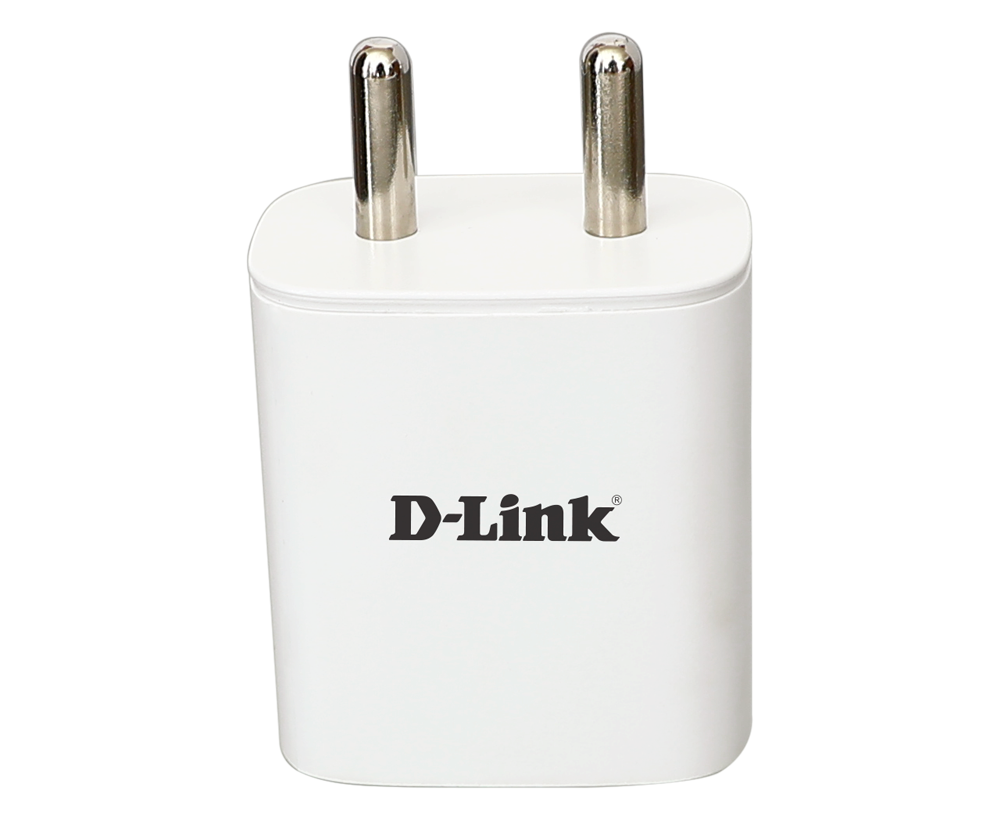

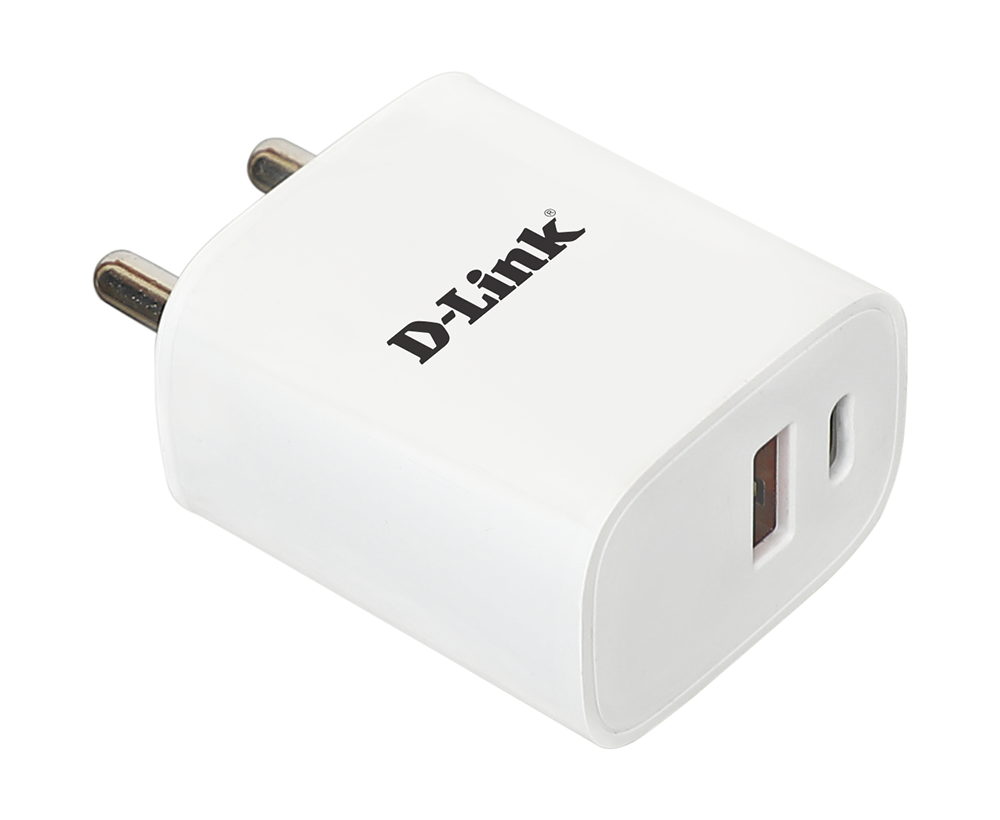

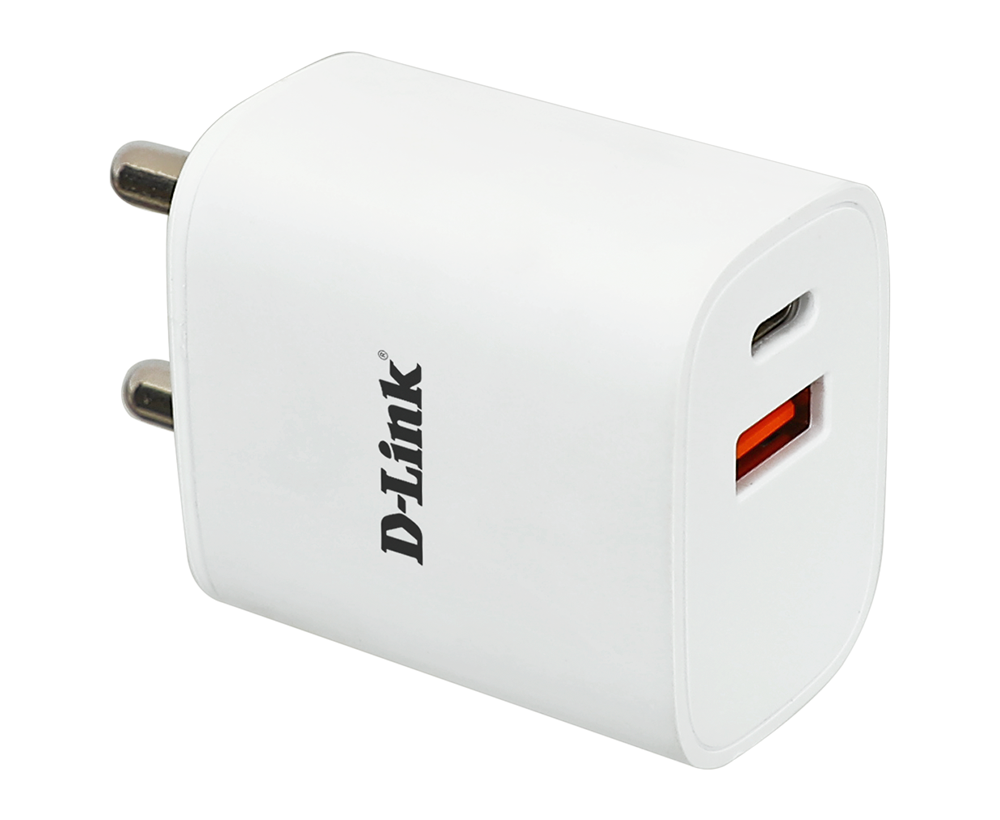

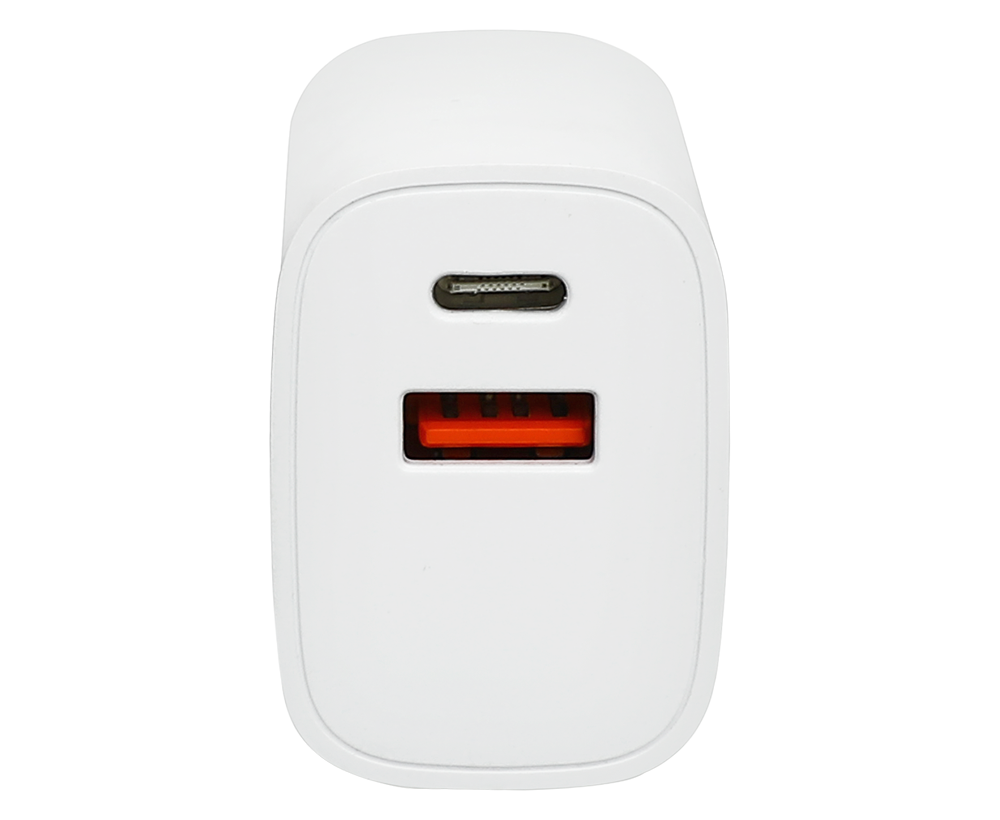

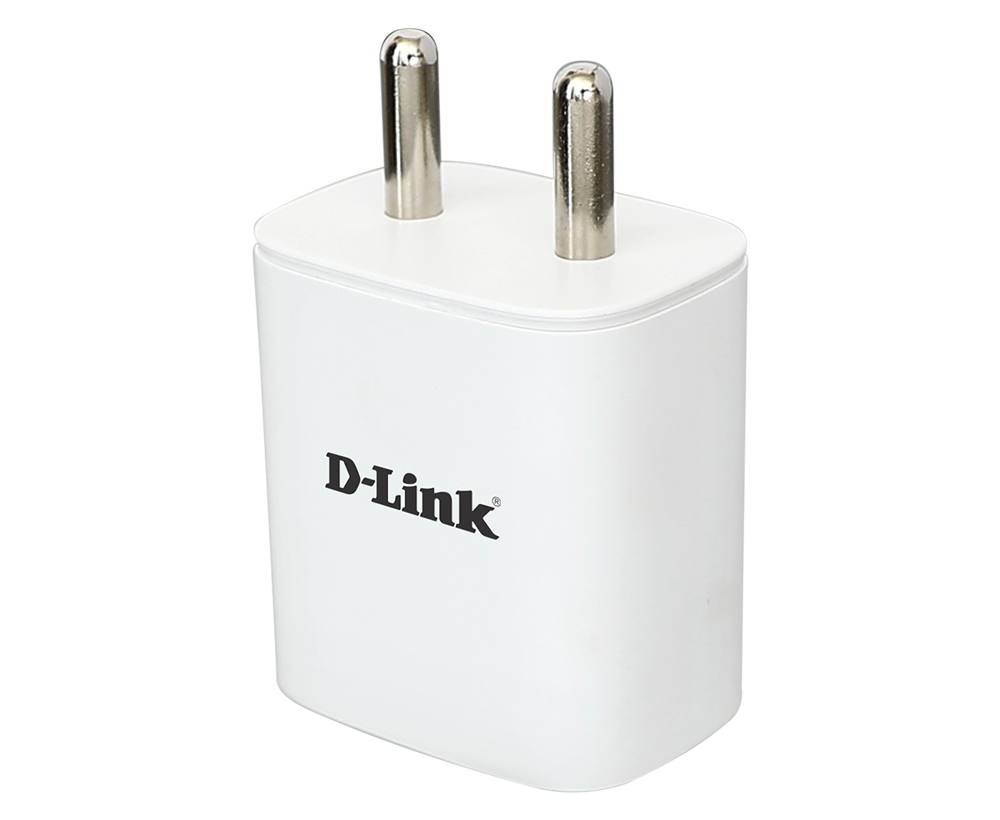

DPA-F3311 is a Power Delivery and Quick Charge Fast charging adapter. This device has one USB C port and one USB-A port for charging. This adapter can provide up to 33W used for charging mobile devices. Fast charging is compatible with PD and QC compatible devices.

Model No DPA-F3311
Connector Type Type C + Type A
Input Voltage 100-240V (AC) 50-60Hz
Type C Output DC5V/3A, 9V/3A,12V/2.75A, 15V/2.2A, 20V/1.65A
Type A Output DC5V/3A, 9V/3A,12V/2.75A, 20V/1.65A
Protection Over current protection, Short circuit protection, Over temperature protection, Output over voltage protection
Ambient Condition 80%
Supported Charging Protocols USB-A Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.8V DCP-1.5A QC2.0-9V-12V-20V Samsung-AFC-9V Huawei-FCP-9V-12V-24.0W ; USB-C Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.6V DCP-1.5A QC2.0-9V-12V-20V Samsung-AFC-9V Huawei -FCP-9V-12V-24.0W PD3.0 PPS 33W
Max. Wattage 33Watts (Max)
Operating Temperature 0 to 40°C
Weight 50 grams
Compliance of Standards BIS
