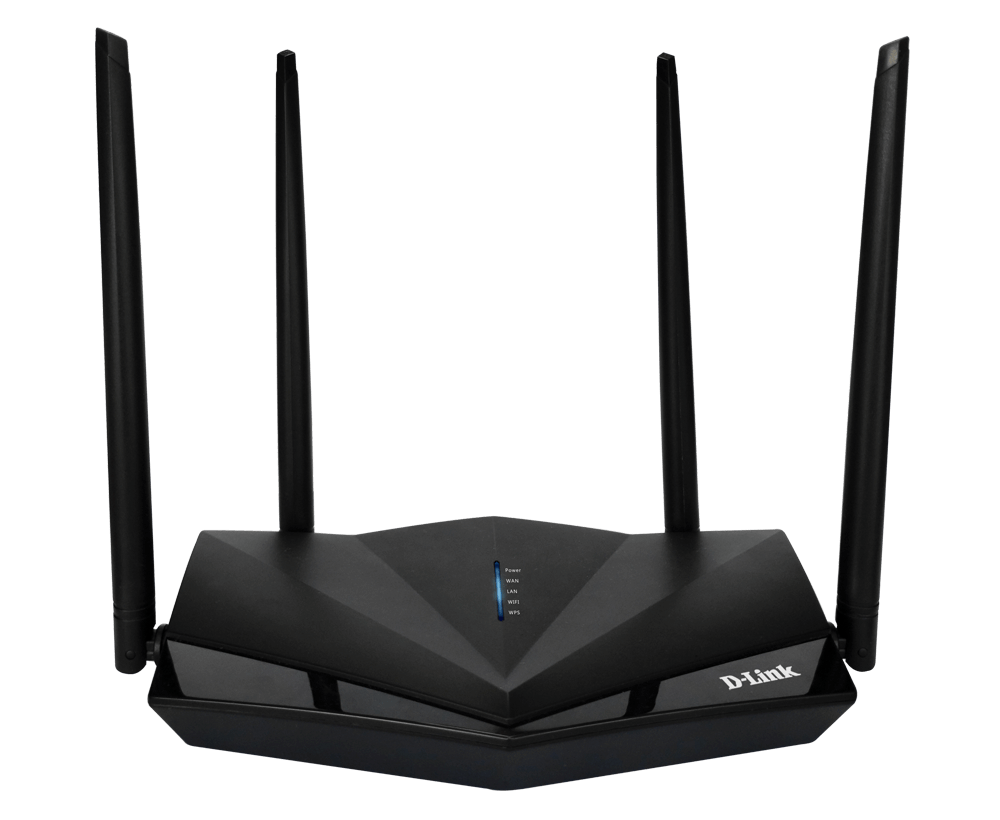

Wireless N300 Router

DIR-650IN

  • Product Status (Revision Datasheet IN): Live
  • Internet connection with wired and wireless devices.
  • Advanced Security with WPA/WPA2 and Firewall (NAT).
  • Multiple Operating Modes: Router | AP | Repeater | Client | WISP client/Repeater.
  • Web browser-based setup and configuration.

Download the datasheet.

Where to buy

Wireless Interface

The DIR-650IN Wireless N300 Router is an attractive, high-performance router that makes it easy to share your broadband Internet connection with all your devices. Simply connect it to your broadband modem, then use the web-based Setup Wizard that guides you step by step through the configuration process. Whether you’re surfing the web on your desktop or relaxing on the couch with your laptop, the DIR-650IN keeps you connected wherever you are in your home.

A Fast and Reliable Home Network

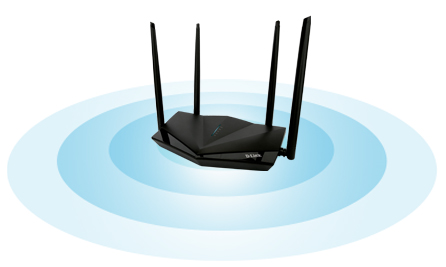

The DIR-650IN creates a high-speed home network with wireless speeds of up to 300 Mbps for 1fast file transfers, seamless web surfing, and smooth video streaming. The external antennas increase your wireless network’s coverage so you can avoid “dead spots” and get a reliable connection in more places throughout your home. The DIR-650IN also has Repeater Mode, which allows you to extend the range of your existing wireless network, allowing you to reach the farthest corners of your home or small office.

Flexible Connectivity for Your Devices

The DIR-650IN keeps you connected, no matter whether you’re using a desktop or laptop PC, a smartphone, or a tablet. Three 10/100 Fast Ethernet ports provide fast and reliable connectivity for your wired devices, while Wireless N300 lets you connect all your wireless devices across your home.

Easy to Set Up, Easy to Secure

Just open a web browser to access the Setup Wizard and follow the easy step-by-step instructions to get started. Create a secure network in seconds using Wi-Fi Protected Setup, which instantly creates a secure connection to a new device without the need to enter settings or create passwords.

Product Description Wireless N300 Router
Interfaces 3 X 10/100 LAN ports , 1 X 10/100 WAN (Internet) port
LEDs Power, Internet, LAN, Wi-Fi, WPS
Buttons POWER button to power on/power off, WIFI button to enable/disable wireless network, WPS button to set up wireless connection, RESET button to restore factory default settings
Antenna 4 X 5dBi External Antenna
Power connector Power input connector (DC)
Security IWPA & WPA2 (Wi-Fi Protected Access, Wi-Fi Protected Setup (WPS), WEP 64/128 bit data encryption
Dimensions 255.9 x 168 x 41.2 mm
Weight 294 grams
Power Input: 100 to 240 V AC, 50/60 Hz, Consumption: 5 V / 1 A
Temperature Operating: from 0 to 40 °C , Storage: from -40 to 70 °C
Humidity Operating: from 10% to 90% (non-condensing), Storage: from 5% to 95% (non-condensing)

Support

Version Date Type File Size
Datasheet - PDF 0.67mb Download
