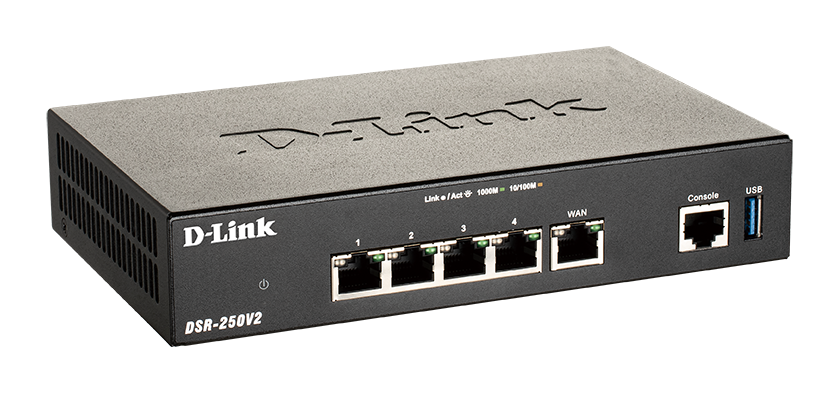

Unified Services VPN Router

DSR-250V2

  • Termék Státusz (Revision B): Live
  • Complete VPN features
  • VPN, up to 200 Mbps throughput
  • Firewall, up to 950 Mbps throughput
  • Dynamic web content filtering and application control
  • Web authentication support
  • WAN failover and load-balancing

Download the datasheet.

Partner üzleteink

Secure and private connection to the office, wherever you are.

Secure, high-performance networking solutions to address the changing needs of small and medium businesses. Full-featured VPN offers a private link between mobile/remote workers and the office.


Advanced VPN

Integrated VPN client and server with support for IPSec, PPTP, L2TP, GRE, and OpenVPN tunneling

Failover/Load Balancing Mode

Dual Gigabit WAN support provide high availability and traffic load balancing.

Web Content Filtering

Web content filtering feature to help administrators monitor, manage and control employees’ Internet usage.

Captive Portal

Captive Portal allows employees and guest users to authenticate and authorise easily

Remote secure connections

With fully featured VPN (IPSec/PPTP/L2TP/GRE/OpenVPN), the DSR-250V2 provides secure connections between mobile or remote employees and the office.

Highly configurable and flexible with OpenVPN

OpenVPN uses various authentication and encryption protocols, such as SSL and TLS ensure users’ communications are secure and private. Not only is it highly secure, it is also incredibly configurable to provide secure point-to-point or site-to-site connections.

High-performance firewall and VPN

High-performance firewall with up to 950 Mbps throughput, and VPN (3DES) with up to 200 Mbps throughput, supporting up to 75 VPN tunnels, allows more devices to be connected, faster.

Multi-WAN support

Multi-WAN support (through dual Gigabit WAN ports) with WAN failover and load balancing ensures a reliable and stable Internet connection.

Access through browser authentication

Captive Portal allows employees and guests to be easily authenticated and authorised through customisable welcome page.

Web Content Filtering

The DSR-250V2 also provides a web content filtering feature to help administrators monitor, manage and control employees’ Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies or to block URLs by keyword. Dynamic web content filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximise service availability.

Control access and bandwidth priority based on application

Application Control can restrict or give priority to predefined applications to effectively manage network utilisation.

Related Products

DSR 1000N Front
Wireless AC Unified Services VPN Router
DSR-1000AC
Tudj meg többet!
Type
VPN security router
Wired interface
1 x Gigabit Ethernet WAN
1 x Gigabit Ethernet WAN/LAN
3 x Gigabit Ethernet LAN
USB ports
1 x USB 3.0
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Firewall throughput
950 Mbps
VPN throughput (3DES)
200 Mbps
Firewall policies
300
Internet connection type
Multiple PPPoE
PPPoE/L2TP/PPTP
Static/Dynamic IP
Firewall system
Dynamic DNS
Dynamic route
Inter-VLAN route
Intrusion prevention system (IPS)
NAT, PAT
Static route
Web content filtering
Networking
3G redundancy
DHCP relay
DHCP server/client
IEEE802.1q VLAN
IP multicast
IPv6
Outbound load balancing
Route failover
VLAN (port-based)
VPN tunnels
75
IPSec tunnels
50
PPTP/L2TP tunnels
30
Encryption methods
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
RC4-128, 3DES, AES
VPN features
Dead Peer Detection
Hub and Spoke
IP Authentication Header (AH)
IP Encapsulating Security Payload (ESP)
IPSec NAT Traversal
IPSec/PPTP/L2TP Server
VPN Tunnel Keep Alive
Bandwidth management
Port-based QoS
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
