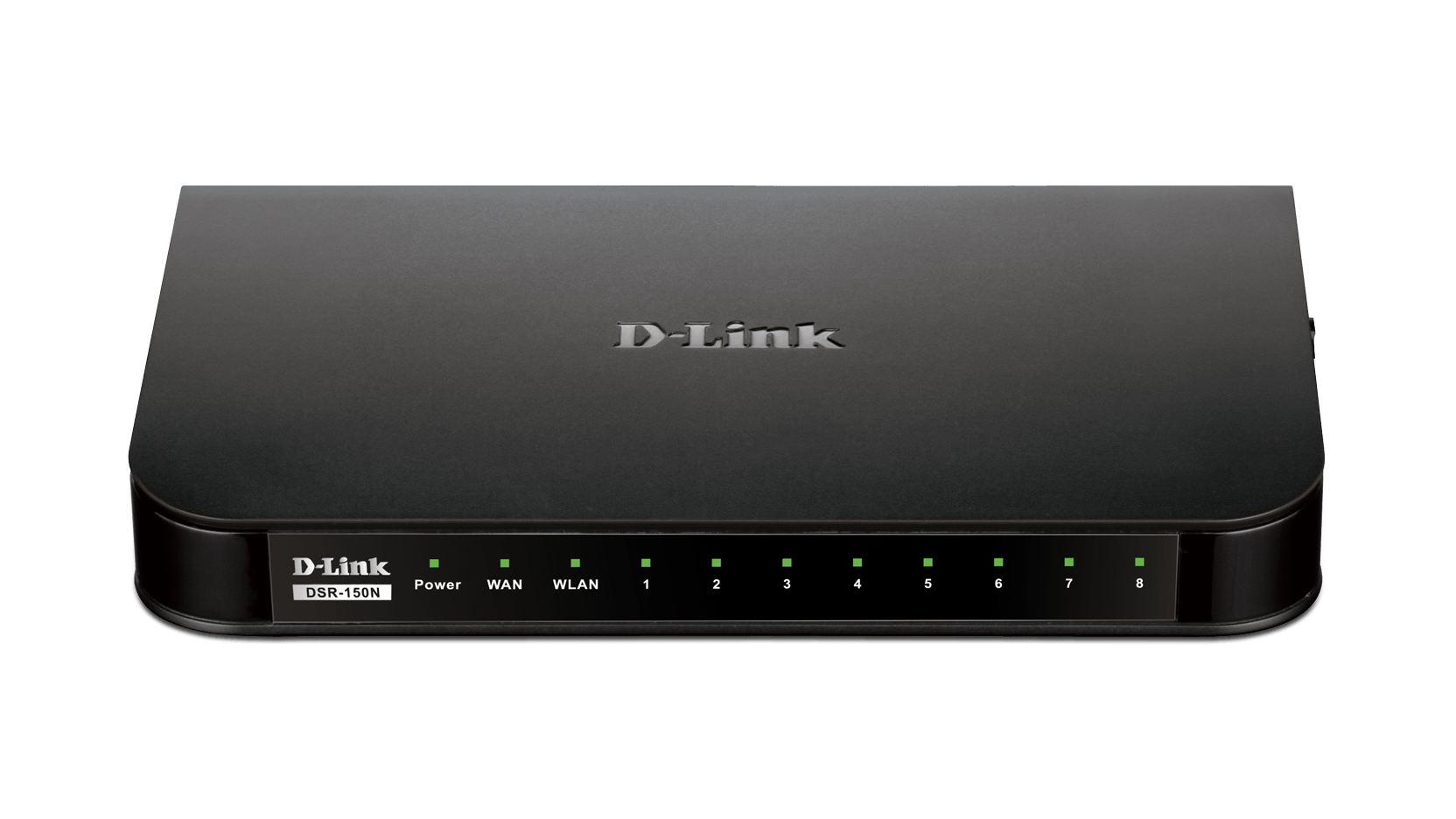

Wireless VPN Security Router

DSR-150N

  • Termék Státusz: End of Life

2

Years Warranty

3G

Network Support

300 Mbps

Capability

MIMO

Technology

Integrated Wireless Connectivity


The DSR-150N Wireless VPN Security Router is an all-in-one networking solution. Integrated high-speed IEEE 802.11n wireless technology offers comparable performance to traditional wired networks, but with fewer limitations. Support for separate Virtual LANs (VLANs) means the network can be partitioned, for instance to enable visitors to connect to the Internet without giving them access to the full corporate network.


Flexible Deployment Options


With 3G mobile Internet connectivity support via an optional 3G USB dongle3. This 3G network capability offers the ability to stay connected when wired Internet is not available or as a backup if the wired Internet connection fails.

Security


This affordable, high performance router also enables businesses to secure their network whether in the office, at home or out on the road. You and your colleagues can stay connected to the office anywhere, anytime.

Complete VPN features, as well as IPSec Hub and Spoke technology, ensures secure communication between mobile employees and offices.

Features

VPN

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network.

SSL

A Secure Sockets Layer (SSL) VPN tunnel provides remote access to a central corporate network

GRE

5 Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database

IPSec

Site-to-site VPN tunnels use IP Security (IPSec) Protocol

PPTP

Point-to-Point Tunneling Protocol (PPTP)

L2TP

Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links

Efficient Green Technology


D-Link Green Wi-Fi and D-Link Green Ethernet features save power and help cut energy usage costs. The D-Link Green WLAN Scheduler shuts down your wireless network automatically according to a schedule you define, allowing you to turn it off during off-peak hours, saving energy and keeping your network secure. The D-Link Green Ethernet feature can detect if a link is down on a port, and automatically puts that port into a sleep mode that drastically reduces the amount of power used. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.


1 Available through future firmware upgrade.
2 Maximum wireless signal rate derived from IEEE Standard 802.11. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
3 The following 3G dongles are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5*/A6*, DWM-157*, Huawei E1550, E173, and EC306.* The dongles marked with * will be supported through firmware upgrades.

Specs

Type
VPN security router
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
2 dBi for 2.4 GHz
Wired interface
1 x Fast Ethernet WAN
8 x Fast Ethernet LAN
USB ports
1 x USB 2.0
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
Advanced features
MIMO
Maximum number of SSIDs
4
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
Firewall throughput
95 Mbps
VPN throughput (3DES)
40 Mbps
Concurrent sessions
20000
Firewall policies
200
Internet connection type
Multiple PPPoE
PPPoE/L2TP/PPTP
Static/Dynamic IP
Firewall system
Dynamic DNS
Inter-VLAN route
NAT, PAT
Static route
Web content filtering
Networking
3G redundancy
DHCP relay
DHCP server/client
IEEE802.1q VLAN
IP multicast
IPv6
VLAN (port-based)
VPN tunnels
26
IPSec tunnels
10
PPTP/L2TP tunnels
1
Encryption methods
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
RC4-128, 3DES, AES
VPN features
Dead Peer Detection
Hub and Spoke
IP Authentication Header (AH)
IP Encapsulating Security Payload (ESP)
IPSec NAT Traversal
IPSec/PPTP/L2TP Server
VPN Tunnel Keep Alive
Bandwidth management
Maximum bandwidth control
Port-based QoS
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
This product was phased out on: 11/04/2017
This product's last date of support is on: 10/04/2022
No Downloads
