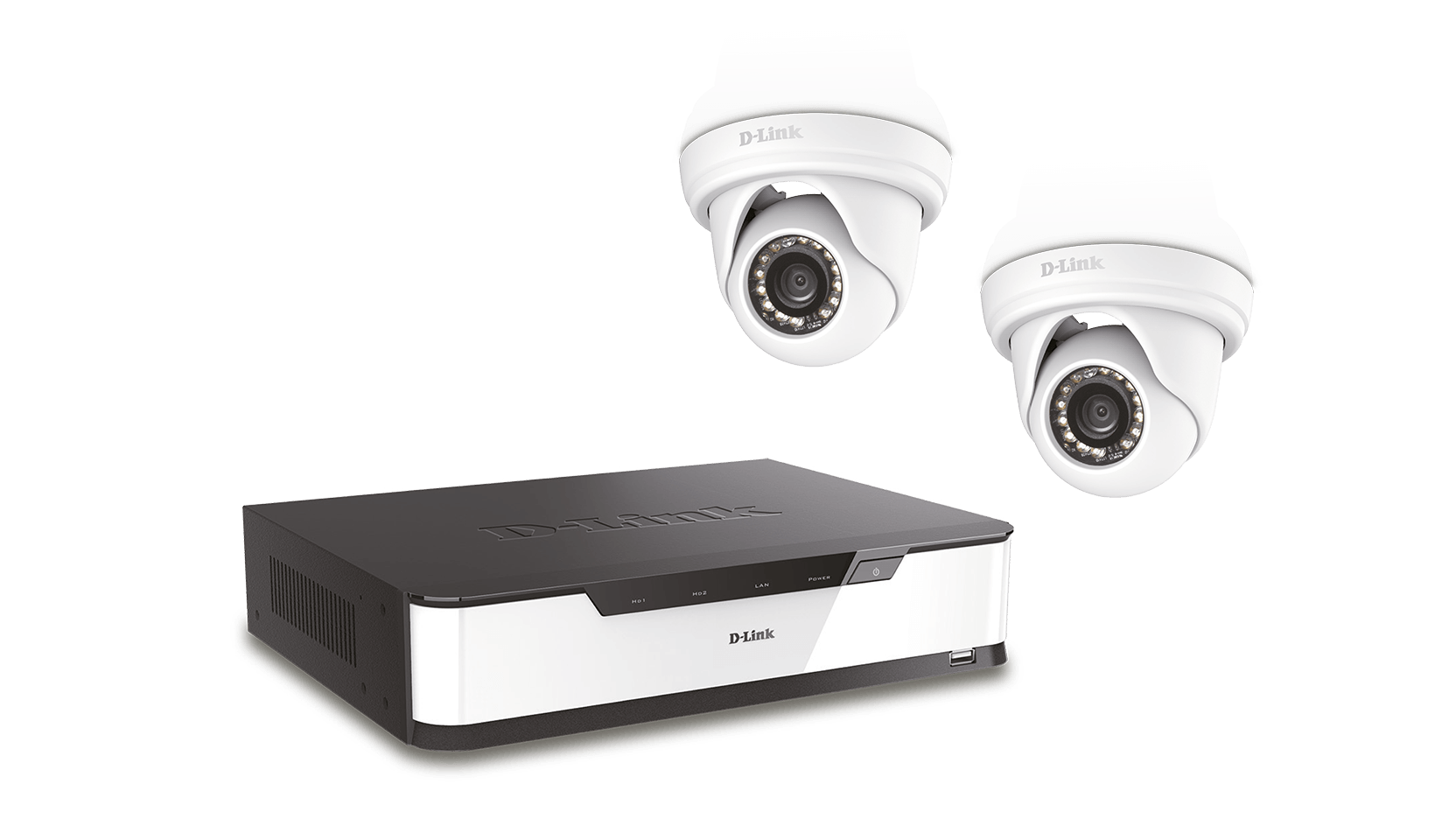

Vigilance Full HD Surveillance Starter Kit

DNR16-4802-2

  • Termék Státusz (Revision A): End of Life

The Vigilance Full HD Surveillance Starter Kit includes the 16-Channel PoE Network Video Recorder and 2 x Full HD Outdoor PoE Mini Dome Cameras to allow you to start protecting your premise right away. Simply add hard disk(s) to the Network Video Recorder (NVR) and connect the cameras, to start monitoring and recording
without the need of a computer.

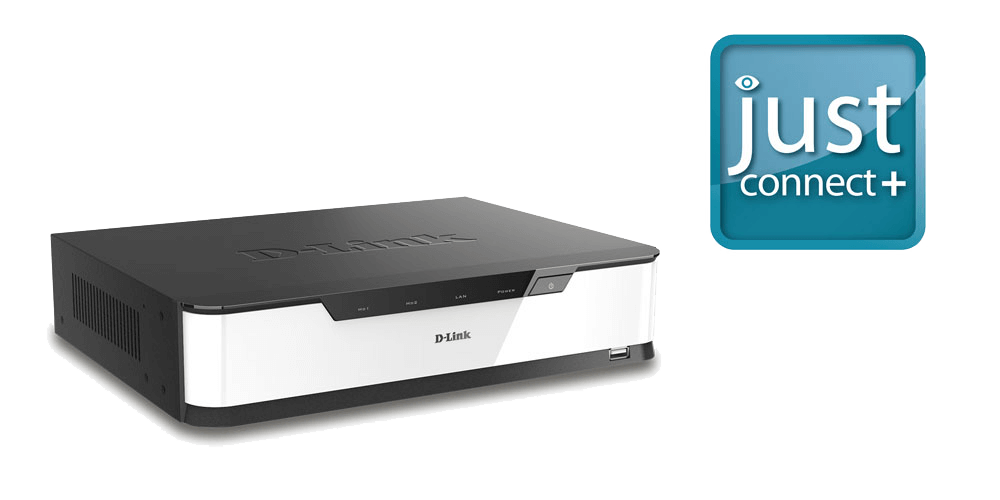

The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras1 to its dual HDD storage2. With the integrated HDMI/VGA display output and USB port3, users can view, control and configure the DNR-2020-04P without the need to turn on their PC.

Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup.


Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR's web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses.


The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.


The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas.


Users can remotely monitor their surveillance network in real-time through the JustConnect+ mobile app for smart phones or tablets. It offers total peace-of-mind 24/7 for business owners to view live video or playback recorded footage, at anytime, when connected to the Internet.

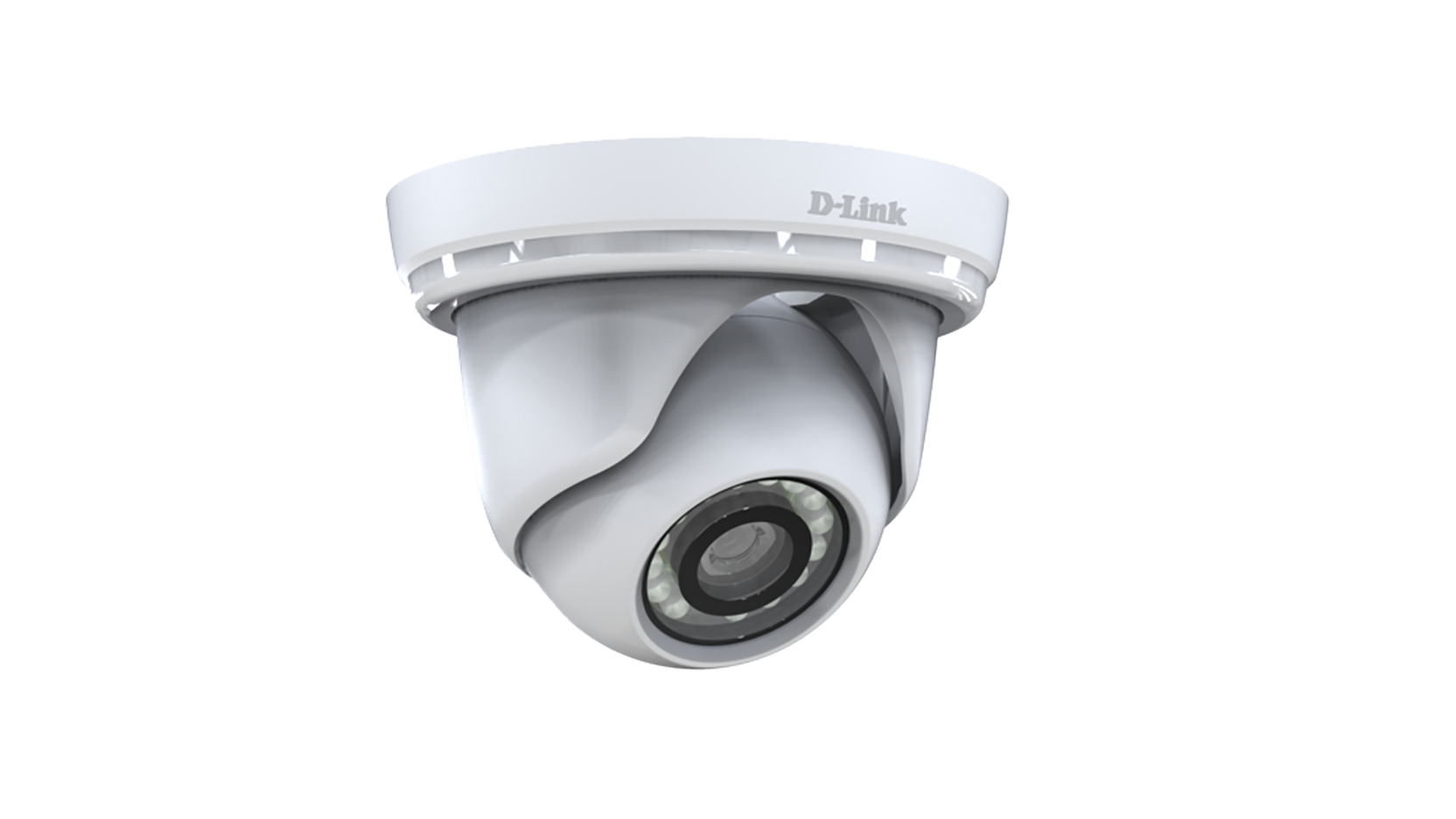

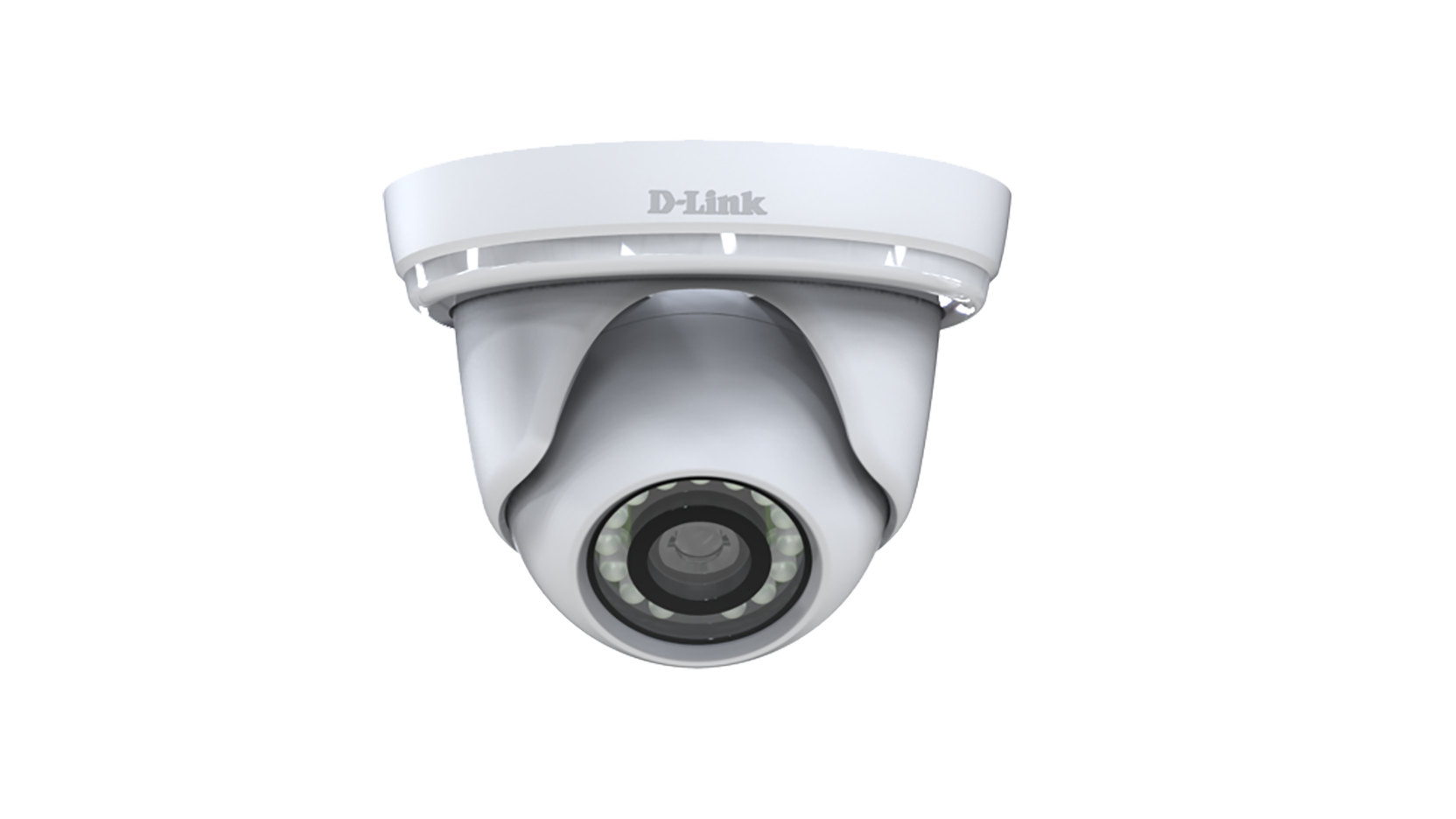

DCS-4021

Full HD Outdoor Mini Dome Camera

The Vigilance Full HD Outdoor PoE Mini Dome Camera is a professional, full featured full HD Camera that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 30 metres night vision and clear detailed images in contrasting and low light environments. The camera’s IP-66 (weather-proof) housing is specifically designed to withstand all adverse weather conditions.

Vigilance range

The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused

Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.

1 Please see the camera compatibility list.
2 Hard disks are not included. Supports hard disks up to 10 TB each for a total of 20 TB.
3 This port is used for firmware updates, video exports to USB drives, and backups. Connection to a USB mouse/keyboard is supported.
4 RAID 0 and RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use identical SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. Some older generation SATA drives may not be compatible. Click here for a list of SATA drives that have been tested to work with the NVR.
Channel Number
16 channels
Compression Format
H.264
MJPEG
MPEG-4
Video Output
HDMI
VGA
Display Mode
1, 4, 6, 9, 10, 13, 16 split screen
PTZ Control
Supported
Auto Pan/Petrol
Supported
Audio
2-way
Recording Type
Digital Input
Edge Motion Detection by Camera
Manual
Motion Event
Schedule
Pre-Recording Period
60 seconds
Post-Recording Period
300 seconds
Audio Recording
Supported
Auto/Scheduled Recycling
Supported
Simultaneous Playback
16 channels
Video Control
Play, stop, pause, forward, backward, next, previous
Digital Zoom
2X
Audio Control
Supported
Video Search
Camera
Event
Time
Video Export Format
ASF
AVI
MP4
Image Export File Format
JPG
Tamper-Proof (Digital Watermark)
Supported
Event to E-mail
Supported
Client Viewer
JustConnect+ App
Multi-NVR Viewer
Remote View
Supported
Playback Viewer
Playback manager via browser
Number of E-Map Layer
1
E-Map Image Format
JPG
Supported Camera
3rd party
D-Link
Auto Surveillance VLAN support
Supported
Number of HDD Bay
2
HDD Configuration
JBOD
RAID0/1
Single
Network Interface
1 x Gigabit port
4 x 802.3af Fast Ethernet ports
PoE support
802.3af
Backup Options
USB
Auto Boot-Up (Power Recovered)
Supported
This product was phased out on: 23/09/2018
This product's last date of support is on: 22/09/2023
