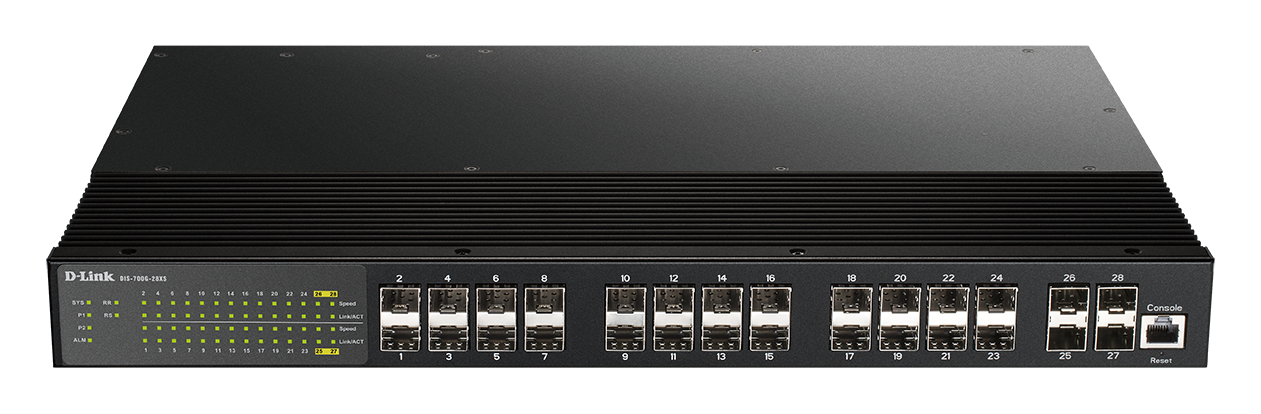

Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots
DIS-700G-28XS
- Termék Státusz: Live
- 24 x SFP ports, 4 x 10G SFP+ slots
- Layer 2+ management features

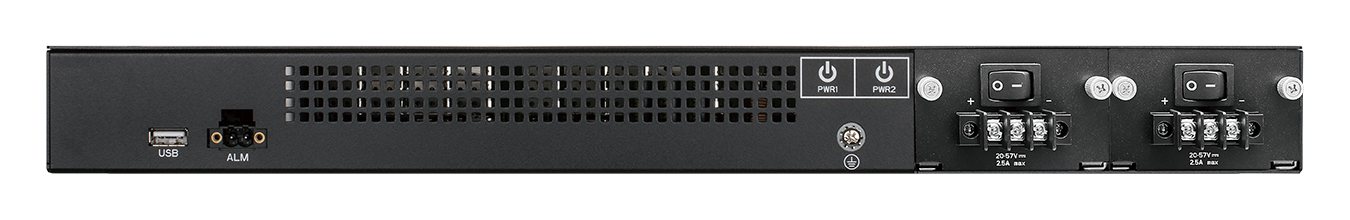

- High availability with redundant dual DC inputs
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMI, EMS
Partner üzleteink
Features
![](/hu/hu/-/media/product-pages/dis/common/layer2customization.png?mh=300&h=120&w=120&la=hu-HU&hash=06206EE90B2BB1C86E6E052E946A0903)
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
![](/hu/hu/-/media/product-pages/dis/common/gigabitconnectivity.png?mh=300&h=120&w=120&la=hu-HU&hash=38EA0C9D63CAECD5E79191E3167D09B9)
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
![](/hu/hu/-/media/product-pages/dis/common/officiallycertified.png?mh=300&h=120&w=120&la=hu-HU&hash=94022CBB5F6913F8C50156784E03A7EA)
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
![](/hu/hu/-/media/product-pages/dis/common/temperatures.png?mh=300&h=120&w=120&la=hu-HU&hash=A4CCAD6DC4E7C56064F0B41113725A9C)
Operates effortlessly in a range of industrial and harsh environments in temperatures from –40°C to +75°C.
![](/hu/hu/-/media/product-pages/dis/common/strong.png?mh=300&h=120&w=120&la=hu-HU&hash=B249CE25F18E31F192823AFCF0A6D0FC)
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
![](/hu/hu/-/media/product-pages/dis/common/highavailability.png?mh=300&h=120&w=120&la=hu-HU&hash=948605E4302D121DE82C70EC30EAC5CE)
Rapid ring failover recovery time of < 20ms.
![](/hu/hu/-/media/product-pages/dis/common/fanlessdesign.png?mh=300&h=120&w=120&la=hu-HU&hash=B3AAEAE24A48E770B78A316C8639E928)
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Related Products
![](/hu/hu/-/media/product-pages/dis/100g-series/dis_100g_5w_leftsideangle.png?h=100&w=66&la=hu-HU&hash=E13E4C2C57C481A0A72EF82C9DF88B3E)
![](/hu/hu/-/media/product-pages/dis/100g-series/dis_100g_5sw_leftsideangle.png?h=100&w=66&la=hu-HU&hash=143C21DC85CCD553C5DD3F0AF47A1894)
![](/hu/hu/-/media/product-pages/dis/100g-series/dis_100g_5psw_leftsideangle.png?h=100&w=62&la=hu-HU&hash=EADEB2B4AF580AF88510232BAD7D56D7)
![](/hu/hu/-/media/product-pages/dis/300g-series/dis_300g_12sw_leftsideangle.png?h=100&w=68&la=hu-HU&hash=B0E178F9F3AE0B66AD1D3D2BA2E6FA10)
![](/hu/hu/-/media/product-pages/dis/300g-series/dis_300g_8psw_leftsideangle.png?h=100&w=77&la=hu-HU&hash=26A16FE20102D5D227076A1284977BCF)
Specs
Type
|
Managed |
---|---|
Number of ports
|
16 to 30 ports |
Layer
|
Layer 2+ |
Main type of ports
|
SFP |
Type of uplink ports
|
10GbE SFP+ |
Fanless
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
<20ms link loss recovery
|
Supported
|
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
2048 |
VLAN type
|
Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) |
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
1 Kbps minimum granularity |
Three colour marker
|
1 Kbps minimum granularity |
Encryption protocol supported
|
SSH |
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
