Nuclias Wireless AC1900 Wave 2 Cloud-Managed Access Point

DBA-2520P

  • Termék Státusz (Revision A1): Live
  • Nuclias cloud-based remote management (1-year license included)
  • Dual-band AC1900 Wave 2, 3x3 MU-MIMO
  • Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability
  • Instant alerts, real-time statistics, WPA3 encryption, captive portal
  • Register for Limited Lifetime Warranty

Download the datasheet.

Partner üzleteink
Nuclias cloud-based network management

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1

License included

1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.

Zero-Touch Provisioning

Plug and play, cloud-based auto-configuration.

Unlimited scalability

Easy to add or scale back in line with demand.

Intuitive web and app-based interface

Easy to use, multi-lingual user interface

Up to 1.9 Gbps wireless throughput

High combined data rates of up to 1900 Mbps2.

Gigabit PoE Ethernet LAN Port

Power the device over Ethernet without the need for nearby power outlets.

Band steering

Dual-band concurrent 2.4 GHz and 5 GHz radios, with the best band selected to suit device and usage.

High-speed cloud networking you can rely on.

Manage wireless networks remotely anywhere in the world with this Nuclias Cloud indoor access point designed for SMB, retailers, hospitality, campuses, and managed service providers. Deliver high-combined data rates of up to 1,900 Mbps2 over 2 dedicated wireless bands with advanced WPA3 wireless security.

Built to be fast.

The DBA-2520P is a workhorse designed to handle bandwidth-intensive network applications involving numerous clients.

It delivers reliable high-speed wireless AC (Wave 2) connections, and performance is optimised via the Nuclias Cloud platform which adjusts channel selection, transmission power, and the maximum number of client connections.

1.9 Gbps
Max. Wireless Signal Rates
Combined data rates of up to 1,900 Mbps2 throughput over 2 dedicated wireless bands.

3x3
MU-MIMO
Three spatial streams for efficiently delivering higher speeds to multiple devices simultaneously.

Centralised management through a single pane of glass.

Manage your Nuclias network from anywhere using D-Link’s easy-to-use Nuclias Cloud Management1 platform. Organise the wireless network, manage multiple APs simultaneously, monitor live network statistics remotely, all from the cloud with a few simple clicks. The DBA-2520P is set up in seconds with the help of the simple Nuclias web-browser portal or the tablet app.



 Zero-Touch ProvisioningZero-Touching Provisioning
Plug-and-connect deployments without the need for additional configuration.
 Auto-ConfigurationCloud-management simplicity
It automatically retrieves its configuration settings from the cloud, enabling rapid deployments at remote locations without an on-site network administrator.

Increase network speeds and efficiency.

Enjoy a more efficient wireless network which balances network traffic and improves productivity.




Wireless AC Wave 2

High-speed wave 2 Wi-Fi
Reliable, high-speed wireless AC wave 2 Wi-Fi with maximum wireless signal rates of up to 1,900 Mbps2
 Load balancingSmart load balancing
Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network.

Deployment versatility.

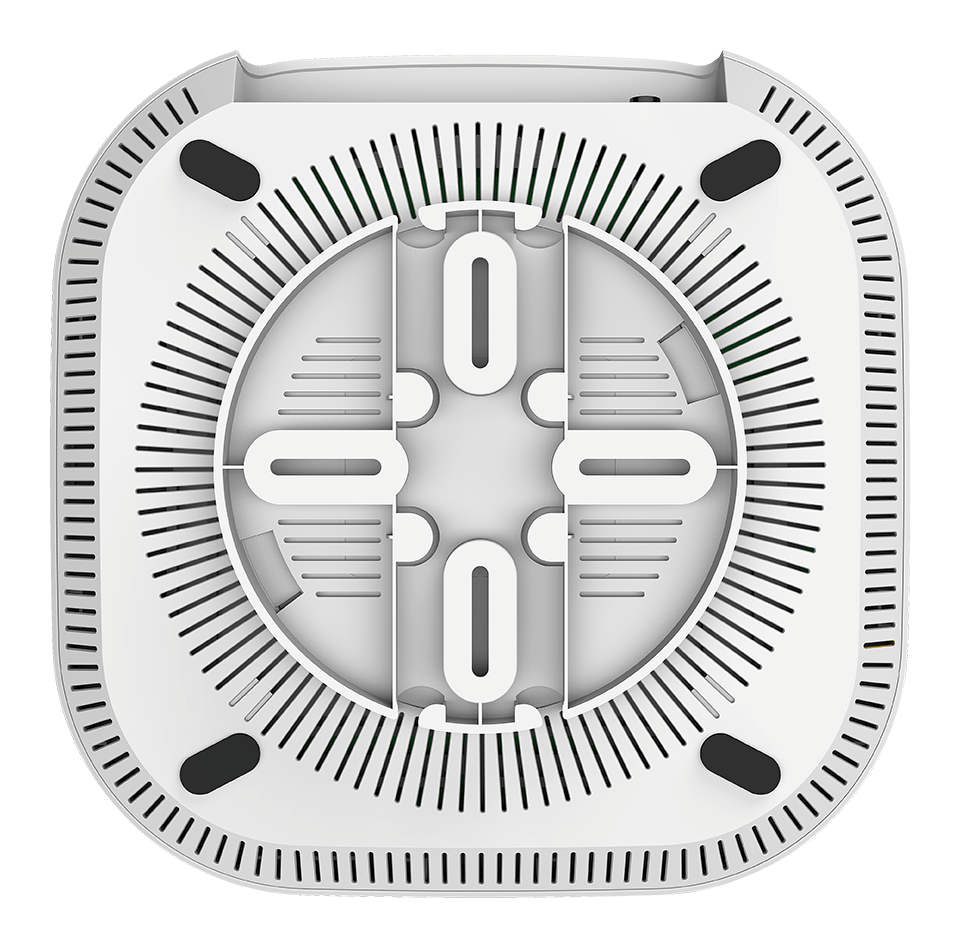

Deploy an easily manageable and extremely robust wireless network, with optimal wireless coverage, using DBA-2520P access points. For deployment flexibility, it can be mounted on a ceiling, wall, or placed on a desktop.

It also supports 802.3at Power over Ethernet (PoE), allowing the device to be powered by a single Ethernet cable in areas without power outlets.

Enterprise-grade security.

The DBA-2520P supports Personal and Enterprise versions of WPA, WPA2 and the latest WPA3 Wi-Fi encryption, with support for a back-end RADIUS server, to help maintain network security. It also features MAC address filtering, wireless LAN segmentation, SSID broadcast disabling, and wireless broadcast scheduling to enhance security.

It also supports up to 16 virtual access points to help segment users on the network using multiple SSIDs. And it features wireless client isolation, which allows limitations to be placed on direct client-to-client communication.

Budget-friendly renewals


All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.

Find out how D-Link’s Nuclias cloud solution can help your business.

D-Link’s Nuclias cloud solution makes deploying a wireless network simple. Nuclias access points are automatically configured by the Nuclias cloud, and instant alerts let you know what’s happening through the browser or the Nuclias app.

Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Nuclias Wireless AC1300 Wave 2 Cloud-Managed Access Point
DBA-1210P
Tudj meg többet!
Nuclias Wireless AC2600 Cloud-Managed Access Point
DBA-2820P
Tudj meg többet!
Nuclias Cloud-Managed Switches
DBS-2000-10, DBS-2000-10MP, DBS-2000-28, DBS-2000-28P, DBS-2000-28MP, DBS-2000-52, DBS-2000-52MP
Tudj meg többet!
AX1800 Wi-Fi 6 Cloud-Managed Access Point
DBA-X1230P
Tudj meg többet!
Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
DBA-X2830P
Tudj meg többet!
Type
Cloud-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
1300 Mbps 5 GHz
600 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes

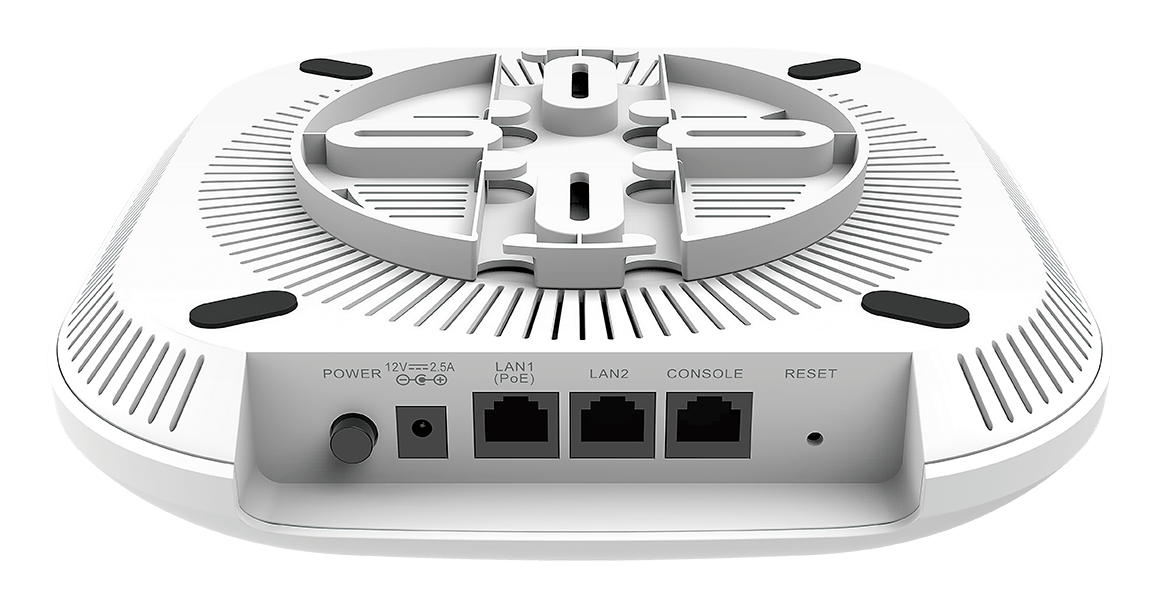

Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
Advanced features
802.11k/r Roaming
MU-MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
IPv6
Supported
Management platform
Nuclias Cloud Networking Solution

1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
