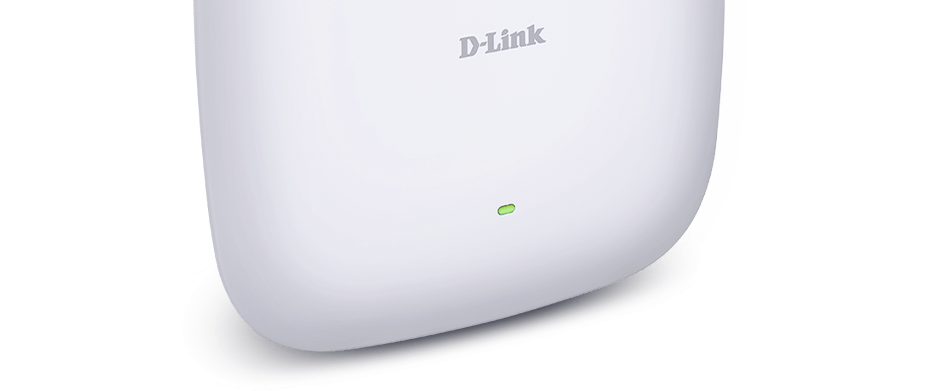

AX1800 Wi-Fi 6 Dual-Band PoE Access Point
DAP-X2810
- Termék Státusz (Revision A1): Live
- Wi-Fi 6 AX1800, up to 1.8 Gbps1
- Dual-band, 2x2 MIMO, band-steering & airtime fairness
- Free-to-download Nuclias Connect software & app
- Flexible installation with PoE
- Customisable captive portal
- D-Link Limited Lifetime Warranty
Partner üzleteink

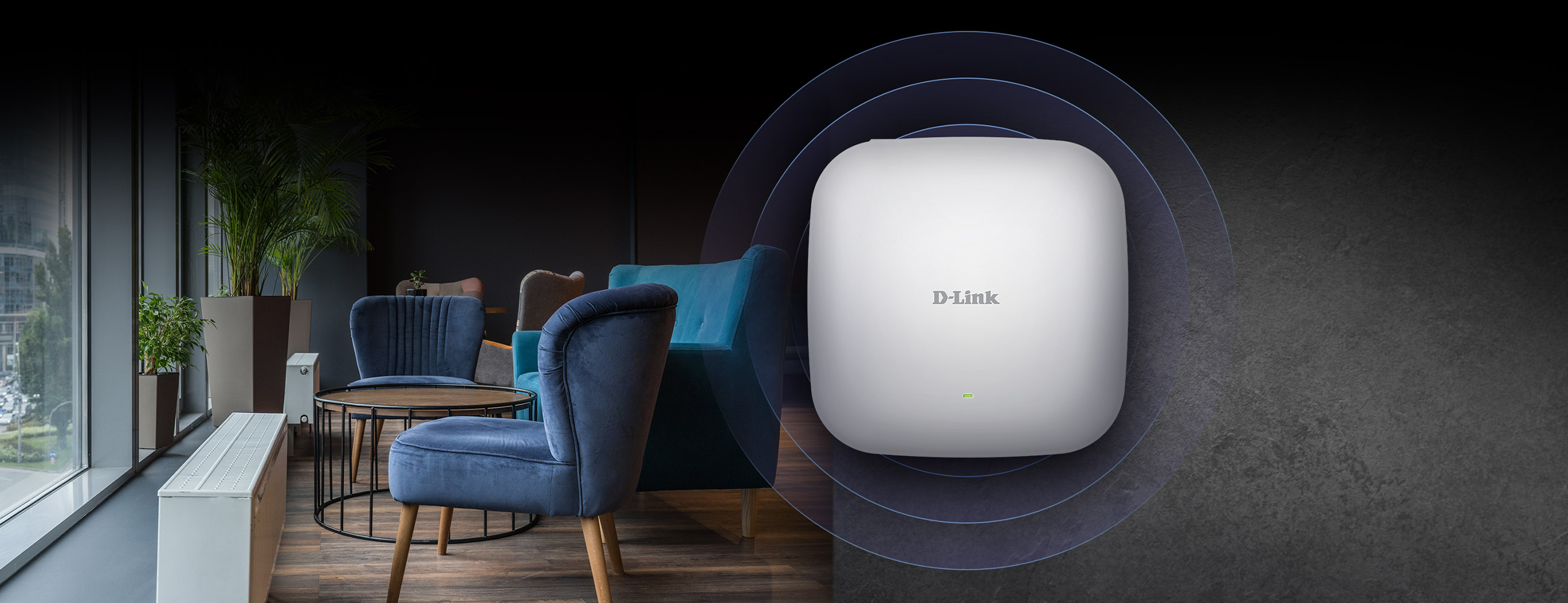

Simple‑to‑manage and easy‑to‑scale Wi‑Fi 6 for your business.
The Wi-Fi 6-ready DAP-X2810 provides businesses of all sizes with incredible speeds, significantly increased capacity and interference-free coverage, combined with centralised management by Nuclias Connect.
Manage your business network with ease
The DAP-X2810 works with our Nuclias Connect software-based management platform (with optional hardware controller) that enables you to manage and control your business network from anywhere with an internet connection, for easy access, automation, and network scalability.
Easily manage your network with Nuclias Connect
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
Next-gen Wi-Fi 6
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
Intelligent, secure performance
Superior security with WPA3™ wireless encryption, and high throughput with dual-band, 2x2 MU-MIMO technology, band steering & airtime fairness that intelligently manages users.
Flexible installation with PoE
Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.
License-Free Access Point
Works as a standalone AP or as part of a centralised, scalable multi-device deployment in line with business demand.
Minimise the hassle of admin tasks
Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly.
Branded Captive Portal
A branded Captive Portal with industry-standard authentication for enhanced access management.
Free-to-download software & app
Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app

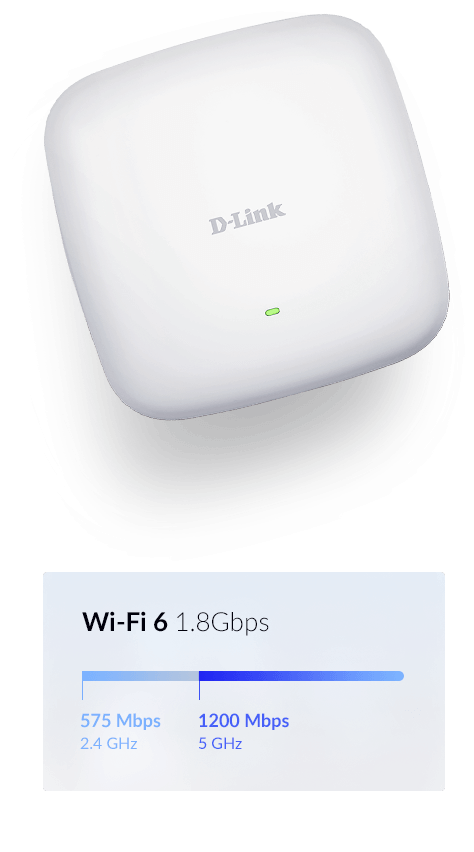

Next‑gen Wi‑Fi 6 performance that turbo boosts your business
With combined Wi-Fi 6 802.11ax speeds of up to 1,800 Mbps, the DAP-X2810 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.
As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.
Optimised Wi‑Fi for a superior client experience.
The DAP-X2810 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

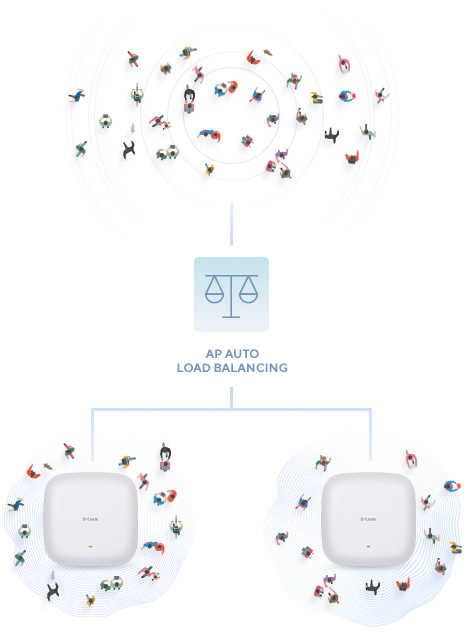

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.
Multiple Operation Modes
The DAP-X2810 can be configured to fit the needs of your network and optimise performance.
- Access point
- Wireless distribution system
(WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client.
Simple and clean installation, anywhere.
It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2810’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
Designed as a comprehensive and easy‑to‑use solution for every type of business
Manage your business network with powerful controls

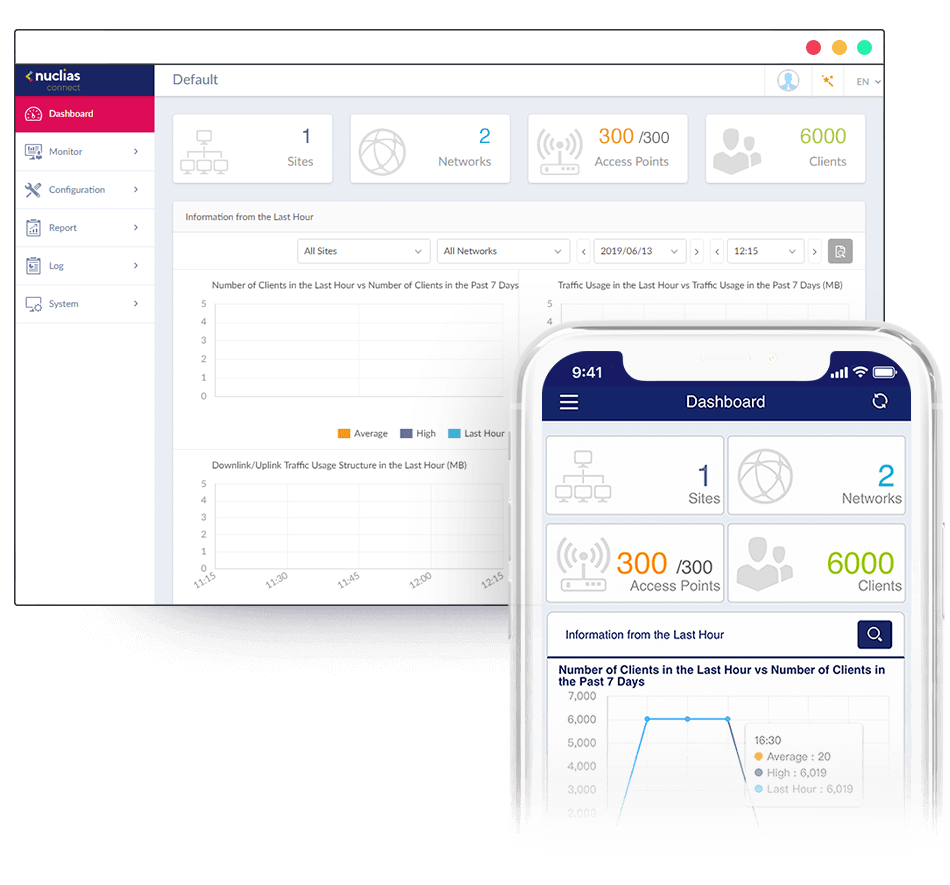

Nuclias Connect enables you to manage and control your network from anywhere and provides an extensive understanding of your network and its users through traffic analytics and status reports via a web browser or our free app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network and all the way down to the level of a single Access Point.
Comprehensive on‑site network management
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Scale your Wi‑Fi alongside your business, from anywhere
Nuclias Connect is designed with unlimited scalability, allowing you to tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points and surveillance cameras being ready to deploy straight out of the box and be automatically discovered by the software.

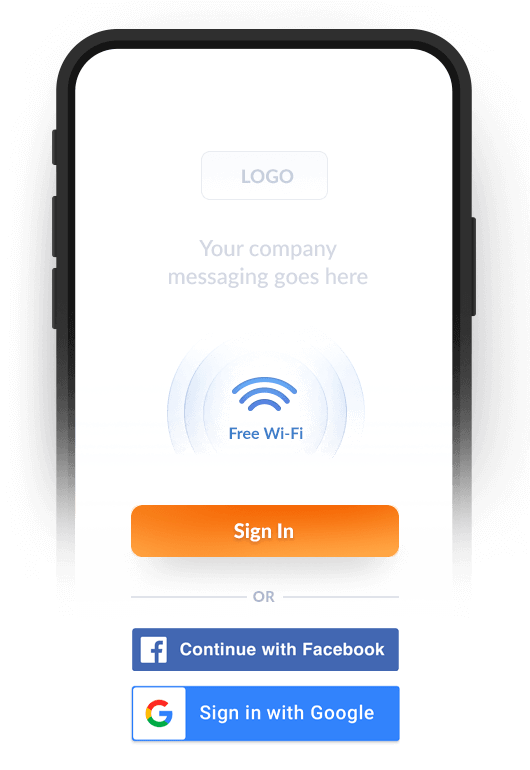

Get your guests online through a captive portal
Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.
Nuclias Connect use-cases:
SMB & SME
Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.
Retail Chains
Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.
Universities
Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.
Hotels
Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.
Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
Free Next‑Business‑Day Service
Enjoy our free Next Business Day service, as standard, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increase the lengths of warranties and further minimises downtime. You can even opt for our Same Business Day Service which guarantees the delivery of the replacement product within 4 hours of confirmation of product failure.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
802.11ax Wi Fi 6 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
1200 Mbps 5 GHz 574 Mbps 2.4 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3.2 dBi for 2.4 GHz 4.3 dBI for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
Advanced features
|
802.11k/r Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
IGMP snooping
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 0.90mb | Letölt |
Version | Leírás | Date | Type | File Size | |
---|---|---|---|---|---|
QSG 1.06 RevA1 | Quick Setup Guide | 2024. 04. 15. | - | - | Letölt |
QIG 2.00 RevA1 | Quick Install Guide | 2024. 02. 06. | - | - | Letölt |
QSG 1.05 RevA1 | Quick Setup Guide | 2023. 12. 18. | - | - | Letölt |
QSG 1.04 RevA1 | Quick Setup Guide | 2023. 11. 02. | - | - | Letölt |
QIG 1.00 RevA1 | Quick Install Guide | 2021. 08. 16. | - | - | Letölt |
QSG 1.00 RevA1 | Quick Setup Guide | 2021. 02. 15. | - | - | Letölt |
