How do I access the USB media that is connected to my router?

Step 1: Ensure your USB drive is properly inserted into the USB port on your DIR-860L

Step 2: Check USB driver/ SD card status from router’s Web UI.

Step 2.1: Open an Internet browser (such as Internet Explorer) and enter http://dlinkrouter, http://dlinkrouter.local or http://192.168.0.1 into the address bar.


Step 2.2: Enter your login information. If you have not changed the default settings, the username is Admin and the password should be left blank. Click Login.

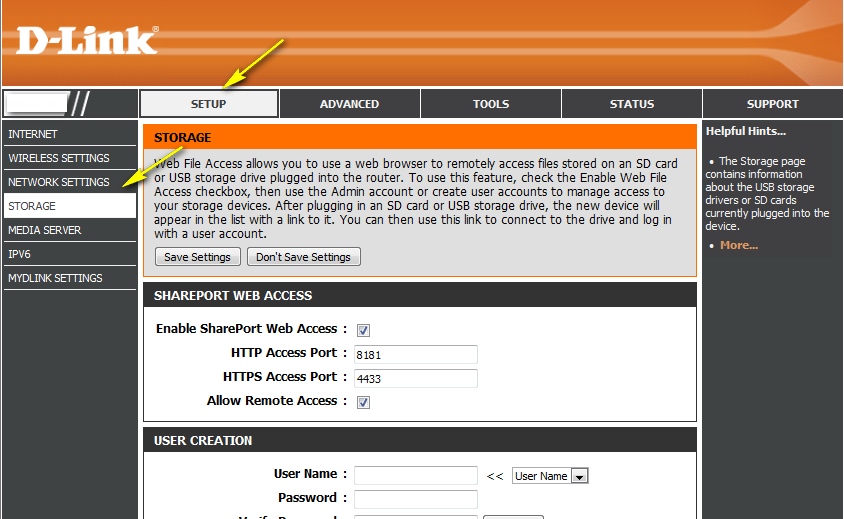

Step 2.3: Click on the Setup tab at the top then click Storage from the menu on the left-hand side

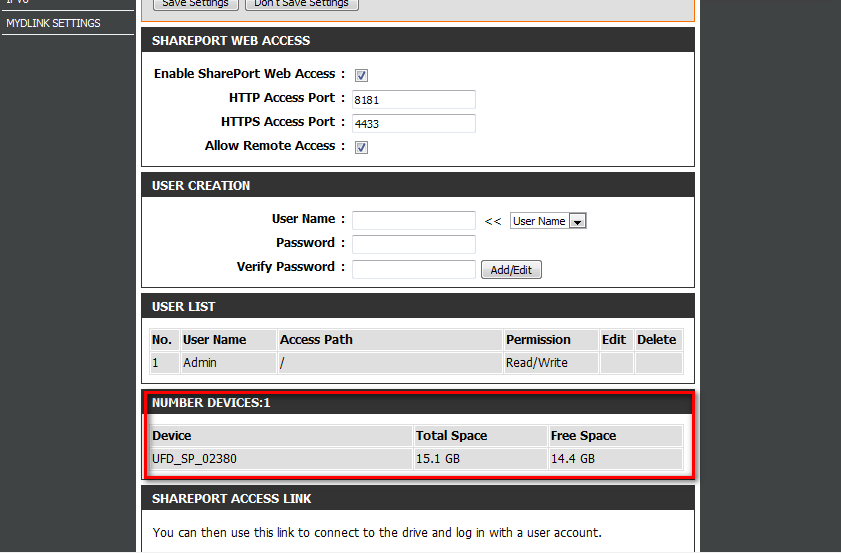

Step 2.4: Check the storage status. The information displayed here should reflect the characteristics of the USB drive plugged into the USB port.


Step 3: From a computer connected to the router:

Windows XP

  1. Click Start > Run
  2. Type \\ IP address of the router (default is 192.168.0.1)
  3. Example- \\192.168.0.1
  4. Click OK

Windows 7

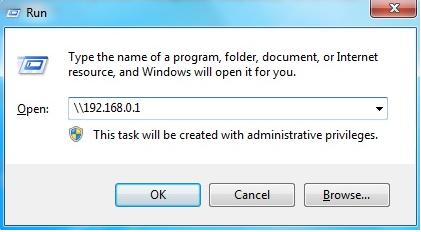

  1. Click Start > All Programs > Accessories > Run
  2. Type \\ IP address of the router (default is 192.168.0.1)
  3. Example- \\192.168.0.1
  4. Click OK
  5. If you are prompted to enter a Username and Password, enter the credentials that you use to log in to the web-based configuration utility.

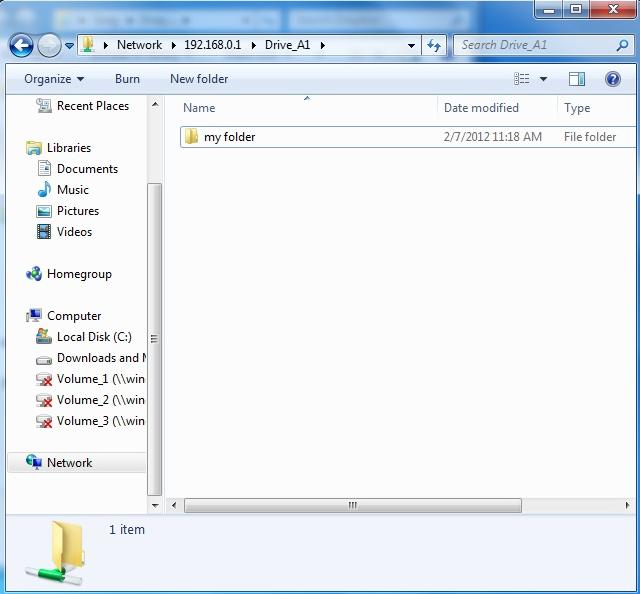

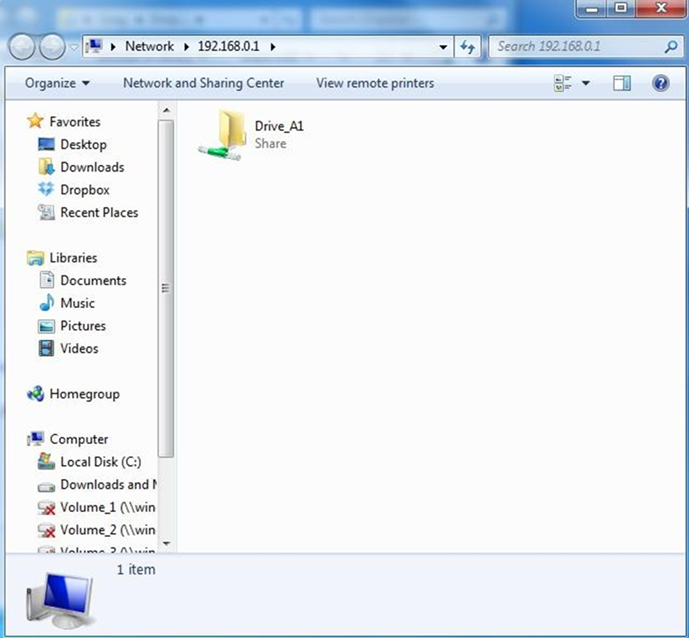

  6. A window will appear, showing the shared folder.

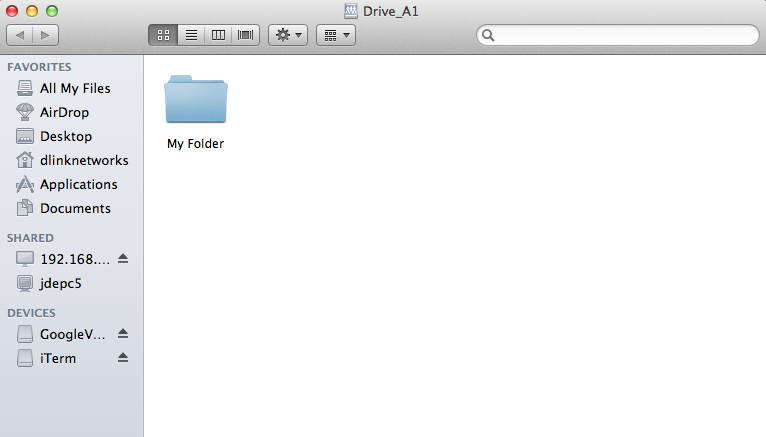

MAC OSX

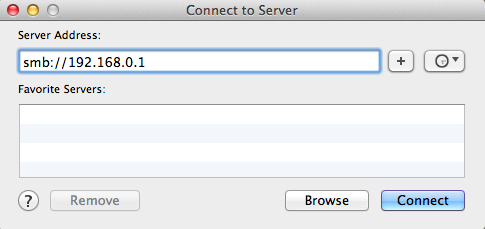

  1. Click Go > Connect to Server
  2. Type smb://ip of router (default is 192.168.0.1)
    Example- smb://192.168.0.1
    Click Connect

Note: If prompted for password, select GUEST access
