Nouveau

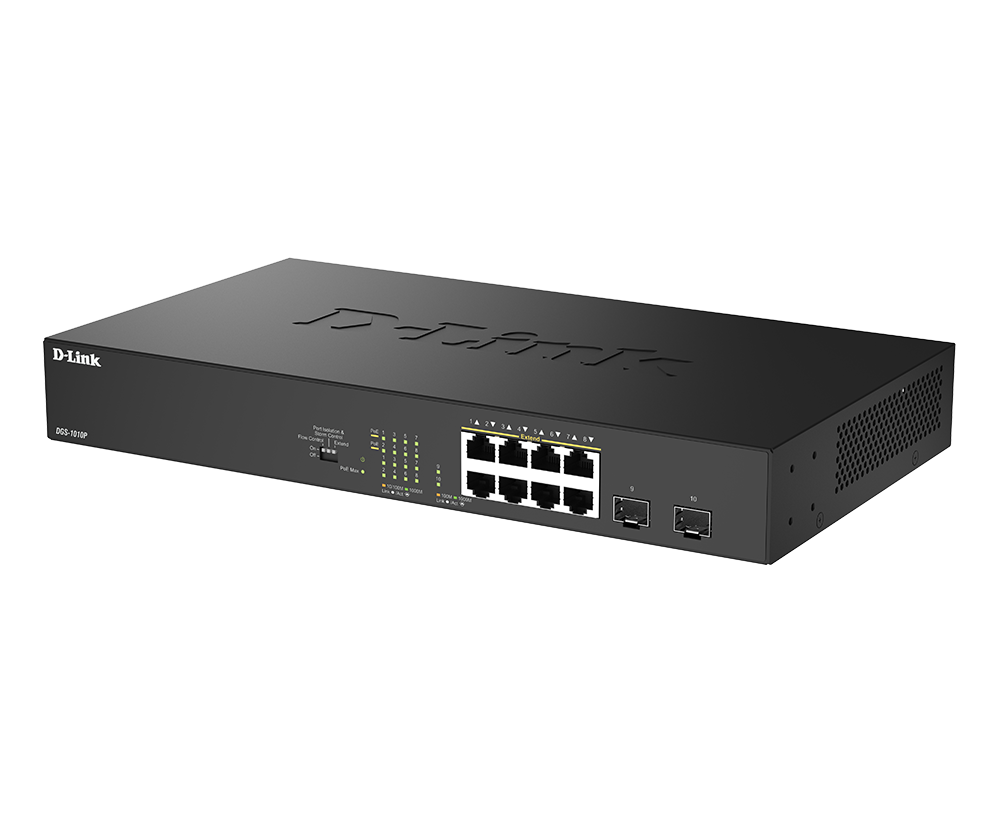

10-Port Gigabit Unmanaged PoE Switch

DGS-1010P

  • Statut produit (B1 v1.00): Live
  • 8 GE PoE ports enable faster data transfer rates
  • 2 1G SFP ports transmit data beyond 100 m
  • IEEE 802.3af/at (up to 30 W/port, 125 W budget)
  • Convenient DIP switch for onsite configuration
  • IEEE 802.3x flow control prevents packet loss
  • Port isolation/storm control enhance security
  • Extend mode extends PoE/data up to 250 m
  • Real-time PoE usage and status monitoring
  • QoS prioritizes important network services
  • Silent fanless design enhances efficiency

Télécharger la fiche technique.

Voir la liste de nos partenaires

User Benefits​

Plug and Play

Installation facile sans configuration requise

IEEE 802.3af/at PoE

Up to 30 W/port and 125 W total power budget

Optimized Performance

QoS prioritizes traffic, enhancing user experience

DIP Switch Capability

DIP switch enables fast and easy onsite configuration

SFP Ports

SFP uplink ports extend transmission beyond 100 m

Fonctionnement silencieux

Conception sans ventilateur pour un environnement de travail silencieux

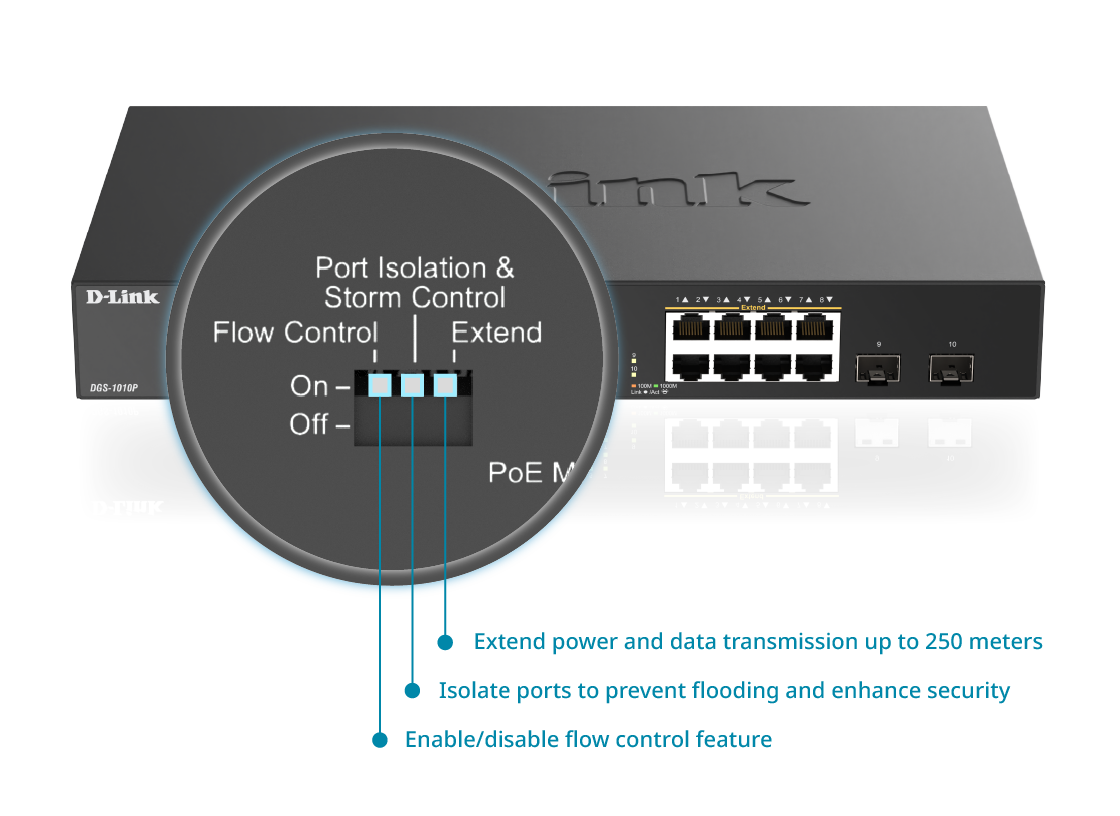

Advanced DIP Switch Convenience

The DGS-1010P allows the toggling of advanced features at the flick of a DIP switch to adapt to network changes and application requirements. Make immediate onsite adjustments to flow control, port isolation and storm control, and extend mode settings without having to access complicated web UI settings, eliminating the need for costly technicians and messy configurations.

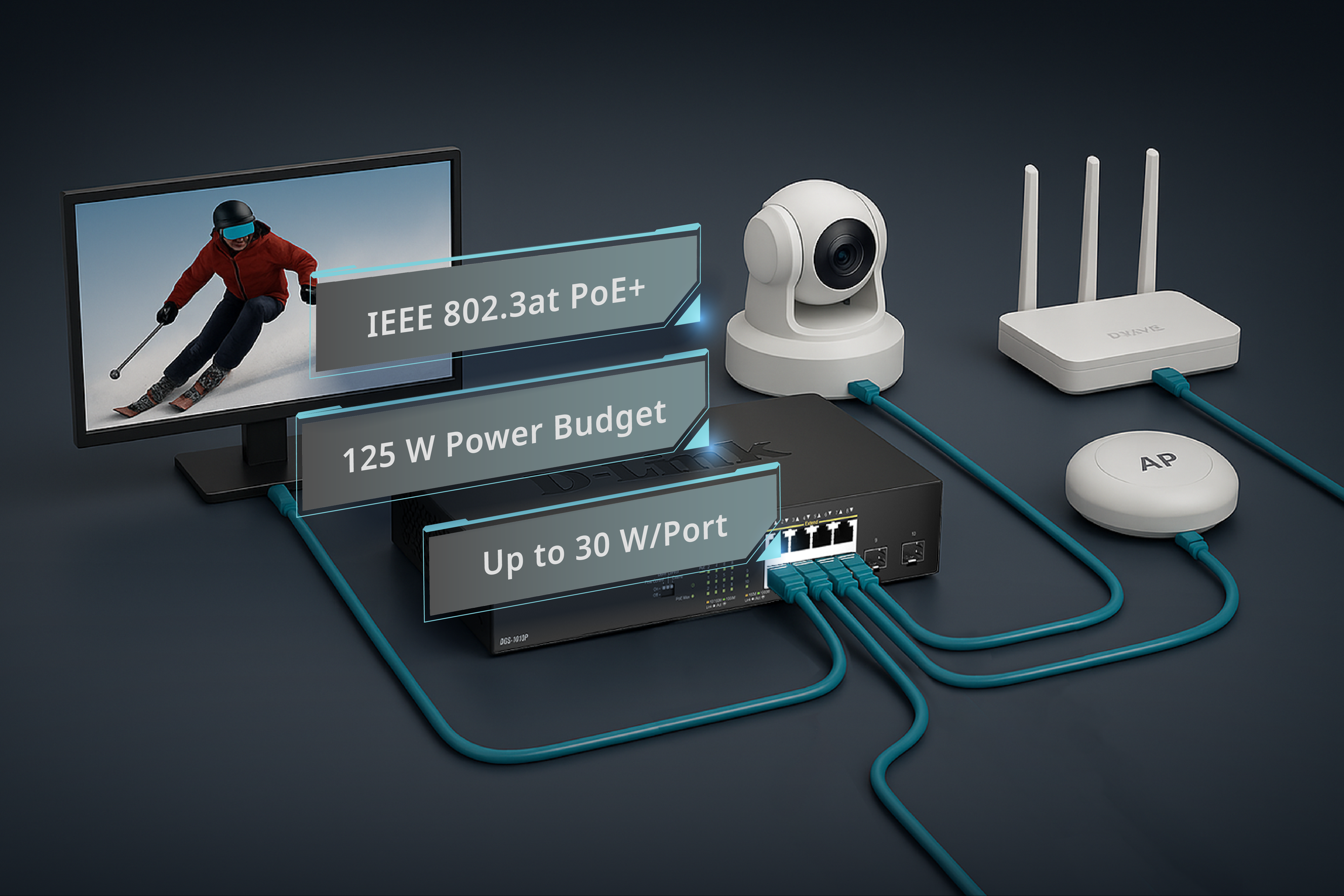

　Faster Setups and Lower 　Costs

The plug-and-play DGS-1010P with Gigabit PoE+ (IEEE 802.3at) ports delivers up to 30 W per port with a 125 W total power budget, connecting PoE-enabled devices without additional power supplies. Ideal for access points, cameras, displays, and much more. The fanless DGS-1010P simplifies installation, reduces cabling costs, and enhances energy efficiency.

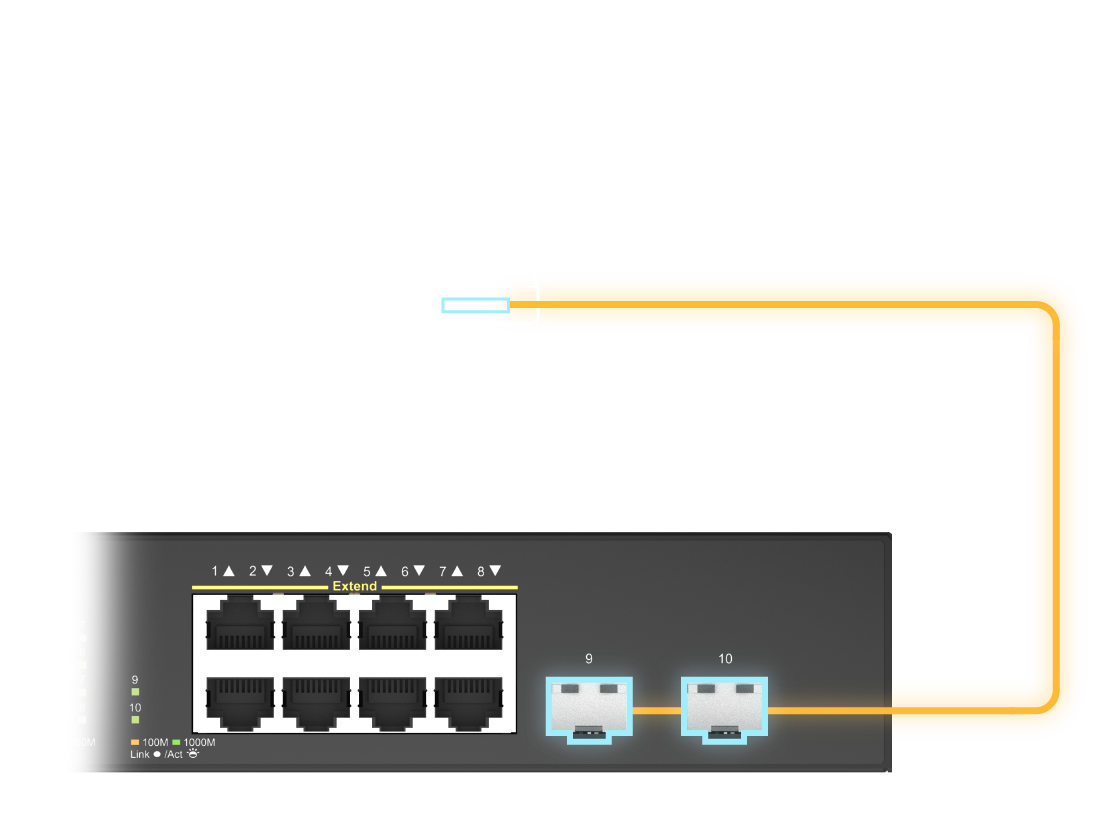

Extend Uplink Beyond 100 m via SFP Ports​

The DGS-1010P features 2 SFP uplink ports capable of extending Gigabit transmission beyond the 100-meter copper Ethernet limitation to aggregation/core layers, offering both network flexibility and scalability to meet various needs of network application requirements.

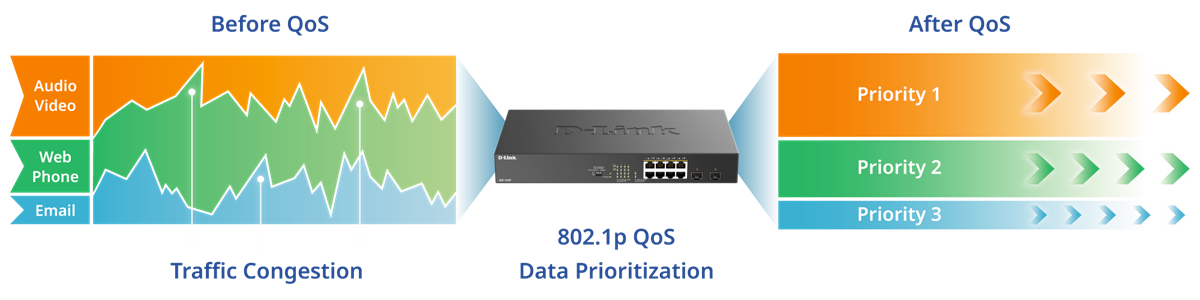

Prioritize Traffic for Optimized Performance​

With the DGS-1010P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Produits apparentés

Switch 5 ports Gigabit dont 4 ports supportant le PoE/PoE+
DGS-1005P
En savoir plus
Switch 8 ports Gigabit dont 4 ports supportant le PoE/PoE+
DGS-1008P
En savoir plus
18-Port Gigabit Unmanaged PoE Switch
DGS-1018P
En savoir plus
26-Port Gigabit Unmanaged PoE Switch
DGS-1026P
En savoir plus

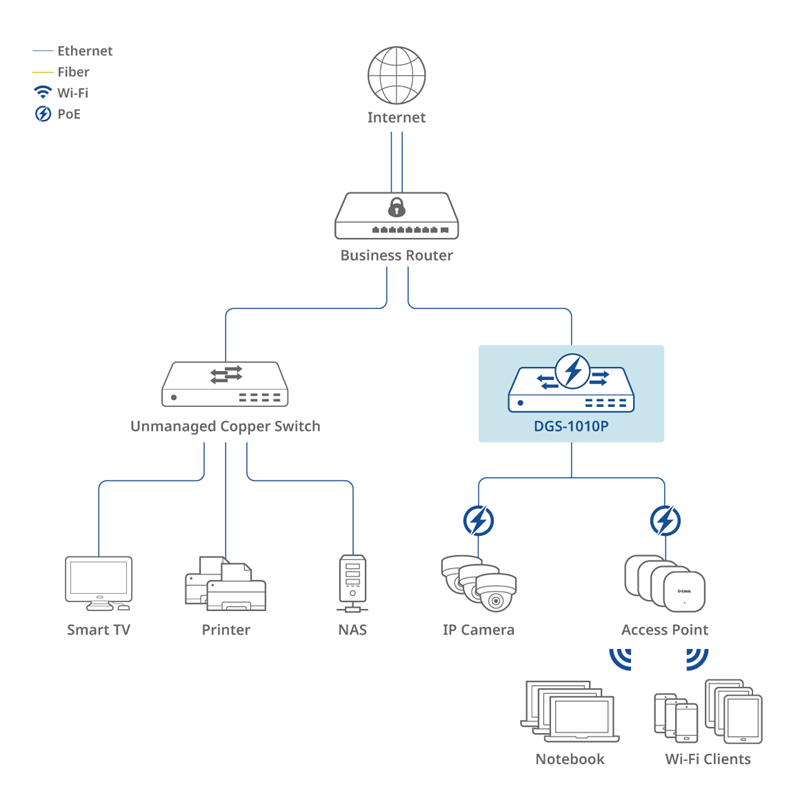

Connection Diagram

The DGS-1010P offers plug-and-play Gigabit edge connectivity for cost-effective home and office upgrades with available features such as port isolation, flow control, QoS, SFP ports, and extending PoE and data transmission beyond the 100-meter limitation of traditional copper Ethernet cabling to adapt to various application requirements.

Business Router

Learn More

Access Point

Learn More

Specs

Télécharger la fiche technique.

Number of Gigabit ports
8
Number of SFP ports
2
Capacité de commutation
20 Gbps
Maximum Forwarding Rate
14.88 Mpps
Normes PoE
802.3af/at
Budget PoE
125 W
Ports compatibles PoE
Ports 1 to 8 (up to 30 W/port)
FAN
Sans ventilateur
D-Link Green
Supported
802.3az EEE
Supported
802.1p QoS​
Supported

Télécharger la fiche technique.

Support

Version Date Type Taille de fichier
DGS-1010P Datasheet - PDF 0.15mb Télécharger
