How to recover my DSR 250V2 from tftp

Topology:port DSR-250V2 LAN-------PC
Setup Steps:
1. DSR250V2 Upgrade Procedure from Bootloader first.

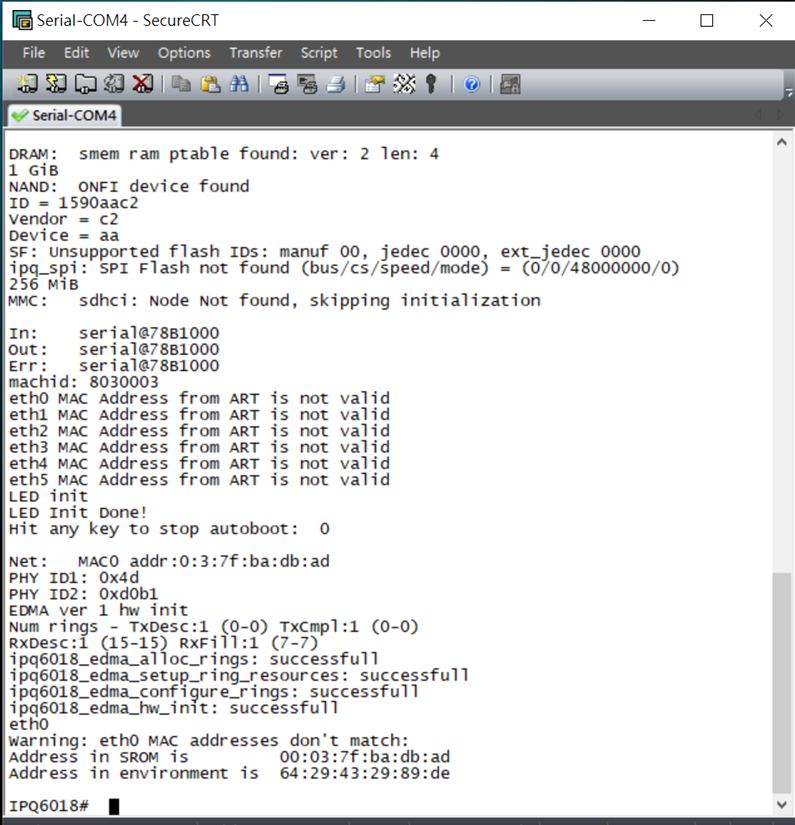

1.1 PC use SecureCRT to connect to DSR-250V2 LAN1 and Power on into Bootloader via LAN. (press “space” when turn on device)
 DSR250V2recov (1)
2. Tftp server: use tftp64 to setup for connection

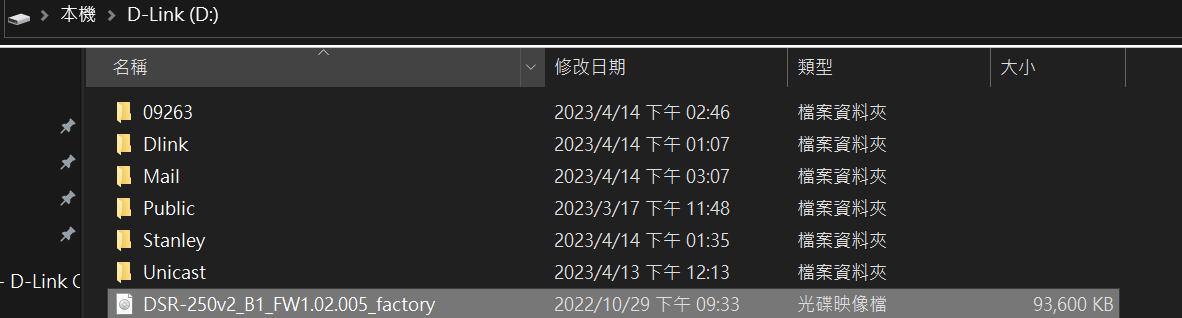

2.1 Put the file: “DSR-250v2_B1_FW1.02.005_factory” in D:\ in your PC
DSR250V2recov (2)
2.2 Below is by used Tftpd64 which can be downloaded from Internet first.
Select Current Directory in D:\ to match your file in PC local location.
Select for LAN interface, and record this tftp IP address
DSR250V2recov (31)
3. Router update procedure for DSR-250V2 HW:B1 FW: 1.02.B005
Note: upload version: HW:B1 FW: DSR-250v2_B1_FW1.02.005_factory
3.1 Execute the following commands to set server and device IP in LAN,
before starting the upgrade:
- setenv ipaddr <<device-ip-address>>
(ex: set up due to tftp IP is
- setenv serverip <<server-ip-address>>
(ex: for this case:
- saveenv

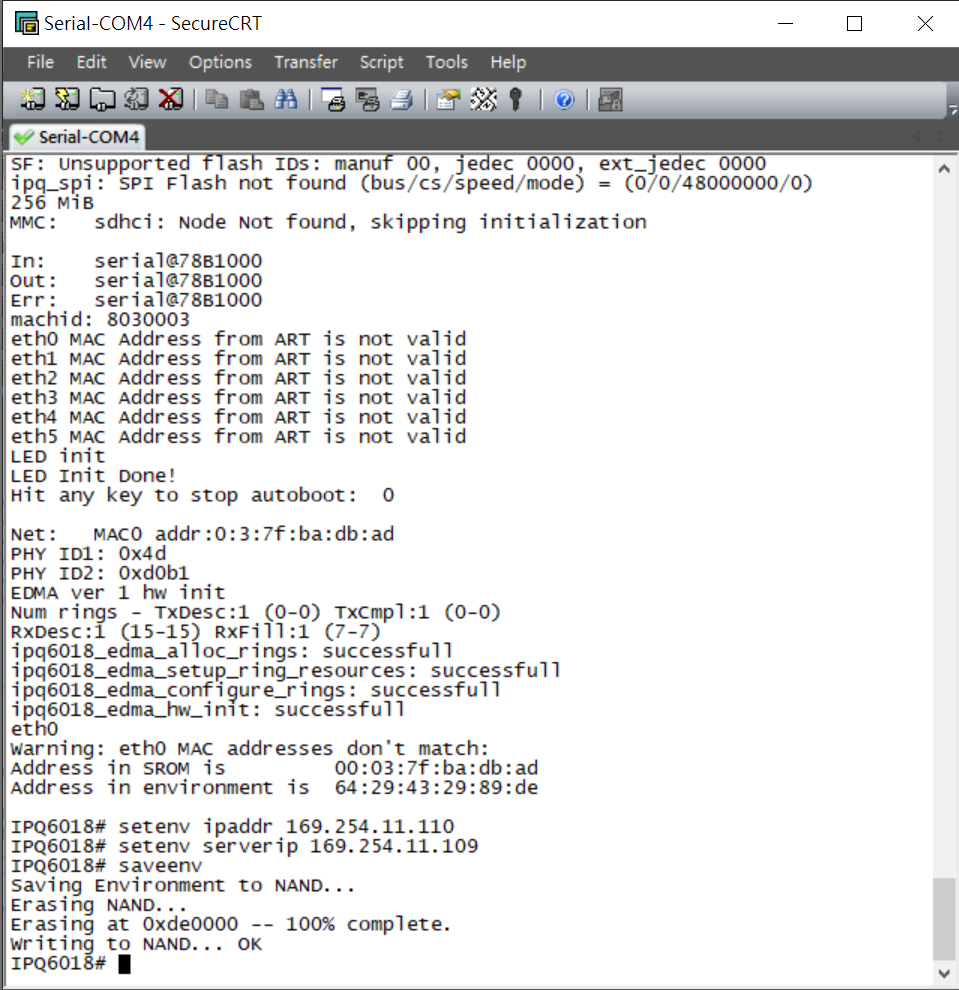

Please refer to the screenshot below.
DSR250V2recov (4)

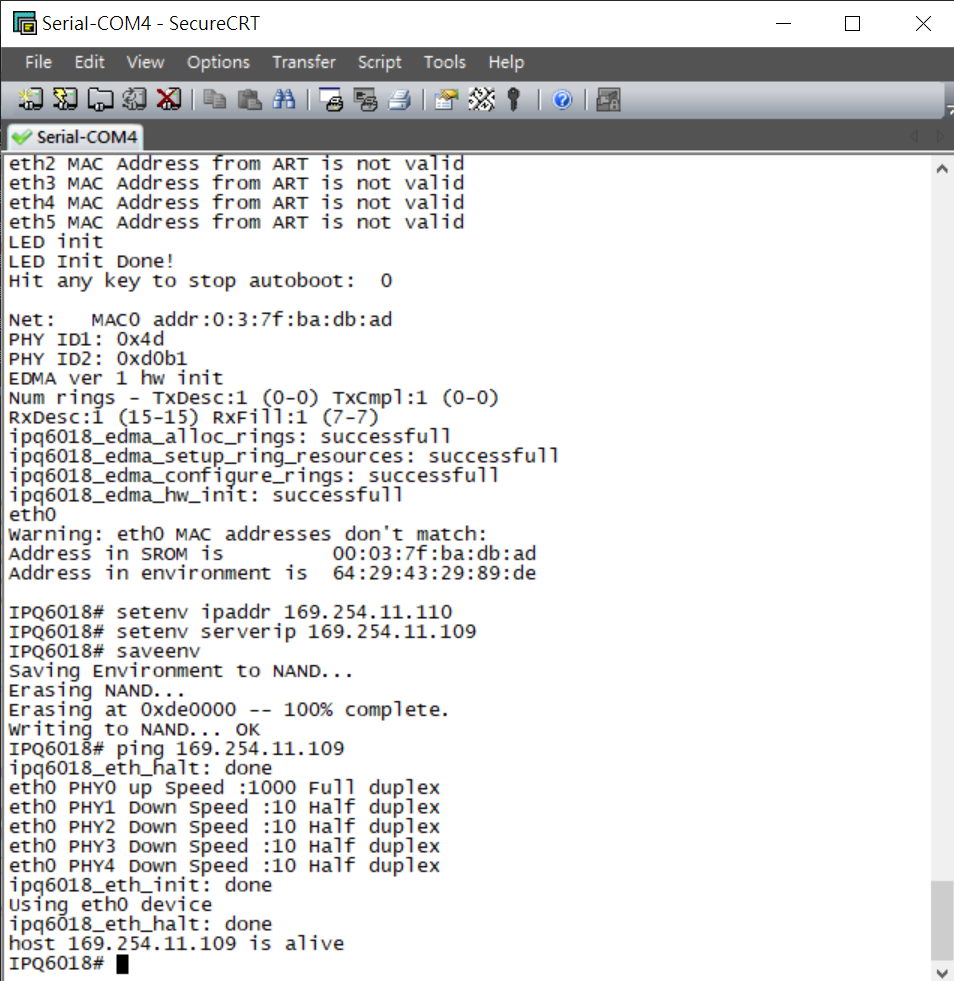

3.2 Ping the Server IP from Bootloader to test the server reachability.

DSR250V2recov (5)
Note: If Ping can not access, please disable the firewall first.
3.3 Now execute the below commands to upgrade the device to new firmware:

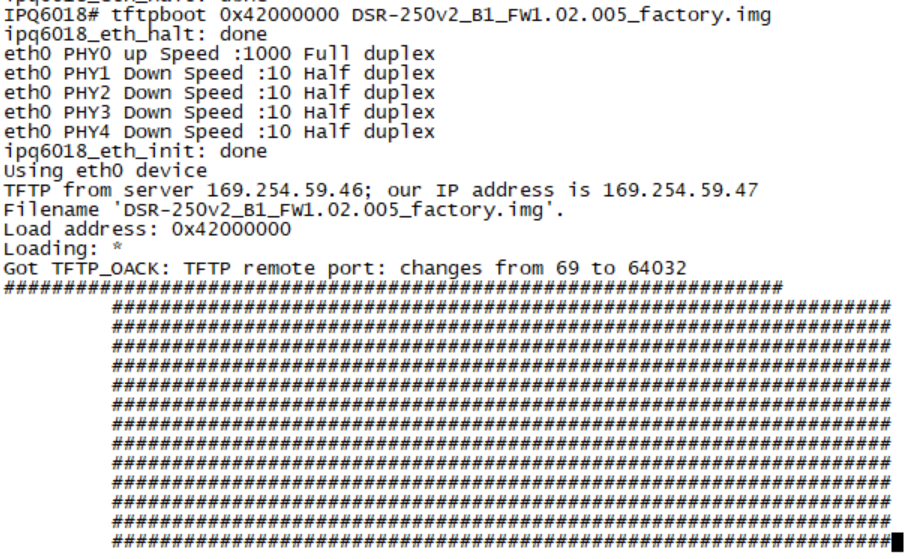

-tftpboot 0x42000000 DSR-250v2_B1_FW1.02.005_factory.img

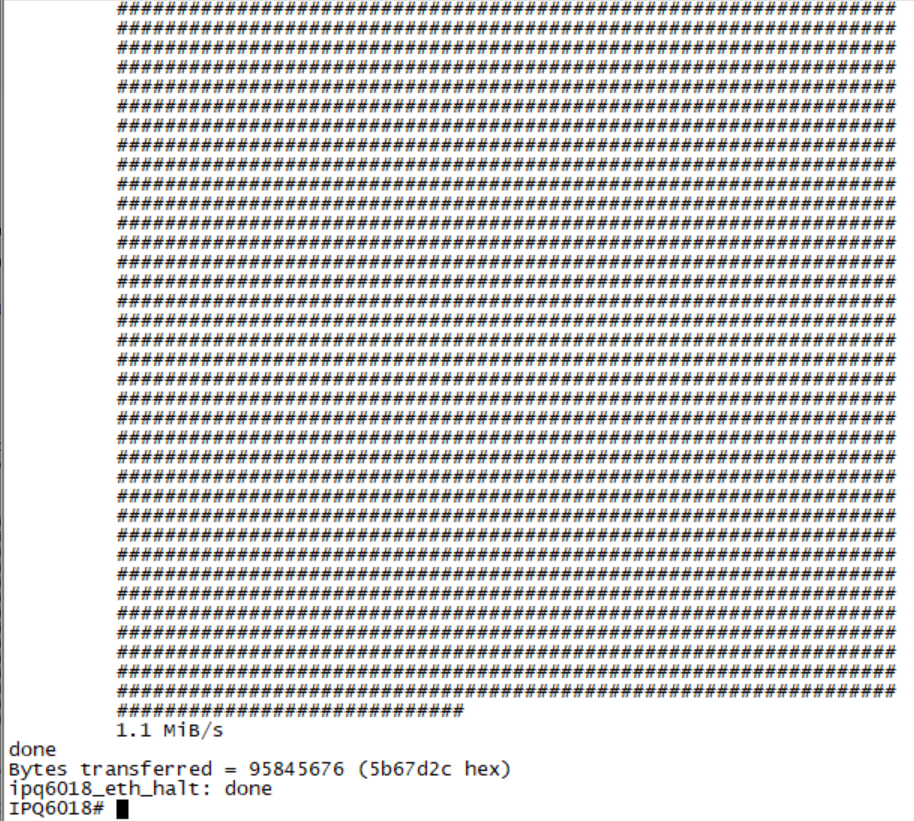

DSR250V2recov (6)
DSR250V2recov (7)

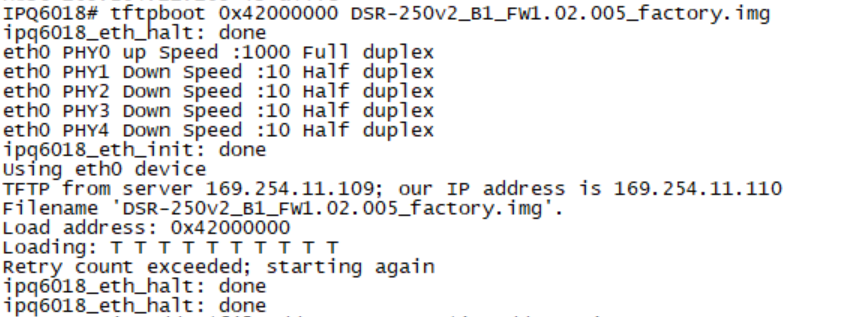

If encounter below timeout situation, please disable the firewall first,
DSR250V2recov (8)

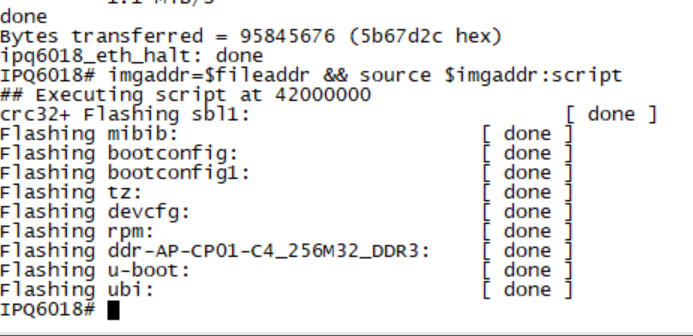

- imgaddr=$fileaddr && source $imgaddr:script
DSR250V2recov (9)

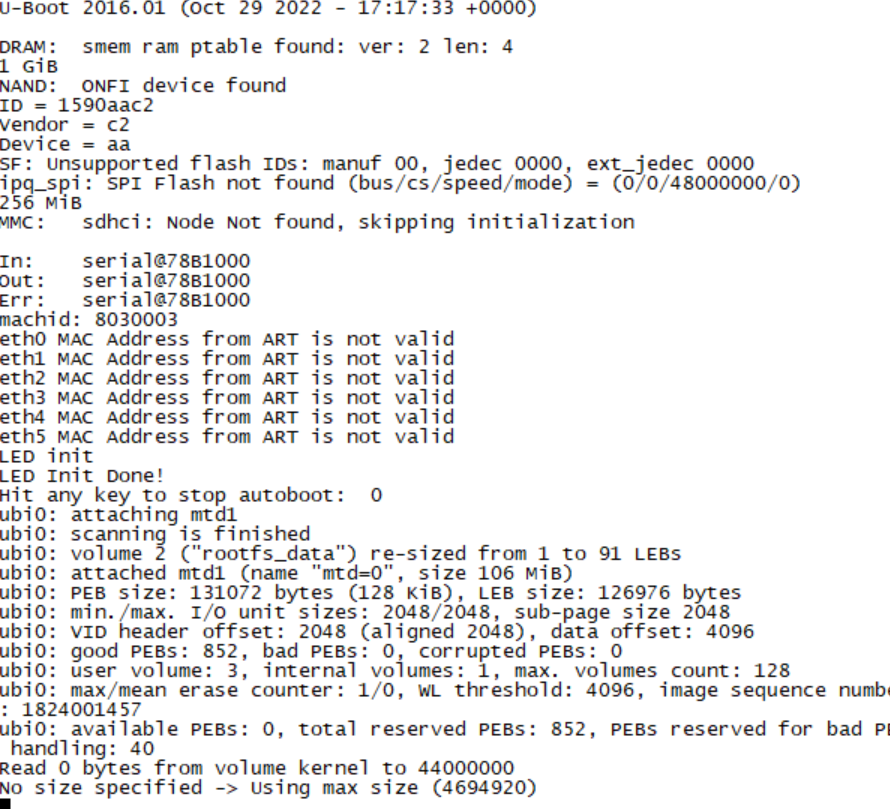

- reset
DSR250V2recov (10)

3.4 After reset command, Firmware will boot 'DSR-250V2' will be prompt.
You may need to set your PC IP to with Gateway when connecting to DSR-250V2 after reset.
Then you can access to DSR-250V2 WebGUI successfully then updating FW to MP version as normal process.
