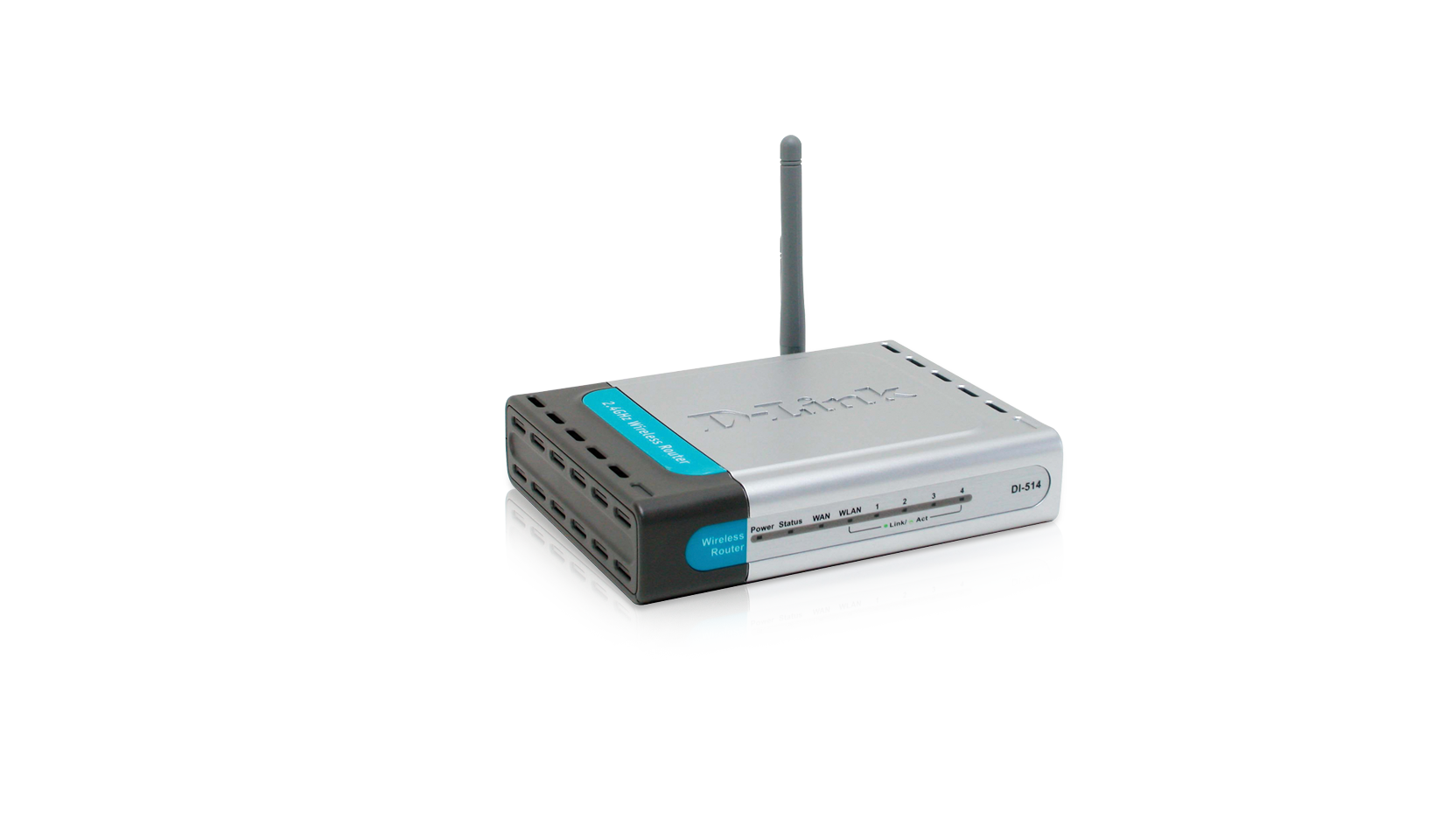

Wireless 2.4GHz (802.11b) Router

DI-514

  • Product Status (Revision A): End of Life
LAN & WAN Interfaces
Built-in Wireless LAN
WAN Interface

  • 10/100BASE-TX Ethernet port
  • Supports DSL and cable modem connection
  • Supports "Always-on" (bridged) and PPPoE for PPP connection on demand

LAN Interface

  • 4 10/100BASE-TX Ethernet ports with auto MDI/MDIX support
  • 802.11b wireless LAN

Diagnostic LEDs
  • Power
  • Status
  • WAN port (Link/Activity)
  • WLAN (Link/Activity)
  • 1, 2, 3, 4 LAN ports (Link/Activity)

Router & Firewall
  • Routed Packet Type
  • IP packets

Routing Protocols

  • RIP-1, RIP-2
  • Static Routing

VPN Support
  • L2TP, PPTP, IPSec pass-through

Internet Gateway Functions
  • Network Address Translation (NAT)
  • DHCP server (for automatic IP assignment)

Number of DMZ Ports

  • 1 port (user-assignable to any LAN port)

Number of Virtual Server Mappings

  • 13 entries

Firewall & Security
  • Stateful Packet Inspection (SPI)
  • Ping of Death prevention
  • Intrusion Detection
  • Security event log

Router Access Control
  • User-level Access List Control (ACL)
  • Scheduling support
  • PAP, CHAP protocol support

Internet Access Control

  • Domain filtering
  • URL filtering

Configuration & Management
  • Web-based configuration utility
  • PC Utility supporting Windows 98SE, ME, 2000, XP
  • Network Timing Protocol (NTP) support
  • UPnP support
  • Status log

Firmware Upgrade
  • TFTP

Transmission Technology
  • DSSS

Modulation Techniques
  • BPSK, QPSK, CCK

Data Rates
  • 11 Mbps
  • 5.5 Mbps
  • 2 Mbps
  • 1 Mbps
  • Auto fallback

Data Rate & Modulation Scheme
  • 11Mbps: CCK
  • 5.5Mbps: CCK
  • 2Mbps: DQPSK
  • 1Mbps: DBPSK

Operating Channels
  • North America (FCC): 11
  • Canada (DOC): 11
  • Europe (ETSI): 13
  • Japan (MKK): 14

Frequency Range
  • 2.4 to 2.4835 GHz

Frequency Stability
  • +/- 125 ppm

Antennas
  • 1 external detachable dipole antenna (reverse SMA connector)
  • 1 internal antenna

Receive Sensitivity
  • (typical PER (Packet Error Rate) < 8% packet size 1024 @ 25 oC +/- 5 oC)
  • 11Mbps < -82dBm (CCK)
  • 5.5Mbps < -84dBm (CCK)
  • 2 Mbps < -87dBm (DQPSK)
  • 1 Mbps < -90dBm (DBPSK)

Transmit Output Power
  • 15dBm to 17dBm (typical)

Wireless LAN Operation Range (Open Environment)
  • Indoors: Up to 100 meters *
  • Outdoors: Up to 300 meters *
  • Environmental factors may adversely affect operating range

Wireless LAN Data Encryption

  • 64, 128-bit WEP (Wired Equivalent Privacy) encryption

Power Input
  • 5V DC/2.5A, through 100VAC to 240VAC external power adapter

Dimensions
  • 142 (L) x 109 (W) x 31 (H) mm (5.6 x 4.3 x 1.22 inches) (device only)

Weight
  • 200 grams (0.44 pound) (device only)

Operation Temperature
  • 0o to 55 oC

Storage Temperature
  • -20o to 70 oC

Humidity
  • 5% to 95% RH non-condensing

Emission (EMI) Certification
  • FCC Part 15 Class B, Sec. 15.247, 15.109
  • ETS 300 328, ETS 301 489-1&17, CE mark
  • EN 60950, EN 55022 Class B, EN 50082-1 1998

Box Includes
  • DI-514 router
  • External power adapter
  • Ethernet cable
  • Quick Installation Guide
  • Manual on CD
This product was phased out on: 13/09/2006
This product's last date of support is on: 12/09/2008
