How to Upgrade Firmware via HTTP DGS-1510-Series?

Note: Please always check the current firmware available on our site

http://www.dlink.com/uk/en/

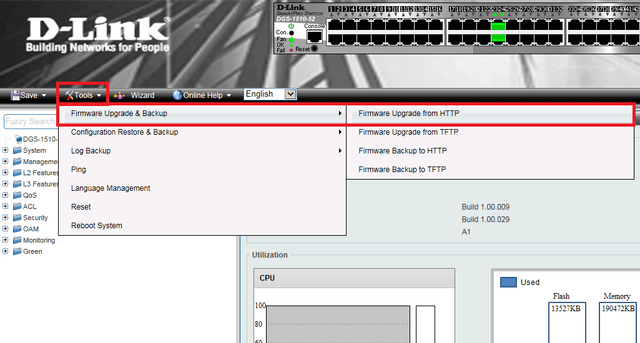

Step 1 – To upgrade the firmware via http, please go to “Firmware Upgrade from HTTP”

Tools > Firmware Upgrade & Backup > Firmware Upgrade from HTTP
DGS_1510_how_to_upgrade_firmware_from_HTTP

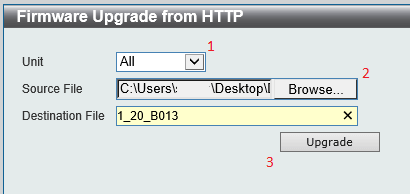

Step 2 – Select unit options:

ALL – This will be used if the switch is configured in stack
1 - This will be used if the switch is single unit
Select the option that applies then, click “Browse” for the .had file.
Enter the “Destination File”. In our example we have used “1_20_B013
DGS_1510_how_to_upgrade_firmware_from_HTTP

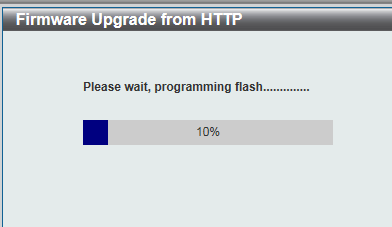

Click “Upgrade”

DGS_1510_how_to_upgrade_firmware_from_HTTP

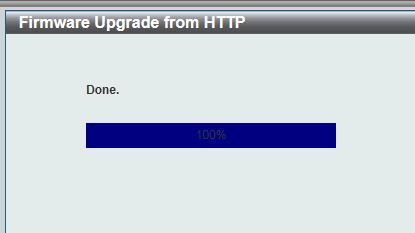

You should receive the following message when upgrade has completed with success

D-Link

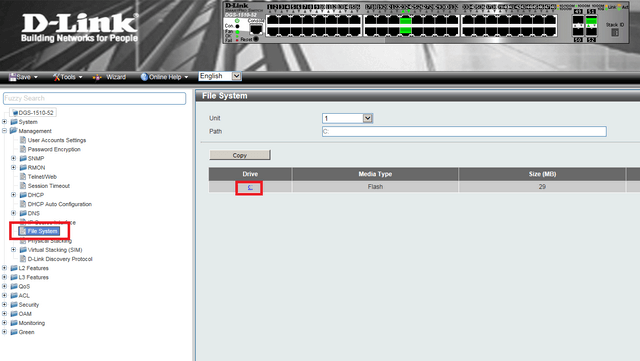

Step 3 – You will now need to make this file (.had) bootable when switch reboots. To do this you will need to go to “File System”

Management > File System > c
D-Link

Click the “c” to enter the sub menu of the system

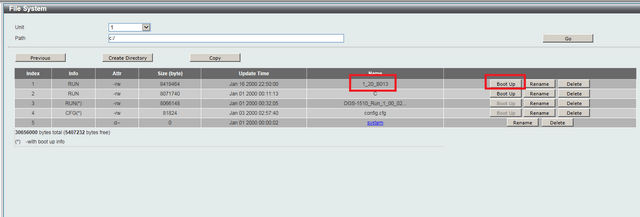

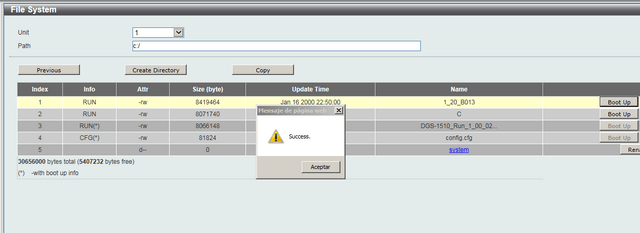

Step 4 – Select the .had file that had been used to upgrade in Step 2. In our example it was named “1_20_B013”
D-Link

Click “Boot Up” – This should change to greyed out after

D-Link

Once clicked, you should receive the above “Success” message.

Step 5 – Save configuration

Save > Save Configuration

D-Link

D-Link

Click “Apply”

D-Link

Once saved, you should receive the above “Success” message

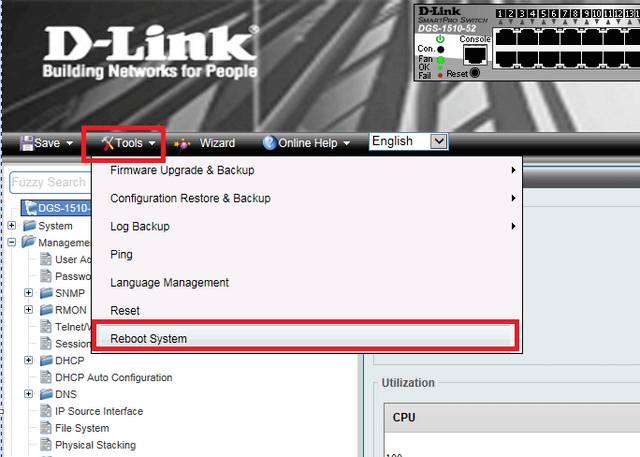

Step 6 – Reboot switch

Tools > Reboot System

D-Link

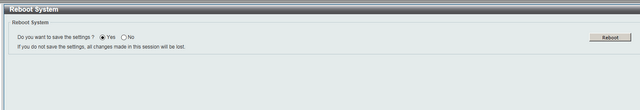

Select “Yes”

D-Link

Click “Apply”

D-Link

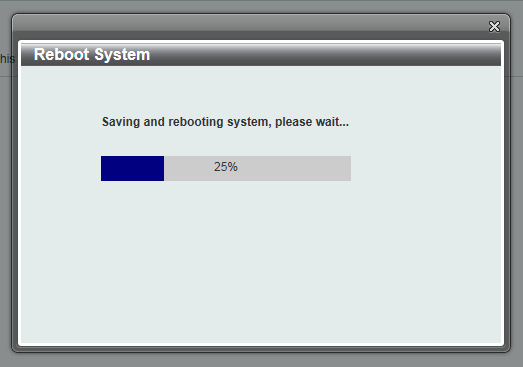

Click “OK”

D-Link

Step 7 – To test the results, the below screen shot shows the switch on previous firmware versión

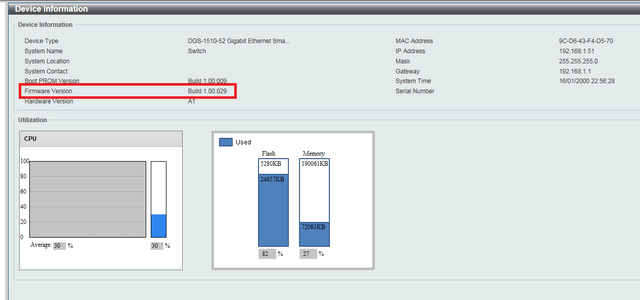

Before Reboot:

D-Link

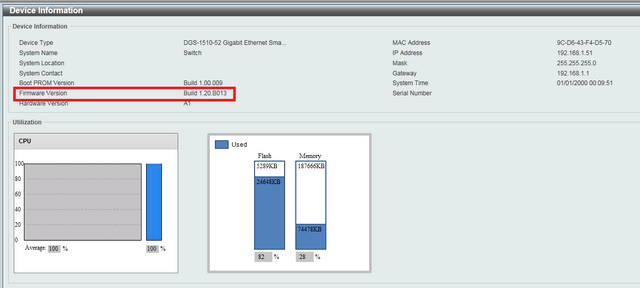

After reboot:

D-Link
