How to Setup - Asymmetric VLAN with a Corporate and Guest Network – DGS-1510-Series
Scenario:
Segmentation into two VLANs with common access zone area
(Area vlan1 gateway and servers).
Step 1 -Asymmetric VLAN configuration (Asymmetric VLAN) on the switch.
L2 Features > Asymmetric VLAN
Enable asymmetric VLAN
Step 2 -Creating VLANs.
Define VLANs:
L2 Features > VLAN > 802.1Q VLAN
VLAN ID add and edit the name
Step 3 - In each port edit the properties of the VLANs.
L2 Features > VLAN > VLAN Interface
Segmentation into two VLANs with common access zone area
(Area vlan1 gateway and servers).
Step 1 -Asymmetric VLAN configuration (Asymmetric VLAN) on the switch.
L2 Features > Asymmetric VLAN
Enable asymmetric VLAN
Step 2 -Creating VLANs.
Define VLANs:
L2 Features > VLAN > 802.1Q VLAN
VLAN ID add and edit the name
Step 3 - In each port edit the properties of the VLANs.
L2 Features > VLAN > VLAN Interface
Step 3.1 -PORTS FOR COMMON EQUIPMENT – i.e. routers, printers, etc.

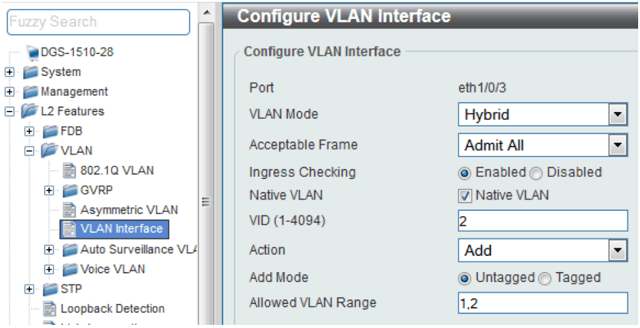

Step 3.2 - PORTS VLAN2 (CORPORATE).

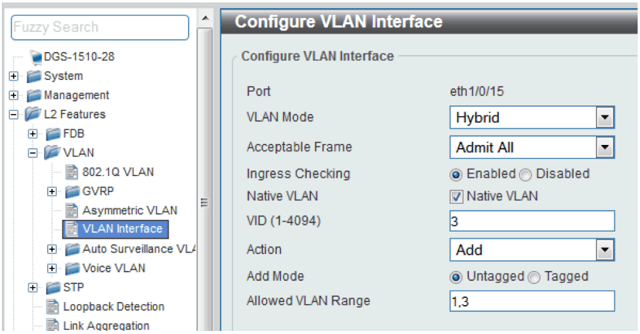

Step 3.3 - PORTS VLAN3 (GUEST).
