How to Access Web UI when Managed Mode - DWC and DWS- Series

Step 1 – Set AP in Debug Mode

DWS-4026, DWS-3160, DWS-3024L:

DWC DWS How to Access Web-UI when Managed Mode

Click “Enable Debug” and enter a password

DWC-1000 and DWC-2000:

DWC DWS How to Access Web-UI when Managed Mode

DWC DWS How to Access Web-UI when Managed Mode

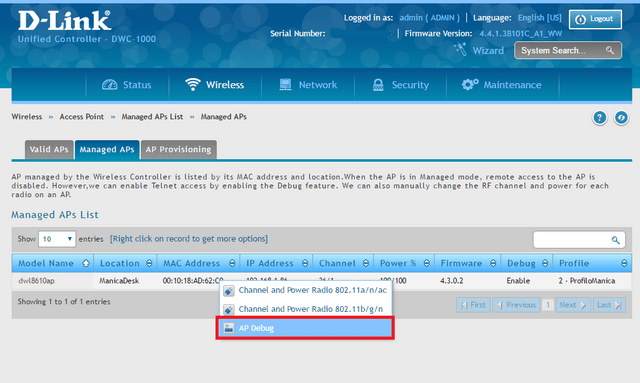

Click “Enable Debug” - ON and enter a password, confirm then click “Save”

Step 2 – Connect to the IP of the AP via Telnet (Port 23)

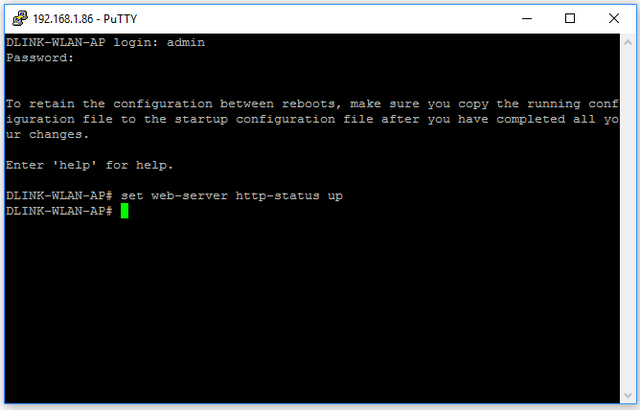

Step 3 – Enter the following command:

DWC DWS How to Access Web-UI when Managed Mode

DLINK-WLAN-AP# set web-server http-status up

Login:

DWC DWS How to Access Web-UI when Managed Mode

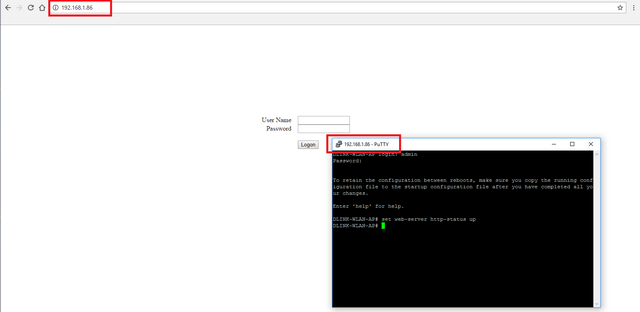

Web-UI Access:

DWC DWS How to Access Web-UI when Managed Mode
