Gigabit L2 Stackable Managed Switches

DGS-3100 Series

  • Product Status (Hardware version: Bx): End of Life

The DGS 3100 Series Gigabit L2 Stackable Managed Switches consists of:

  • DGS-3100-24: 24-Port Gigabit L2 Stackable Managed Switch including 4 SFP combo ports
  • DGS-3100-24P: 24-Port Gigabit L2 Stackable Managed PoE Switch including 4 SFP combo ports (24 x PoE ports)
  • Discontinued - DGS-3100-24TG: 16-Port SFP + 8-Port 1000BASE-T Gigabit L2 Stackable Managed Switch
  • Discontinued - DGS-3100-48: 48-Port Gigabit L2 Stackable Managed Switch including 4 combo SFP ports
  • Discontinued - DGS-3100-48P: 48-Port Gigabit L2 Stackable Managed PoE Switch including 4 combo SFP ports (48 x PoE ports)

The DGS-3100 series switches are managed Layer 2 Gigabit stackable switches designed as feature-rich, cost-effective devices in the entry-level network management category. These switches provide wide-ranging port densities and up to 20Gbps physical stacking. Outstanding features include scalable expansion, SFP fibre links, comprehensive network security, granular bandwidth control and extensive network management. Small to medium businesses (SMBs) looking for a flexible, advanced and affordable solution can deploy these switches to set up Gigabit connections to their desktops or build up a company-wide network backbone.

Physical Stacking

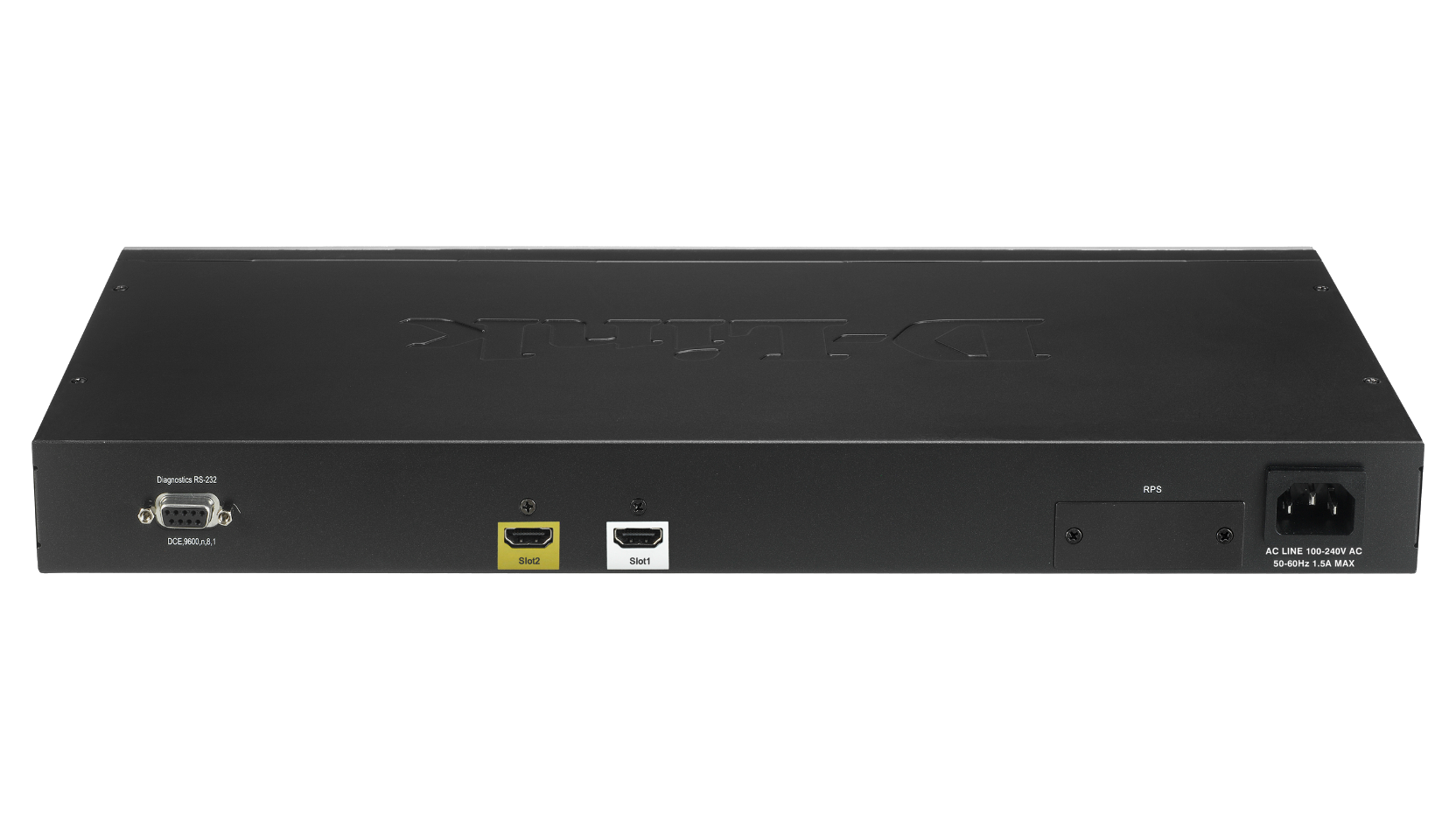

Each of the DGS-3100 series switches comes with 2 dedicated HDMI stacking ports, each providing 5Gbps stacking bandwidth (up to 20Gbps for the overall system in full-duplex mode, bi-directional). Up to 6 units, 288 10/100/1000Mbps ports can be stacked up in a linear or fault-tolerant Ring topology. A stack can consist of 10/100/1000Mbps switches, 10/100/1000Mbps PoE switches, or a combination of both types, with up to 96 SFP fibre links. Units can be gradually added to the stack to accommodate growth, while expansion beyond a single stack is possible using Gigabit port trunks between stacks, or from stack to network backbone and server paths.

Security & Availability

The DGS-3100 stack includes many security features including Access Control List (ACL), 802.1X Port-Based/Host-Based Access Control and 802.1X Guest VLAN to make network access available to authorized users. To prevent malicious attacks and virus/worm affection from overwhelming the switch with unnecessary workload, the DGS-3100 stack provides the D-Link Safeguard Engine function to increase the switch’s reliability and availability.

Resilience/Performance Enhancement

To enhance network resilience, the DGS-3100 stack provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server. For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IP, VLAN ID and L4 protocol types, enabling Internet voice, video and streaming media applications to run smoothly.

Traffic Monitoring/Bandwidth Control

Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define bandwidth limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping and MLD snooping to control multicast transmission, and port mirroring to facilitate diagnostics.

Management

The DGS-3100 stack supports standard-based management protocols such as SNMP, RMON, Telnet, Web GUI and SSH/SSL security authentication. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server, and individual switches can boot their IP from the server and load in the pre-set configurations

Related Products

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
SFP 100Base-FX Multi-mode Fibre Transceiver
DEM-211
Find out more
Number of ports
16 to 30 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP
Switching capacity
68 Gbps
PoE options
802.3af
Number of PoE ports
24
PoE power budget
See datasheet
D-Link Green
Supported
Form Factor
Rackmountable
Physical stacking
Up to 20 Gbps bidirectional bandwidth
Up to 6 devices
MAC address
8K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
256
VLAN type
GVRP
Advanced VLAN
Voice VLAN
Number of QoS queues per port
4
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1
Supported
