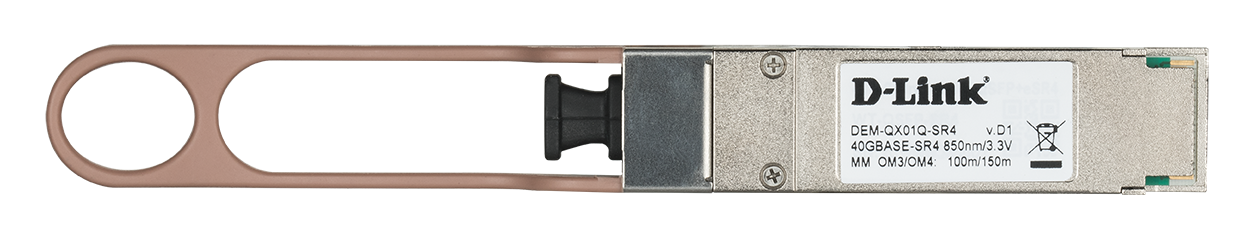

40GBase-SR4 QSFP+ Multi-mode Transceiver, 100 m / 150 m

DEM-QX01Q-SR4

  • Product Status (Revision A): Live
D-Link’s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBASE QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.

Download the datasheet.

Where to buy

D-Link’s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBASE QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.

Quad Small Form-factor Pluggable Plus Format

The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s
per channel for applications such as 40G Ethernet.

Hot Pluggable

 All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

40G Ethernet speeds

The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s. This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster
and higher data transmissions, making it very suitable for business needs.

Digital Diagnostics Monitoring (DDM)

All 40G QSFP+ modules feature DDM real time monitoring of critical parameters, including transmitted and received power, temperature, and voltage. This allows for convenient monitoring of the module’s fibre connection and ensures that network connection issues are detected early.

Related Products

40GBase-SR4 QSFP+ Multi-mode Transceiver, 100 m / 150 m
DEM-QX01Q-SR4
Find out more
40G QSFP+ to QSFP+ 1 m Direct Attach Stacking Cable
DEM-CB100QXS
Find out more
40G Passive QSFP+ Twinaxial Direct Attach Cable, 3 meter
DEM-CB300QXS
Find out more
24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
DXS-3600-32S/SI, DXS-3600-32S-SE-LIC, DXS-3600-EM-4XT, DXS-3600-EM-Stack, DXS-3600-FAN-FB, DXS-PWR300AC
Find out more

Features

  • Quad Small Form-Pluggable (QSFP+) form factor
  • Hot pluggable
  • Supports 40G Ethernet
  • Digital Diagnostics Monitoring (DDM)
  • RoHS compliant
  • Multiple Source Agreement (MSA) compliant
  • IEEE 802.3ba 40GBASE QSFP+ compliant

Technical Specifications

Transceiver Type

  • QSFP+

Fiber Media support

  • Multi-mode

Distance Capacity

  • OM3 MMF: 100 m
  • OM4 MMF: 150 m

Compliant Standard

  • IEEE 802.3ba

Connector

  • MPO

Single/Bi Direction

  • Single direction

Wavelength

  • 850 nm

Cable Type

  • Single 1x12 MPO receptacle (female)with OM3 or OM4 MMF

Power

  • 3.3 V

Hot Pluggable

  • Yes

MSA Compliant

  • Yes

RoHS Compliant

  • Yes

DDM (Digital Diagnostics Monitoring)

  • Yes
