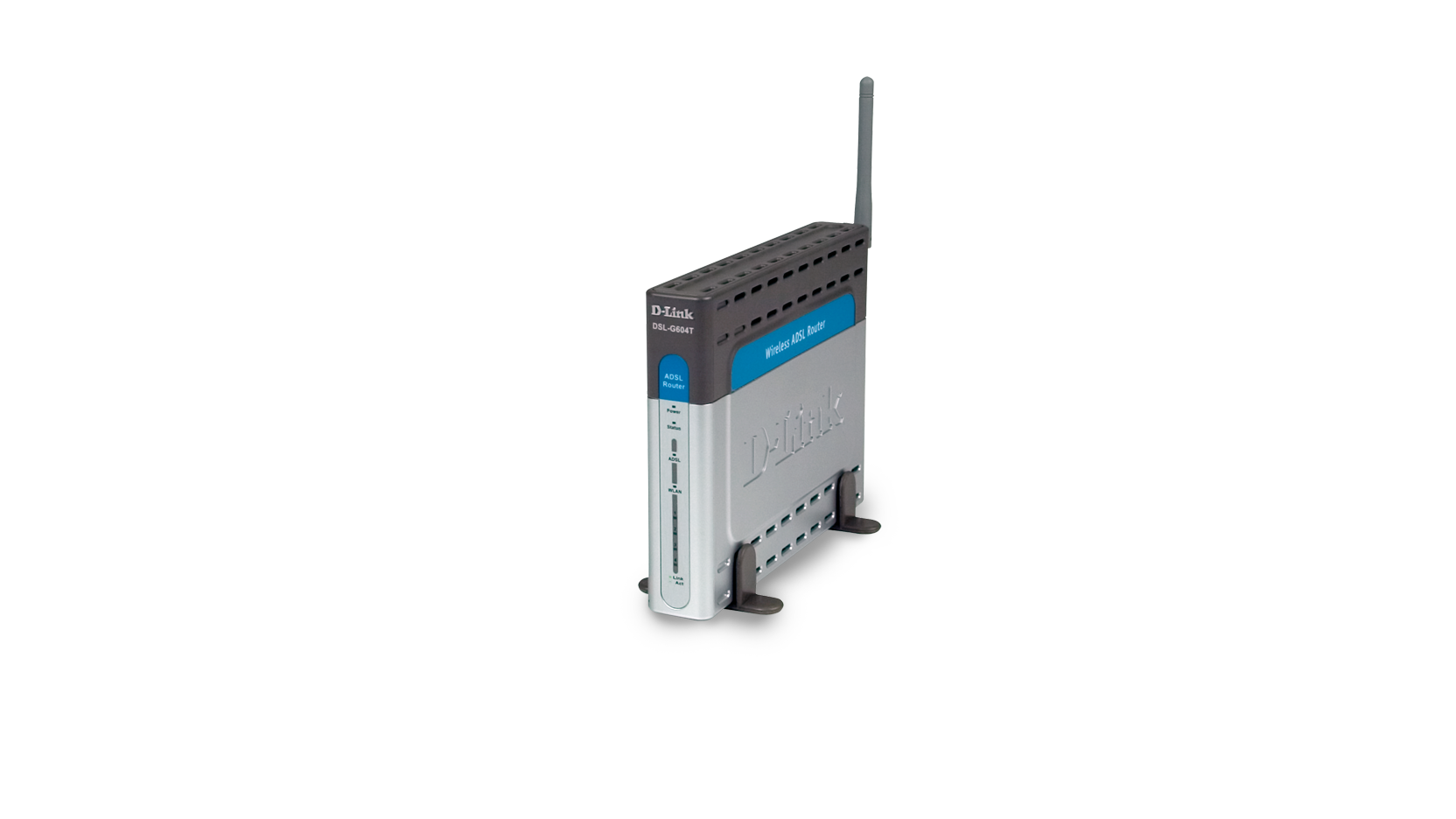

DSL-G604T - Revision A

Product Status - Phased Out

Quick Links

Downloads can vary across product revisions. Please select the correct hardware revision.

Manuals
Description Type File Size
Download
Manual (English)
Show moreShow less
PDF 4.91mb
Quick Installation Guides
Version Description Date Type File Size
Download
Quick Installation Guide (English)
Show moreShow less
PDF 0.49mb
Firmware
Do NOT upgrade firmware on any D-Link product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.
Version Date
Show moreShow less 30/09/2005
Additional Downloads
Version Date
Show moreShow less
Standards
  • ANSI T1.413 issue 2
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.lite)
  • ITU G.994.1 (G.hs)
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11
  • IEEE 802.11b
  • IEEE 802.11g


Ports
  • RJ-11 Port for Connection to ADSL
  • Four 10/100Mbps Ethernet LAN Ports for Connection to Ethernet-enabled devices


Device Management
  • Telnet
  • HTTP Web Management
  • TFTP for Firmware Upgrade


DSL Data Rates
  • DMT full rate downstream (up to 8Mbps)
  • DMT full rate upstream (up to 640Kbps)
  • G.lite ADSL downstream (up to 1.5Mbps)
  • G.lite ADSL upstream (up to 512Kbps)


Software Features
  • Dynamic Learning (Up to 256 MAC Addresses)


DHCP
  • Server and Client


Routing Protocols Supported
  • TCP/UDP, ARP, RARP, ICMP, DHCP, DNS, RIPv1 (RFC 1058), RIP v2 (RFC1389), IGMP, PPPoE, IGMP, P2PP


VPN Pass Through
  • L2TP
  • PPTP
  • IPSec


Wireless Signal Rates* With Automatic Fallback
  • IEEE 802.11b: 11, 5.5, 2, and 1Mbps
  • IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps


Media Access Protocol
  • DSMA/CA with ACK


Wireless Security
  • WEP: 64/128/256-bit
  • WPA (IEEE 802.1x + TKIP)


Wireless Frequency Range
  • 2400 ~ 2484.5Mhz ISM Band


Radio and Modulation Type
  • IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
  • IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM. OFDM


Channels
  • 11 Channels (US)
  • 13 Channels (Europe and Japan)


LEDs
  • Power
  • Status
  • WLAN
  • ADSL Link/Act
  • Ethernet Link/Act
  • Ethernet 10/100M


Power
  • Output: 12V AC, 1.2A
  • Max Power Consumption: 12W


Operating Temperature
  • 0º to 40ºC (32ºF to 104ºF)


Storage Temperature
  • -20º to 70ºC (-4ºF to 158ºF)


Certifications
  • FCC Part 15 Class B
  • FCC Part 68
  • IEC 60950
  • EN 60950
  • CSA 950
  • CE Mark
  • UL 1950 3rd Ed


Dimensions
  • 7.07in x 5.59in x 1.18in


Weight
  • 0.8lbs


Warranty
  • 1 Year
