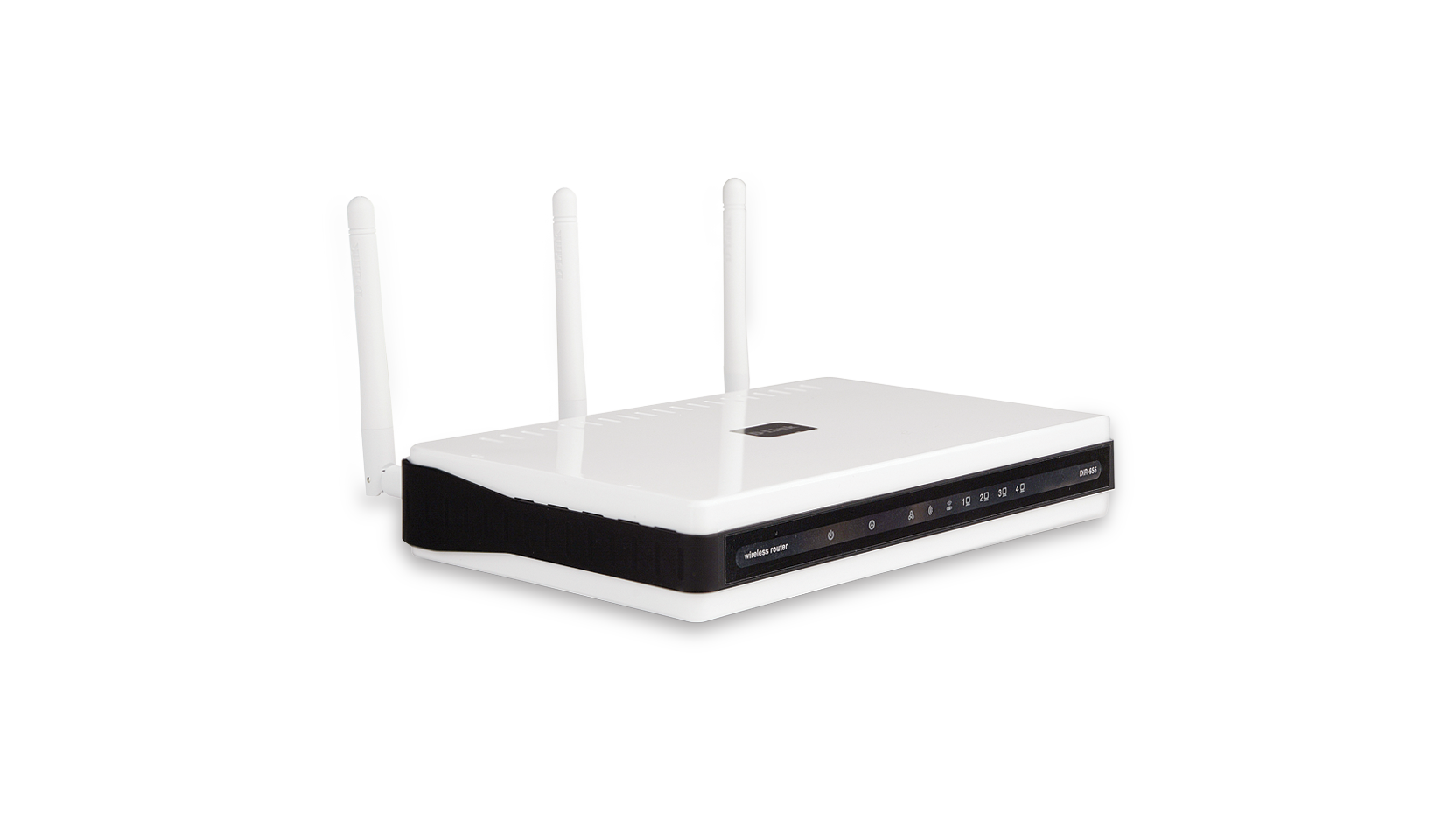

Wireless N Gigabit Router

DIR-655

  • Product Status: End of Life

CURRENTLY NOT AVAILABLE IN UK AND IRELAND

Wireless N Gigabit Router

The D-Link DIR-655 Wireless N Gigabit Router is an 802.11n compliant device designed for use by users who demand higher performance networking. Featuring a 3x3 antenna design, the DIR-655 router provides superior whole home coverage whilst eliminating dead spots. It is also faster than 100Mbps wired Ethernet1. By connecting the DIR-655 router to a cable or DSL modem, users will be able to share their high-speed Internet access with everyone on the network. By adding a Wireless N notebook or desktop adapter, they will also stay connected from virtually anywhere in their home.

High Performance

The DIR-655 features the fastest processor in the D-Link Wireless N range, achieving ever higher throughput results between WAN and LAN networks. It includes four Gigabit Ethernet switch ports for highest transfer speeds to other Gigabit capable devices such as a network attached storage. For the first time, Gigabit connectivity is introduced on the WAN side as well, a unique feature ahead of its time in many countries.

In addition, the router integrates the acclaimed QoS StreamEngine, which provides a better Internet experience by keeping Internet phone calls and online gaming smooth and responsive.

Wireless LAN Intelligent Stream Handling (WISH) technology

The DIR-655 router includes Quality of Service (QoS), wirelessly as well as to and from the Internet (StreamEngine). It features WISH, which enhances the consumer's experience for gaming, HDTV and other media applications over a wireless connection by minimising the disruptive effects of competing traffic on the wireless network. It automatically detects if audio, video or gaming content is being used on the wireless network and gives these applications priority over less time-sensitive traffic such as email or file transfers. It then adjusts priorities to ensure media content is transmitted without jitter or lag.

The router even enforces a “good neighbour” policy, ensuring that it will not create interference for neighbouring networks. This is achieved by reducing the amount of radio spectrum used when detecting legacy 802.11g/b networks in the vicinity.

Simplified Wireless Security

The router supports the Wi-Fi Alliance’s standard for wireless security at the touch of a button. With Wi-Fi Protected Setup™ (WPS), the wireless network name (SSID) and encryption keys are automatically generated and broadcast to the client devices. Users do not have to memorise complicated passwords and key them in several times. This considerably simplifies the process of setting up security on the wireless network.

1 Maximum wireless signal rate derived from IEEE standard 802.11g and draft 802.11n specifications. 802.11n speeds obtainable when operating with Wireless N products. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless N products are based on draft IEEE 802.11n specifications and are not guaranteed to be forward compatible with future versions of the IEEE 802.11n specifications. Compatibility with draft 802.11n devices from other manufacturers is not guaranteed. All references to speed are for comparison purposes only.

Product Awards

Wireless standard
Wireless N
Wireless speed
300 Mbps 2.4 GHz
Wired interface
4 x Gigabit Ethernet LAN
USB ports
1 x USB 2.0
This product was phased out on: 14/05/2016
This product's last date of support is on: 14/05/2018
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to Change/Recover your lost wireless password
How to download and use the QRS Mobile App for your iPhone/iPad
How to connect to wireless using an iPhone
How to upgrade the firmware on your router
How to configure the Wireless Settings on your router
How to remove the Graphical Authentication login on your router
How to change router password
How to configure Parental Controls on your router
How to configure IP reservation on your router
How to reset a router
How to open a range of ports on your router
How to change your routers IP address
How to open a single port on your router
How to disable UPnP on your router
DIR-655 Hardware setup
Version Date Type File Size
Datasheet (English) - PDF 0.92mb Download
Version Description Date Type File Size
Product manual Manual (English) - PDF 7.16mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 1.52mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
Firmware 1.37 for hardware Ax for DIR-655 1.37

Firmware 1.37 for hardware Ax for DIR-655.

* Improves compatibility with Samsung Galaxy S4

06/06/2013 - Download
Version Description Date
SharePort utility for MacOS Support 1.19

SharePort utility for MacOS

Support MacOS 10.9 & 10.8

27/06/2014 Download
Windows Shareport Utility v1.20 - 1.20

Windows Shareport Utility v1.20

- Adds support for Windows 8

24/10/2013 Download
Share Port Utility - MAC 1.01b05 Share Port Utility - MAC OS 25/05/2010 Download
Share Port Utility - Windows Share Port Utility - Windows 28/11/2008 Download
Version Description Date
CE doc 3.10 Revision A5 CE document 18/09/2009 Download
