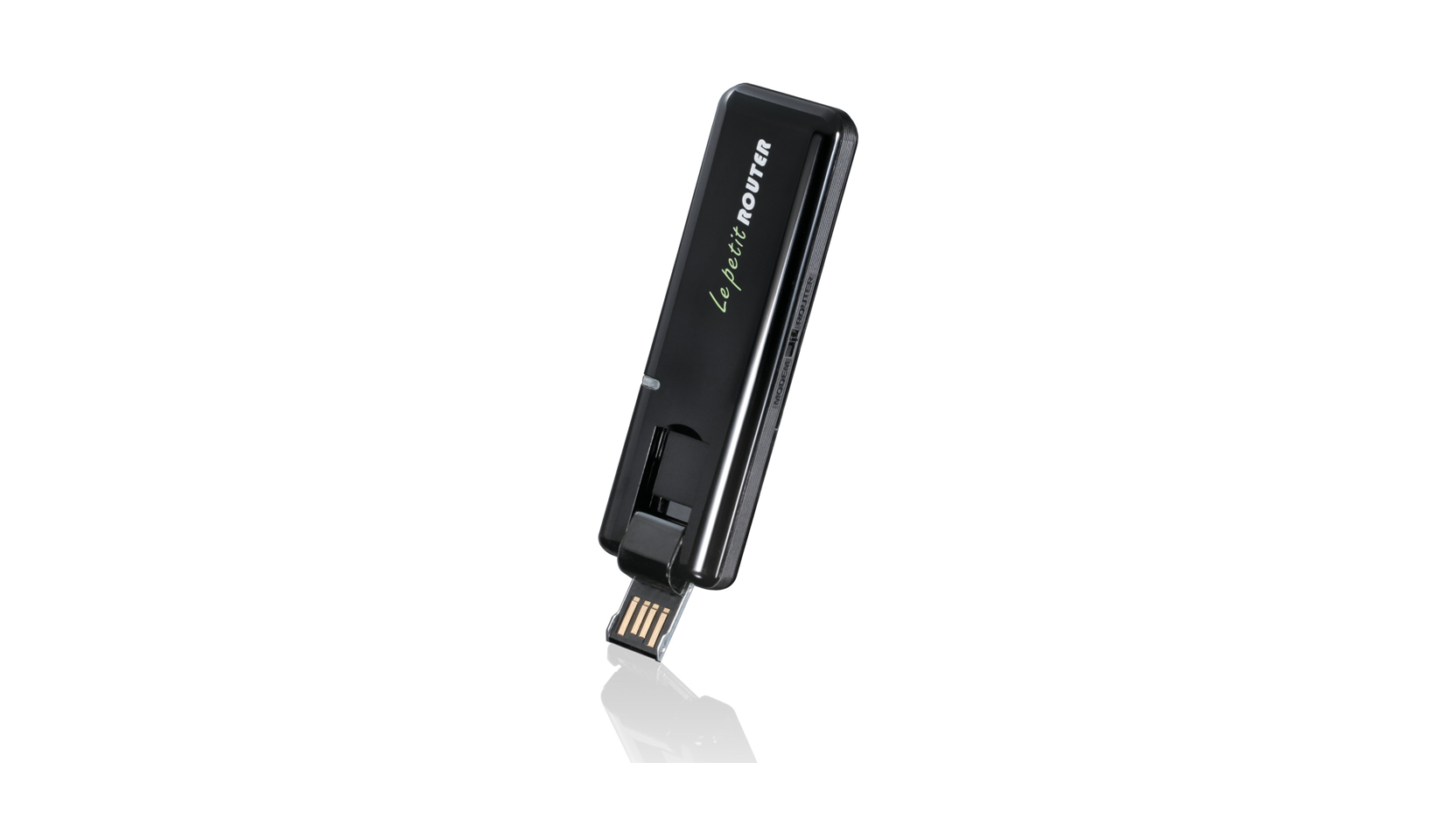

Mini 3G 7.2 Mbps HSUPA USB Router

DWR-510

  • Product Status: Phased Out
The DWR-510 Mini 3G 7.2 Mbps USB Router allows you to connect your notebook to the Internet from anywhere there is a 3G connection and share this connection with other users wirelessly. This router is ideal for people that need a portable solution, for example remote workers or people that are moving house and need a temporary Internet connection.

Download the datasheet.

List Retailers
  • First-to-market: no other vendor with an equivalent product
  • Based on HSUPA 3G technology: up to 7.2 Mbps download data speed
  • Fast USB 2.0 interface
  • Wireless N 150 to share your 3G Internet connection with other users
  • Phonebook and SMS Manager to send text messages directly from your computer
  • Operating Systems: Windows XP/Vista/7 and MAC OS X 10.4 and higher
  • Built-in drivers for plug-and-play installation
  • Sleek design: internal antenna and retractable USB port
  • Truly portable: USB-powered, no need for cables or battery chargers
  • Unlocked: works with data SIM cards from any operator

The DWR-510 Mini 3G 7.2 Mbps USB Router allows you to connect your notebook to the Internet from anywhere there is a 3G connection and share this connection with other users wirelessly. This router is ideal for people that need a portable solution, for example remote workers or people that are moving house and need a temporary Internet connection.

Share your 3G connection
You can use the DWR-510 to share your 3G connection wirelessly. The router will use an available 3G connection to provide a fast and secure Wireless N 150 network for several users at the same time.

Plug and Play Operation
There is no need to pre-install drivers to use this router. This 3G router comes with Windows and Mac OS drivers built-in, which will install automatically when the adapter is first inserted in a USB port.

Practical Portability
The D-Link DWR-510 is small enough to fit in your pocket: no batteries, cables or antennas needed. The retractable USB port can be conveniently hidden when not in use, making this 3G router truly portable.

Additional software included
The DWR-510 built-in memory includes a Phonebook and SMS Manager. With Phonebook, users can create and edit contacts, create groups, and save the contact list onto the computer. SMS Manager allows users to send, reply and forward SMS messages. Both applications can interact with each other, for example you can save the SMS sender’s number as a contact on the Phonebook.

Optimal performance with 3.75G HSUPA technology
The DWR-510 supports the latest 3.75G High Speed Uplink Packet Access (HSUPA) technology, which offers data rates of up to 7.2 Mbps (5.76 Mbps upload) and helps to reduce latency. 3.75G is also backwards compatible with 3.5G, 3G and 2.5G technologies.

Related Products

3.75G HSUPA USB Adapter
DWM-156
Find out more
Portable 3G Router
DIR-457
Find out more
Wireless 3G HSPA+ Router
DWR-512
Find out more

Technical Specifications

Minimum system requirements
  • Windows XP/VISTA/7 or Mac OS X 10.4.0+
  • Intel or AMD CPU 500 MHz or higher
  • 128 MB RAM or greater
  • 50 MB available disk space
  • Internet Explorer v6.0 or above/Firefox v2.0 or above

GSM band (GSM/GPRS/EDGE)
  • 850/900/1800/1900 MHz
  • Power Class 4 (850/900 MHz)
  • Power Class 1 (1800/1900 MHz)

Dual band for UMTS/HSPDA/HSUPA1
  • 850/1900 MHz
  • 850/2100 MHz
  • 900/2100 MHz
  • Power Class 3 (+24 dBm)

Data rates2

  • Download: 7.2 Mbps
  • Upload: 5.76 Mbps

Wireless standards

  • 802.11b
  • 802.11g
  • N 150

Antenna
  • Internal 3G and Wi-Fi antenna

Interface Support
  • USB 2.0

SMS
  • Circuit-switched (GSM)

SMS manager
  • SMS stored on SIM card
  • New SMS notifications via Connection Manager
  • Compose/Send/Read/Delete SMS

Phonebook
  • New contact, new group, view/delete/edit contacts, send/save messages

SIM slot
  • Standard 6-Pin SIM card interface

Plug and Play
  • Automatic software/driver installation

Connection status
  • Network name, signal strength, transport/receive rate, connected time, amount of data sent/received

Certification
  • CE
  • FCC

Dimensions (L x W x H)
  • 90 × 28 × 11 mm.

Operating temperature
  • -10 to 55 ˚C
Version Date Type File Size
Datasheet (English) - PDF 0.69mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 4.81mb Download
Version Description Date Type File Size
Quick Installation Guide (Multilingual) - PDF 0.65mb Download
Version Description Date
Firmware - MacOS 10.7 Lion 1.025 b01 Firmware - MacOS 10.7 Lion 18/01/2012 Download
Version Description Date
DEU_CE_Declaration_vA1_RevA_1 CE Declaration - ver A1 (English, French,
Spanish, Portuguese)
31/08/2012 Download
