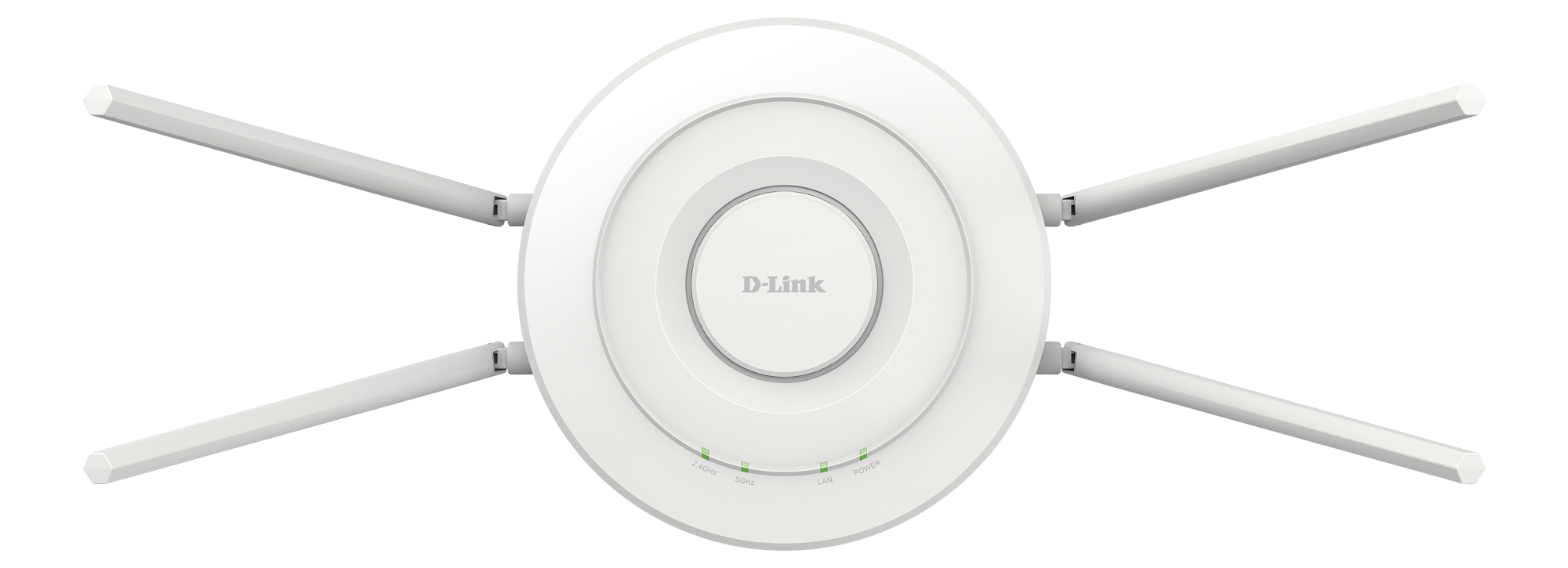

Wireless AC1200 DualBand Unified Access Point

DWL-6610APE

  • Product Status: Live
The DWL-6610APE Wireless AC1200 Dual-Band Unified Access Point is designed for small to medium businesses and enterprises, providing unparalleled bandwidth and flexibility for medium to large scale Wi-Fi networks. Featuring the latest 802.11ac technology on its 5 GHz band, the DWL-6610APE allows you to deploy more devices and provide greater throughput for your wireless clients.

Download the datasheet.

List Retailers

Performance
without
Compromise







The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.

Key Features

Wireless AC 1200

Wireless AC 1200

Maximum combined wireless speed of 1200 Mbps.*

Broadcast on 32 SSIDs Simultaneously

Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including station isolation.

Dual Band

Dual Band

Supports both 2.4Ghz and 5Ghz bands simultaneously.

Unified Wireless

Unified Wireless

Access points can be managed by unified wireless controller.

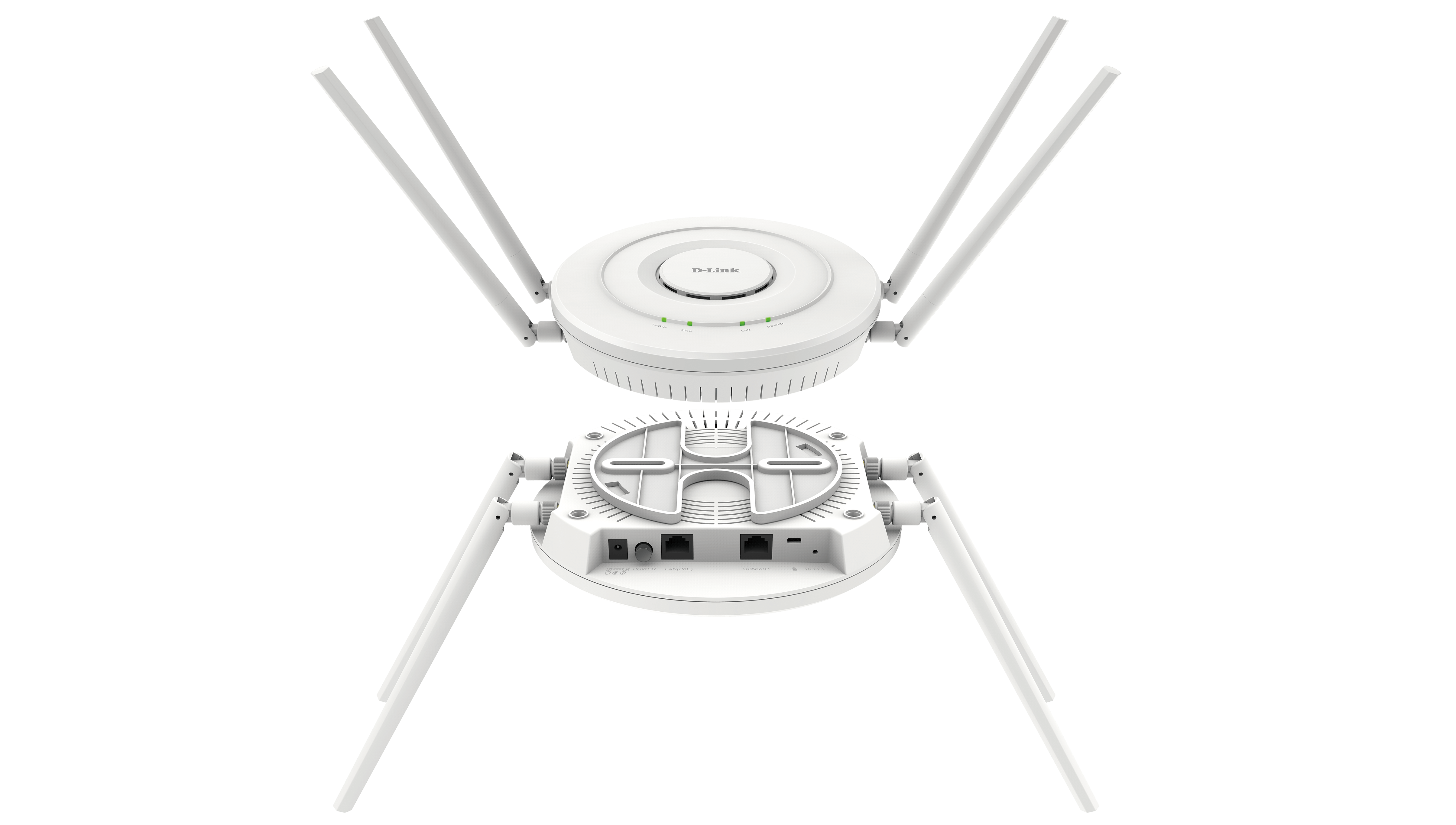

DWL-6610APE Smart Design

Smart Design

The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.

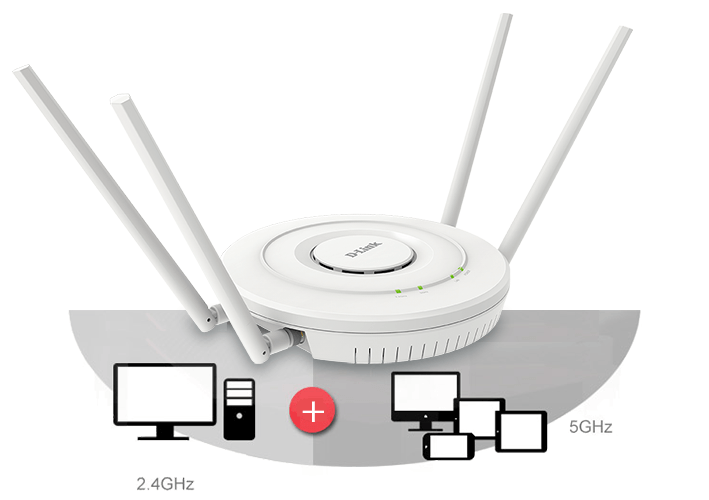

Band Steering technology

With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

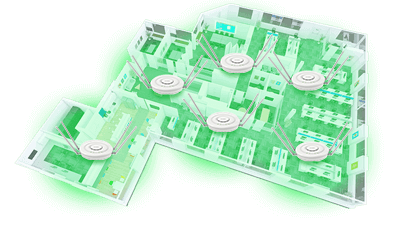

DWL-6610APE Versatility Built as standard

Versatility Built as standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.

DWL-6610APE Secure and Green Design

Secure and Green Design

The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

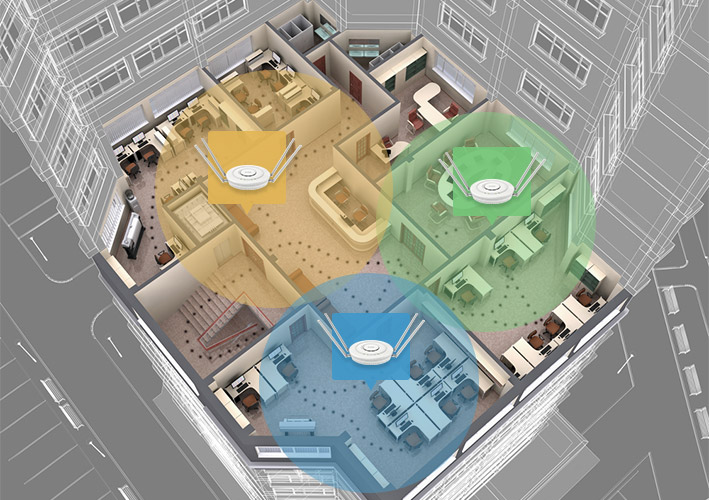

Fast Seamless Roaming

Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

DWL-6610APE Fast Seamless Roaming



Management
platforms

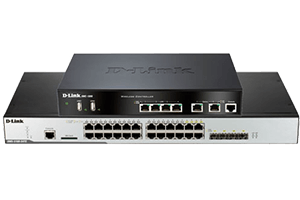

D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.

DWL-6610APE Management platforms

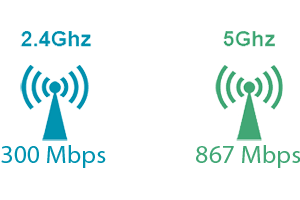

Simultaneous
Dual-Band

Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band

DWL-6610APE Simultaneous Dual-Band



* Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Related Products

Wireless Controller
DWC-1000
Find out more
Wireless Controller
DWC-2000
Find out more
Unified Wireless N PoE Access Point
DWL-2600AP
Find out more
Unified Wireless N PoE Access Point
DWL-3600AP
Find out more
Wireless Selectable Dual-Band Unified Access Point
DWL 3610AP
Find out more

Technical Specifications

Functions & Features

Features

Ideal for Business

  • Self-configuring cluster, enabling effortless provisioning
  • Up to 32 virtual access points may be created from a single access point
  • Flexible QoS with WMM
  • IEEE 802.3af Power over Ethernet (PoE)
  • 4 detachable external dual-band omnidirectional antennas
  • UL2043 certified chassis

High Performance Connectivity

  • Bandsteering for efficient traffic management
  • One Gigabit Ethernet LAN port
  • Airtime fairness

Trusted Security

  • WPA/WPA2 Personal
  • WPA/WPA2 Enterprise
  • MAC address filtering
  • Rogue AP detection



Technical Specifications

General

Interfaces

  • 802.11b/g/n 2.4 GHz wireless
  • 802.11a/n/ac 5 GHz wireless
  • 10/100/1000BASE-T LAN (PoE) port

Antenna

  • 4 x detachable external dual-band omnidirectional antennas
  • 4 dBi for 5 GHz, 3 dBi for 2.4 GHz

Functionality

Operating Frequency

  • 2400 to 2483.5 MHz
  • 5150 to 5850 MHz

Operating Channels

  • 1 to 13 channels for 2.4 GHz band (per country code)
  • 36 to 165 channels for 5 GHz band (per country code)

System Management

  • Web-based user interface (HTTP/HTTPs)
  • Serial console (RJ-45)
  • SNMP (v1/v2c/v3)
  • Telnet/SSH
  • Configuration Group Sync
    •  AP Cluster, up to 10 APs

Security

SSID Security

  • Up to 32 SSIDs, 16 per radio
  • 802.1Q VLAN
  • Station Isolation

Wireless Security

  • WPA Personal/Enterprise
  • AES and TKIP

Detection & Prevention

  • Rogue and valid AP classification

Authentication

  • MAC address filtering

Physical

Dimensions

  • 205 x 39 mm (8.07 x 1.54 in.)

Weight

  • 0.476 kg (1.05 lbs)

Power Supply

  • 12 V/1.5 A external power adapter (power supply not included)
  • 802.3af PoE

Max Power Consumption

  • 10.2 watts

Enclosure

  • Bottom cover – plastic
  • Top cover – plastic
  • UL2043 certified chassis

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • FCC
  • IC
  • cUL+UL
  • LVD
  • RCM
  • NCC
  • BSMI
  • UL2043
1. This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Switches/controllers.
2. Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
