15-Bay iSCSI SAN Array with 1x10GbE Port

DSN-3400-10

  • Product Status: Phased Out

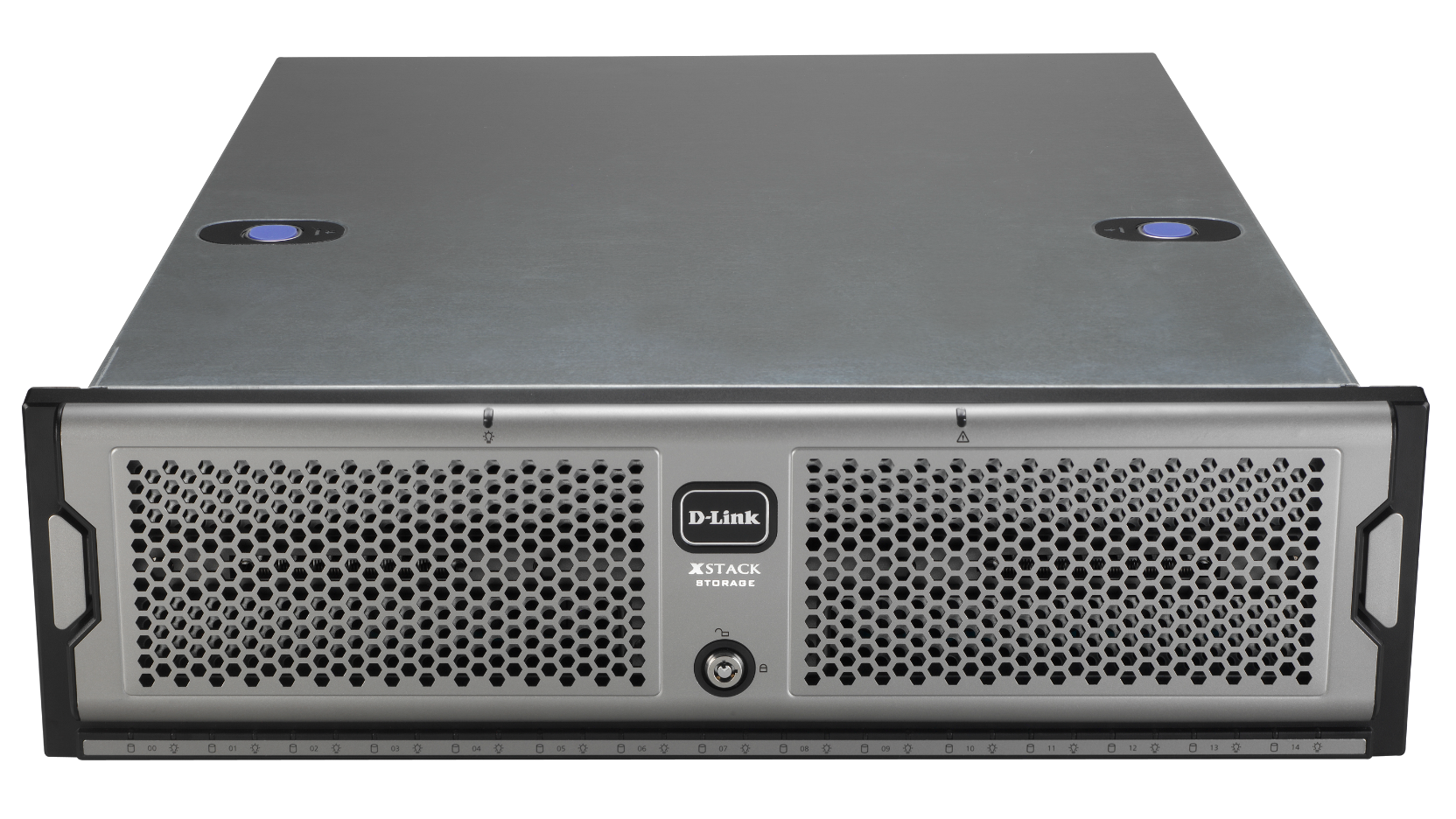

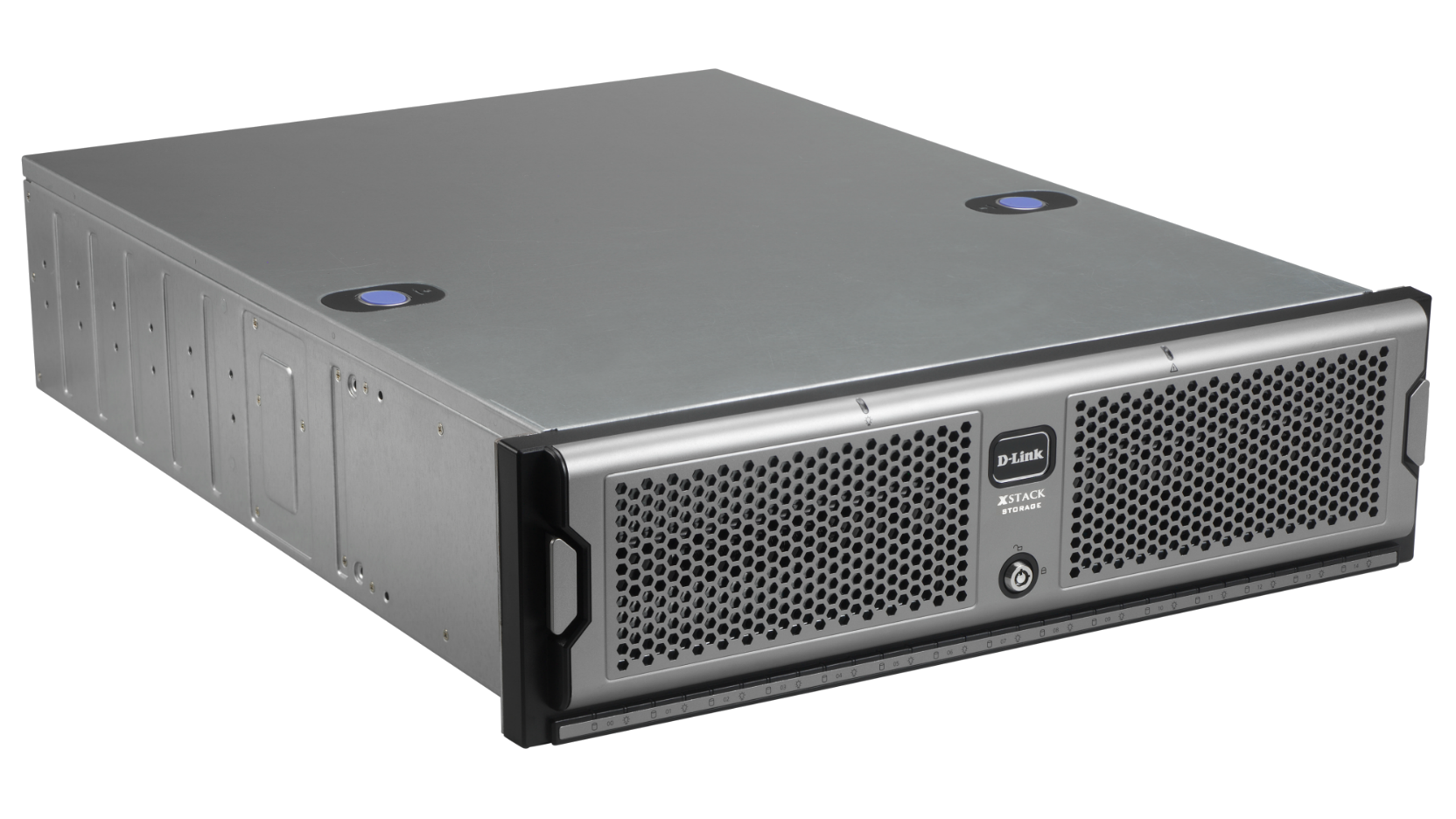

The D-Link DSN-3400-10 15-bay iSCSI SAN Array provides a reliable network data storage solution for customers in entry-level and SMB segments. Utilising a 10Gbit iSCSI System-on-a-Chip (SoC) solution that can handle over 80,000 I/Os per second and capable of supporting 30 TB raw capacity using 2 TB hard drives (and even higher capacity hard drives as they are introduced), the DSN-3400-10 Array can easily be implemented as nearline storage to supplement your primary IP network storage solution or used as a basic backup and recovery device. The tightly integrated storage architecture is a sharp contrast to the discrete implementation of competing products.

Download the datasheet.

List Retailers

10-Gigabit XFP (10GBASE-SR) Transceiver
Find out more
Full HD PoE Day/Night Network Camera
Find out more
Full HD Wireless Day/Night Network Camera
Find out more
HD PoE Day/Night Fixed Network Camera
Find out more
HD WDR PoE Day/Night Fixed Network Camera
Find out more

Technical Specifications

Hardware
  • 15 Hard Drive bays for 3.5” SATA Hard Drives of any capacity
  • Hot swappable drives
  • SATA-II Support
  • Cache memory: 512 MB (upgradeable to 4 GB)
  • System memory: 512 MB
  • Standard rack-mountable 3U size

Network
  • 1 10-Gigabit slot
  • Support for Jumbo frames
  • IEEE 802.1Q VLAN tagging

Operating Systems
  • Windows Vista® 32-bit & x64 (Ultimate & Enterprise) with Built-in iSCSI initiator
  • Windows Server® 2003 32-bit & x64 SP1 (Standard & Enterprise) with v2.07 iSCSI initiator
  • Windows Server 2003 R2 32-bit & x64 (Standard & Enterprise) with v2.07 iSCSI initiator
  • Windows® XP Pro 32-bit & x64 with v2.07 iSCSI initiator
  • Windows 2000 Advanced Server with v1.6 & v2.01 iSCSI initiator
  • Red Hat® 7.3
  • Red Hat Enterprise AS update 5
  • SuSE® Professional 9.3 32-bit & x64
  • SuSE Enterprise Server 10.2 32-bit (x86)
  • Mac OS® X (10.4 & 10.5)

Storage network management
  • RAID Hard Drive configurations: 0/1/1+0/5
  • Remote monitoring and configuration via SSL
  • CHAP authentication
Version Date Type File Size
Datasheet - PDF 0.93mb Download
Version Description Date Type File Size
Hardware Reference Guide Hardware Reference Guide - PDF 3.19mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide 21/10/2009 PDF 0.81mb Download
Version Description Date
Firmware 2.8.0.48 Firmware 02/12/2010 Download
Version Description Date
DEU_Compatibility_List_RevA Compatibility List 10/05/2011 Download
DEU_CE_Declaration_RevA Declaration of conformity 09/10/2009 Download
