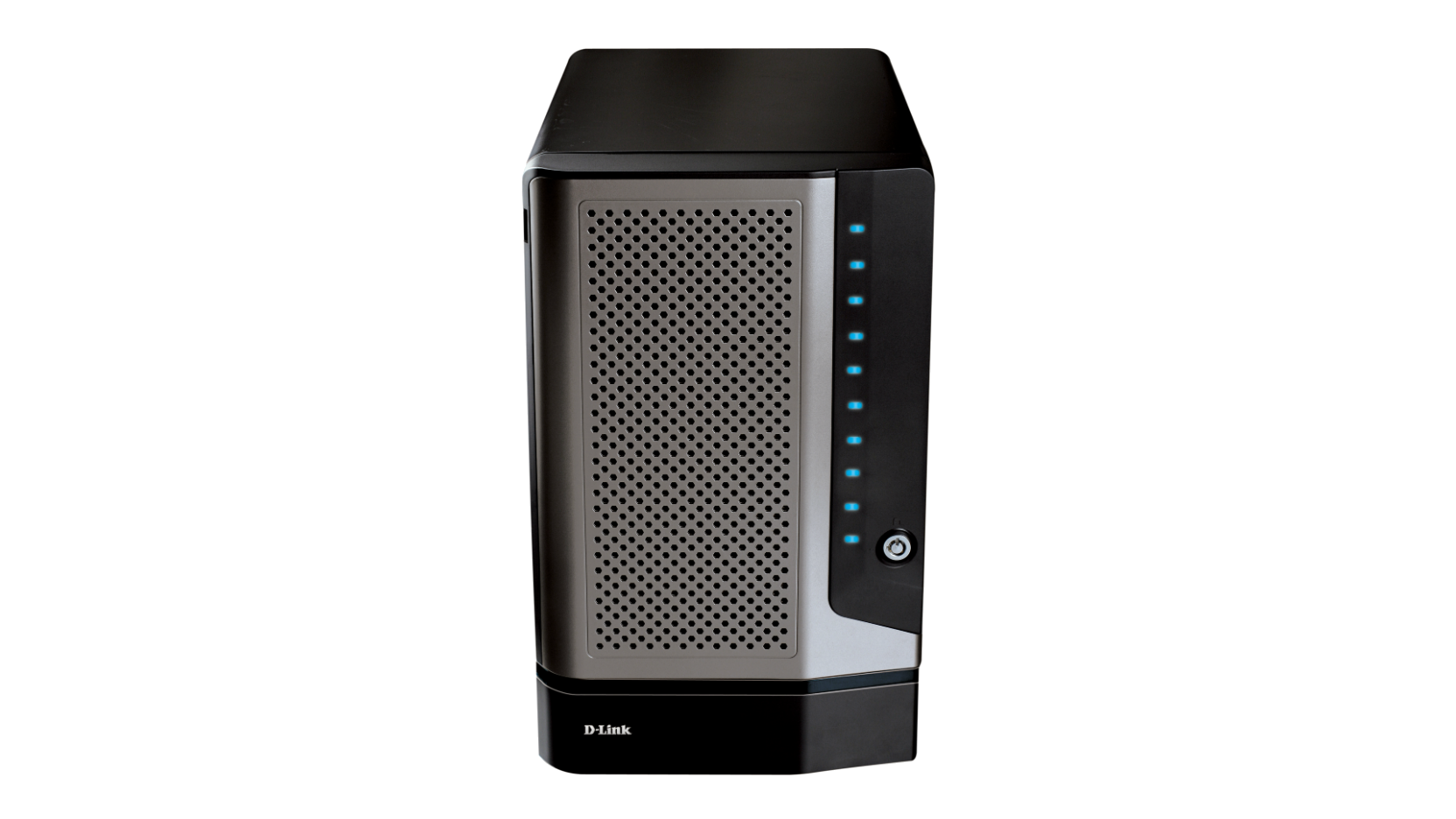

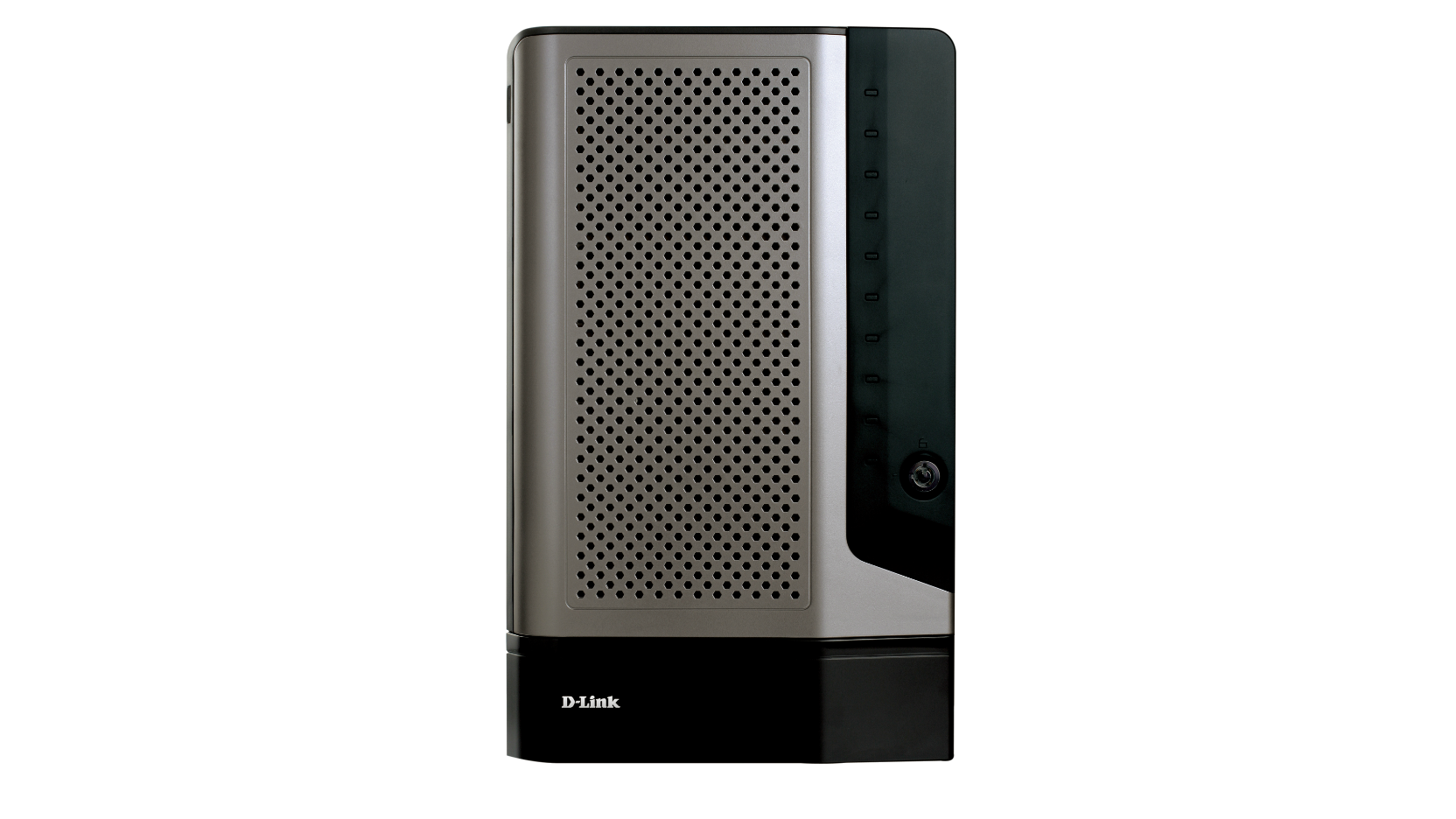

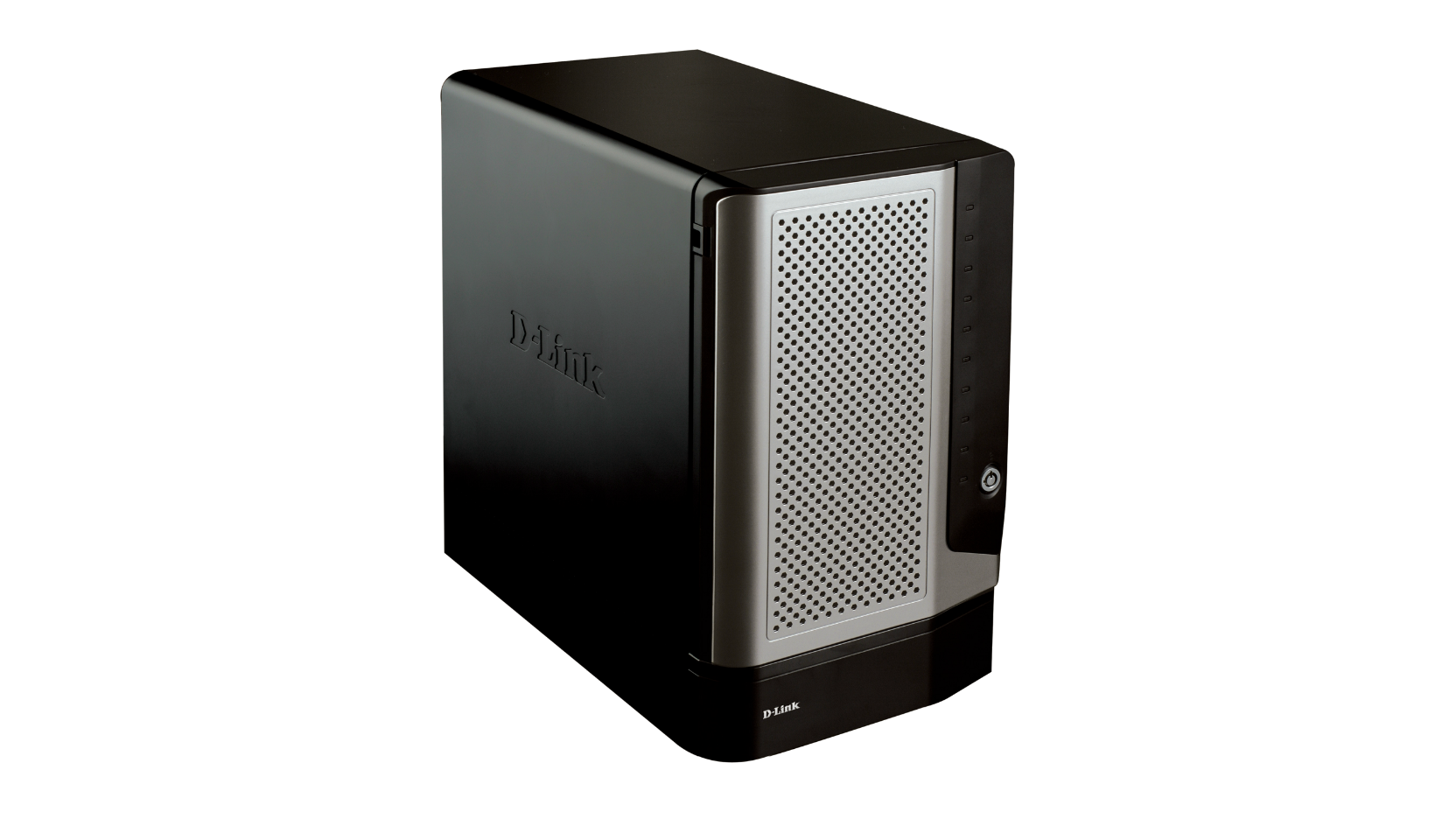

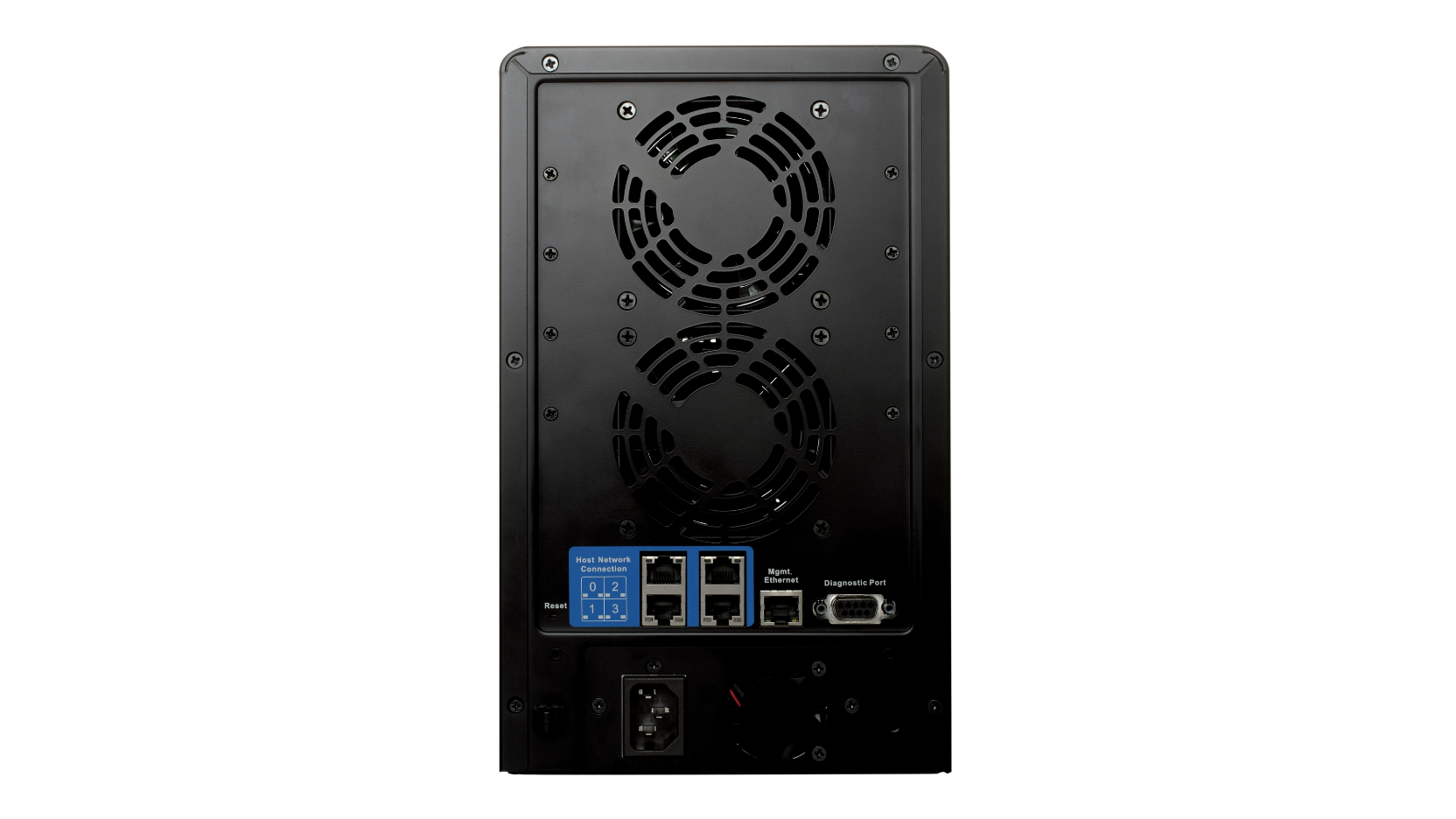

5-Bay iSCSI SAN Array with 4x1GbE Ports

DSN-1100-10

  • Product Status: Phased Out
D-Link's DSN-1100-10 iSCSI SAN array is an entry-level network storage solution in a 5-bay desktop form factor, ideal for small businesses. The heart of the DSN-1100-10 is a powerful 10Gbit iSCSI System-on-a-Chip (SoC) capable of handling over 80,000 I/OS per second. The DSN-1100-10 supports 10TB of raw capacity using 2TB drives and can be easily implemented as a supplemental backup platform for quick restores, as secondary online storage, or as bandwidth-demanding primary storage for security surveillance and A/V applications.

Download the datasheet.

List Retailers

Related Products

Full HD PoE Day/Night Network Camera
DCS-2210
Find out more
Full HD Wireless Day/Night Network Camera
DCS-2230
Find out more
HD PoE Day/Night Fixed Network Camera
DCS-3112
Find out more
HD WDR PoE Day/Night Fixed Network Camera
DCS-3710
Find out more
Full HD WDR PoE Day/Night Fixed Network Camera
DCS-3716
Find out more

Technical Specifications

Hardware
  • 5 Hard Drive bays for 3.5” SATA Hard Drives of any capacity (HDD not included)
  • Hot swappable drives
  • SATA-II Support
  • Cache memory: 256 MB (upgradeable to 1GB)
  • System memory: 256 MB (upgradeable to 512MB)
  • Compact chassis that fits anywhere

Network
  • 4 Gigabit Ethernet ports with support for link aggregation
  • Support for Jumbo frames and IEEE 802.3ad Link Aggregation
  • IEEE 802.1Q VLAN tagging

Operating Systems
  • Windows Vista® 32-bit & x64 (Ultimate & Enterprise) with Built-in iSCSI initiator
  • Windows Server® 2003 32-bit & x64 SP1 (Standard & Enterprise) with v2.07 iSCSI initiator
  • Windows Server 2003 R2 32-bit & x64 (Standard & Enterprise) with v2.07 iSCSI initiator
  • Windows® XP Pro 32-bit & x64 with v2.07 iSCSI initiator
  • Windows 2000 Advanced Server with v1.6 & v2.01 iSCSI initiator
  • Red Hat® 7.3
  • Red Hat Enterprise AS update 5
  • SuSE Enterprise Server 10.2 32-bit (x86)
  • SuSE® Professional 9.3 32-bit & x64
  • Mac OS® X (10.4 & 10.5)

Storage network management
  • RAID Hard Drive configurations: 0/1/1+0/5
  • Remote monitoring and configuration via SSL
  • CHAP authentication

FAQ

Version Date Type File Size
Datasheet - PDF 0.66mb Download
Version Description Date Type File Size
Software User’s Guide Software User’s Guide - PDF 5.73mb Download
Hardware Reference Guide Hardware Reference Guide - PDF 3.04mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide 29/09/2009 PDF 0.78mb Download
Version Description Date
Firmware 2.8.2.2 Firmware 11/05/2011 Download
Firmware 2.8.0.48 Firmware 02/12/2010 Download
Version Description Date
DEU_Interoperability_Matrix_RevA Interoperability Matrix 10/05/2011 Download
Declaration of conformity Declaration of conformity 02/10/2009 Download
