2 Port USB KVM Switch with Audio Support

DKVM-222

  • Product Status: Live

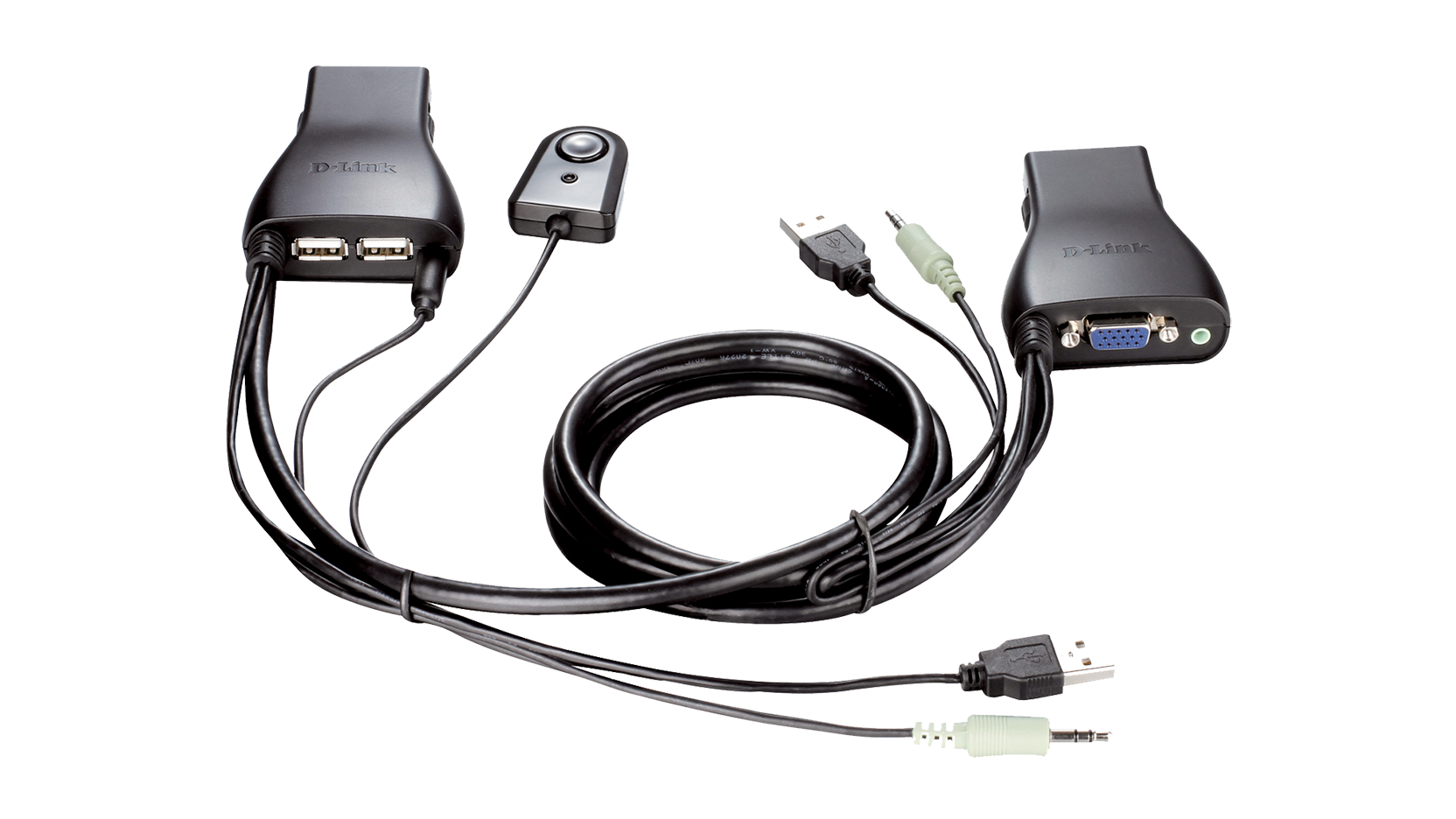

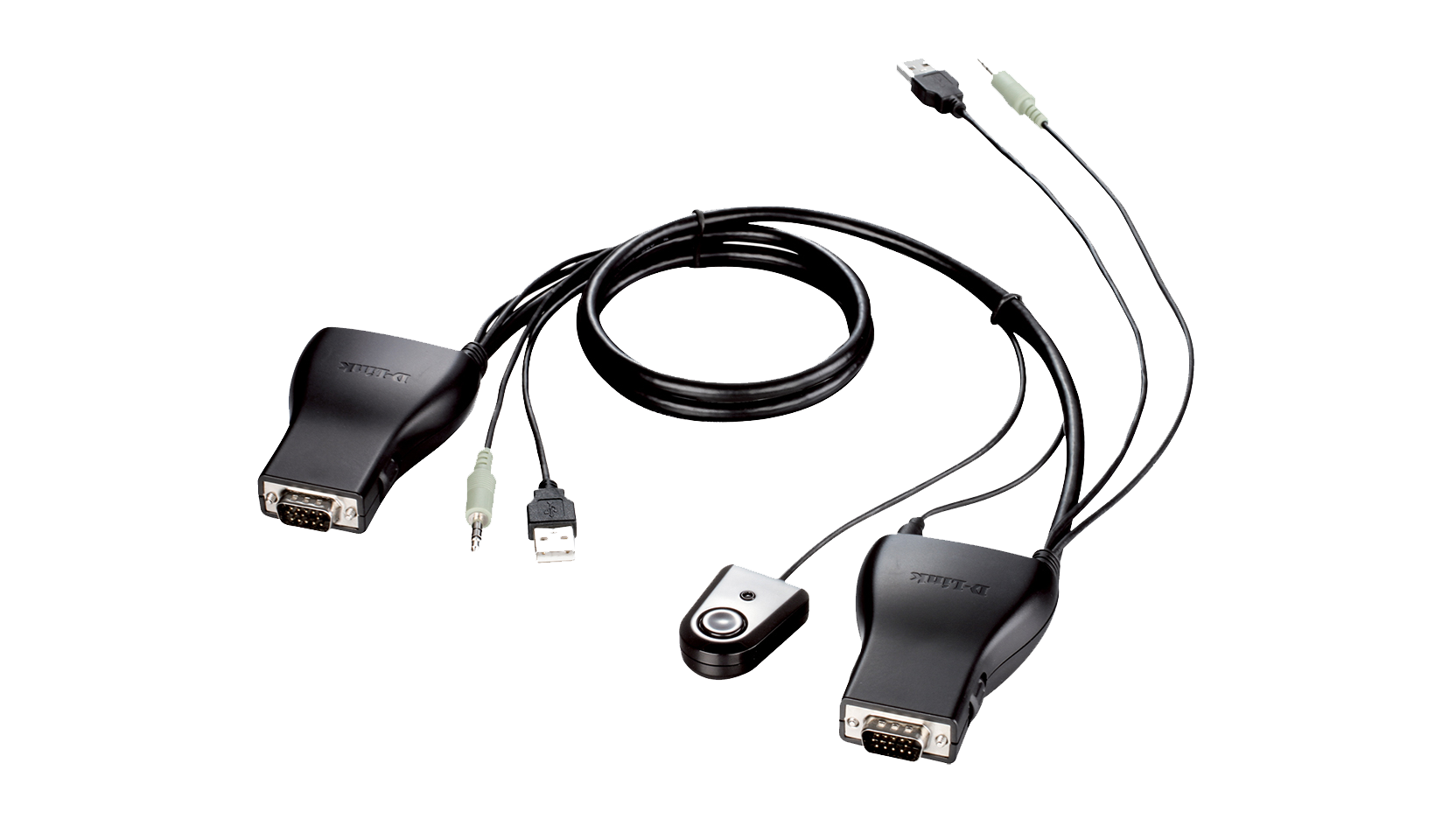

The 2-Port USB KVM Switch with Audio Support allows you to control two PCs from a single USB keyboard, USB mouse, and VGA monitor. Audio is also supported, allowing the two connected PCs to share a set of speakers via a standard 3.5 mm stereo jack.


Download the datasheet.

List Retailers

The 2-Port USB KVM Switch with Audio Support allows you to control two PCs from a single USB keyboard, USB mouse, and VGA monitor. Audio is also supported, allowing the two connected PCs to share a set of speakers via a standard 3.5 mm stereo jack.

Convenient Access and Control

The handy wired remote control button simplifies the switching process and you can place the switch in a convenient location to facilitate this. No additional cables or adapters are required, as two sets of cables are directly built into the KVM switch for quick and easy installation.

Save Money, Save Space

If you have two computer systems which are often used simultaneously or even intermittently, the DKVM-222 helps you save money by eliminating the need for an additional keyboard, mouse and monitor. Free up precious desktop space by using the same console setup to manage both systems. Maximise your screen real estate by connecting a single large monitor, instead of two smaller monitors. The DKVM-222 supports VGA, SVGA and multisync monitors at resolutions of up to 2048 x 1536 with refresh rates of up to 72 Hz.

Advanced KVM Functions

The DKVM-222 utilises advanced microprocessor emulation to intelligently manage each KVM port. PCs can be booted-up simultaneously without faults or keyboard errors, giving you a hassle-free experience. Auto scan, audible feedback and keyboard hotkeys make the DKVM-222 simple to use and manage.  The KVM switch also has full support for the Microsoft IntelliMouse series.

Related Products

4-Port USB 2.0 Hub
DUB-H4
Find out more
7-Port USB 2 Hub
DUB-H7
Find out more
2-Port Keyboard-Video-Mouse Switch with Built-in Cables
DKVM-2K
Find out more
2-Port KVM Switch with USB Port and Built-in Cables
DKVM-2KU
Find out more
4 PORT KVM SWITCH
DKVM-4
Find out more

Technical Specifications

Functions & Features

Features

Convenience

  • Two attached USB and audio cables to connect two PCs
  • Remote toggle button
  • Hotkey commands

Input

  • Two USB ports for one USB mouse and USB keyboard
  • Microsoft IntelliMouse support

Video

  • VGA connector
  • Supports multiple monitor resolutions

Audio

  • Audio port
  • Stereo support

Technical Specifications

General

KVM Connectors

  • Keyboard:
    • 1 x USB Type A female
  • Mouse:
    • 1 x USB Type A female
  • Monitor:
    • 1 x HDB-15 female (blue)
  • Audio:
    • 1 x 3.5 mm Mini-Phone Stereo Jack female (green)
  • Remote control:
    • 1 x 2.5 mm 4 Pin Phone Jack female

Cable Connectors

  • PC:
    • USB Type A male
  • Monitor:
    • HDB -15 male
  • Audio:
    • 3.5 mm Mini-Phone Stereo Jack male (green)

Port Selection

  • Remote Control Button
  • Hotkey commands
  • AP Selection

Resolution

  • 2048 x 1536 (QXGA)
  • 1920 x 1440 (WUXGA)

System Requirements

  • Windows 2000 / XP / Vista / 7 / 8
  • Linux
  • Mac OS (10.3 and higher)

Physical

KVM Cable Length

  • 1.8 m

Dimensions

  • 78 x 56 x 21.5 mm (3.07 x 2.20 x 0.85 inches)

Weight

  • 193 grams (6.81 ounces)

Operating Voltage

  • 5 V DC
