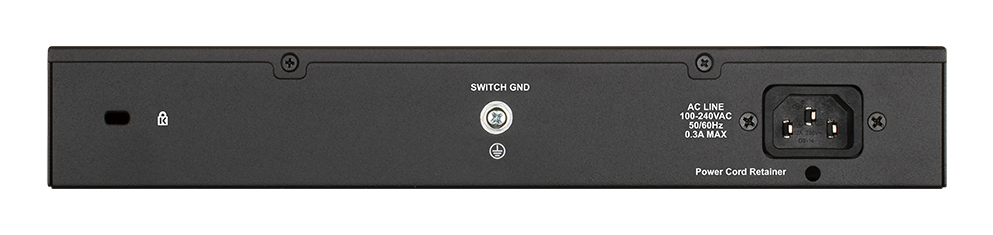

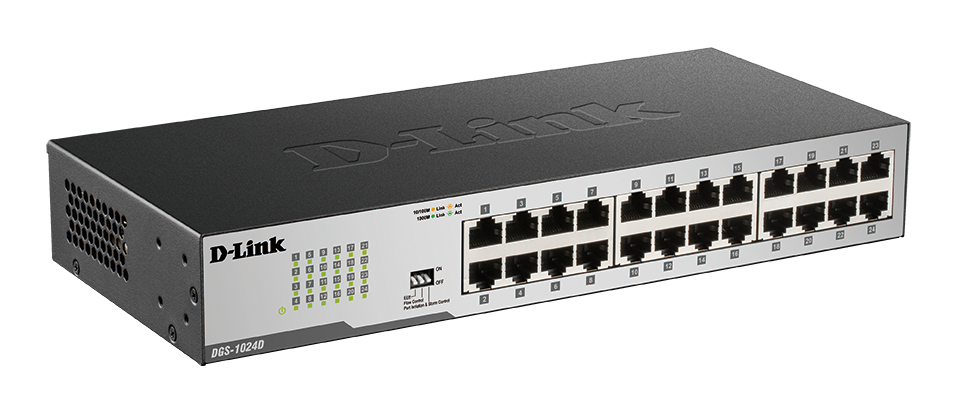

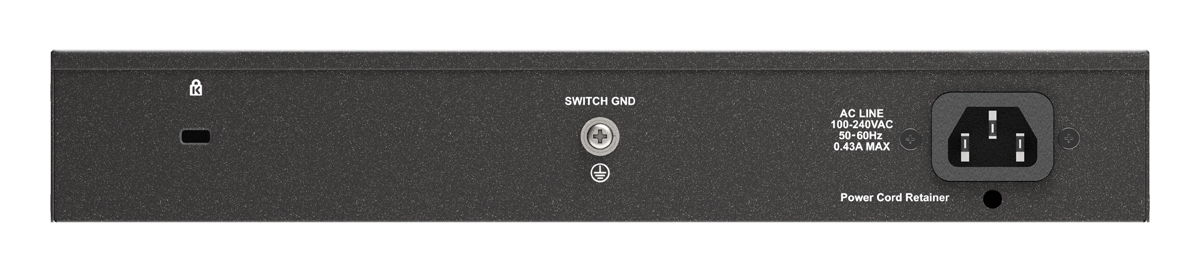

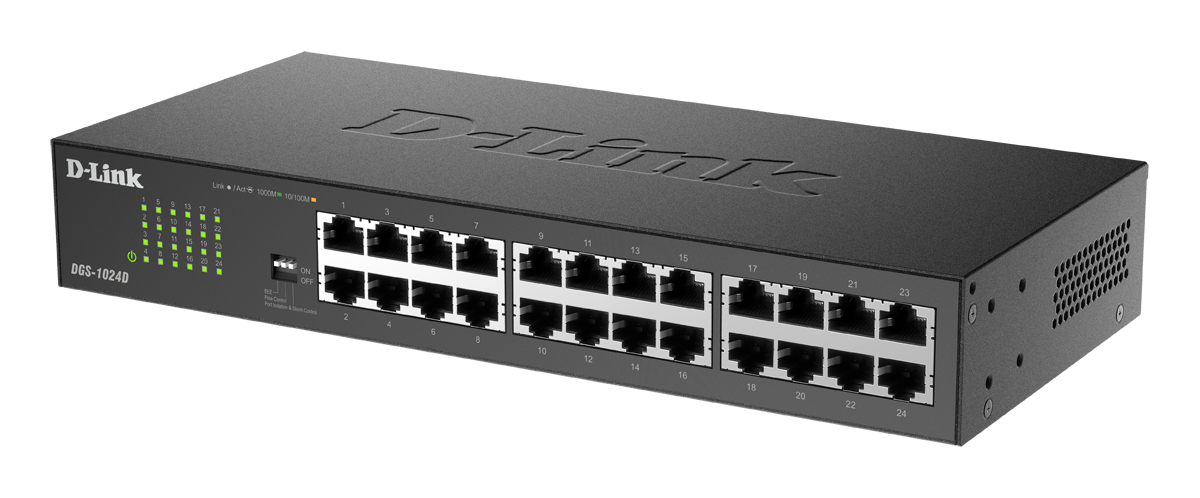

24-Port Gigabit Unmanaged Desktop Switch



The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.


Gigabit Connectivity

The DGS-1024D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.


Improved Network Efficiency

The DGS-1024D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.


Innovative Design

The DGS-1024D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.


Green Technology

The 24-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.

Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

MAC Address Table Size
  • 8K

Switch Fabric
  • 48Gbps Forwarding Capacity

Transmission Method
  • Store-and-Forward

Diagnostic LEDs
  • Per Unit: Power
  • Per Port: Activity/Link, Speed

Packet Buffer Memory
  • On ship: 500KB Buffer Memory per Device

Max Power Consumption
  • 26.7 Watts

  • 802.1p (4 Queues)

Interface Options

  • 10BASE-T, 100BASE-TX & 1000BASE-T

Network Protocol and Standards

  • 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p Priority Queuing

Electrical & Emissions Summary

  • FCC Class A, CE Class A

Power Supply
  • 100-240VAC, 50/60 Hz Internal Universal Power

  • RoHS Compliant

Safety and Environmental

  • CSA + NRTL/C

  • Operating: 32° to 104°F (0° to 40°C)
  • Storage: 14° to 131°F (-10° to 55°C)

  • Operating: 5% to 95% RH (Non-Condensing)

Physical Specifications

Dimensions (W x D x H)
  • 11.0in x 7.1in x 1.7in (280mm x 180mm x 44mm)

  • 4.0lbs (1.8Kg)

Green Ethernet features available on hardware version C1 or later.

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
