Vigilance Full HD Outdoor PoE Mini Bullet Camera

DCS-4703E

  • Product Status: Live
The D-Link DCS-4703E Vigilance Full HD Outdoor PoE Mini Bullet Camera is a high-definition professional surveillance and security. The camera uses a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver truly superior quality video under a wide range of lighting conditions. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance.

Download the datasheet.

List Retailers

Professional.
Simple.
Affordable.

High-definition professional surveillance and security solution.

Using a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver superior quality video.

Rugged design makes this camera ideal for reliable deployment in all weather surveillance applications.

Features

D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Weatherproof
Durable IP66 rated casing for surveillance in any weather
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
65 Ft Night Vision
16 built-in IR LEDs guarantee bright & clear images, even in total darkness
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancement
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
3D Filter
Reduce noise in low-light environments for clear, smooth images

Security in High Definition

Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4703E Ideal for small, medium and large enterprise installations.

Security in High Definition

*Screen images simulated

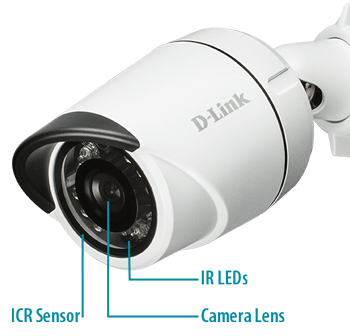

Continuous Monitoring with Night Vision

Continuous Monitoring with Night Vision

Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.

Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.

Anywhere anytime surveillance

Anytime, Anywhere Surveillance

Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-4703E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

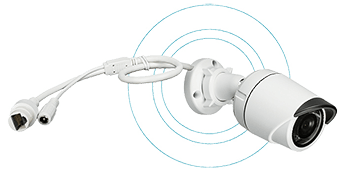

3-Axis Adjustment

3-Axis Adjustment

The Full HD Outdoor PoE Mini Bullet Camera's unique design with 3-axis cable management bracket allows for flexible and secure mounting options.

PoE = Convenience

PoE = Convenience

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4703E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4703E can also be powered by a standard 12V DC, 1.5A power adapter (not included).

Video Management Software (VMS)

The Full HD PoE Dome Network Camera includes a free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4703E is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.

Video Management Software (VMS)
D-ViewCam
Find out more
D-ViewCam Plus
Find out more
HD Wireless Camera
Find out more
Full HD Outdoor Vandal Proof PoE Dome Camera
Find out more
Full HD PoE Dome Camera
Find out more

Technical Specifications

Functions & Features

Features

1080p Full HD Camera

  • 1/3” 3-megapixel progressive CMOS sensor
  • Fixed lens with focal length of 3.6 mm and F1.8 aperture
  • Up to 1080p resolution at 30 fps
  • H.264, MJPEG codec support for streaming and recording

Outdoor placement

  • Built-in IR LED illuminator providing up to 20 metres night vision
  • Climate resilient and weatherproof
  • Operates between -30 °C and 50 °C
  • Protective bracket for cables
  • IP66 certified housing
  • Glare reducing sun shield
  • Wide Dynamic Range image enhancement
  • 3DNR reduces image noise in low-light environments

Flexibility and Connectivity

  • 10/100 Fast Ethernet port with PoE (Power over Ethernet) ensures easy integration into your network

Technical Specifications

Camera

Camera Hardware Profile

  • 1/3” 3 megapixel progressive CMOS sensor
  • 20 metre IR illumination distance
  • Minimum illumination:
    • Day Mode: 0.2 lux
    • Night Mode (LEDs off): 0.1 lux
    • Night Mode (LEDs on): 0 lux
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 10x digital zoom
  • Minimum object distance 0.5 m
  • Focal length: 3.6 mm
  • Aperture: F1.8
  • Angle of view:
    • (H) 70°
    • (V) 40°
    • (D) 80°

Camera Housing

  • IP-66 compliant weatherproof housing

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, and sharpness
  • WDR
  • 3D filter

Video Compression

  • Simultaneous H.264/MJPEG format compression
  • H.264/MJPEG multicast streaming
  • JPEG for still images

Video Resolution

  • 16:9
    • 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
  • 4:3
    • 2048 x 1536 up to 15 fps
    • 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 up to 30 fps

External Device Interface

  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE

Network

Network Protocols

  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • SNMP
  • ONVIF compliant

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP authentication

System Management

System Requirements for Web Interface

  • Browser: Internet Explorer, Firefox, Chrome, or Safari

Event Management

  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive
  • Configuration interface accessible via web browser

D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 10/8/7/Vista
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen

General

Weight

  • 430 g ± 5 %

External Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V DC 1.5 A

Power Consumption

  • 6.4 watts ± 5 % (PoE)

Temperature

  • Operating: -30 to 50 °C (-22 to 122 °F)
  • Storage: -20 to 70° C (-4° to 158° F)

Humidity

  • Operating: 20 % to 80 % non-condensing
  • Storage: 5 % to 95 % non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick

Dimensions

  • Φ65 × 164mm
