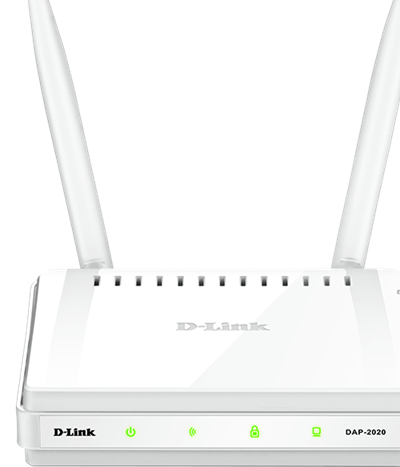

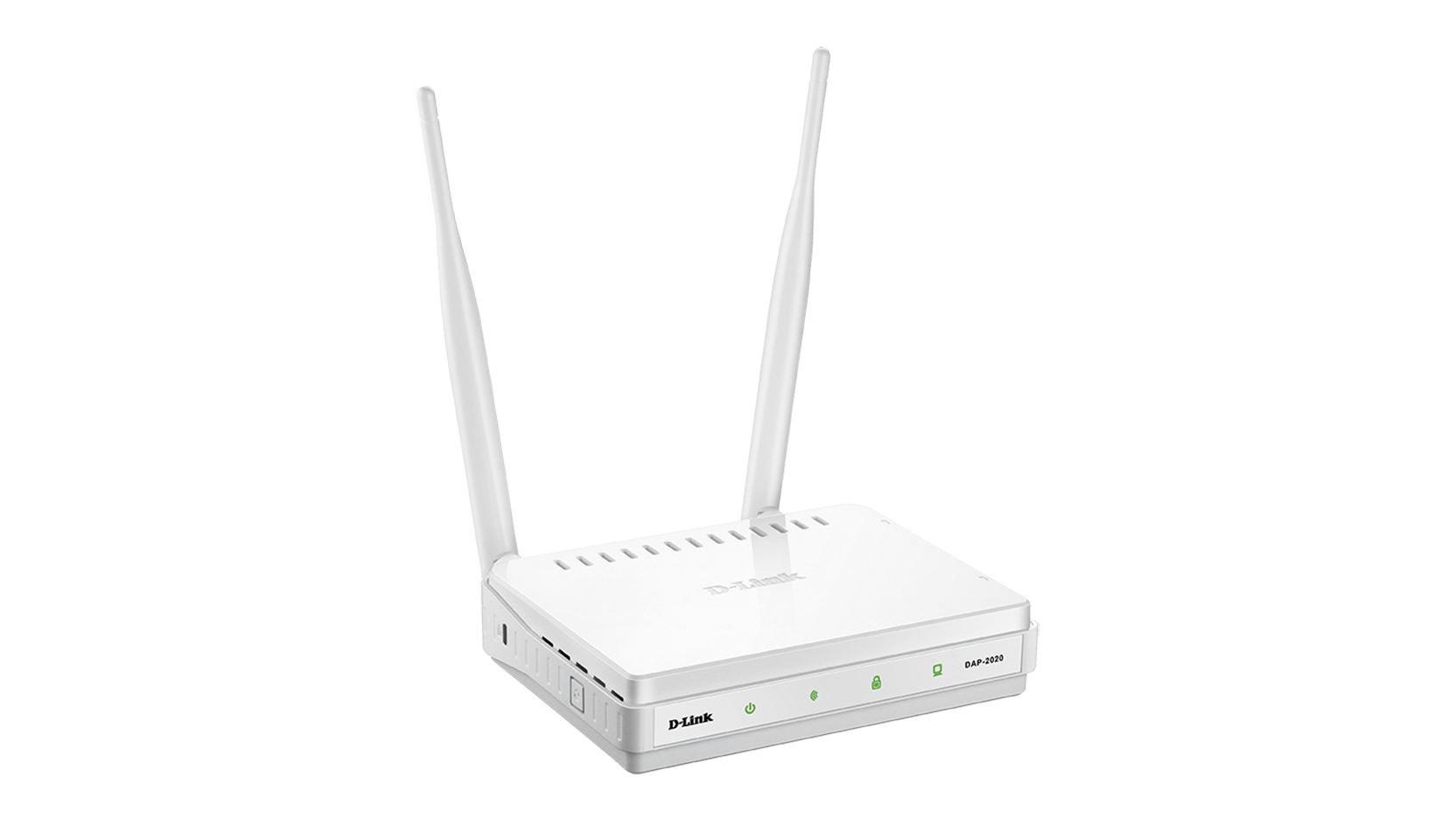

Wireless N Access Point

DAP-2020

  • Product Status: Live
The DAP-2020 Wireless N Access Point allows your business to create a secure and manageable wireless network. Multiple operational modes, network management tools and security features gives network administrators more flexible deployment options. The DAP-2020 can be wall mounted or placed on a desktop to meet any wireless demands.

Download the datasheet.

List Retailers





Secure.
Manageable.
Flexible.

Create a secure and manageable wireless network with ease. Multiple operational modes, network management tools and security features provide greater flexibility.

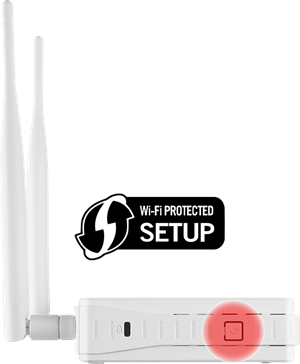

Secure Your Wireless Network

Set up your wireless network quickly and securely with Wi-Fi Protected Setup (WPS).

Latest Wi-Fi security standards ensure encrypted and secure wireless network traffic with no hassle.





Multiple Operation Modes

Configure the DAP-2020 to suit your specific wireless application needs with seven different operation modes.

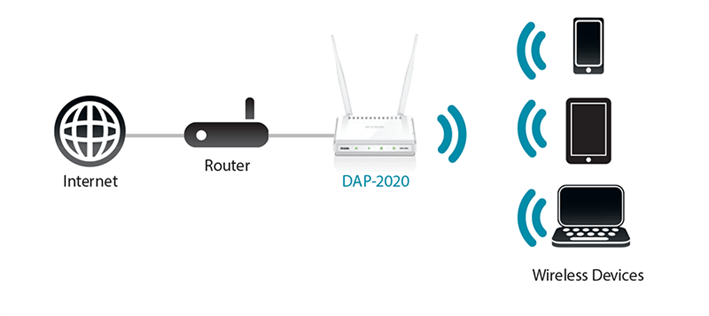

Access Point Mode

"Access point" mode allows the device to act as a central hub for wireless users. This is the most common use of an access point.

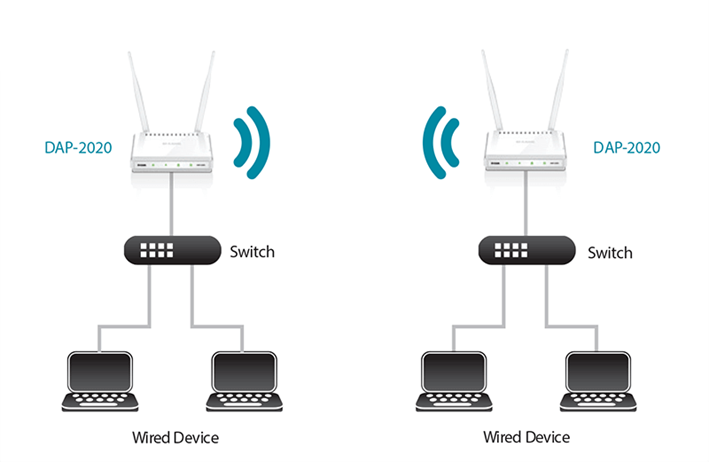

Bridge Modes

"Bridge" mode can wirelessly join two networks together, while "Bridge with AP" mode allows the device to act as a wireless hub and as a bridge at the same time.



Repeater mode extends wireless coverage to cover all dead spots.

Wireless client mode enables the DAP‑2020 to connect to another access point.

WISP client router mode allows wireless Internet service subscribers to share an Internet connection with wired computers without the need for an extra router.

WISP repeater (range extender) mode can let WISP subscribers share their Internet connection with wireless devices without any additional routers.

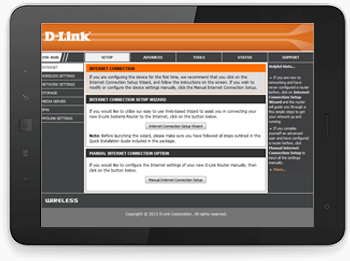

Quick and Easy Installation

With the D‑Link setup wizard, you can set up your wireless network in minutes. It configures your DAP‑2020’s operating mode and allows you to easily add new wireless devices to the network.

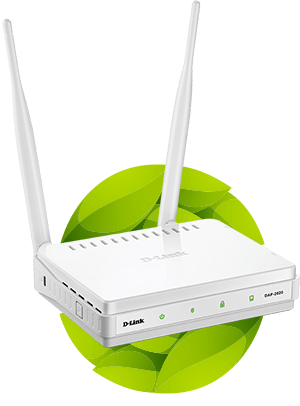

Effective Power Saving

Built-in schedule function dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.



Whats in the box?


DAP‑2020

Antennas

Ethernet Cable

Power adapter

Related Products

Wireless AC1200 Wave 2 Dual-Band Access Point
DAP-1665
Find out more
Wireless N PoE Access Point
DAP-2230
Find out more
Wireless N Access Point
DAP-2310
Find out more
Wireless N PoE Access Point
DAP-2360
Find out more
Wireless AC1200 Simultaneous Dual Band PoE Access Point
DAP-2660
Find out more

Technical Specifications

Functions & Features

Features

Connectivity

  • Wireless N connectivity
  • Wireless 802.11g/b backward compatibility
  • Wireless speeds of up to 300 Mbps1

Multiple Operation Modes

  • Access point
  • Wireless client
  • Bridge
  • Bridge with AP
  • Repeater
  • WISP client router
  • WISP repeater (range extender)

Security

  • WPA2/WPA wireless encryption
  • Wi-Fi Protected Setup (WPS)
  • Easy to Use and Manage
  • Intuitive web user interface
  • Built-in setup wizard

Technical Specifications

General

Network Standards

  • 802.11n wireless LAN
  • 802.11g wireless LAN
  • 802.11b wireless LAN
  • 802.3/802.3i/j/u 10BASE-T/100BASE-TX Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation

Device Interfaces

  • 802.11n/g/b wireless LAN

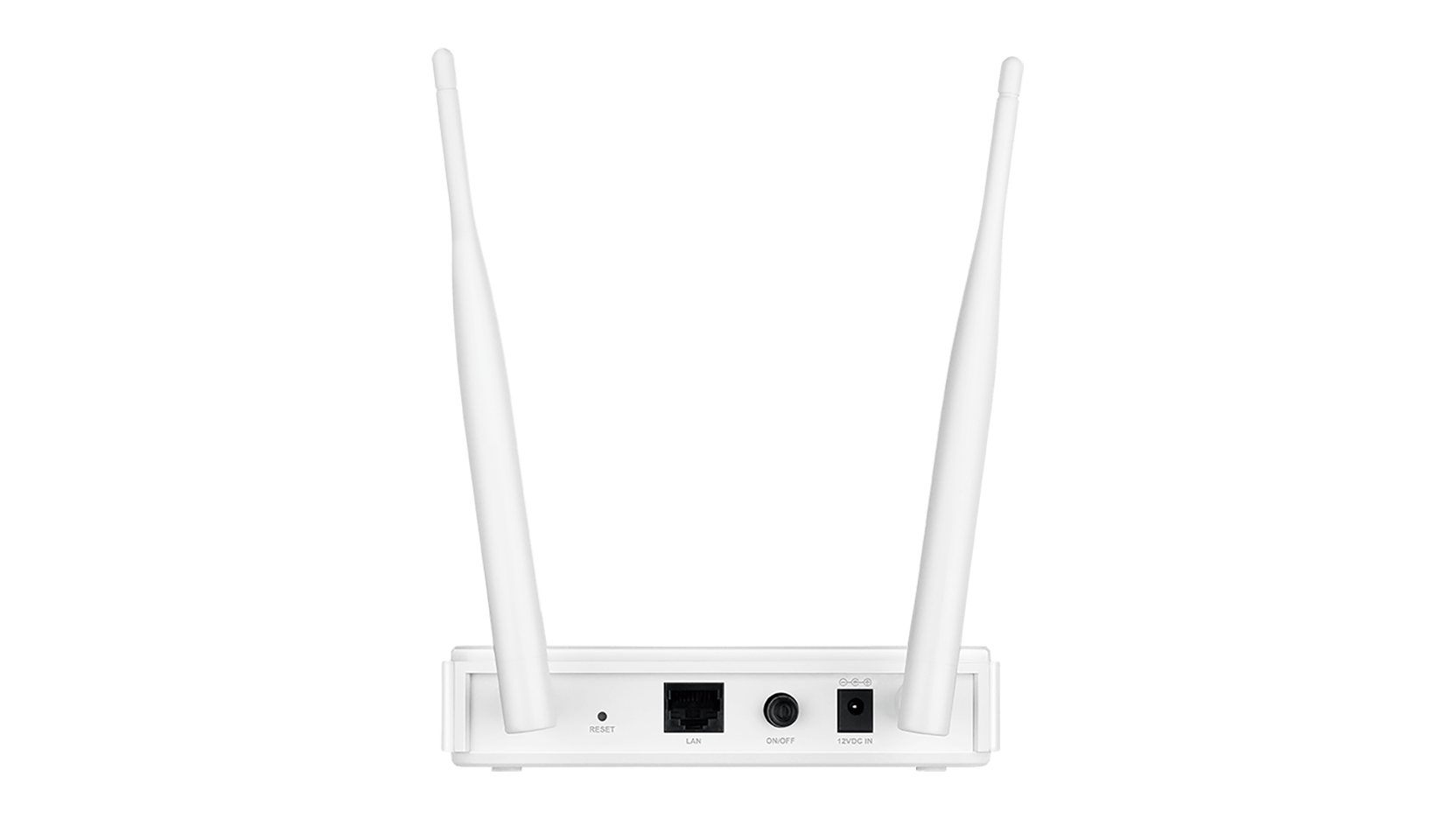

  • One 10/100BASE-TX Ethernet LAN port

Operating Frequency

  • 2.4 to 2.4835 GHz

Operating Channels

  • ETSI: 13

Radio & Modulation Schemes

  • DQPSK, DBPSK, CCK, OFDM

Functionality

Operating Modes

  • Access Point
  • Wireless Client
  • Bridge
  • Bridge with AP
  • Repeater (range extender)
  • WISP Client Router
  • WISP Repeater

Antennas

  • Two 5 dBi gain detachable omni-directional antennas with RP-SMA connector

Security

  • 64/128-bit WEP data encryption
  • WPA-PSK, WPA2-PSK
  • WPA-EAP, WPA2-EAP
  • TKIP, AES
  • MAC address filtering
  • SSID broadcast disable function
  • WPS (Wi-Fi Protected Setup)

Advanced Features

  • Quality of Service (QoS): Wi-Fi Multimedia (WMM)

Device Management

  • Web-based management through Microsoft Internet Explorer 6 or higher, Firefox 3.0 or higher, or other Java-enabled browser

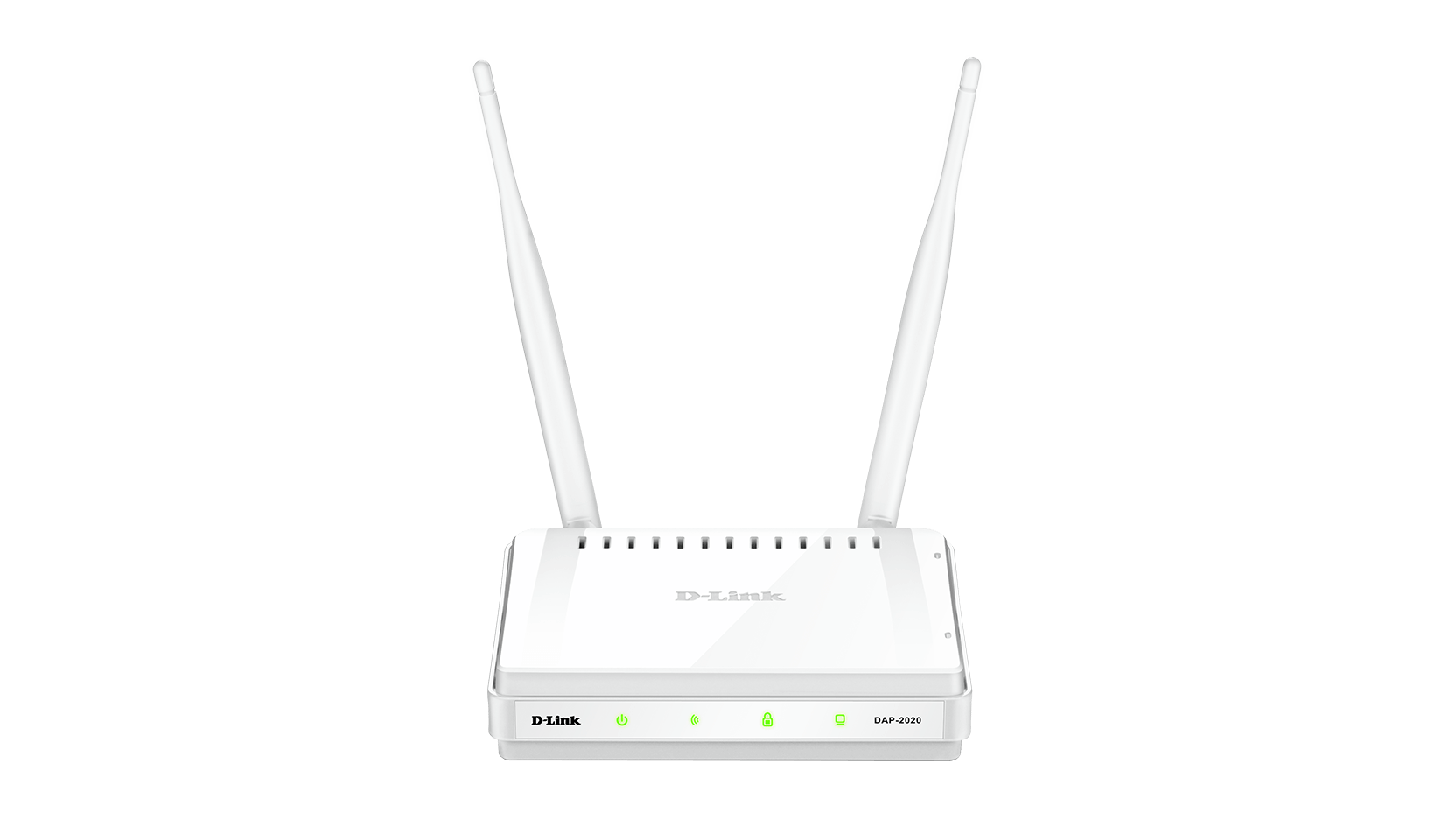

Status LEDs

  • Power
  • Wireless
  • Security
  • LAN

Physical

Dimensions

  • 147.5 x 113 x 31.5 mm (5.81 x 4.45 x 1.24 inches)

Weight

  • 224.7 g (0.50 lbs)

Power Input

  • External power adapter: 12 V DC/0.5 A

Max. Power Consumption

  • 2.25 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • Wi-Fi, CE
1. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, buildings materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput is based on D-Link 802.11n devices.
Version Date Type File Size
Datasheet - PDF 0.30mb Download
Version Description Date Type File Size
Manual Manual 24/11/2016 - - Download
Version Description Date Type File Size
Quick Installation Guide Quick Installation Guide 02/05/2017 PDF 0.69mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
1.01 Firmware 19/03/2017 Download
1.00 Firmware 27/12/2016 Download
Version Description Date
DEU_CE_Declaration_RevA DAP-2020 CE DoC - Download
