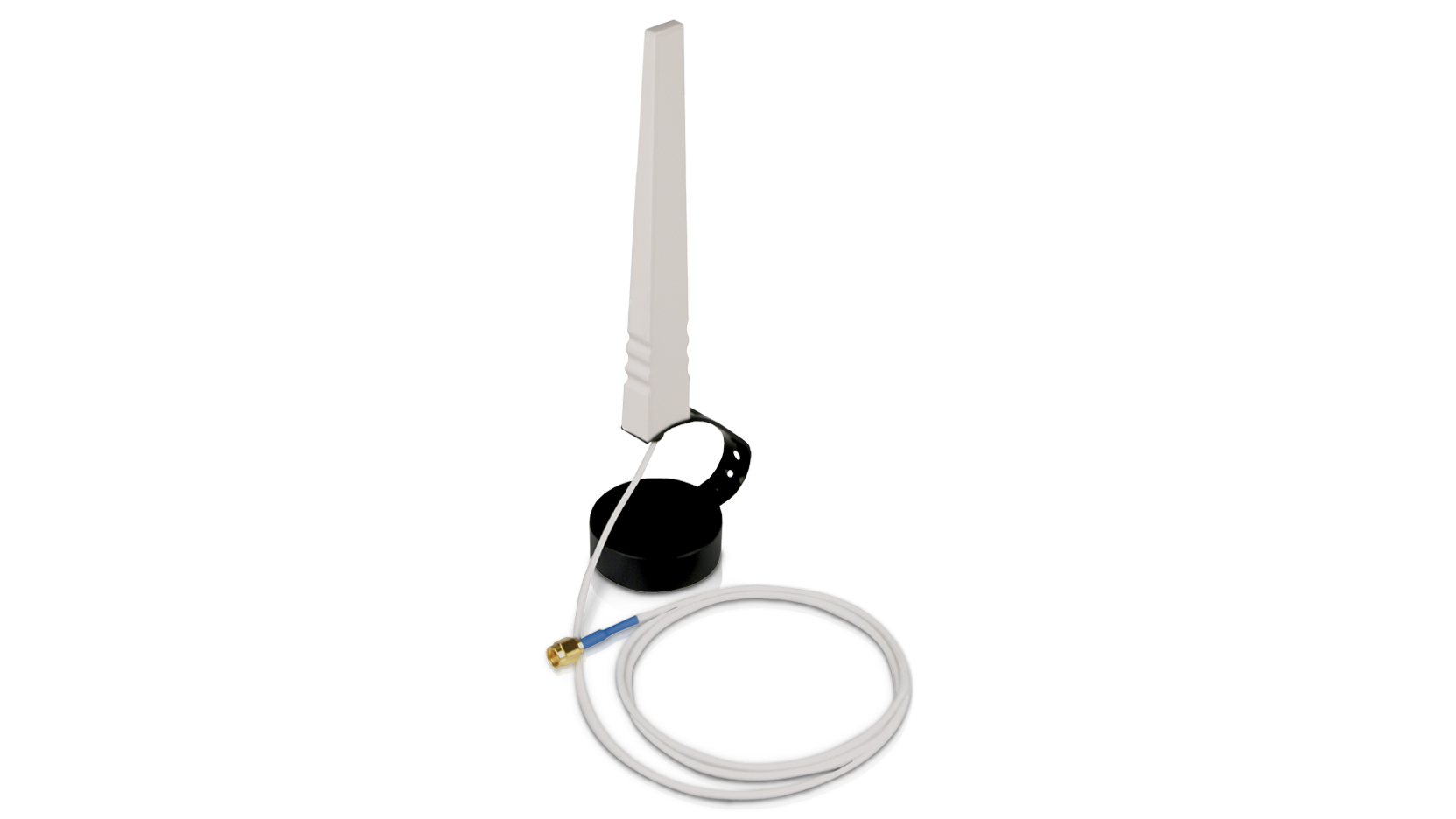

2.4GHz Omni-Directional 4dBi Indoor Antenna

ANT24-0400

  • Product Status: Phased Out

Technical Specifications

Frequency Range

  • 2.4GHz – 2.5GHz

Gain
  • 4dBi

VSWR
  • 2.0 : 1 Max

Antenna Structure

  • Collinear

HPBW
  • Horizontal - 360 degrees
  • Vertical - 36 degrees

Power Handling
  • 50 Ohms

Impedance

  • 50 Ohms

Connector
  • RP-SMA
  • Reverse SMA to TNC

Cable
  • 1.5m ULA-316 Fixed Cable

Operating Temperature
  • -4°F-149°F

Humidity
  • 5% -95% (non-condesending)

Weight
  • 0.39 lbs (176.9g)

Warranty
  • 1 Year

FAQ

  • What is the maximum recommended length of cable that can be used with 2.4GHz antennas? Read Answer
  • My router or access point has two antennas which antenna connection should I connect my external antenna to? Read Answer
  • How do I mount this antenna? Read Answer
  • Can wireless antennas for IEEE 802.11b be used with IEEE 802.11g products? Read Answer
Version Description Date Type File Size
Quick Installation Guide for Antennas - PDF 12.04mb Download
