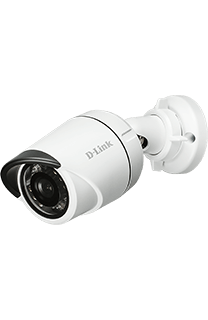

HD Outdoor Mini Bullet Camera

DCS-4701E

  • Status produktu: w sprzedaży
The Vigilance HD Outdoor PoE Mini Bullet Camera is a professional, full featured HD camera with LowLight+ support, to see in in colour, even in extremely low light conditions. Integrate IR illuminator allows the camera to see up to 30 metres in complete darkness whilst IP66 (weather-proof) housing is specifically designed to withstand adverse weather conditions.

Pobierz kartę produktu.

Lista sklepów
DCS-4021



HD Outdoor Mini Bullet Camera



The Vigilance HD Outdoor PoE Mini Bullet Camera is a professional, full featured HD camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Incorporating LowLight+ the camera can see in colour, even in extremely low light conditions, whilst the Integrated IR illuminator allows the camera to see up to 30 metres, even in complete darkness. The camera’s IP66 (weather-proof) housing is specifically designed to withstand all adverse weather conditions.

Vigilance range



The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused



Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

Fixed Dome Wall Mount Bracket
DCS-37-2

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E

Sugerowane urządzenia

D-ViewCam Plus
DCS-250
Dowiedz się więcej
HD Wireless Camera
DCS-4201
Dowiedz się więcej
Full HD Outdoor Vandal Proof PoE Dome Camera
DCS-4602EV
Dowiedz się więcej
Full HD PoE Dome Camera
DCS-4603
Dowiedz się więcej
Full HD Outdoor Mini Dome Camera
DCS-4802E
Dowiedz się więcej

Technical Specifications

Functions & Features

Features

  • HD 720p, 30 fps
  • LowLight+
  • Day and night with ICR filter and IR LED
  • 30m night vision
  • Wide Dynamic Range
  • 3D Noise Reduction
  • Supports Power over Ethernet
  • IP66 outdoor certified



Technical Specifications

Hardware Features

Indoor/Outdoor

  • Indoor and outdoor IP66

Image Sensor

  • 1/3” 1.3-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

  • 1280 x 720 (16:9)
  • 960 x 720 (other)

Maximum Frame Rate

  • Up to 30 fps

Lens

  • Fixed 2.8 mm, F1.8

Minimum Illumination (Lux)

  • 0.2 lux/F2.0  (colour)
  • 0.1 lux/F2.0  (B/W)
  • 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

  • Yes

IR Built-in

  • 30 m

Wide Dynamic Range (WDR)

  • Yes

3D Noise Reduction

  • Yes

LowLight+

  • Yes

Angle Of View (H/V/D)

  • 96° / 54° / 108°

Privacy Masks

  • 3 zones

Wired Connection

  • Fast Ethernet (10BASE-T, 100BASE-TX)
  • Power over Ethernet (802.3af PoE)

Software Features

Video Format

  • H.264
  • MJPEG

Multi-Stream

  • Yes

ONVIF

  • Yes

Digital Zoom

  • 10x

Motion Detection

  • Yes

Event Recording

  • Yes

E-Mail Notification

  • Yes

Recording to NAS

  • Yes

IPv6 Support

  • Yes

Others

Dimensions

  • Φ65 × 164mm

Operating Temperature

  • -30 ~ 50°C

Operating Humidity

  • 20 ~ 80% RH (non-condensing)

Optional Power Input

  • DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)

Safety

  • CE (Class A)
  • CE LVD
  • FCC (Class A)
  • C-Tick
