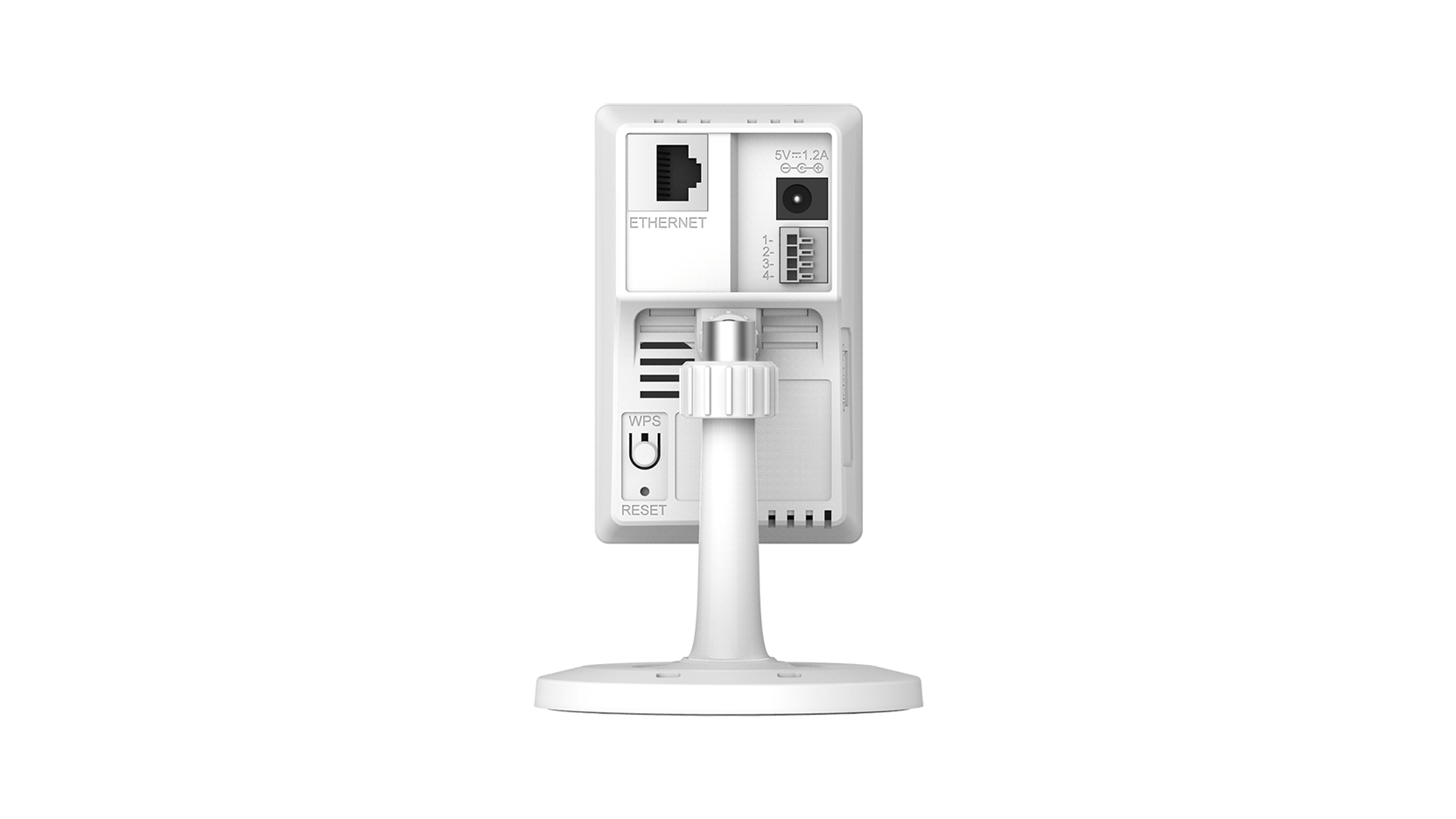

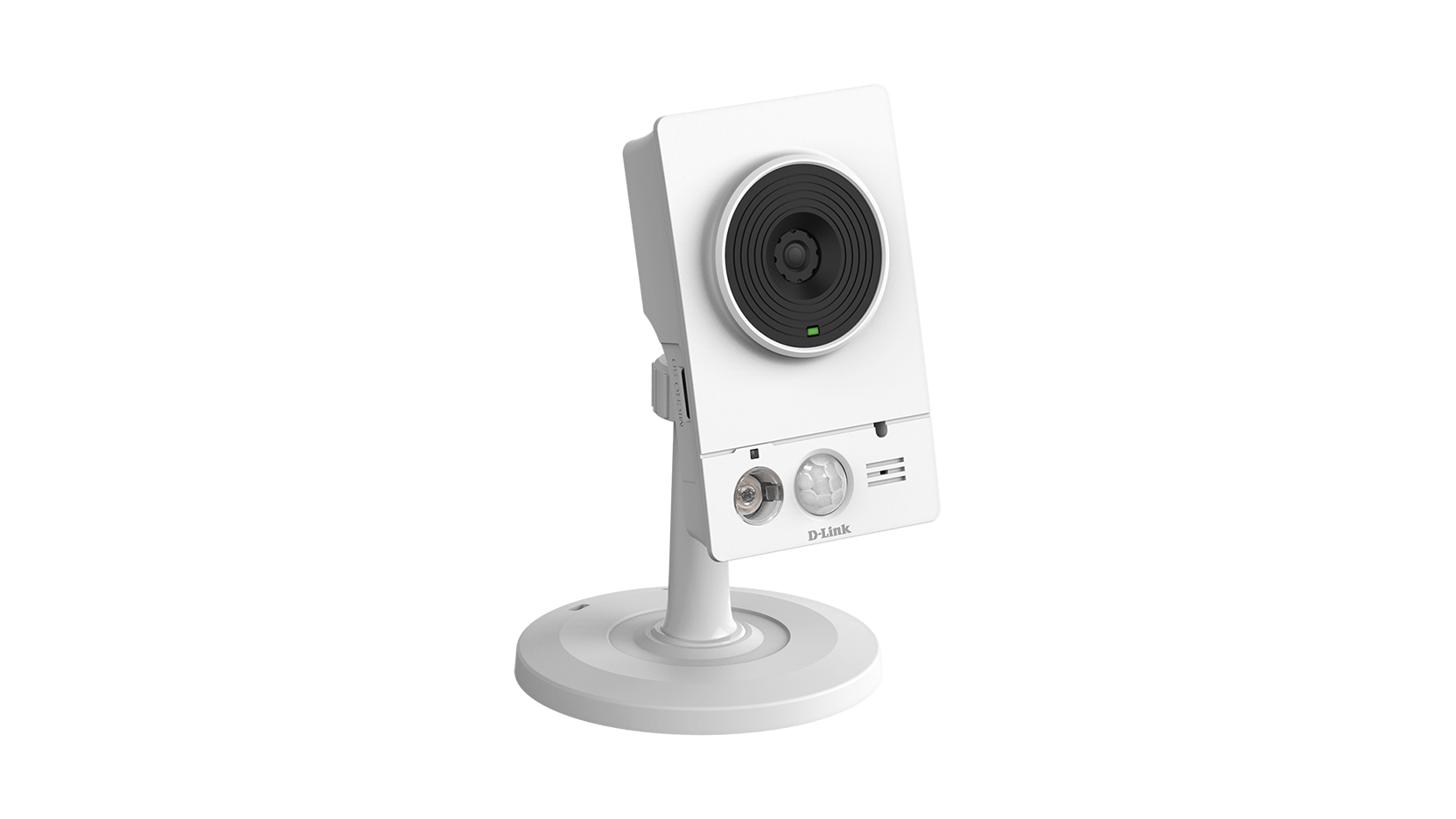

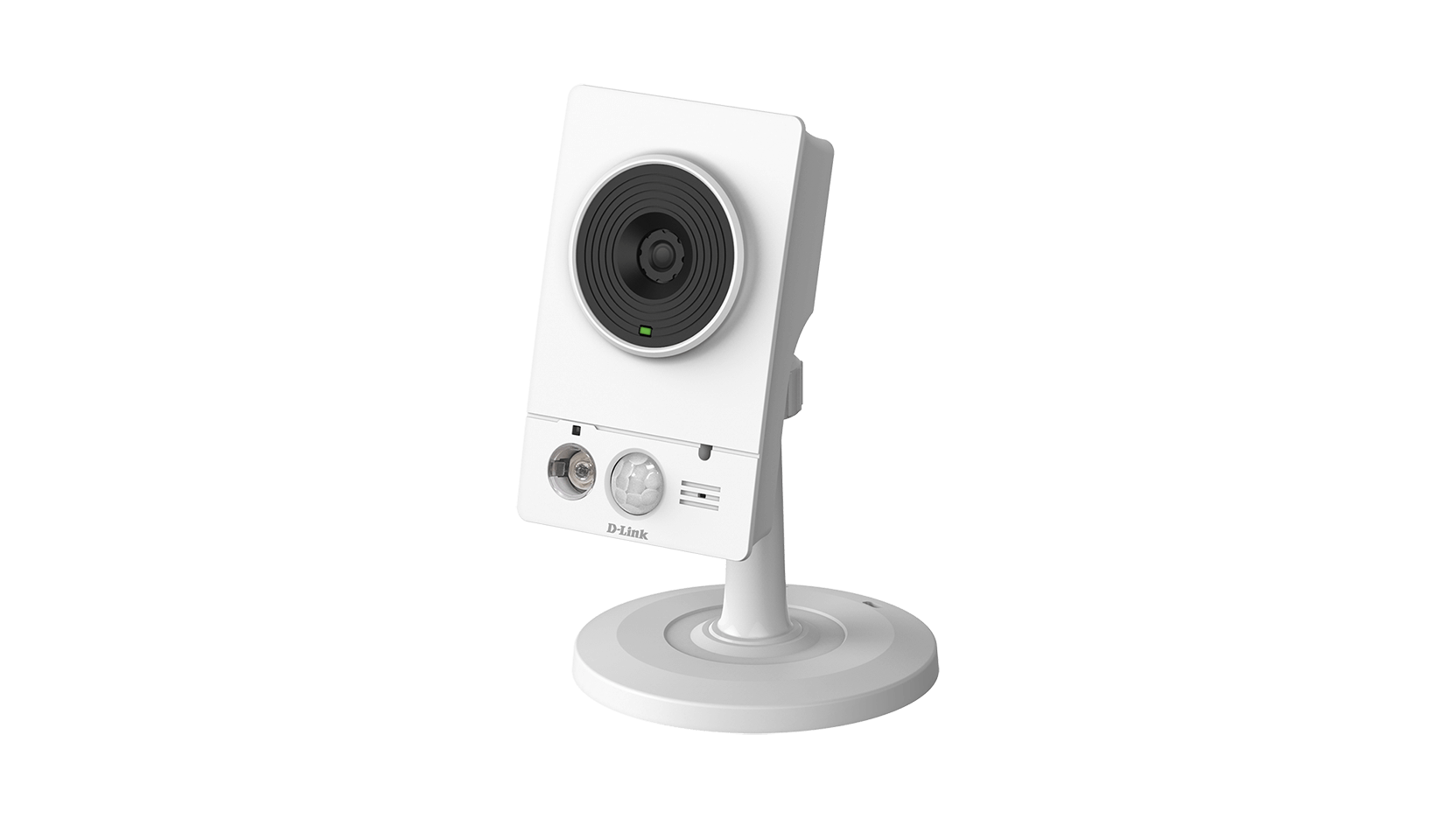

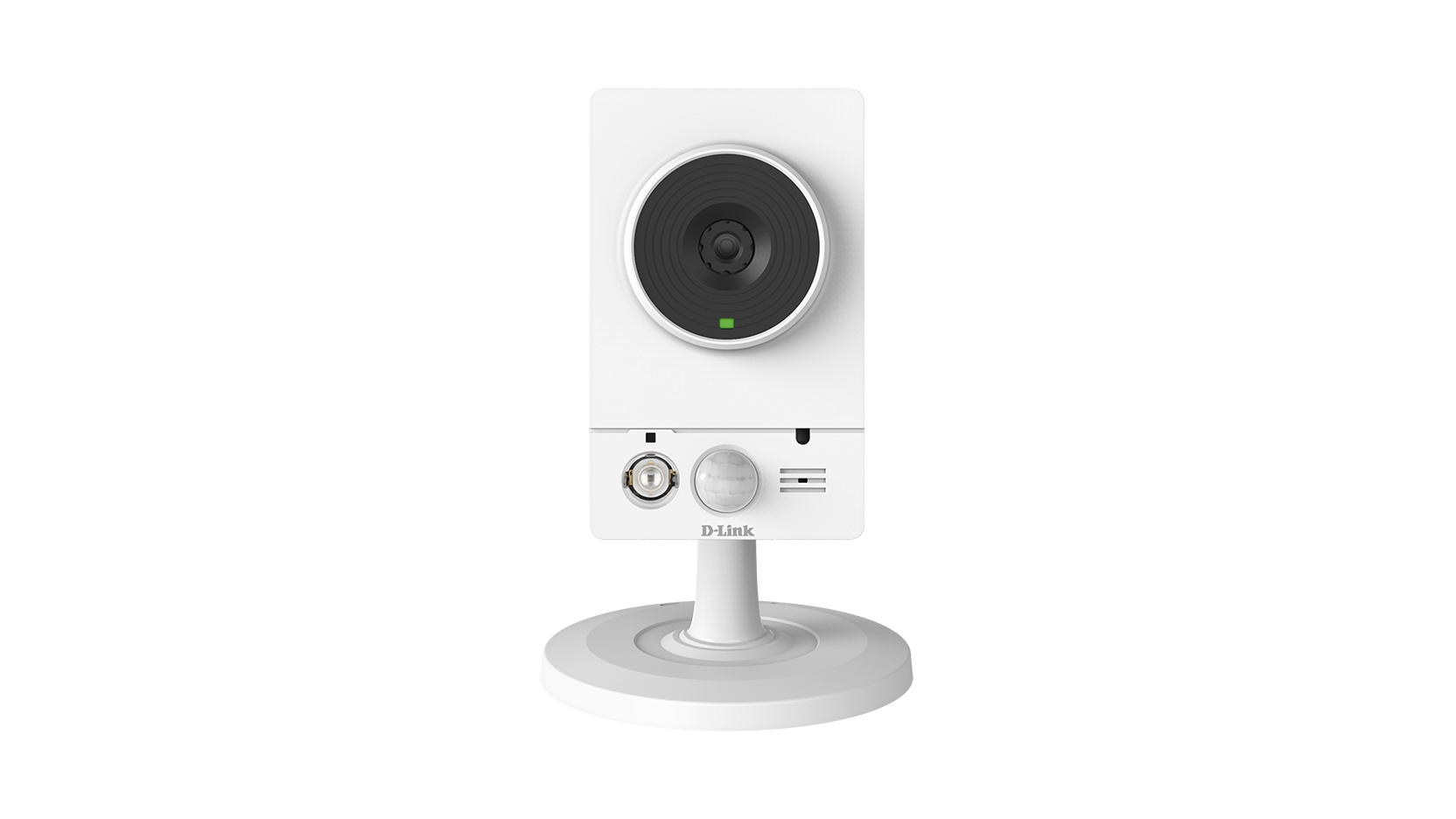

HD Wireless Camera

DCS-4201

  • Status produktu: w sprzedaży
The Vigilance Wireless HD Camera is a professional, full featured HD camera capable of viewing up to 10 metres even in complete darkness. A built-in microphone and speaker allows for 2-way communication whilst the passive infrared (PIR) sensor provided enhanced motion detection.

Pobierz kartę produktu.

Lista sklepów
DCS-4021



HD Wireless Camera



The Vigilance Wireless HD Camera is a professional, full featured HD camera that is easy to install and highly affordable. Capable of viewing up to 10 metres at night thanks to its infrared LED illuminator, this camera can monitor an area even in complete darkness. A built-in microphone and speaker allows for 2-way communication, which is ideal for use in entryways or for caretaker applications. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send a notification when motion is detected.

Vigilance range



The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused



Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

Fixed Dome Wall Mount Bracket
DCS-37-2

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E
D-ViewCam Plus
Find out more
Full HD Outdoor Vandal Proof PoE Dome Camera
Find out more
Full HD PoE Dome Camera
Find out more
HD Outdoor Mini Bullet Camera
Find out more
Full HD Outdoor Mini Dome Camera
Find out more

Technical Specifications

Functions & Features

Features

  • HD 720p, 30 fps
  • Day and night with ICR filter and IR LED
  • 10m night vision
  • Enhanced PIR motion detection
  • Built-in microphone and speaker
  • MicroSD card slot for video recording



Technical Specifications

Hardware Features

Indoor/Outdoor

  • Indoor only

Image Sensor

  • 1/4” 1-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

  • 1280 x 720 (16:9)
  • 960 x 720 (other)

Maximum Frame Rate

  • Up to 30 fps

Lens

  • Fixed 1.8 mm, F2.4

Minimum Illumination (Lux)

  • 1.0 lux/F2.4  (colour)
  • 0.5 lux/F2.4  (B/W)
  • 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

  • Yes

IR Built-in

  • 10 m

3D Noise Reduction

  • Yes

Angle Of View (H/V/D)

  • 97.6° / 69.2° / 108.9°

PIR Motion Sensor

  • 10 m

Privacy Masks

  • 3 zones

Audio Codec

  • G.711
  • AAC

2-Way Audio

  • Built-in Microphone
  • Built-in Speaker

Wired Connection

  • Fast Ethernet (10BASE-T, 100BASE-TX)

Wireless Connectivity

  • 802.11b/g/n

Digital Input/Output (DI/DO)

  • 1/1

Onboard Storage Card Slot

  • MicroSD SDHC (max. 64 GB)1

Software Features

Video Format

  • H.264
  • MJPEG

Multi-Stream

  • Yes

ONVIF

  • Yes

Digital Zoom

  • 4x

Motion Detection

  • Yes

Event Recording

  • Yes

E-Mail Notification

  • Yes

Recording to NAS

  • Yes

IPv6 Support

  • Yes

Others

Dimensions

  • 95 x 58 x 30.7mm

Operating Temperature

  • 0 ~ 40°C

Operating Humidity

  • 20 ~ 80% RH (non-condensing)

Safety

  • CE (Class B)
  • CE LVD
  • FCC (Class B)
  • C-Tick
1. microSD card not included
