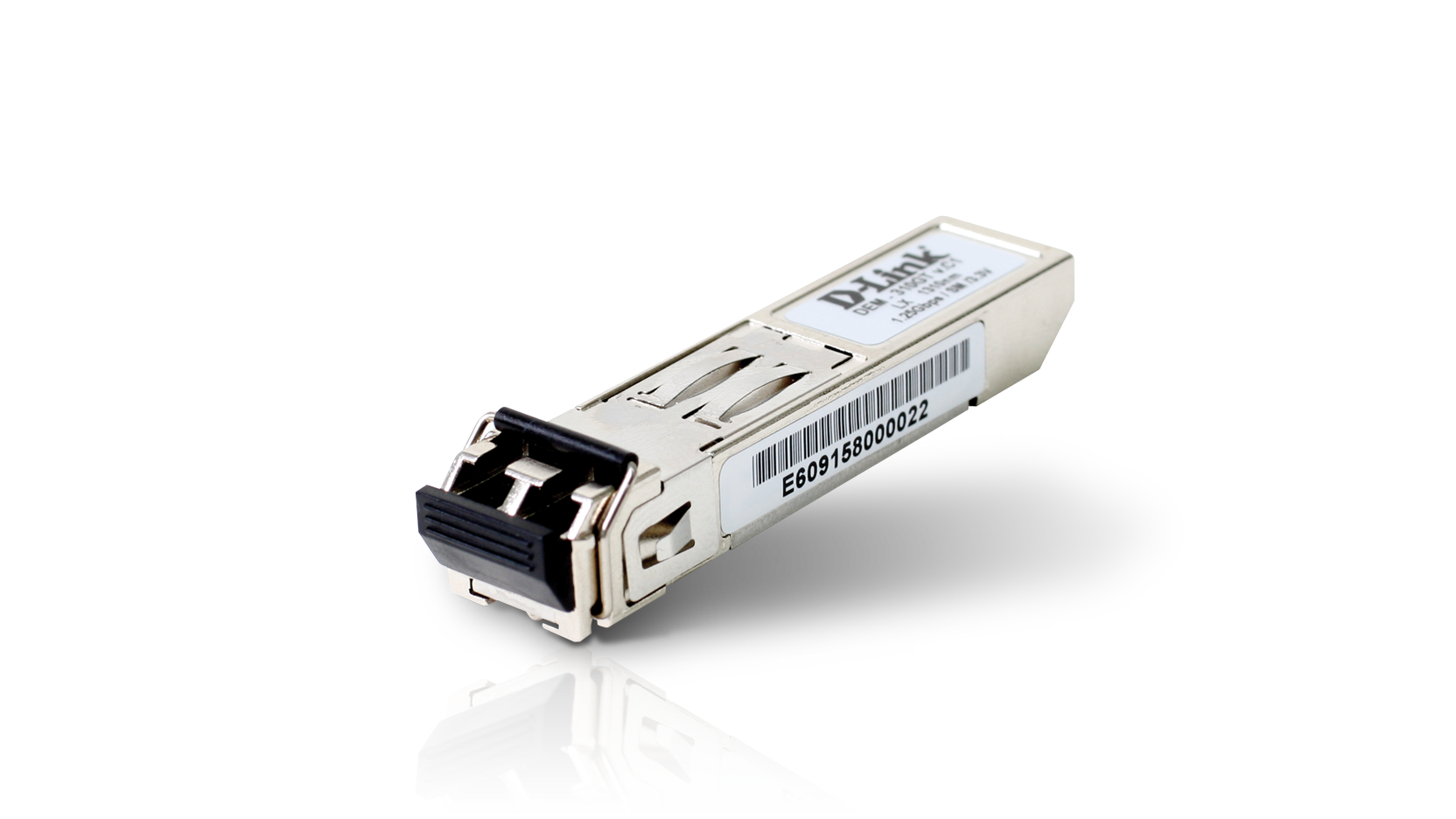

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)

DEM-310GT

  • Product Status: Live
The DEM-310GT is a high performance 1310nm single mode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on single mode fiber for distances of up to 10km on 9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

* Third-Party Devices Must Comply With specified Supported Industry-Standard Specifications
  • 1000Base-LX port (IEEE 802.3z standard)
  • Duplex LC connector
  • Full duplex operation
  • 802.3x flow control support
  • Fibre type: 9um single-mode fibre, up to 10 km.
  • Wavelenght: 1310 nm
  • Power support: 3.3 V
  • Power budget: 10.5 dB
  • Hot pluggable
  • Class 1 laser product (complies with EN60825-1)
  • TTL signal detect indicator
  • Metal enclosure for lower EMI
Version Date Type File Size
Datasheet (English) - PDF 0.20mb Download
Version Description Date
Reach 1.03 RevA1 - 16.10.2023 Download
Reach 1.02 RevA1 - 27.04.2023 Download
CE doc UKCA 1.04 RevE1 CE Declaration 16.12.2021 Download
Reach 1.01 RevA1 - 24.08.2021 Download
Reach 1.00 RevA1 - 15.06.2021 Download
CE doc 1.03 RevI1 CE Declaration 19.07.2019 Download
CE doc 1.02 Revision I1 CE Declaration 02.11.2018 Download
DEU_CE_Declaration_RevD1 CE Declaration 27.09.2006 Download
DEU_CE_Declaration_RevC1 CE Declaration 27.09.2006 Download
DEU_CE_Declaration_RevB1 CE Declaration 07.05.2004 Download
