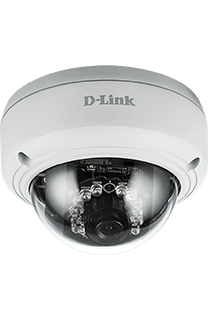

Full HD PoE Dome Camera

DCS-4603

  • Product Status: Live
The Vigilance Full HD PoE Dome Camera is a professional, full featured HD Camera, featuring a high resolution 3-Megapixel sensor that supports resolutions up to 2048 x 1536. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 10 metres night vision and clear detailed images in contrasting and low light environments.

Download de datasheet.

Alle Verkooppunten
DCS-4021

Full HD PoE Dome Camera

The Vigilance Full HD PoE Dome Camera is a professional, full featured HD Camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Featuring a high resolution 3-Megapixel sensor, the camera supports resolution up to 2048 x 1536. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 10 metres night vision and clear detailed images in contrasting and low light environments.

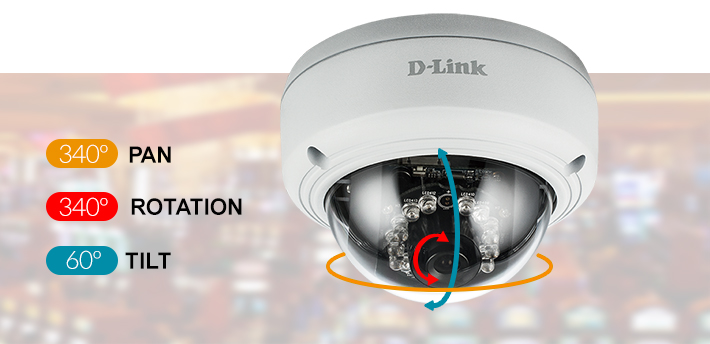

3-Axis Adjustment

The Full HD PoE Dome Network Camera's unique design with 3-axis adjustment allows for precise positioning of the lens, supporting non-motorized 340° pan, 340° rotation and 60° tilt.

DCS-4603 3 axis



Vigilance range

The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused

Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

Fixed Dome Wall Mount Bracket
DCS-37-2

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E

Gerelateerde Producten

D-ViewCam Plus
DCS-250
Meer lezen
HD Wireless Camera
DCS-4201
Meer lezen
Full HD Outdoor Vandal Proof PoE Dome Camera
DCS-4602EV
Meer lezen
HD Outdoor Mini Bullet Camera
DCS-4701E
Meer lezen
Full HD Outdoor Mini Dome Camera
DCS-4802E
Meer lezen

Technical Specifications

Functions & Features

Features

  • Full HD 1080p, 30 fps
  • 3-Megapixel sensor, supporting resolution up to 2048 x 1536
  • Day and night with ICR filter and IR LED
  • 10m night vision
  • Wide Dynamic Range
  • 3D Noise Reduction
  • Supports Power over Ethernet



Technical Specifications

Hardware Features

Indoor/Outdoor

  • Indoor only

Image Sensor

  • 1/3” 3-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

  • 1920 x 1080 (16:9)
  • 2048 x 1536 (other)

Maximum Frame Rate

  • Up to 30 fps

Lens

  • Fixed 2.8 mm, F1.8

Minimum Illumination (Lux)

  • 1.0 lux/F2.0  (colour)
  • 0.5 lux/F2.0  (B/W)
  • 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

  • Yes

IR Built-in

  • 10 m

Wide Dynamic Range (WDR)

  • Yes

3D Noise Reduction

  • Yes

Angle Of View (H/V/D)

  • 96° / 54° / 108°

Gimbal

  • 3-Axis
  • Vertical: 60° / Horizontal 350°

Privacy Masks

  • 3 zones

Wired Connection

  • Fast Ethernet (10BASE-T, 100BASE-TX)
  • Power over Ethernet (802.3af PoE)

Software Features

Video Format

  • H.264
  • MJPEG

Multi-Stream

  • Yes

ONVIF

  • Yes

Digital Zoom

  • 10x

Motion Detection

  • Yes

Event Recording

  • Yes

E-Mail Notification

  • Yes

Recording to NAS

  • Yes

IPv6 Support

  • Yes

Others

Dimensions

  • Φ110 × 78mm

Operating Temperature

  • -30 ~ 50°C

Operating Humidity

  • 20 ~ 80% RH (non-condensing)

Optional Power Input

  • DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)

Safety

  • CE (Class A)
  • CE LVD
  • FCC (Class A)
  • C-Tick

Optional Mounting Brackets

  • DCS-37-1 - Wall type mount bracket
  • DCS-37-2 - Ceiling type mount bracket
  • DCS-37-3 - Wall/ceiling tilt mount bracket with 27° tilt
