Wireless N Access Point

DAP-2020

  • Product Status (Revision A): End of Life





Secure.
Manageable.
Flexible.

Create a secure and manageable wireless network with ease. Multiple operational modes, network management tools and security features provide greater flexibility.



















Secure Your Wireless Network

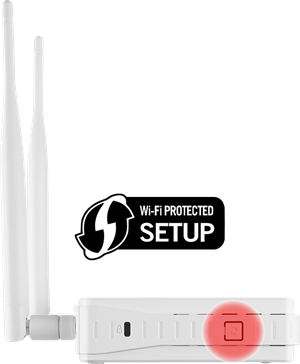

Set up your wireless network quickly and securely with Wi-Fi Protected Setup (WPS).

Latest Wi-Fi security standards ensure encrypted and secure wireless network traffic with no hassle.





Multiple Operation Modes

Configure the DAP-2020 to suit your specific wireless application needs with seven different operation modes.



Access Point Mode

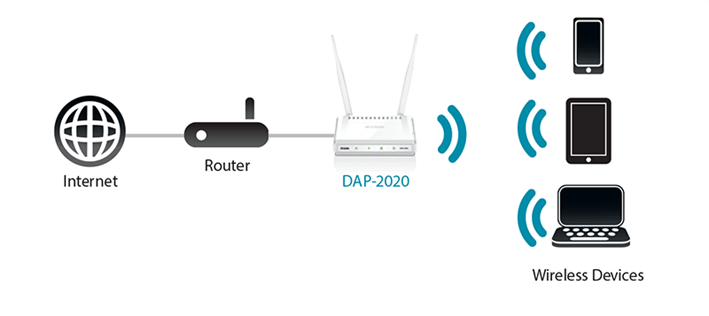

"Access point" mode allows the device to act as a central hub for wireless users. This is the most common use of an access point.

Bridge Modes

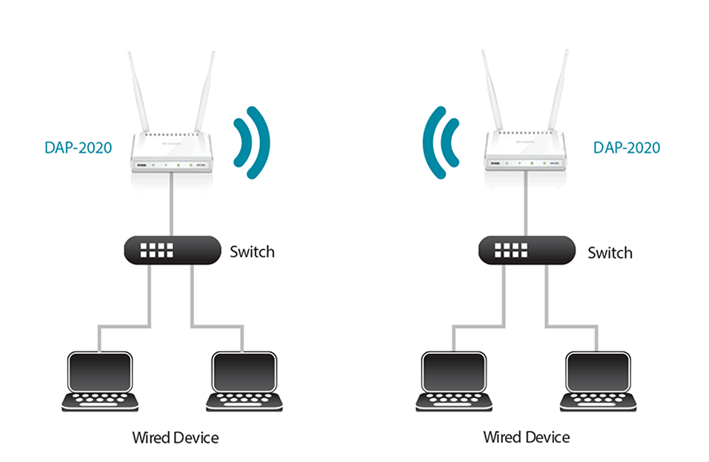

"Bridge" mode can wirelessly join two networks together, while "Bridge with AP" mode allows the device to act as a wireless hub and as a bridge at the same time.



Repeater mode extends wireless coverage to cover all dead spots.

Wireless client mode enables the DAP‑2020 to connect to another access point.

WISP client router mode allows wireless Internet service subscribers to share an Internet connection with wired computers without the need for an extra router.

WISP repeater (range extender) mode can let WISP subscribers share their Internet connection with wireless devices without any additional routers.



Quick and Easy Installation

With the D‑Link setup wizard, you can set up your wireless network in minutes. It configures your DAP‑2020’s operating mode and allows you to easily add new wireless devices to the network.



Effective Power Saving

Built-in schedule function dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.



Whats in the box?


DAP‑2020

Antennas

Ethernet Cable

Power adapter

Gerelateerde Producten

DWA131 Side
Wireless-N Nano USB Adapter
DWA-131
Meer lezen
8-Port Gigabit Unmanaged Desktop Switch
DGS-1008D
Meer lezen
Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
Wired interface
1 x Fast Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
Wireless client
Geavanceerde Eigenschappen
MIMO
Maximum number of SSIDs
1
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
WEB
Supported
This product was phased out on: 17/04/2022
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 16/04/2024
Versie Datum Type Bestandsgrootte
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels Handleiding in het Engels - - - Download
Handleiding in het Duits Handleiding in het Duits - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Installatiehandleiding Installatiehandleiding - - - Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:

http://tsd.dlink.com.tw/GPL.asp

De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum Type
1.03rc004neo Huidige Firmware
14-1-2023 - Download
Versie Beschrijving Datum
GPL Firmware Sourcecode GPL Firmware Sourcecode - Download
Versie Beschrijving Datum
Conformiteitsverlaring Rev.A1 Conformiteitsverlaring Rev.A1 - Download
