Access point a 54Mbps per Switch Wireless

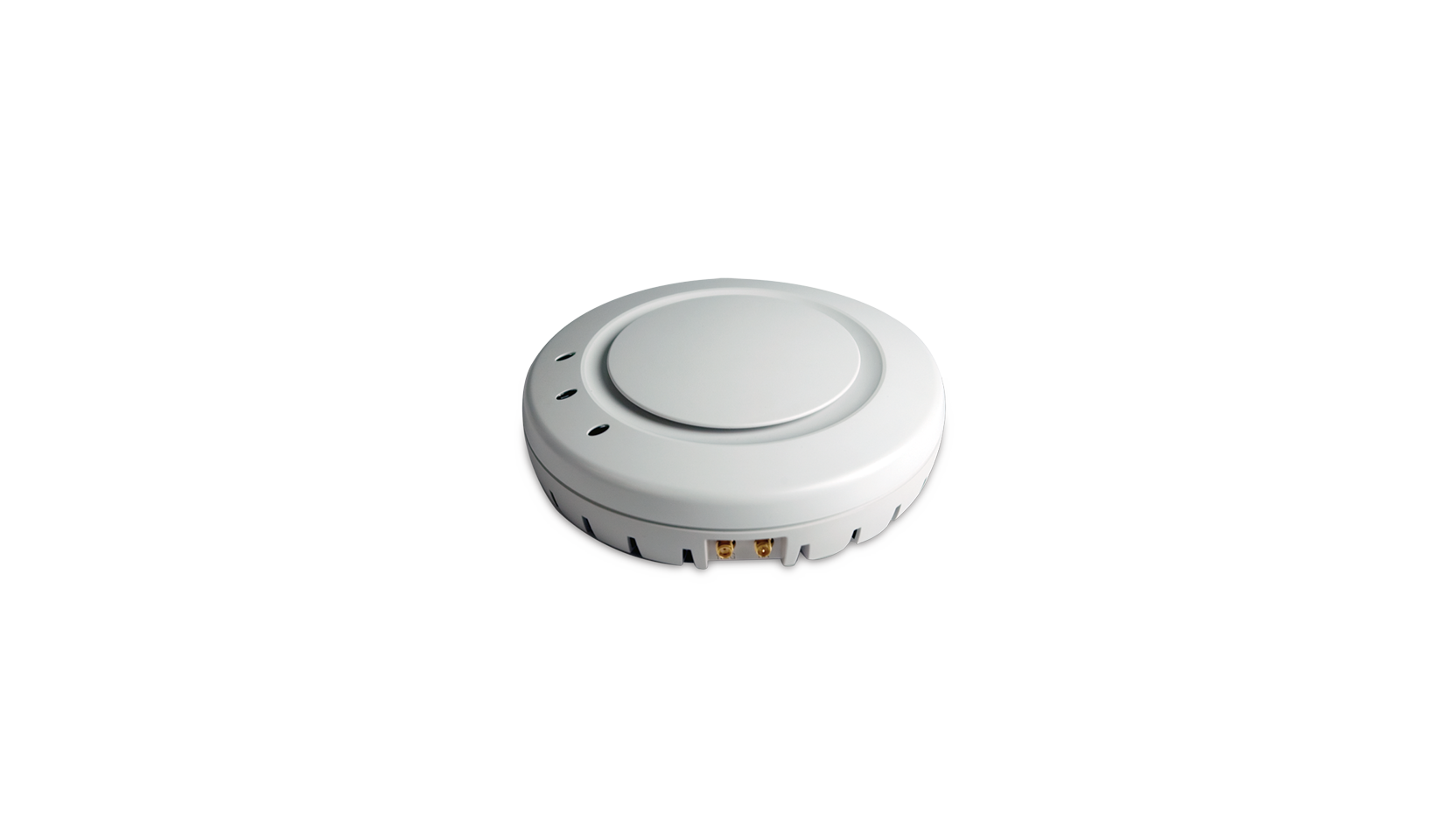

DWL-8220AP

  • Stato del prodotto: Obsoleto





Technical Specifications

Technical Specifications

General

Standards
  • IEEE 802.11
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11h
  • IEEE 802.11af
  • IETF CAPWAP

Status Indicators
  • 3 LEDs

Wired Network Ports
  • 2 RJ-45 ports for 10/100 Ethernet and Power over
  • Ethernet (PoE)

Security
  • WPA (Wi-Fi Protected Access) TKIP, AES (802.11i)
  • Encryption: 40-bit WEP, 128-bit WEP, TKIP, AES
  • Multiple SSID/BSSID support

Others
  • Transmit power control in 1 dB increments
  • Power-save mode supported
  • Supports up to 500 clients

802.11a Radio Specifications

Frequency Band
  • 5.15 GHz to 5.85 GHz

Operating Channels
  • Based on the regulatory domain specified by the system administrator

Data Rates
  • 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps
  • 12 Mbps, 9 Mbps and 6 Mbps with automatic fallback

Modulation
  • Orthogonal frequency division multiplexing (OFDM)

Transmit Power
  • Based on the regulatory domain specified by the system administrator

802.11b Radio Specifications

Frequency Band
  • 2.4 GHz to 2.484 GHz

Operating Channels
  • Based on the regulatory domain specified by the system administrator

Data Rates
  • 11 Mbps, 5.5 Mbps, 2 Mbps and 1 Mbps with automatic fallback

Modulation
  • Direct-sequence spread-spectrum (DSSS)

Transmit Power
  • Based on the regulatory domain specified by the system administrator

802.11g Radio Specifications

Frequency Band
  • 2.4 GHz to 2.484 GHz

Operating Channels
  • Based on the regulatory domain specified by the system administrator

Data Rates
  • 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps
  • 12 Mbps, 9 Mbps and 6Mbps with automatic fallback

Modulation
  • Orthogonal frequency division multiplexing (OFDM)

Transmit Power
  • Based on the regulatory domain specified by the system administrator

Physical & Environmental

Dimensions
  • Diameter: 167.6 mm (6.6 inches)
  • Height: 46.9 mm (1.85 inches)

Weight
  • 354 grams (12.5 oz)

Operating Temperature
  • 0° to 50° C (32° F to 122° F)

Storage Temperature
  • -20° to 70° C (-4° to 158° F)

Humidity
  • 10% to 95% non-condensing

Safety and Electromagnetic Compliance
  • ETS 300.328 (2.4 GHz) and 301.893 (5 GHz)
  • FCC Part 15
  • IC Part 15
  • RSS-139-1 and RSS-210
  • R&TTE Directive 1999/5/EC
  • EN 60101-1-2 (1993)
  • Plenum rated to meet safety and insurance requirements for building deployments
