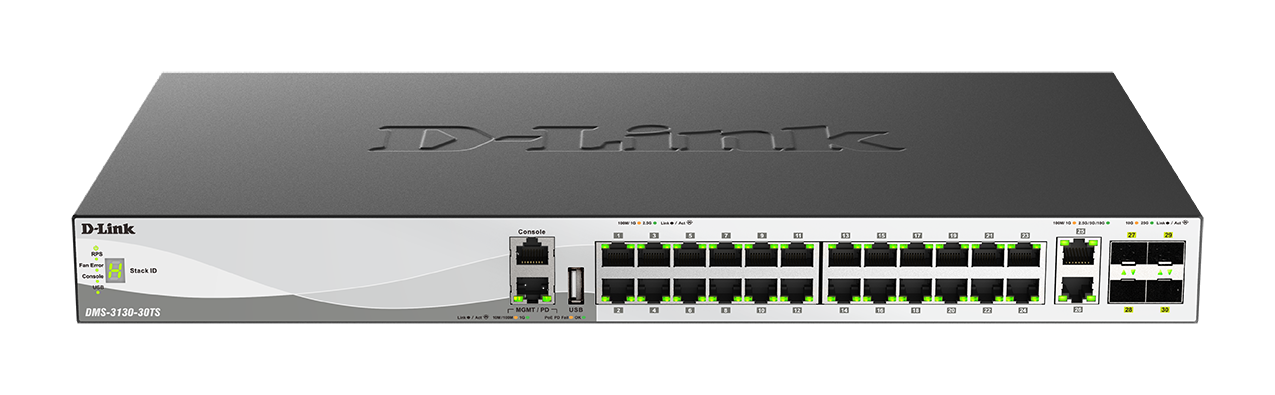

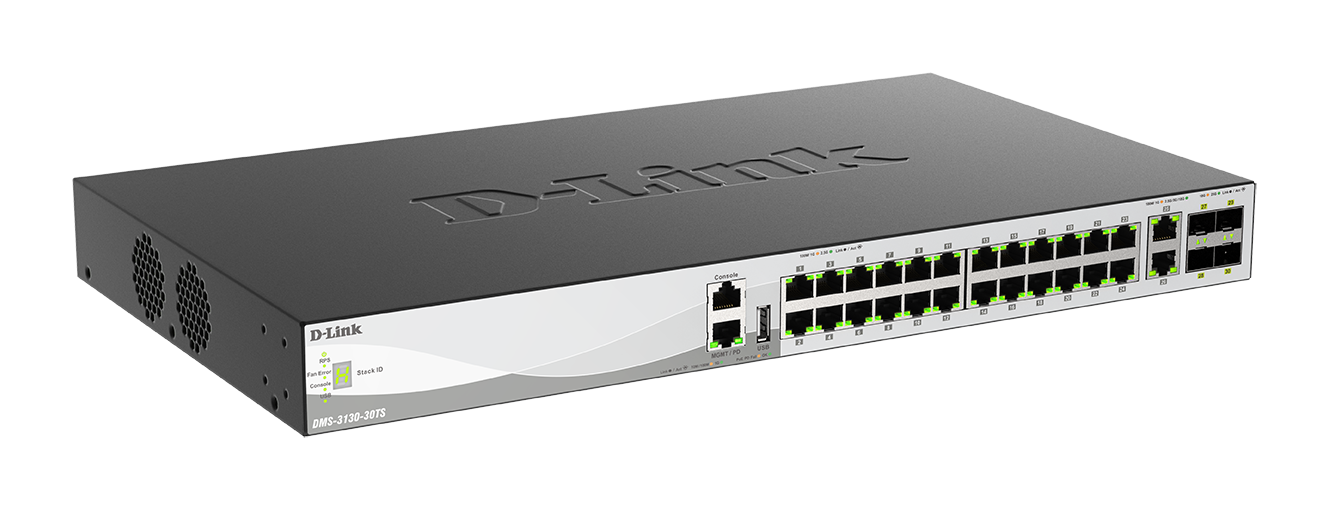

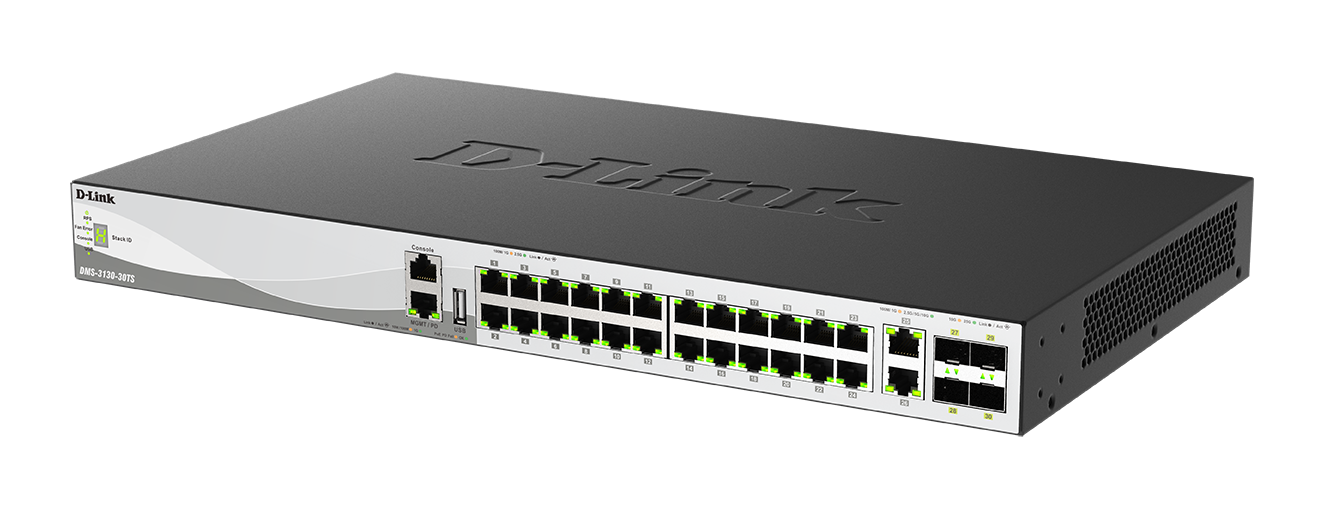

Serie di switch PoE gestiti multi-Gigabit Layer 3 a 30 porte

DMS-3130-30PS, DMS-3130-30TS

  • Stato del prodotto (Revision A1): Live
  • Supporto Multi-Gigabit 2.5G/5G/10G/25G
  • Supporto PoE 2.5G BASE-T PoE+ e 5G BASE-T 60W
  • 4 porte uplink 25G SFP28
  • Protezione da sovratensione 6 kV su porte 2.5G/5G
  • Fino a 400 Gbps di capacità di commutazione
  • Stacking fisico fino a 9 unità
  • Immagine software integrata con potenti funzionalità L2 ed L3.
  • Opzioni di alimentazione PoE (Power over Ethernet) fino a 370 W con RPS
  • QoS e D-Link Safeguard Engine di QoS
  • Garanzia limitata a vita con registrazione del prodotto

Scarica la scheda tecnica

Elenco negozi
Multi-Gigabit 2.5G/5G/10G/25G

Collegamento con velocità 2.5G/5G/10G/25G. Utilizza porte in rame e quattro porte uplink in fibra da 25G per raggiungere distanze maggiori

Multi-Gigabit 2.5G PoE+ e 5G PoE++

Il DMS-3130-30PS è dotato di 16 porte PoE+ 2.5G, 8 porte PoE++ 5G 60W e supporta il Perpetual PoE e il Fast PoE

Stacking fisico

Fino a 9 unità di stack per un massimo di 234 porte Multi-Gigabit e fino a 200 Gbps di larghezza di banda. Supporta lo stacking a lunga distanza su fibra ottica

Funzioni Layer 2

Come Flow Control, Link Aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocol (STP), Loopback Detection, Snooping IGMP/MLD.

Funzionalità Layer 3

Include fino a 128 interfacce IP, VRRP, routing statico, RIPng, OSPF, IGMP e PIM-SM

Multicasting L2 & L3

Snooping IGMP v1/v2/v3, Snooping MLD, PIM-SM



Routing statico

Routing del traffico Layer 3 tra gli switch, anche in caso di segmentazione delle VLAN.

Immagini e configurazioni multiple

Test del firmware e della configurazione, in fase di caricamento, con riduzione dei rischi

Accelerate your network with Multi-Gigabit Ethernet.

With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

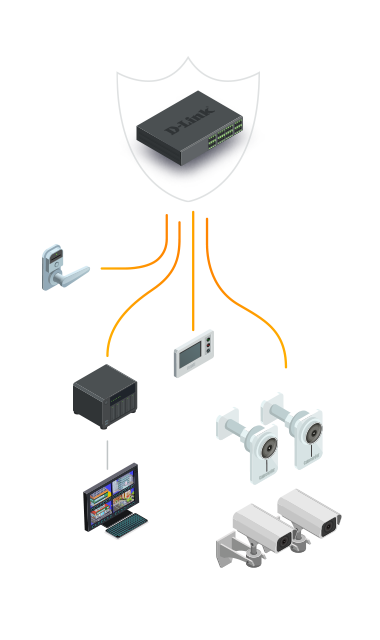

World-class reliability.

Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.

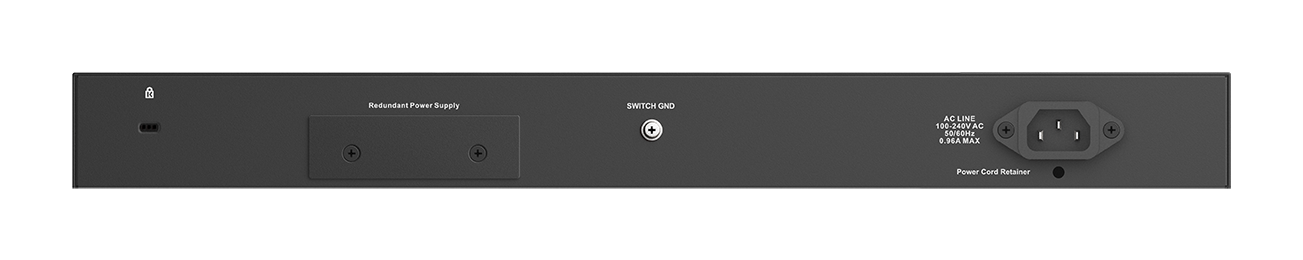

x4 25G SFP28 uplink ports, physical stacking for redundancy, and have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime. DMS-3130-30PS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.

Comprehensive security.

Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.

IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Electrical surge protection.

Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.

Easy Access Control policies.

They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

A stack above the competition.

Unlock the full potential of your network infrastructure. Utilise the high switching capacity of up to 400Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.

Versatile traffic management.

The DMS-3130 Series has a rich set of multi-layer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. L2/L3 Multicast support enables your network to handle growing IPTV applications.

Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface, while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and provide better security to the backbone network.




PoE+ /PoE++ with budgets up to 960W

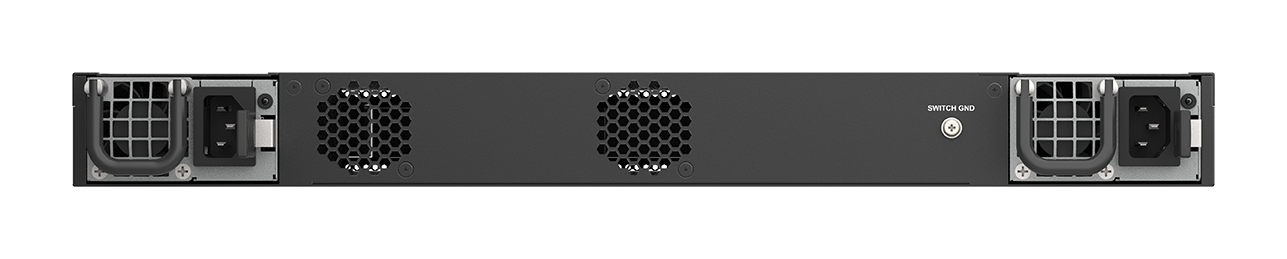

PoE+ /PoE++ with budgets up to 960W DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies.

Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting, or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.

A disposizione per aiutare

Da oltre 35 anni nel settore delle reti

Esperti in soluzioni innovative end-to-end per piccole imprese ma anche grandi società in tutto il mondo.

Parlare con noi è facile

Assistenza tecnica locale a cura di esperti in 16 paesi. I nostri team addetti all'assistenza sono pronti per aiutarti.

Garanzia limitata a vita D-Link

La qualità e l'affidabilità dei prodotti D-Link ci consente di fornire una garanzia limitata a vita leader del settore della durata di 5 anni con ogni registrazione.

Prodotti correlati

Switch Multi-Gigabit Desktop a 5 porte da 2.5 G
DMS-105
Maggiori informazioni
Switch Multi-Gigabit Desktop a 8 porte da 2.5 G
DMS-108
Maggiori informazioni
Switch multi-Gigabit 7 porte non gestito
DMS-107
Maggiori informazioni
Smart Switch gestito PoE multi-Gigabit a 10 porte
DMS-1100-10TP
Maggiori informazioni

Specifiche tecniche

Type
Managed
Number of ports
16 to 30 ports
Layer
Layer 3
Stacking
Physical
Virtual
Main type of ports
2.5GBASE-T Ethernet
5GBASE-T Ethernet
Type of uplink ports
10GBASE-T
25GbE SFP28
Switching capacity
360 Gbps
400 Gbps
PoE options
802.3af
802.3at
802.3bt draft
Number of PoE ports
24
PoE power budget
740W
960W with DPS-PWR740AC
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Physical stacking
Up to 9 devices
Virtual stacking (up to 32 devices)
Supported
Jumbo frame
Supported
MAC address
32K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
MAC-based
Port-based
Protocol-based
GVRP
Advanced VLAN
Auto Surveillance VLAN
Asymmetric VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Super VLAN
Voice VLAN
IPv4/IPv6 routing table
IPv4 - 1K
IPv6 - 512
IPv4/IPv6 forwarding table
IPv4 - 4K
IPv6 - 2K
IP interfaces
128
Static route for IPv4/IPv6
IPv4 - 512
IPv6 - 256
Multicasting
Supported
PIM-SM
Supported
RIP v1/v2
Supported
RIPng
Supported
OSPF
Supported
OSPFv3
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
8 Kbps minimum granularity
Port-based QoS
Supported
Three colour marker
8 Kbps minimum granularity
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
