PowerLine AV 2-Port Mini Adapter
- Stato del prodotto: Obsoleto

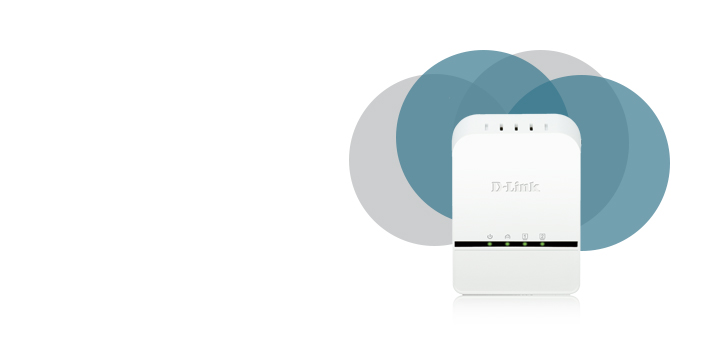

D-Link’s PowerLine AV 2-Port Mini Adapter uses standard electrical wiring to extend your home network. Simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection. With two Ethernet ports you can connect up to two Internet-enabled devices, such as your computer, game consoles, smart TVs.
PowerLine AV 2-Port Mini Adapter

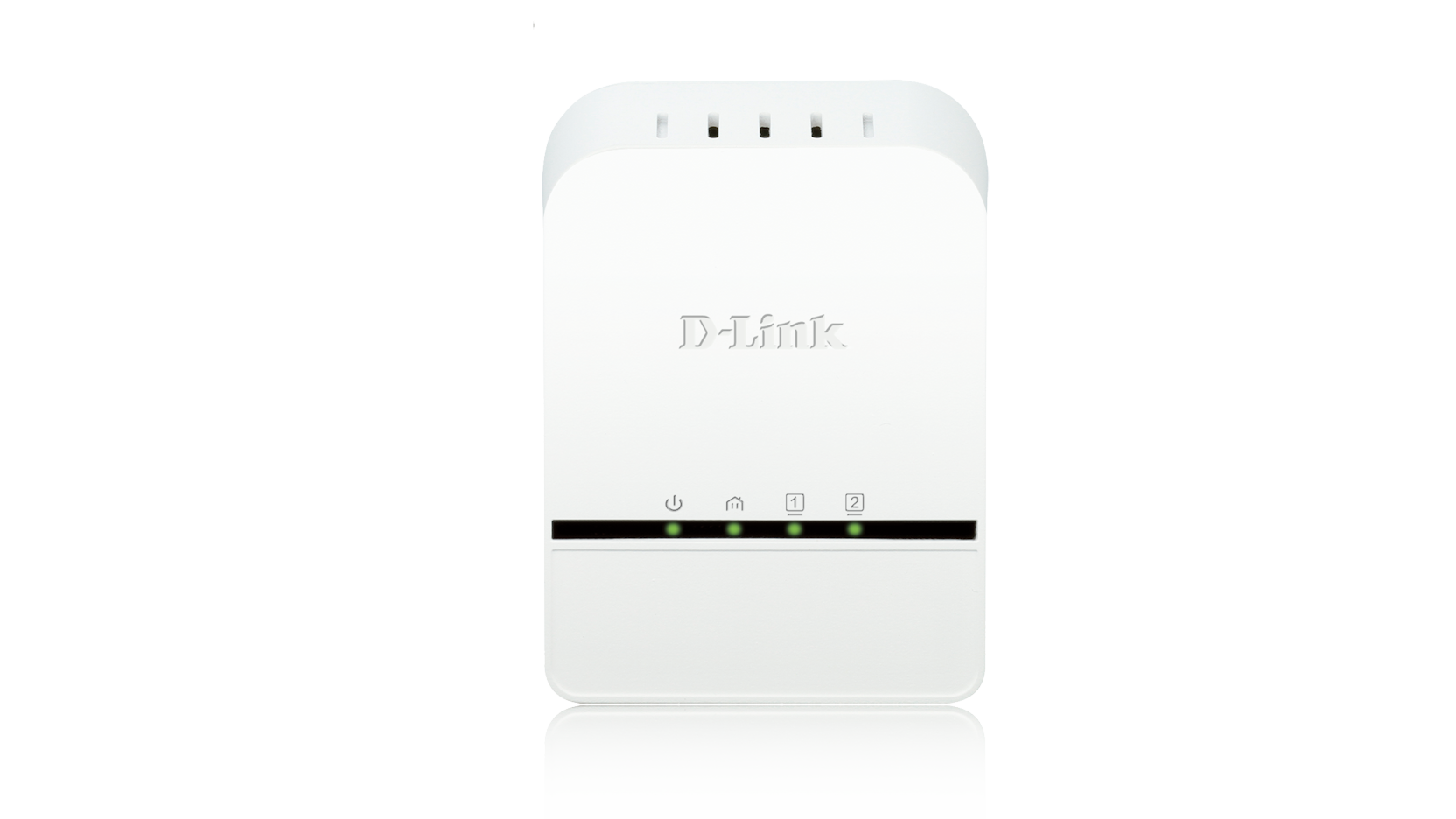

D-Link’s DHP-328AV Powerline AV Mini Adapter makes it easy to create a high-speed network. Simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection and then plug another adapter into the room you want to extend your connection to. This adapter comes with 2 Ethernet ports which means you can connect even more devices, such as PCs and games consoles, in any room of your house to the Internet.
Why you want it
|Plug-and-Play feature means creating a PowerLine network is simple and easy||PowerLine AV technology make it ideal for activities like HD media|
HomePlug AV Technology
The D-Link Powerline AV Mini Adapter (DHP-328AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilising your home’s existing electrical wiring as a reliable high-speed network, the DHP-328AV makes it easy to connect computers, gaming consoles, and media players to your network without additional cables. The DHP-328AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.
How does it work?
PowerLine gives you the flexibility to create the network you need in the space you have, by using your electric wiring to connect computers and other devices. It’s a simple solution to what can be a sticky networking situation.
Plug into power sockets
Connect your wired device
Enjoy your high speed HomePlug network
Hassle-free plug and play installation, plugs directly into a power socket with no additional cables required.
This adapter implements 128-bit AES data encryption at the push of a button to protect your network from any intruders.
Power saving mode
Automatically places the adapter in sleep mode if no data transmission or reception occurs over a certain period of time.
- IEEE 802.3
- IEEE 802.3u
- HomePlug AV
- IEEE 1901
- Power plug (country-dependent)
- 2 x 10/100BASE-TX Ethernet port with Auto MDI/MDIX
- RJ-45 connector
- 100V ~ 240V, 50/60 Hz, 0.1A
- 3.01 W maximum
PowerLine modulation scheme
- OFDM symbol modulation
PowerLine frequency band
- 2 MHz to 30 MHz
- PowerLine: up to 200 Mbps (PHY rate)1
- Ethernet: 10/100 Mbps (auto negotiation)
- 128-bit AES link encryption
Minimum system requirements (For PC Utility Software)
- Windows 7/Vista/XP SP3
- Ethernet interface (100 Mbps)
- Ethernet 1
- Ethernet 2
Dimensions (H x L x W)
- 81 x 61 x 27 mm (each adapter)
- 99.3 g (EU, each adapter)
- 103 g (UK, each adapter)
- 0 to 40 ºC
- 10% to 90% non-condensing
- CE EMC Class B
- CE LVD
1Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV standard.
